Library› Engine Room› Pumps› Self-Priming Pump› jabsco 23920-9223
jabsco

23920-9223

Self-Priming Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Overall-height216 mm
Overall-length124 mm
Overall-width3.9 mm
Ports3/4"
Output Head44 mH2O
Wire Length6 m
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Do not restrict the inlet pipework. Flexible impeller pumps can handle solids so strainers are not generally recommended.”

jabsco 23920-9223 – Drawing (7c0d9583ca2e_S3-32 S. 3)
Drawing · 7c0d9583ca2e_S3-32 · S. 3
jabsco 23920-9223 – Drawing (7c0d9583ca2e_S3-32 S. 4)
Drawing · 7c0d9583ca2e_S3-32 · S. 4
jabsco 23920-9223 – Drawing (7c0d9583ca2e_S3-32 S. 5)
Drawing · 7c0d9583ca2e_S3-32 · S. 5
jabsco 23920-9223 – Page preview (7c0d9583ca2e_S3-32 S. 6)
Page preview · 7c0d9583ca2e_S3-32 · S. 6

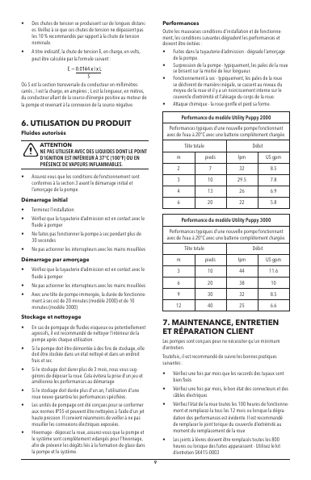

jabsco 23920-9223 – Page preview (7c0d9583ca2e_S3-32 S. 7)
Page preview · 7c0d9583ca2e_S3-32 · S. 7

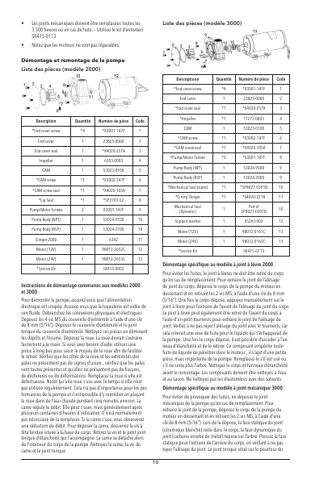

jabsco 23920-9223 – Page preview (7c0d9583ca2e_S3-32 S. 8)
Page preview · 7c0d9583ca2e_S3-32 · S. 8

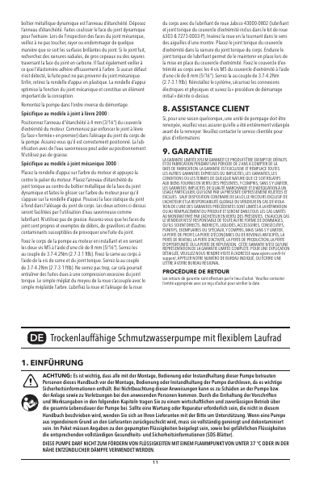

jabsco 23920-9223 – Page preview (7c0d9583ca2e_S3-32 S. 9)
Page preview · 7c0d9583ca2e_S3-32 · S. 9
Source: jabsco 23920-9223 datasheet, p. 1
