Library› Engine Room› Pumps› Pump› Gorman Rupp T6A
Gorman Rupp

T6A

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Size150 mm x 150 mm DIN 2527 (PN16) Flanged
Maximum Operating Pressure5,4 Bar
Impeller ShaftAlloy Steel 4150
Maximum Temperature of Liquid Pumped71°C
Bearing HousingGray Iron 30
FlangesGray Iron 30
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The T6A pump is a vertical belt drive pump designed for handling liquids with spherical solids up to 76.2 mm in diameter.

Applications

  • industrial applications
  • marine applications
  • pump systems
Source: Gorman Rupp T6A datasheet, p. 2

Features

  • Handles 76.2 mm Diameter Spherical Solids
  • Oil-Lubricated Double Floating Self-Aligning Seal
  • Stainless Steel 316 Stationary Seat
  • Fluoro-carbon Elastomers
  • Stainless Steel 18-8 Cage and Spring

Options

  • Self-Cleaning Wear-plate
  • Pump Drain Kit
  • High Pump Temperature Alarm

Standards

  • IEC60034-30
Source: Gorman Rupp T6A datasheet, p. 2

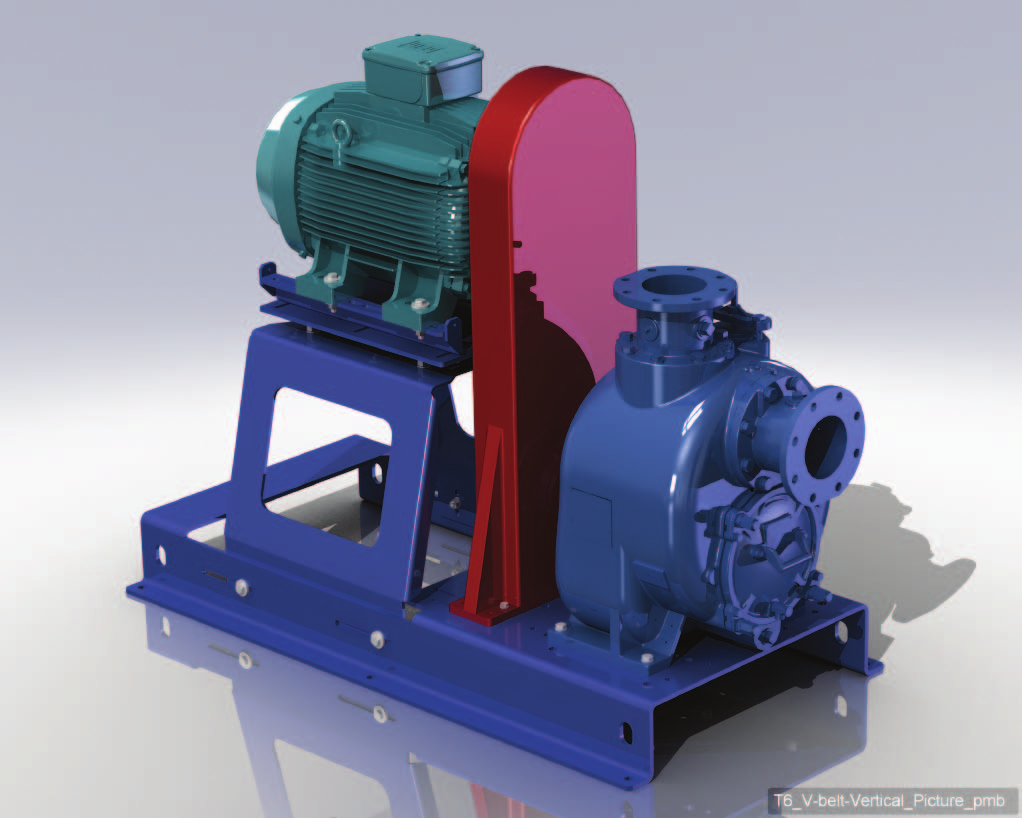

Gorman Rupp T6A – Photo (8fe8ccc4a988_S1-1 S. 1)
Photo · 8fe8ccc4a988_S1-1 · S. 1
Gorman Rupp T6A – Photo (8fe8ccc4a988_S1-1 S. 1)
Photo · 8fe8ccc4a988_S1-1 · S. 1
Gorman Rupp T6A – Photo (f22decd378e3_S1-2 S. 2)
Photo · f22decd378e3_S1-2 · S. 2
Gorman Rupp T6A – Drawing (70220f94627d_S5-10 S. 5)
Drawing · 70220f94627d_S5-10 · S. 5
Gorman Rupp T6A – Drawing (70220f94627d_S5-10 S. 6)
Drawing · 70220f94627d_S5-10 · S. 6

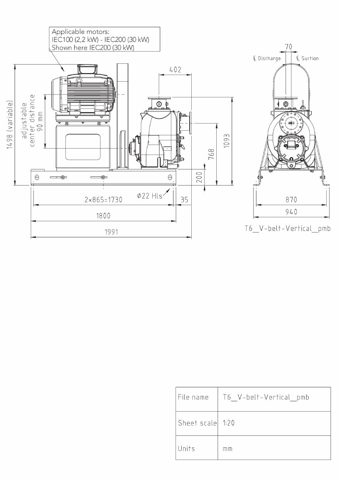

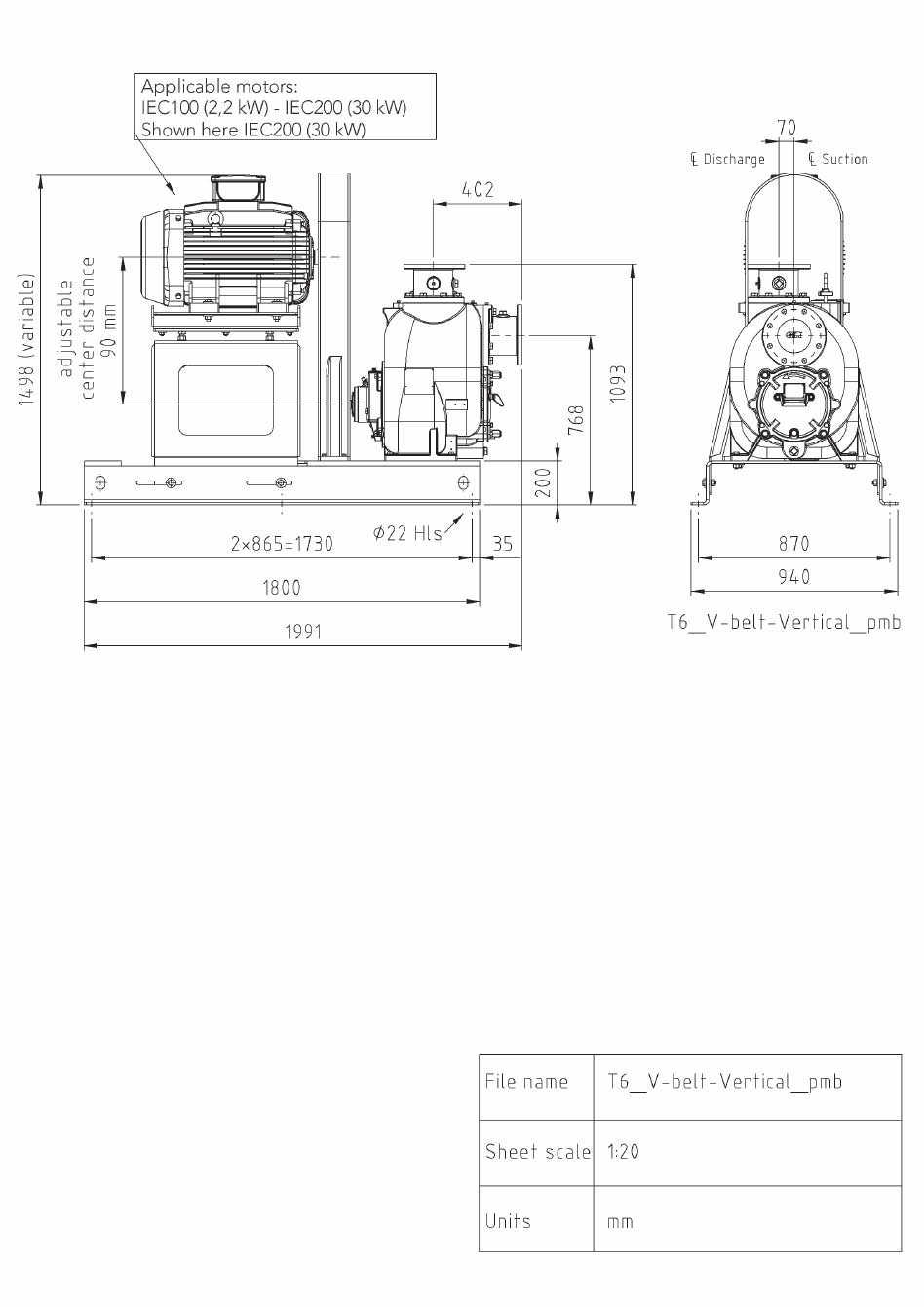

Gorman Rupp T6A – Drawing (8fe8ccc4a988_S1-1 S. 1)
Drawing · 8fe8ccc4a988_S1-1 · S. 1

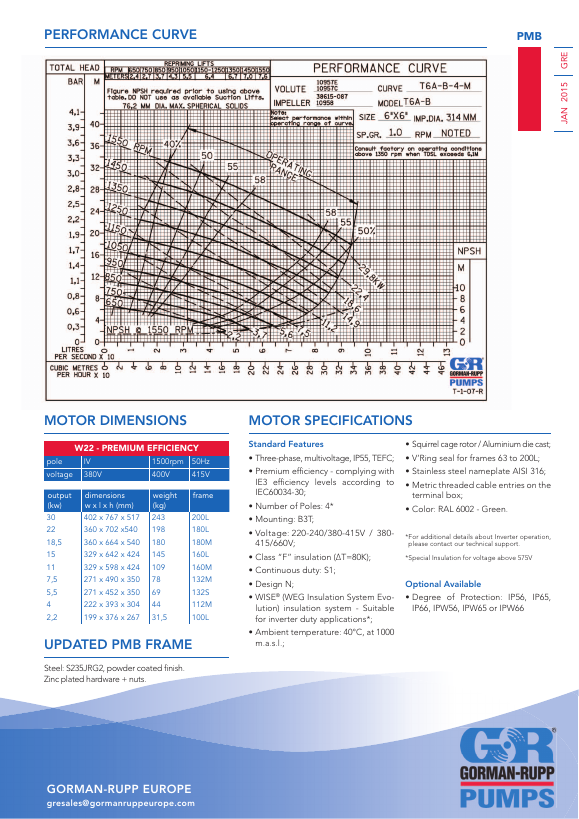

Gorman Rupp T6A – Page preview (f22decd378e3_S1-2 S. 2)
Page preview · f22decd378e3_S1-2 · S. 2
Source: Gorman Rupp T6A datasheet, p. 1
