Grundfos

95m

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Pump — not a photo of this model.
Grundfos in the SpecCodex register — view brand page →
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rated flow95 m³/h
Rated head121 m
Curve toleranceISO9906:2012 3B
Rated power - P245 kW
Power (P2) required by pump45 kW
Mains frequency50 Hz
Rated voltage3 x 380-400-415 V
Rated current89.0-89.0-89.0 A
Rated speed2910-2920-2925 rpm
Enclosure class (IEC 34-5)IP58
Net weight212 kg
Gross weight273 kg
Shipping volume0.457 m³
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A Grundfos pump designed for water transfer with stainless steel construction, suitable for marine applications.

Applications

  • water transfer
  • industrial water handling

Features

  • stainless steel construction
  • high efficiency
  • suitable for water with high temperature
  • direct-on-line start method

Standards

  • ISO9906:2012

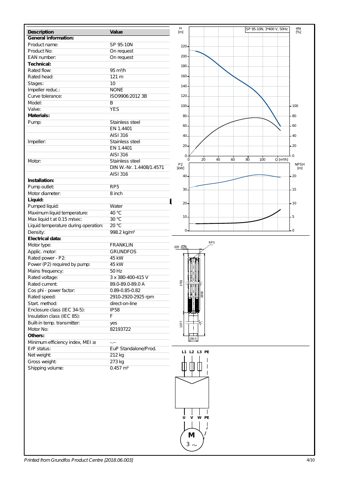

Grundfos 95m – Drawing (7ccae2b80dae_S3-12 S. 3)
Drawing · 7ccae2b80dae_S3-12 · S. 3

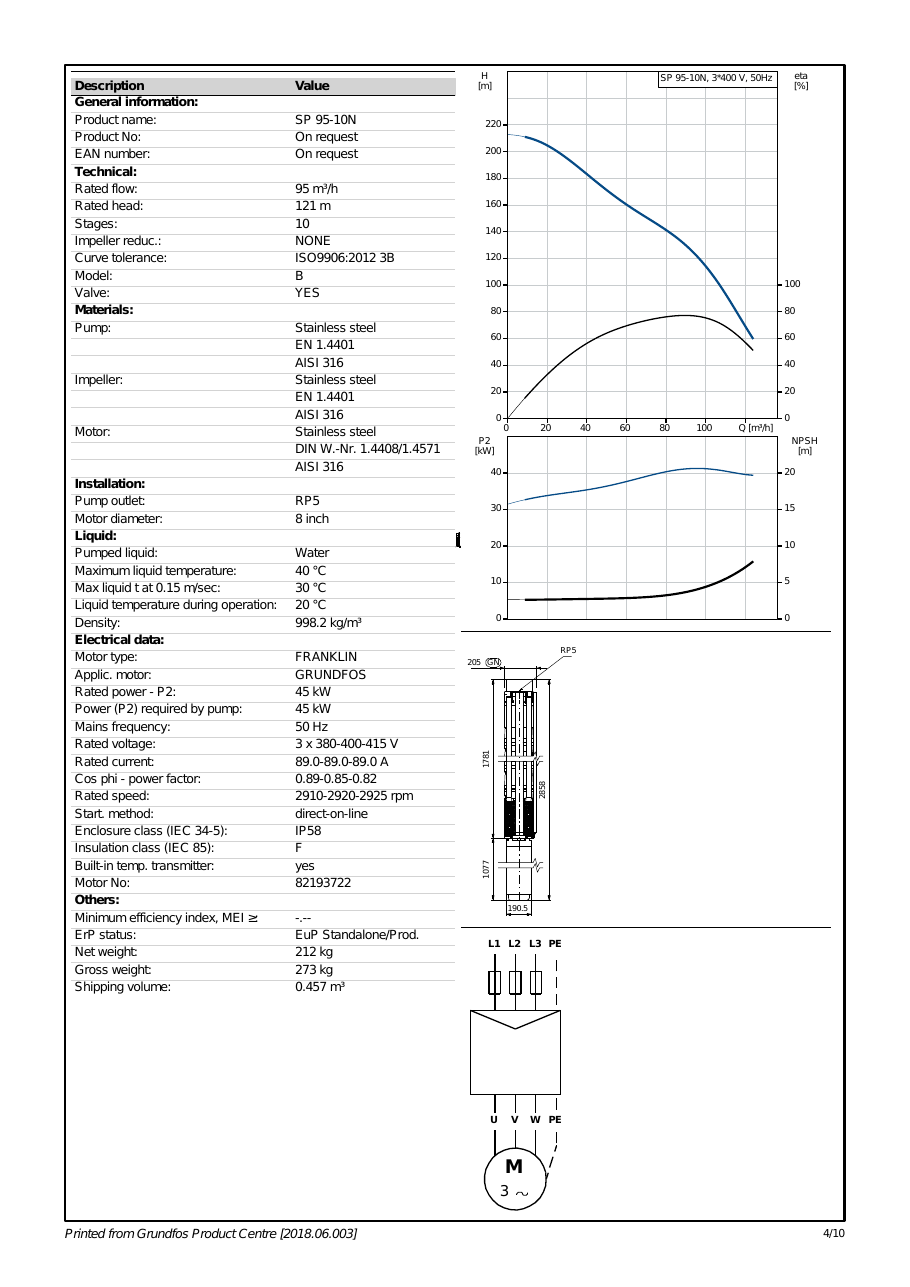

Grundfos 95m – Drawing (7ccae2b80dae_S3-12 S. 4)
Drawing · 7ccae2b80dae_S3-12 · S. 4

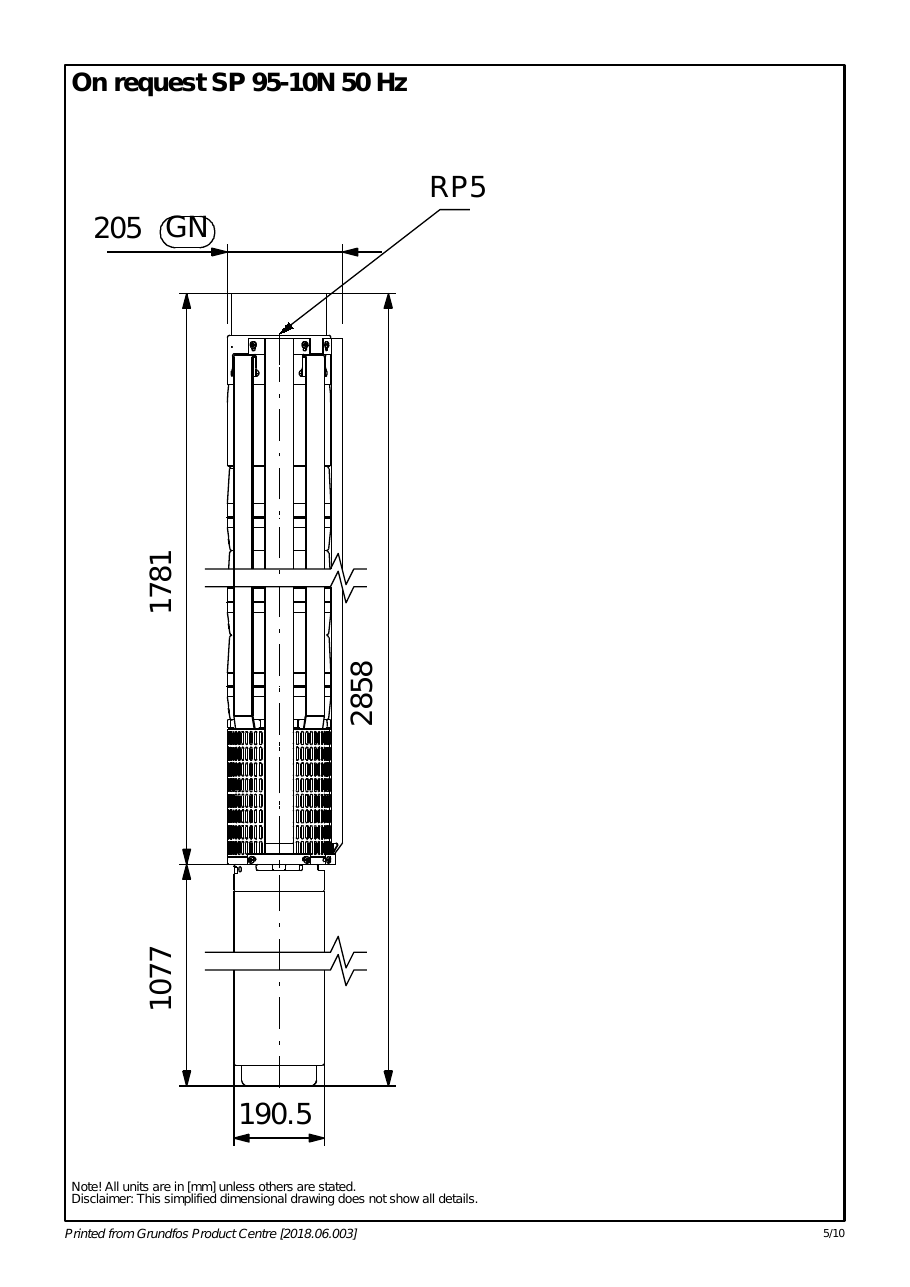

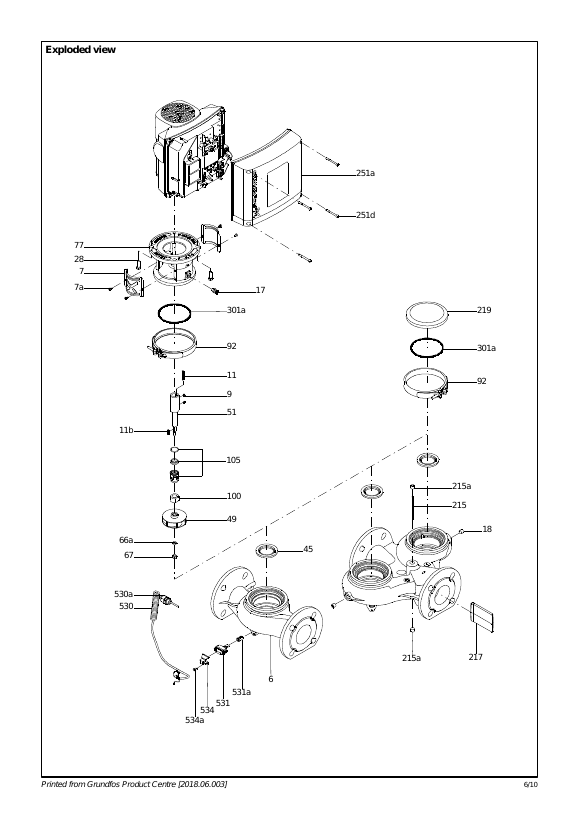

Grundfos 95m – Drawing (7ccae2b80dae_S3-12 S. 6)
Drawing · 7ccae2b80dae_S3-12 · S. 6

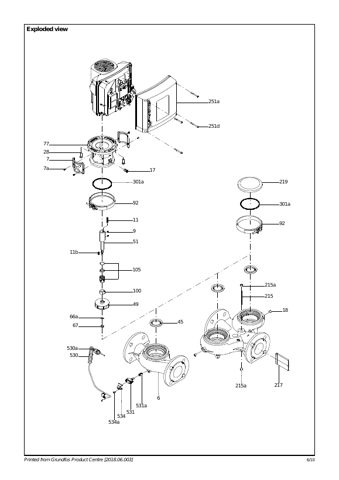

Grundfos 95m – Page preview (7ccae2b80dae_S3-12 S. 5)
Page preview · 7ccae2b80dae_S3-12 · S. 5

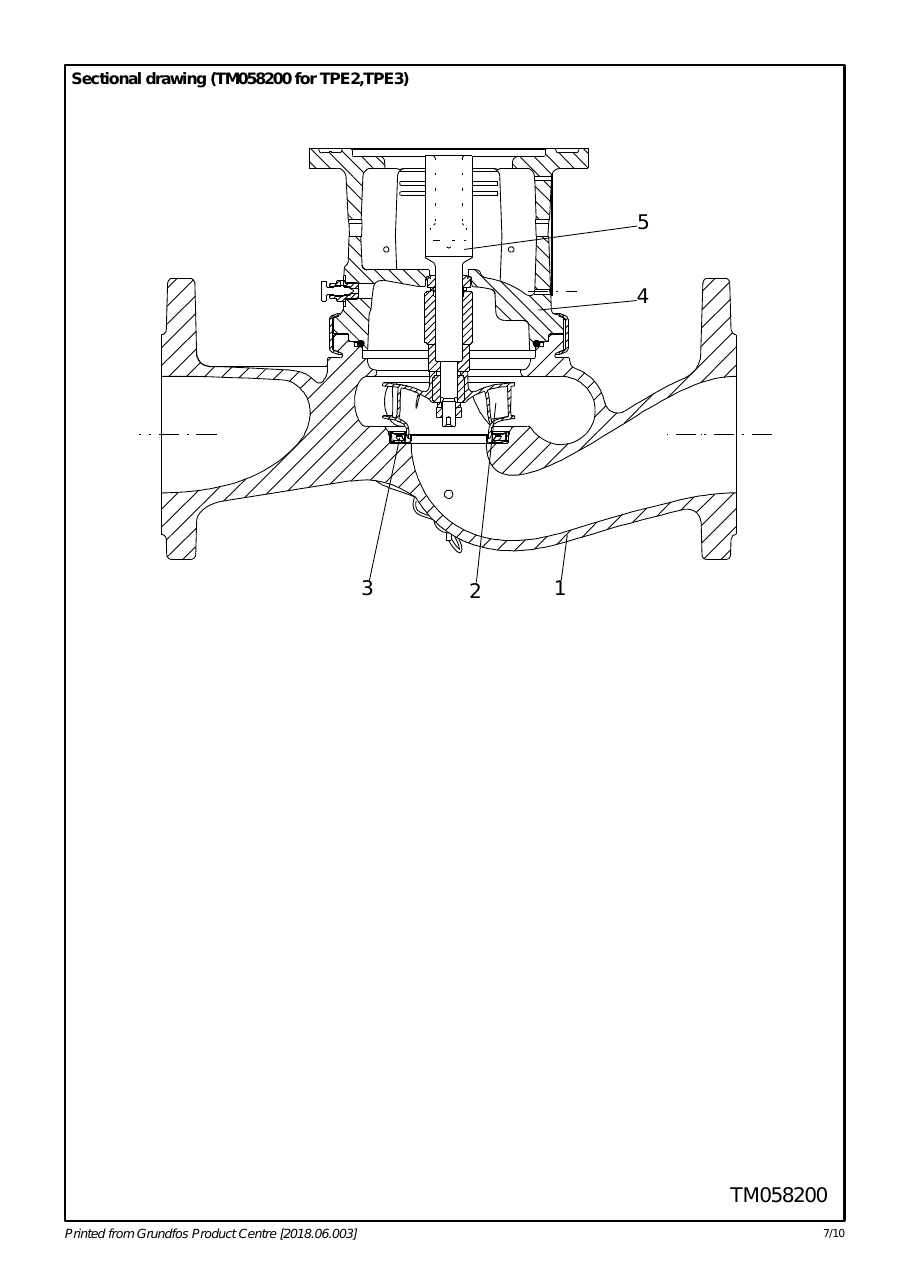

Grundfos 95m – Page preview (7ccae2b80dae_S3-12 S. 7)
Page preview · 7ccae2b80dae_S3-12 · S. 7

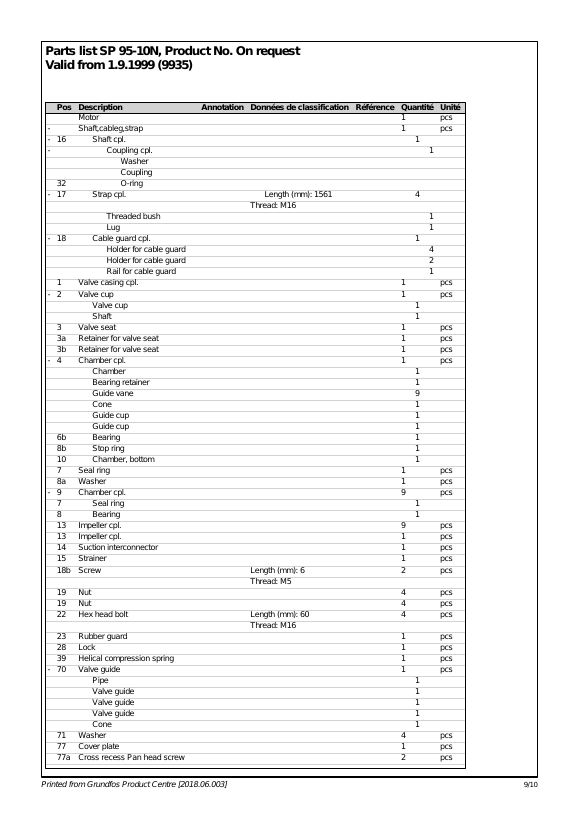

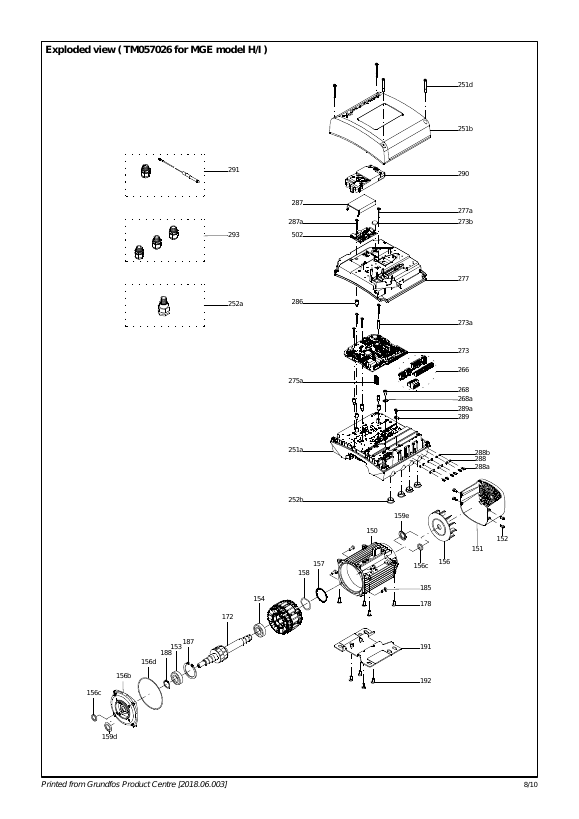

Grundfos 95m – Page preview (7ccae2b80dae_S3-12 S. 8)
Page preview · 7ccae2b80dae_S3-12 · S. 8

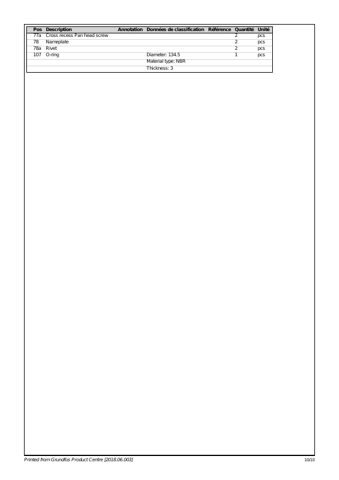

Grundfos 95m – Page preview (7ccae2b80dae_S3-12 S. 9)
Page preview · 7ccae2b80dae_S3-12 · S. 9
Source: Grundfos 95m datasheet, p. 3
