Library› Engine Room› Pumps› Pump› Grundfos Marine MGE160MD
Grundfos Marine

MGE160MD

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

AuşinimasIC 411
Aplinkos temperatųros intervalas-20 .. 40 °C
Variklio flanšo dydisFF300
Variklio tipas160MD
Nominali galia - P215 kW
Elektros tinklo dažnis50 Hz
Nominali žatampa3 x 380-480 V
Nominali srovė30.0-26.0 A
Nominalios apsukos480-3540 rpm
Nominalus pilnos apkrovos sukimo momentas49 Nm
Eta40 [A]
P218 [kW]
Durchmesser19
Länge42 K6
Breite308
Höhe314
Frequency50 Hz
Dažnis50 [Hz]
Nom. variklio įtampa380-480 V
Nom. variklio galia15 kW
Nom. variklio apsukos480-3540 rpm
Nom. variklio momentas49 Nm
Aplinkos temperatūra-20°C - 40°C
Aukštis virš jūros lygio1000 m
Efektyvumas esant pilnai apkrovai91.9 %
Galios koeficientas0,91-0,86
Rėmo dydis160MD
Flanšo dydisFF300
Masė133 kg
Apsaugos lygisIP55
Izoliacijos klasė155(F) - 130(B)
CertificationsIEC 60034
Ventiliatoriaus skersmuoD240 [mm]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A Grundfos marine pump designed for use in marine environments, featuring various sensor and control inputs.

Features

  • sensor inputs
  • digital and analog outputs

Options

  • additional sensor options

Standards

  • IEC 60034
Source: Grundfos Marine MGE160MD datasheet, p. 5

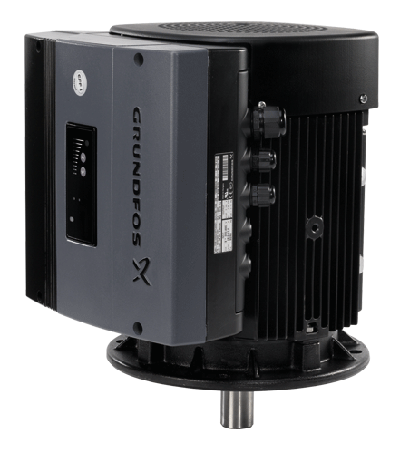

Grundfos Marine MGE160MD – Photo (142c97c93071_S1-9 S. 5)
Photo · 142c97c93071_S1-9 · S. 5

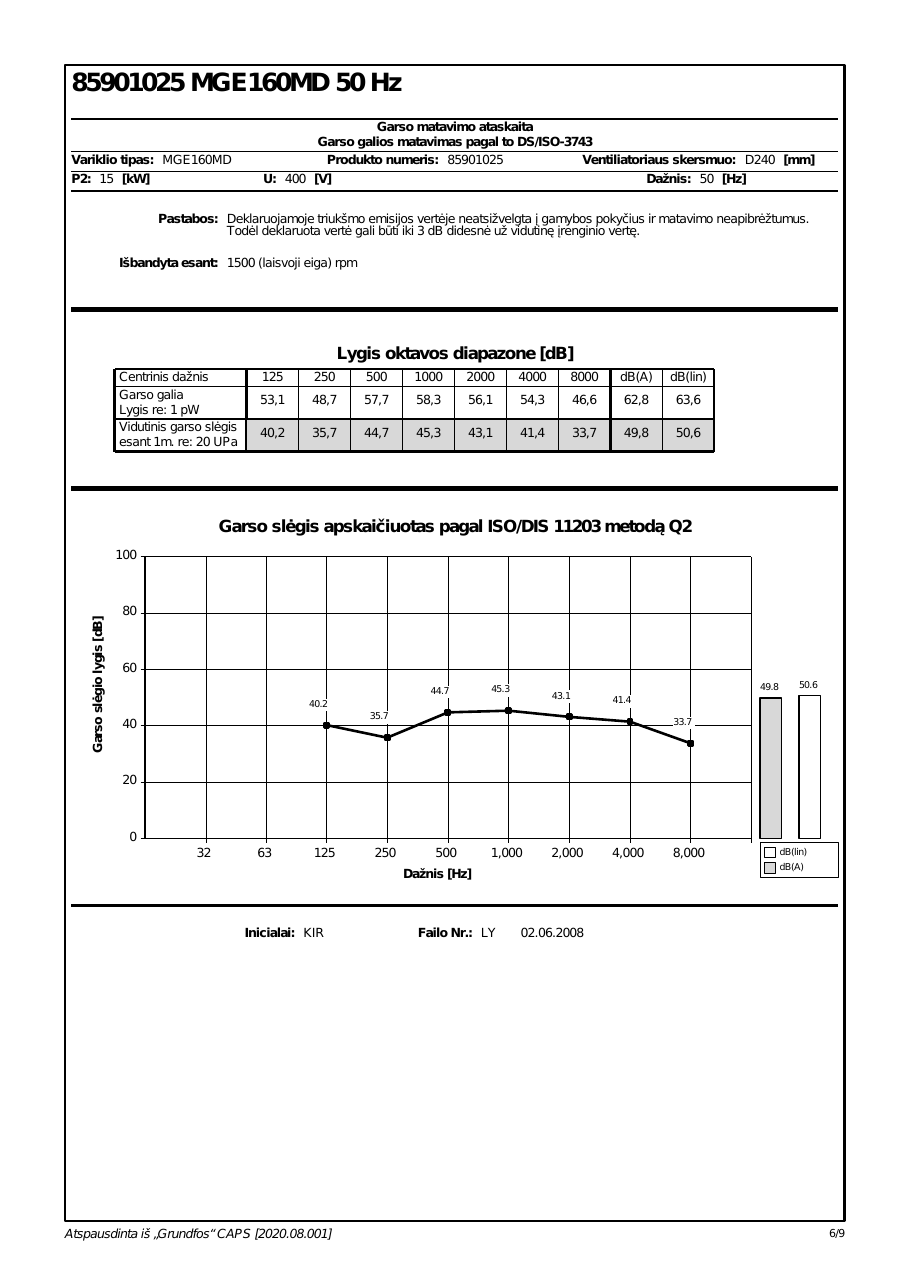

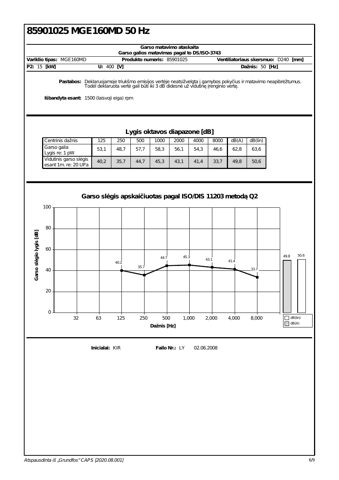

Grundfos Marine MGE160MD – Drawing (142c97c93071_S1-9 S. 6)
Drawing · 142c97c93071_S1-9 · S. 6
Grundfos Marine MGE160MD – Drawing (142c97c93071_S1-9 S. 7)
Drawing · 142c97c93071_S1-9 · S. 7
Grundfos Marine MGE160MD – Drawing (142c97c93071_S1-9 S. 8)
Drawing · 142c97c93071_S1-9 · S. 8

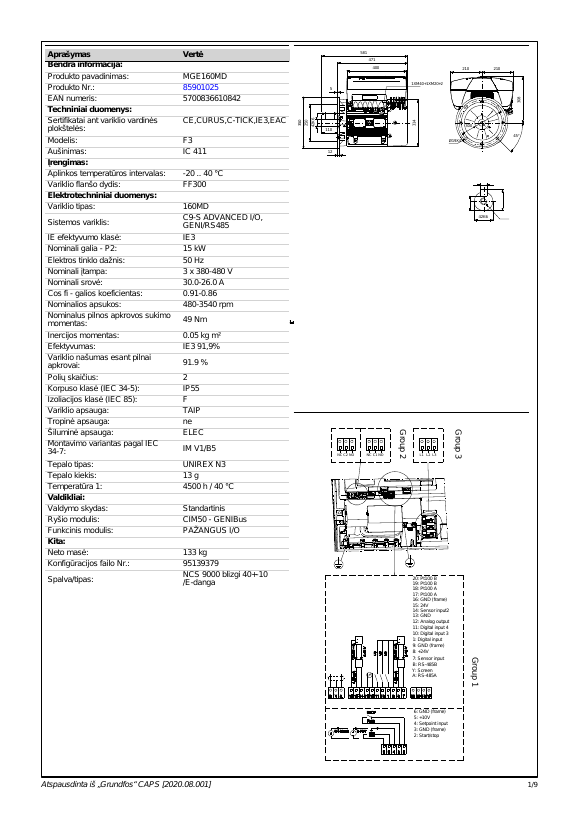

Grundfos Marine MGE160MD – Page preview (142c97c93071_S1-9 S. 1)
Page preview · 142c97c93071_S1-9 · S. 1

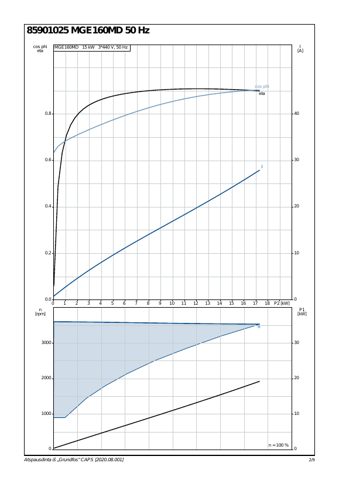

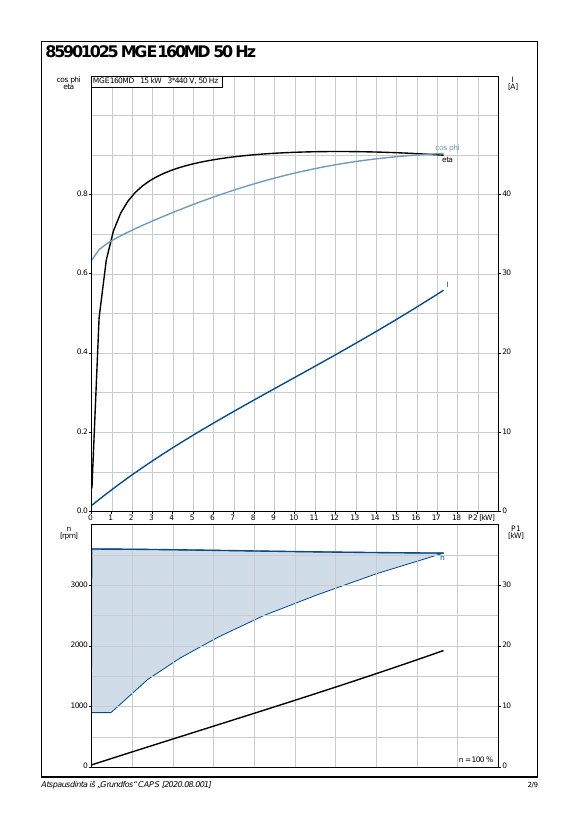

Grundfos Marine MGE160MD – Page preview (142c97c93071_S1-9 S. 2)
Page preview · 142c97c93071_S1-9 · S. 2

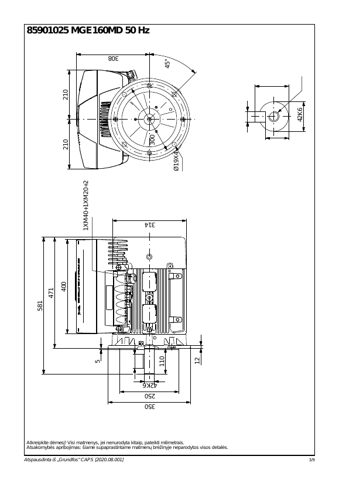

Grundfos Marine MGE160MD – Page preview (142c97c93071_S1-9 S. 3)
Page preview · 142c97c93071_S1-9 · S. 3

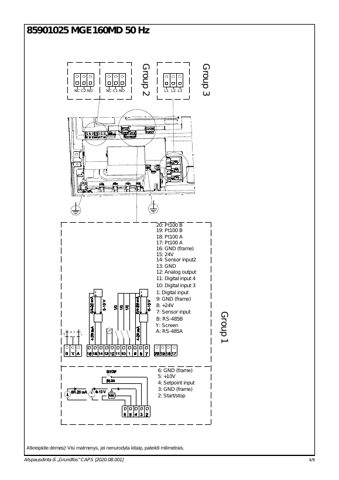

Grundfos Marine MGE160MD – Page preview (142c97c93071_S1-9 S. 4)
Page preview · 142c97c93071_S1-9 · S. 4
Source: Grundfos Marine MGE160MD datasheet, p. 4
