Library› Electrical› Cable & Wiring› Instrumentation Cable› Helkama Bica LKAM-HF
Helkama Bica

LKAM-HF

Instrumentation Cable · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rated Voltage150/250 V (300 V)
Minimum Installation Temperature-15 °C
Operating Temperature-40 – 80 °C
Maximum Conductor Temperature90 °C
RATED VOLTAGEAC 0.6/1 kV (1.2 kV)
FIRE PERFORMANCEIEC 60332-1-2
Halogen-freeIEC 60754 series
SMOKE EMISSIONIEC 61034 series
OIL RESISTANCEIEC 60811-404 conditions
MAXIMUM CONDUCTOR TEMPERATURE90 °C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Screened power and control cable for fixed installation in most areas, especially on open deck in ships and offshore units.

Applications

  • offshore units
  • marine applications

Features

  • Flame-retardant
  • Halogen-free
  • Low smoke emission
  • Oil resistant (SHF2 only)

Options

  • Stranded copper conductor 1.5-2.5 mm²
  • XLPE insulation
  • Polyolefine SHF1 sheath
  • Thermosetting polyolefine SHF2 sheath on request

Standards

  • IEC 60092-360
  • IEC 60092-353

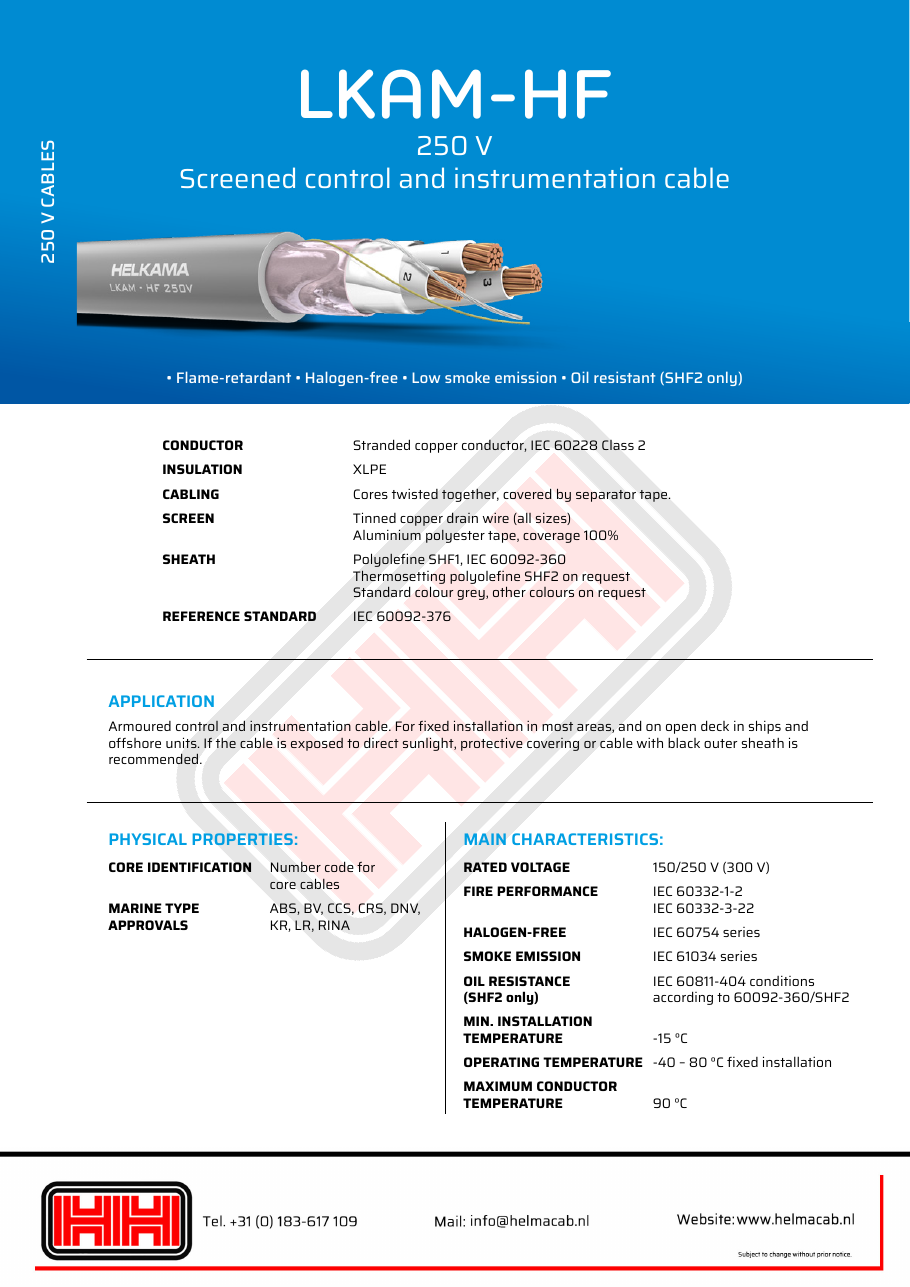

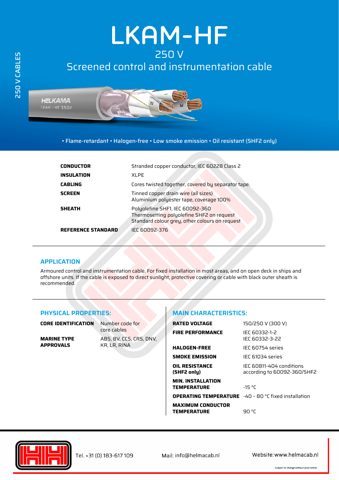

Helkama Bica LKAM-HF – Drawing (22591094b8b9_S1-1 S. 1)
Drawing · 22591094b8b9_S1-1 · S. 1

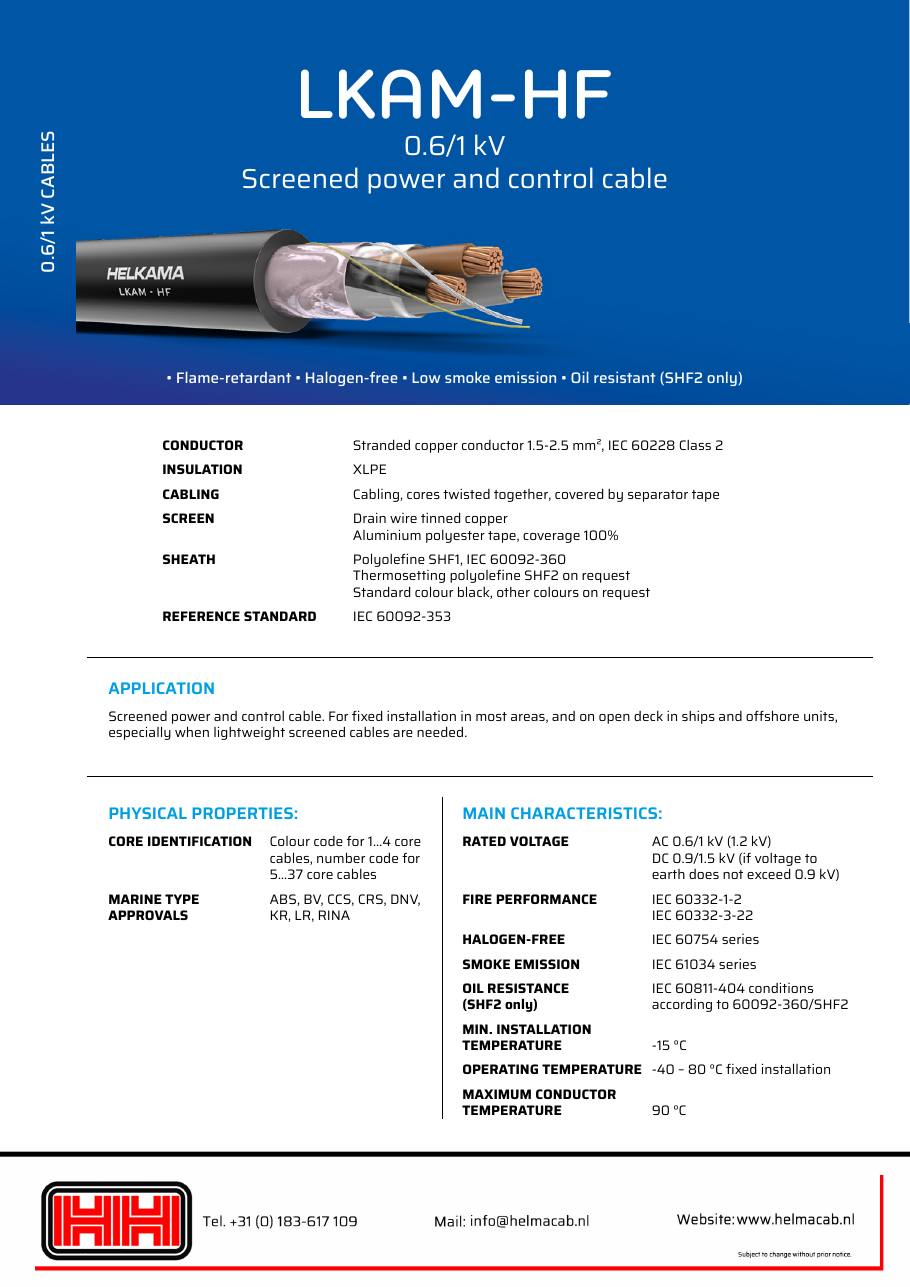

Helkama Bica LKAM-HF – Drawing (4cce19bace09_S1-1 S. 1)
Drawing · 4cce19bace09_S1-1 · S. 1
Source: Helkama Bica LKAM-HF datasheet, p. 1
