Library› Navigation› Navigation & Bridge Equipment› Sound Signaling Device› Kockum Sonics max 16b - Ref. No. 25800110/max 30b - Ref. No. 25800111
Kockum Sonics

max 16b - Ref. No. 25800110/max 30b - Ref. No. 25800111

Sound Signaling Device · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Sound Signaling Device — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Frequency110 Hz
Sound Pressure Level (1m)149 dB
1/3 octave IMO limit143 dB
Air consumption60 - 70 l/s
Air supply pressure with choke regulation0.6-3 MPa (6-30 bar)
Electric power24 W
Valve 27 W27 W
Protection classIP56
Weight52 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

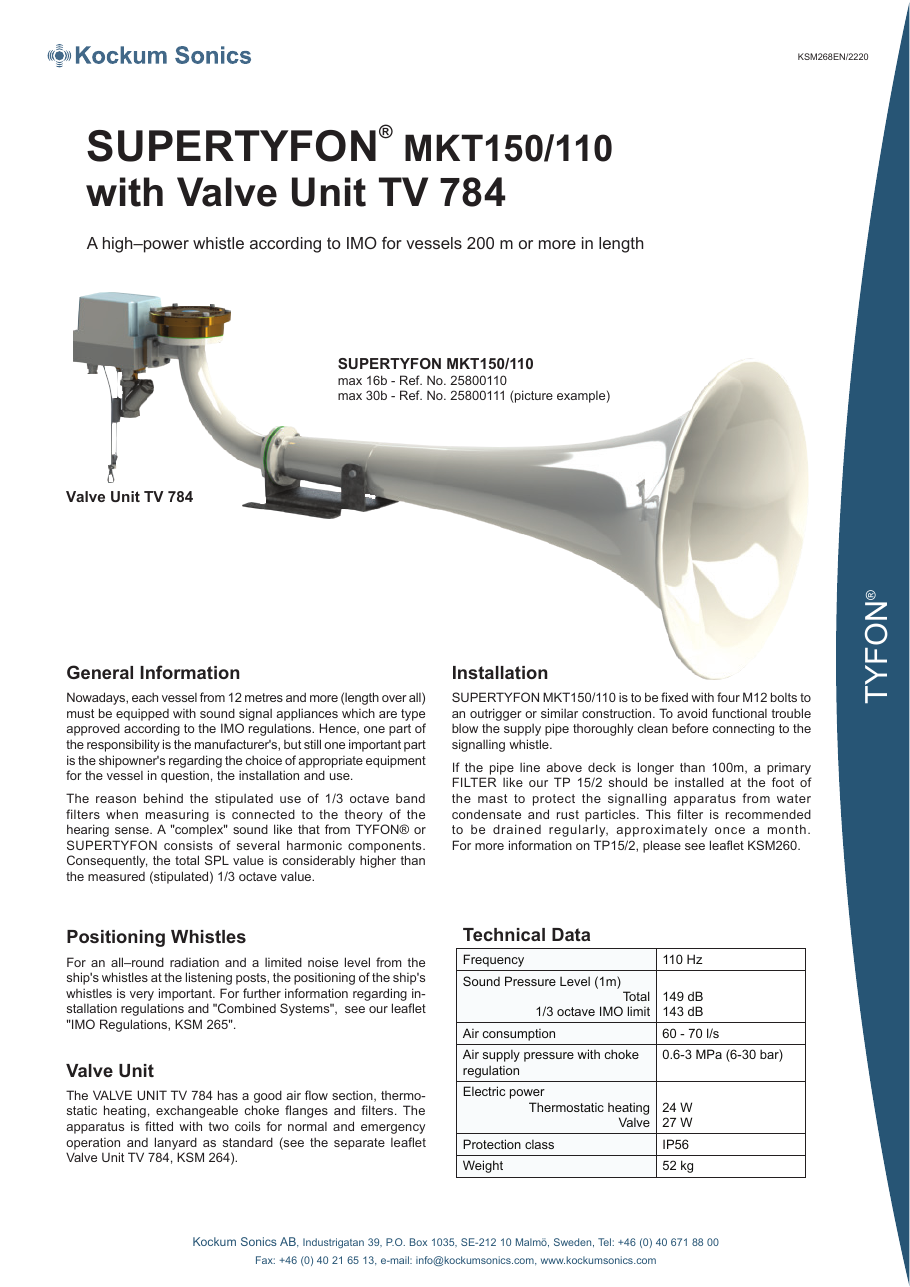

“Nowadays, each vessel from 12 metres and more (length over all) must be equipped with sound signal appliances which are type approved according to the IMO regulations. Hence, one part of the…”

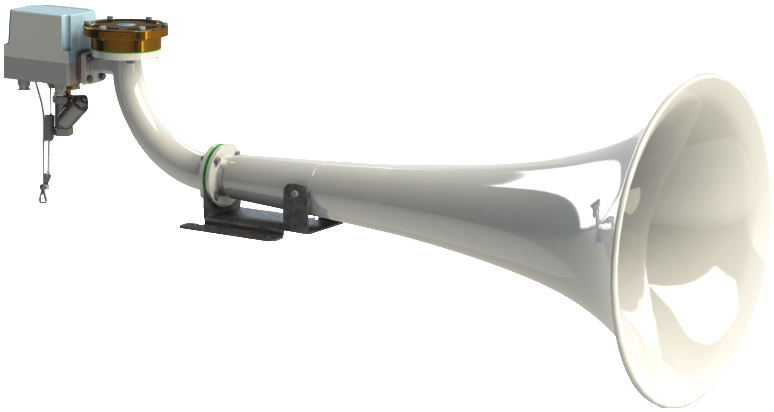

Kockum Sonics max 16b - Ref. No. 25800110/max 30b - Ref. No. 25800111 – Photo (bcacd0c73dec_S1-1 S. 1)
Photo · bcacd0c73dec_S1-1 · S. 1
Kockum Sonics max 16b - Ref. No. 25800110/max 30b - Ref. No. 25800111 – Photo (bcacd0c73dec_S1-1 S. 1)
Photo · bcacd0c73dec_S1-1 · S. 1

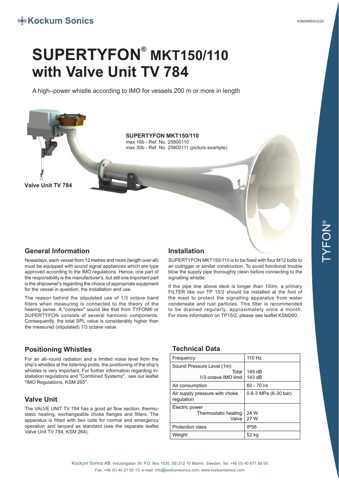

Kockum Sonics max 16b - Ref. No. 25800110/max 30b - Ref. No. 25800111 – Drawing (bcacd0c73dec_S1-1 S. 1)
Drawing · bcacd0c73dec_S1-1 · S. 1
Source: max 30b - Ref. No. 25800111, p. 1
