emerson Figure

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Size range:DN 50 - 500

Shaft17.4 P.H.

Pressure rating:ASME 150 and 300

Vacuum rating:1.016 x 10-3 mm Hg (4 x 10-5 in Hg)

Temperature rating:-29°C to 538°C

Class150 AND 300

CertificationsASME B16.34

VACUUM RATING4 x 10-5 inch Hg

Working pressure:1960 kPa at 38°C

Max ΔP:1400 kPa

Standard flange drilling:ASME B16.5

Class300

Standard flange:ASME B16.5

Drilling:Class 300 R.F

Drilling:Class 600 R.F

Temperature-20°C - 80°C (-4°F - 175°F)

Max. supply pressure :10 barg

Rated supply pressure :8.3 barg

Output torque at 5.5 bargup to 2054 Nm

Spring Return models :up to 1414 Nm

Temperature range :-30° to +90°C*

* An extended temperature range from-30°C to +150°C is available on request.

Sizes (DN):40-300

Temp. (°C):-60 to +204

Pressure (bar):16

Flange accomm.:PN 10/16

Temperature (°C):-40 to +300

Flange acc.:PN 6/10/16/25

Dn50 - 200 (NPS 2 - 8)

Size rangeDN 50 - 750 (NPS 2 - 30)

Figure NoF955

Gate316 S/S

Spindle304 S/S

Size RangesDN 25-40 DN 50-300 DN 350-500

SizeDN 300

Pressure15 psi

SizesDN 50 - 900 CLASS 150 AND 300

Metal seated1000 kPa/10 bar (150 psi) at 20°C (68°F)

RTFE seated1000 kPa/10 bar (150 psi) at 20°C (68°F)

FKM seated1000 kPa/10 bar (150 psi) at 20°C (68°F)

Temperature rating150°C (300°F) FKM seated

PRESSURE/TEMPERATURE RATINGS1000 kPa/10 bar (150 psi) at 20°C (68°F)

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Heavy duty lugged/wafer valve with steel reinforced cartridge design seat.

Applications

Airport refueling
Hydrocarbon processing
Chemical processing
Purified gas
Steam and vacuum services
Potable water

Features

Bubble-tight shut-off at full rating in both directions.
One piece, specially profiled, wafer thin disc stem.

Options

Reinforced polytetrafluoroethylene
Polytetrafluoroethylene
Ultra high molecular weight polyethylene
Fluoroelastomer (FKM)
316 stainless steel

Source: emerson Figure datasheet, p. 5

Standards

AS 2129E
ASME Class 150

Source: emerson Figure datasheet, p. 4

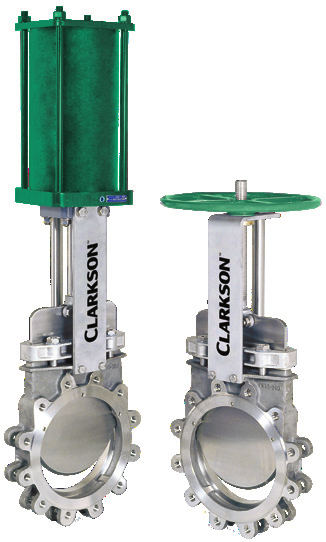

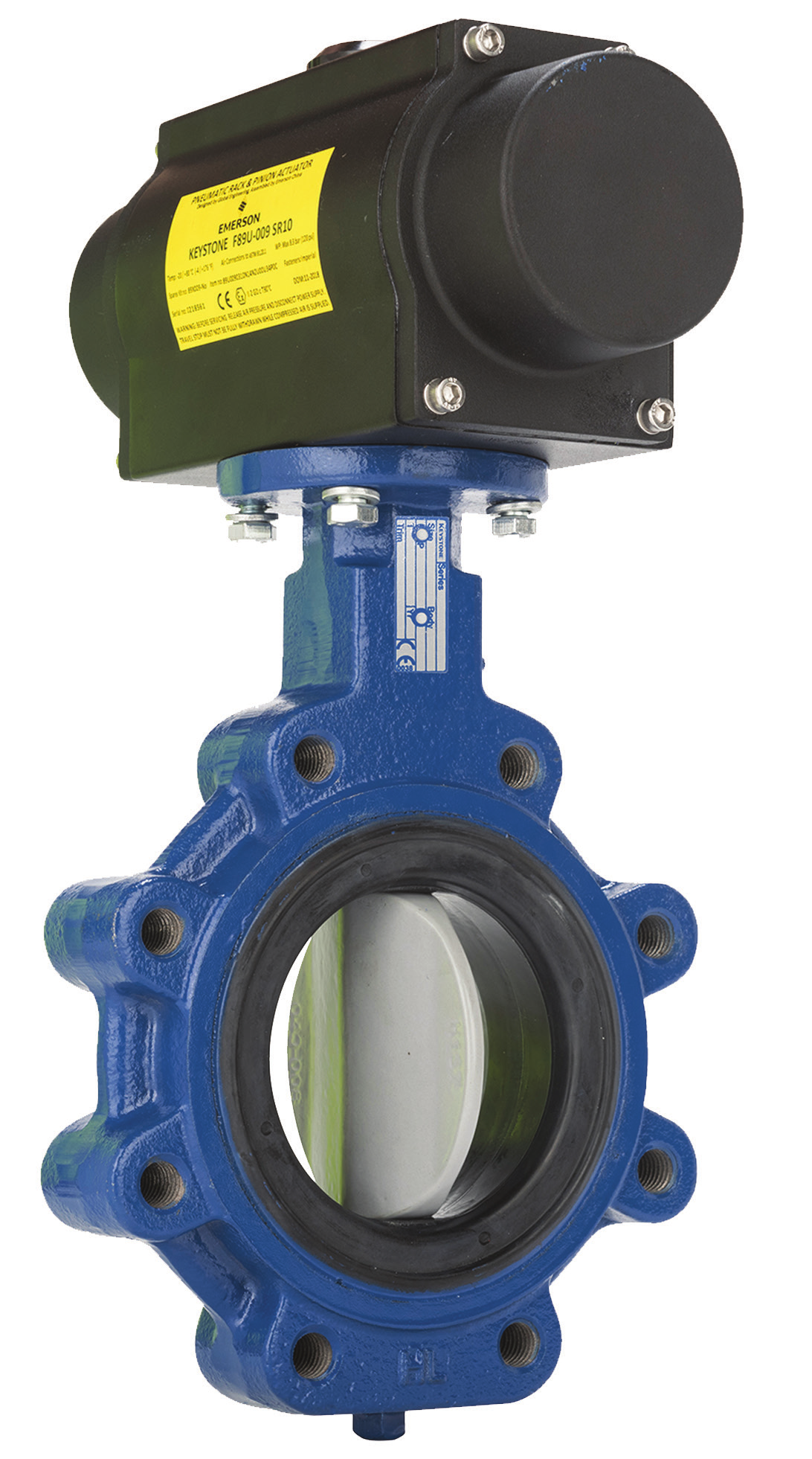

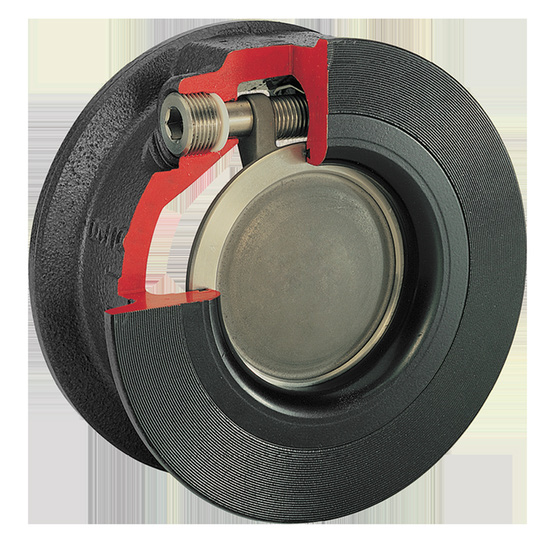

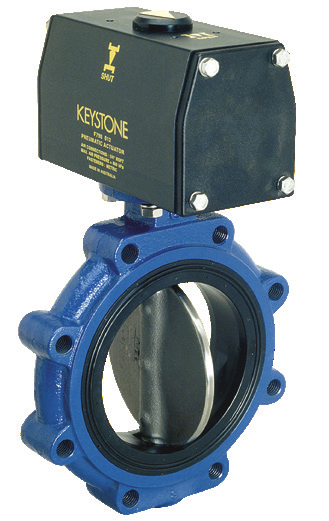

Photo · 70552fd11f3e_S1-3 · S. 1

Photo · b4acccbfcaff_S1-1 · S. 1

Photo · be92edb08d0b_S1-1 · S. 1

Photo · 2007a7b40a2f_S1-1 · S. 1

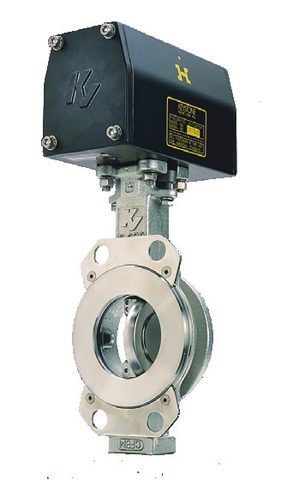

Photo · 4f92e9767e70_S1-1 · S. 1

Source: emerson Figure datasheet, p. 1
