Library› Engine Room› Industrial Valves› Gate Valve› Emerson PCS17
Emerson

PCS17

Gate Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Test psi (kPa)150 (1000)
Size range:DN 50 - 750 (NPS 2 - 30)
Temperature rating:150°C (300°F) EPDM (std)
Pressure rating:DN 50 - 600 = 1034 kPa
Nitrile seated1034 kPa/10.3 bar (150 psi) at 100°C (212°F)
EPDM seated1034 kPa/10.3 bar (150 psi) at 100°C (212°F)
FKM seated1034 kPa/10.3 bar (150 psi) at 100°C (212°F)
Bolt circle Dia.120.65 (4.75")
O.D. flange Dia.152.4 (6")
Raised face Dia.91.948 (3.62")
Face-to-face47.752 (1.88")
Valve flange OD165 (6.496")
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

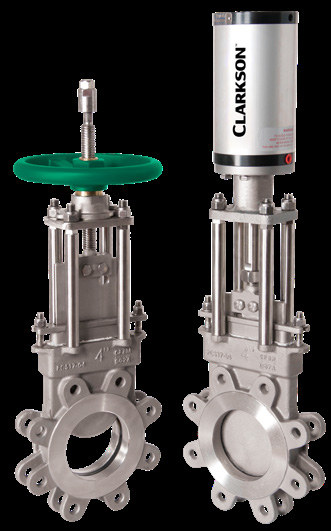

Bi-directional zero leakage knife gate valve. The new standard for innovation and performance with its drop-in new generation perimeter seat, that ensures zero leakage in either direction.

Applications

  • Waste water
  • Mining
  • Power
  • Chemical
  • Petrochemical
  • General process

Features

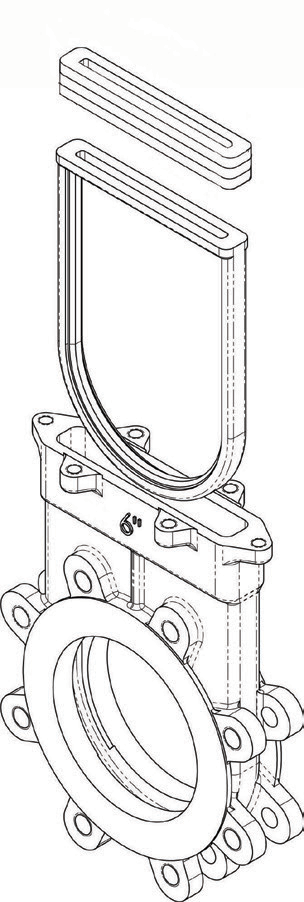

  • The seat is in-line replaceable.

Options

  • Handwheel (standard)
  • Bevel gear operators
  • Non-rising stem actuator
  • Cable lockout for manual handwheel valves
  • Lock-pin style lockouts for open/closed positions
  • Pneumatic/hydraulic/spring cylinders
  • Electric actuators
  • Control accessories
Source: Emerson PCS17 datasheet, p. 2

Standards

  • MSS SP-81

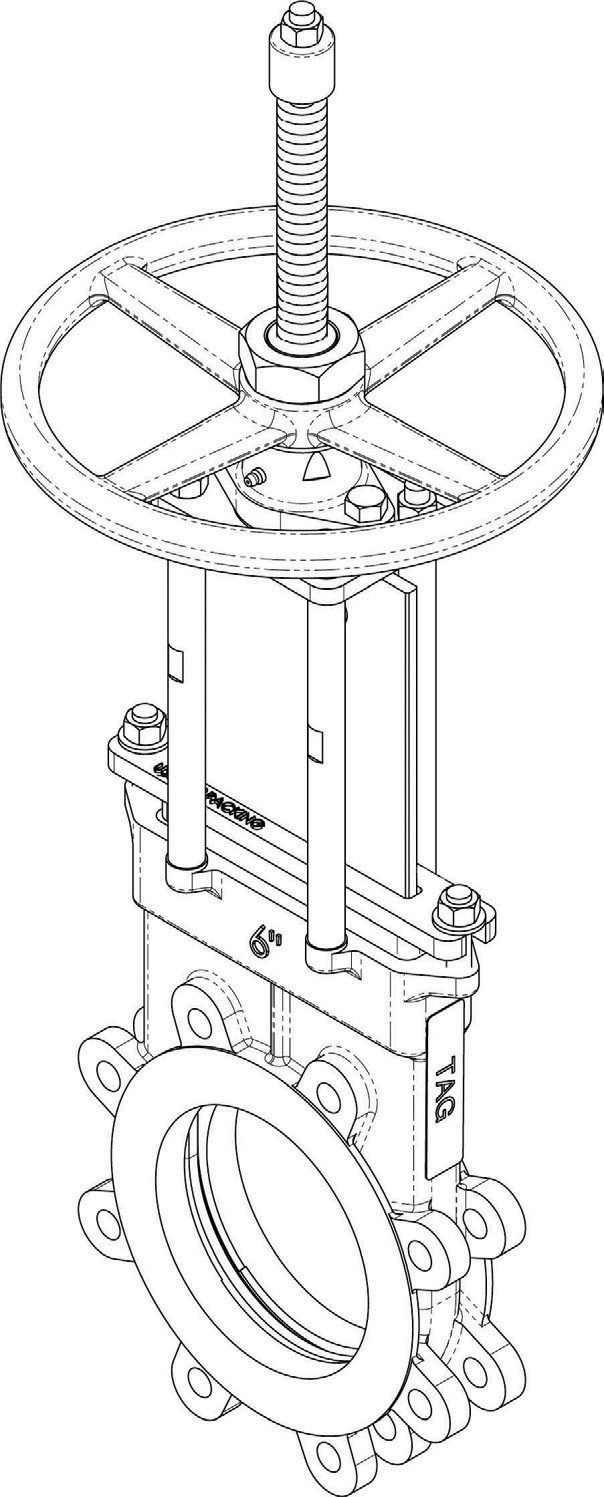

Emerson PCS17 – Photo (bfd07c347188_S1-3 S. 1)
Photo · bfd07c347188_S1-3 · S. 1

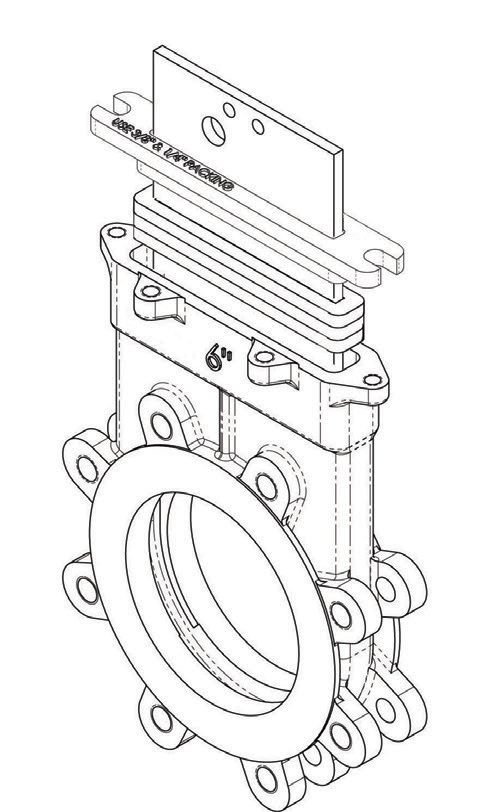

Emerson PCS17 – Photo (bfd07c347188_S1-3 S. 1)
Photo · bfd07c347188_S1-3 · S. 1
Emerson PCS17 – Photo (9b585af04c39_S1-11 S. 2)
Photo · 9b585af04c39_S1-11 · S. 2

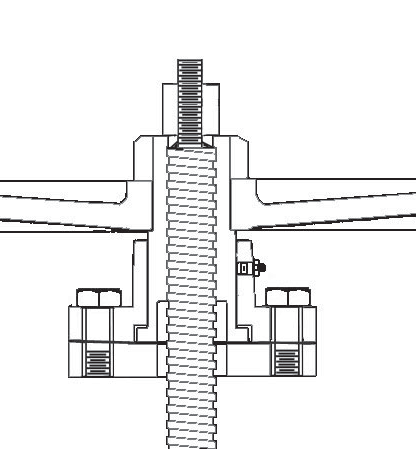

Emerson PCS17 – Photo (9b585af04c39_S1-11 S. 4)
Photo · 9b585af04c39_S1-11 · S. 4

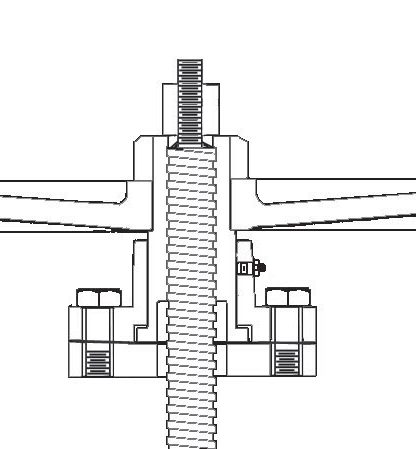

Emerson PCS17 – Photo (9b585af04c39_S1-11 S. 4)
Photo · 9b585af04c39_S1-11 · S. 4
Emerson PCS17 – Photo (9b585af04c39_S1-11 S. 4)
Photo · 9b585af04c39_S1-11 · S. 4
Emerson PCS17 – Photo (9b585af04c39_S1-11 S. 5)
Photo · 9b585af04c39_S1-11 · S. 5

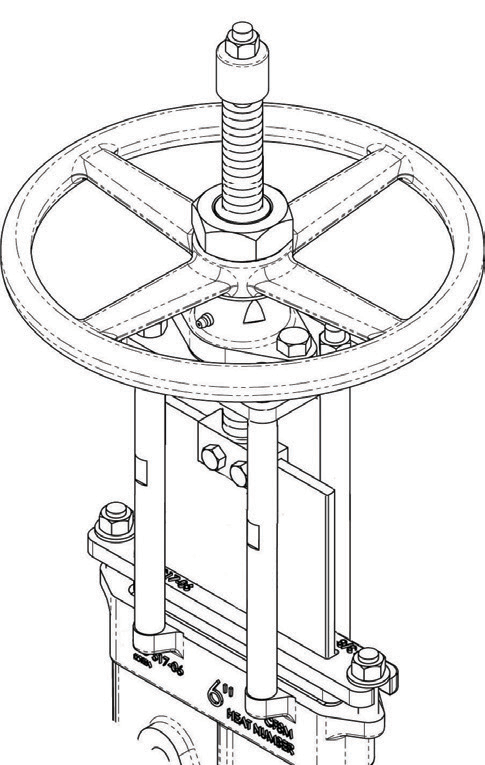

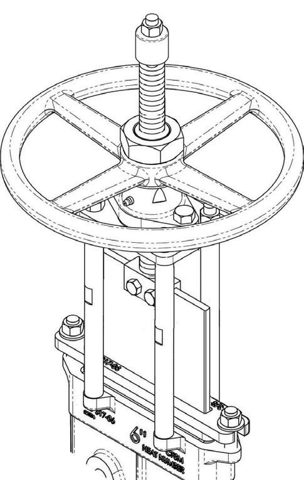

Emerson PCS17 – Photo (9b585af04c39_S1-11 S. 6)
Photo · 9b585af04c39_S1-11 · S. 6
Source: Emerson PCS17 datasheet, p. 1
