Library› Engine Room› Industrial Valves› Control Valve› Emerson D104804X012
Emerson

D104804X012

Control Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Valve body sizesDN 15 through 150 / NPS 1/2 through 6
Pressure ClassesPN 10 to 40, CL150 and 300
Rangeability50:1 (equal percentage)
Port Sizes22 to 136 mm
Operating Pressure Ranges2.0 to 6.0 barg / 29 to 87 psig
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

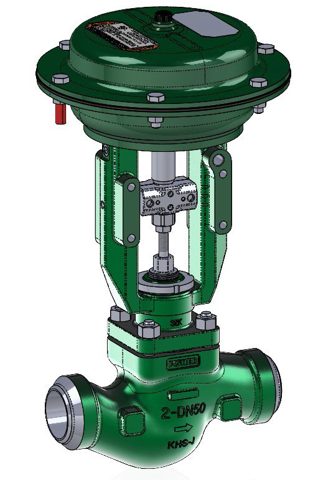

“Fisher GX Bolted Bonnet Control Valve and Actuator System Figure 1. F  isher GX Bolted Bonnet Control Valve, Actuator and Fisher FIELDVUE DVC7K Digital Valve Controller”

Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 2)
Photo · cd4fb1c587d8_S2-28 · S. 2

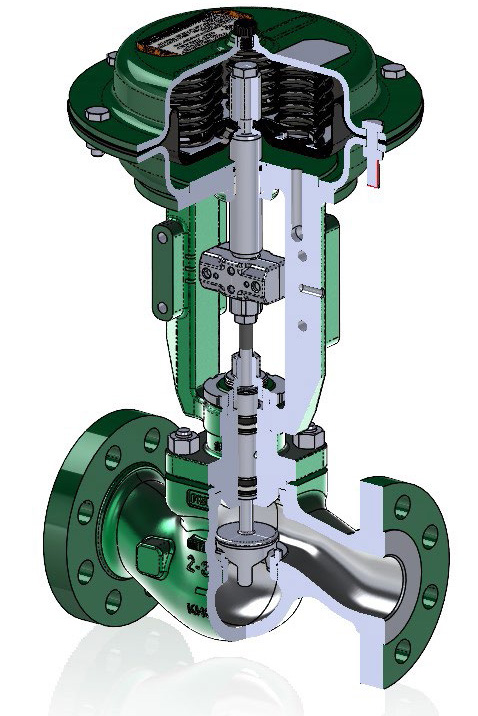

Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 3)
Photo · cd4fb1c587d8_S2-28 · S. 3
Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 3)
Photo · cd4fb1c587d8_S2-28 · S. 3

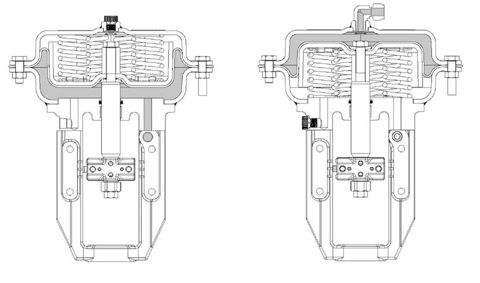

Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 4)
Photo · cd4fb1c587d8_S2-28 · S. 4
Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 5)
Photo · cd4fb1c587d8_S2-28 · S. 5

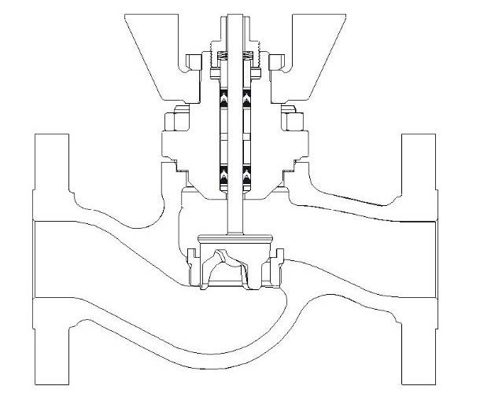

Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 5)
Photo · cd4fb1c587d8_S2-28 · S. 5

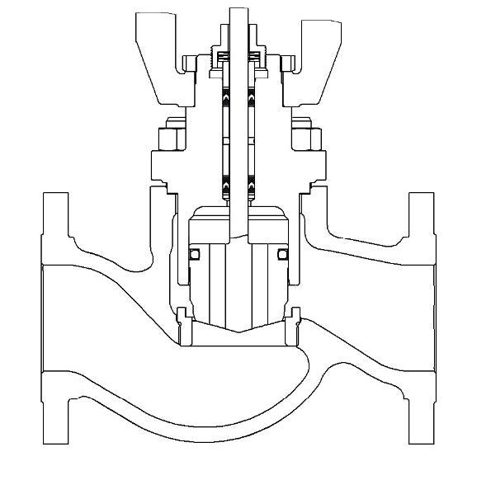

Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 5)
Photo · cd4fb1c587d8_S2-28 · S. 5

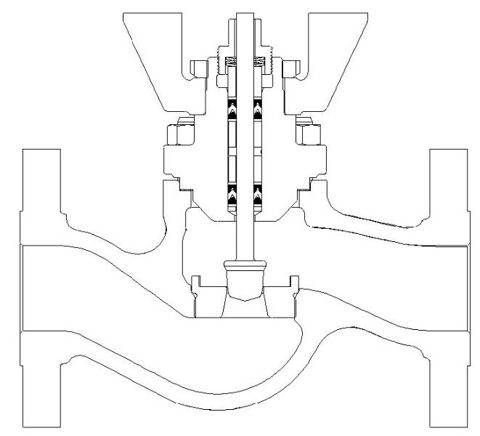

Emerson D104804X012 – Photo (cd4fb1c587d8_S2-28 S. 6)
Photo · cd4fb1c587d8_S2-28 · S. 6
Source: Emerson D104804X012 datasheet, p. 1
