Library› Electrical› Instrumentation & Gauges› Temperature / Process Controller› Emerson T61
Emerson

T61

Temperature / Process Controller · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Air Consumption Normal0.35 SCFM / 0.59 m3/hr
Air Consumption Maximum0.70 SCFM / 1.19 m3/hr
Maximum Signal Pressure2 psi / 0.14 bar
Maximum Inlet Pressure250 psi / 17.2 bar
Maximum Inlet Temperature400°F / 204°C
Temperature Ranges50 to 250°F / 10 to 121°C
Air Connections1/8 NPT
Approximate Weight2-3/4 lbs / 0.68 kg
Maximum Air Supply32 psi / 2.21 bar
Air ConsumptionNormal: 0.35 SCFM / 0.59 m3/hr
Maximum Air ConsumptionMaximum: 0.70 SCFM / 1.19 m3/hr
Proportional Band Adjustable1/4 to 2 psi per 1°F / 0.02 to 0.14 bar per 17.2°C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The T61 Series Temperature Controller is designed for precise temperature control in various industrial applications. It utilizes a cascade principle to regulate heater pressure, ensuring accurate and reliable temperature maintenance.

Applications

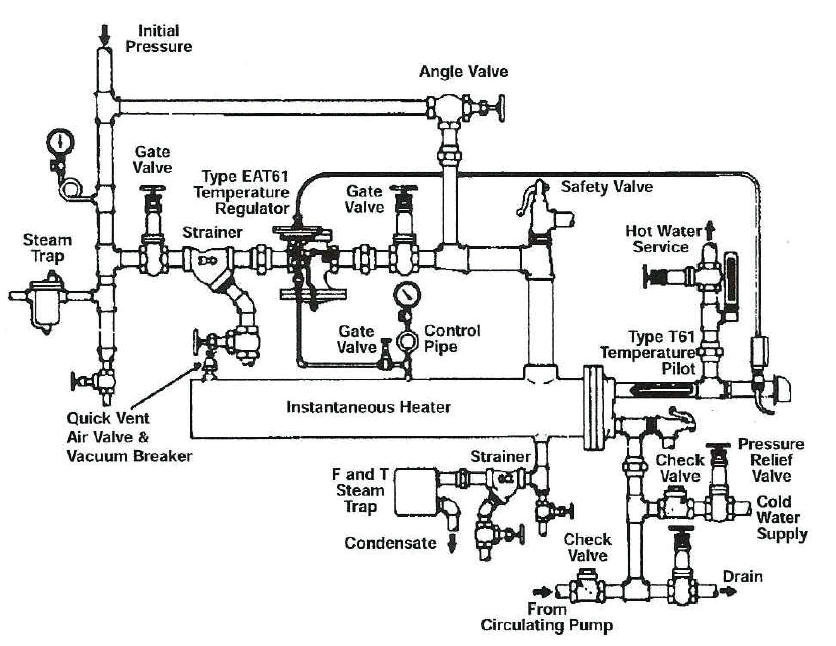

  • instantaneous heaters
  • difficult process applications

Features

  • cascade principle
  • bimetallic thermostat
  • adjustable proportional band
  • over temperature protection

Options

  • Various Valve Types
  • Custom Piping Configurations
  • Remote Control Options
Source: Emerson T61 datasheet, p. 3

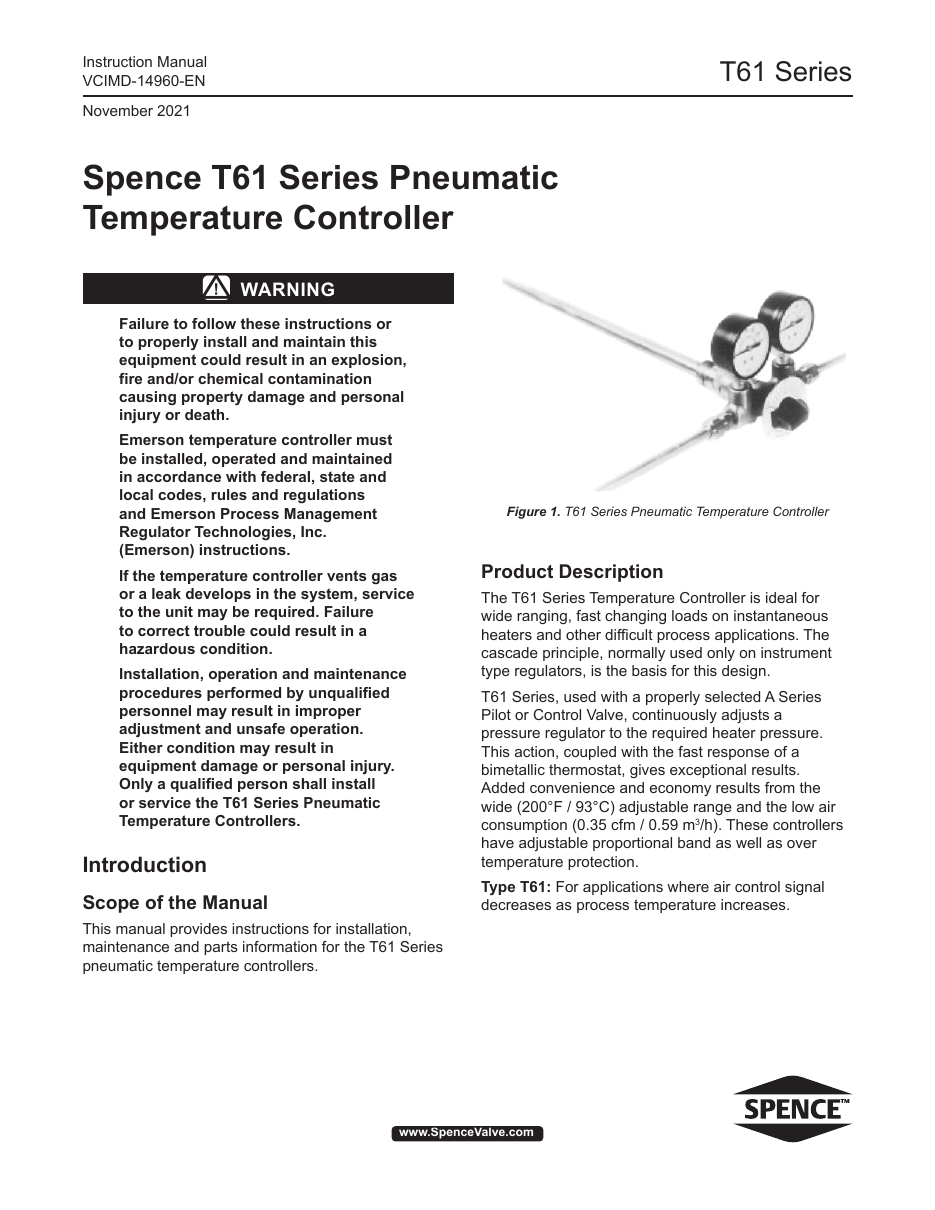

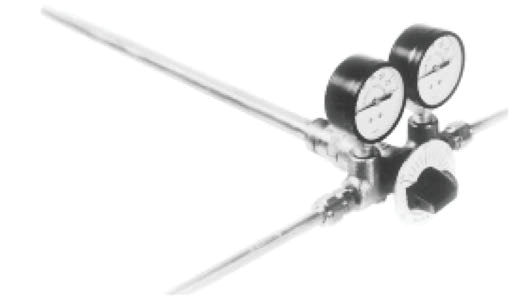

Emerson T61 – Photo (7e52f98dbe7c_S1-6 S. 1)
Photo · 7e52f98dbe7c_S1-6 · S. 1

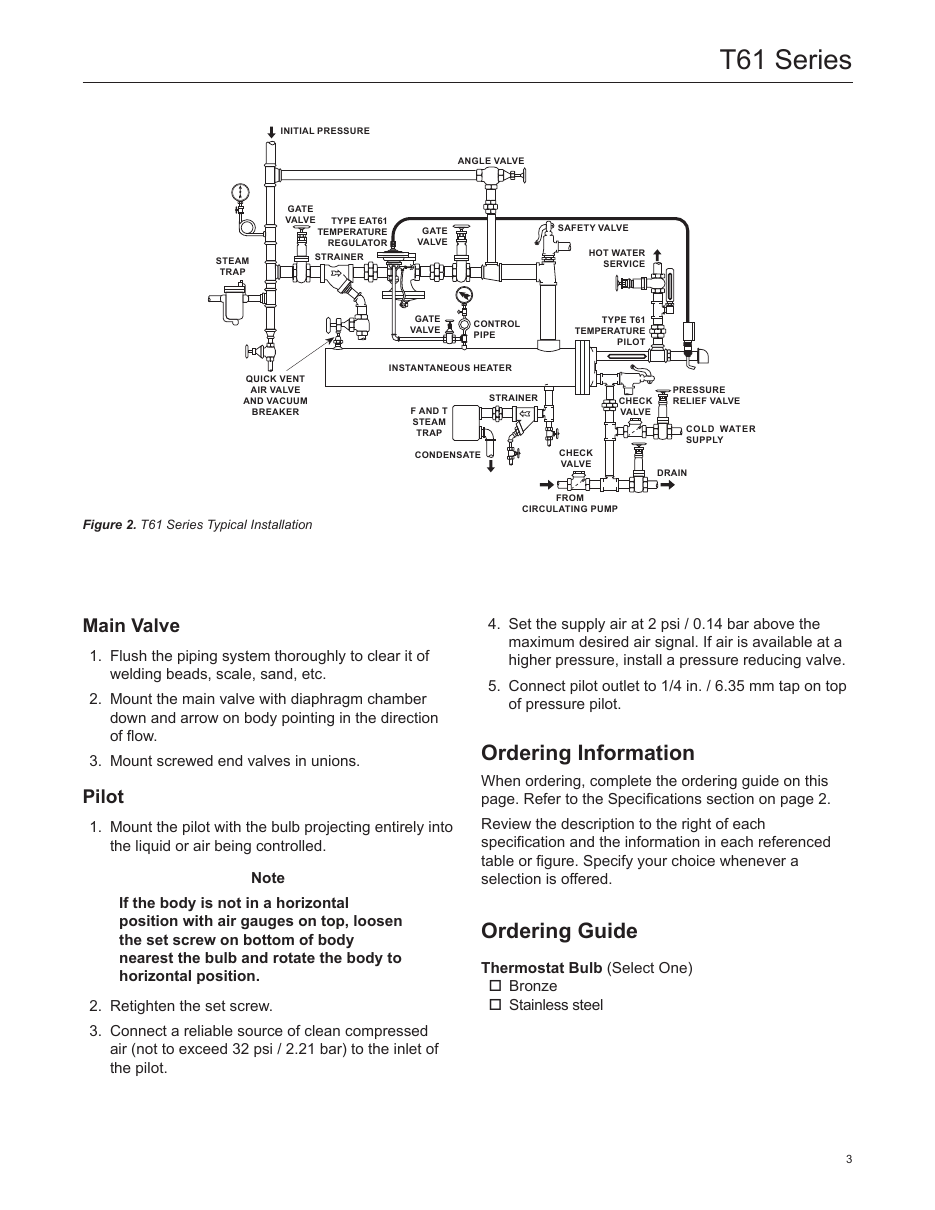

Emerson T61 – Photo (7e52f98dbe7c_S1-6 S. 3)
Photo · 7e52f98dbe7c_S1-6 · S. 3

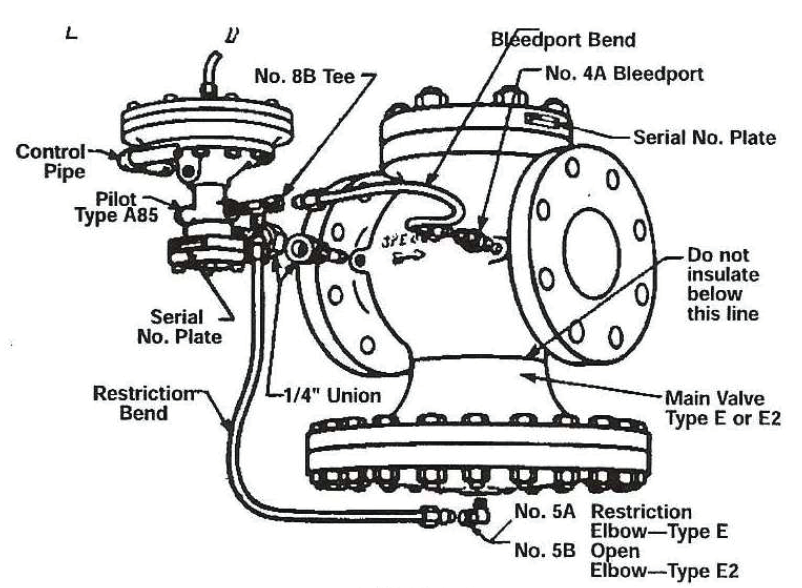

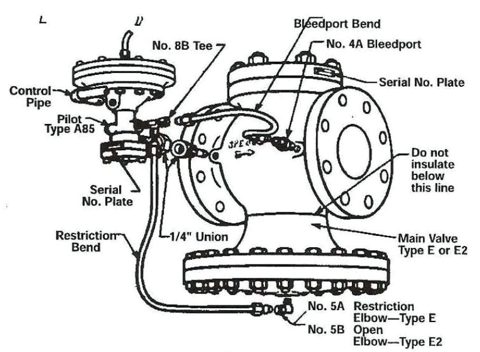

Emerson T61 – Photo (7e52f98dbe7c_S1-6 S. 5)
Photo · 7e52f98dbe7c_S1-6 · S. 5
Emerson T61 – Photo (20b7dcc1edbc_S1-7 S. 7)
Photo · 20b7dcc1edbc_S1-7 · S. 7
Emerson T61 – Photo (20b7dcc1edbc_S1-7 S. 7)
Photo · 20b7dcc1edbc_S1-7 · S. 7
Emerson T61 – Photo (20b7dcc1edbc_S1-7 S. 7)
Photo · 20b7dcc1edbc_S1-7 · S. 7

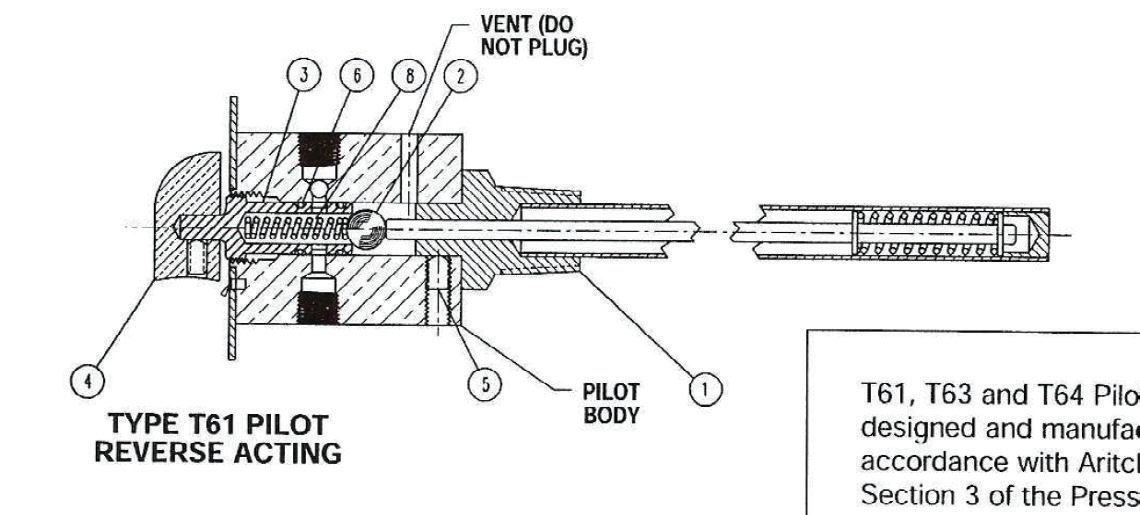

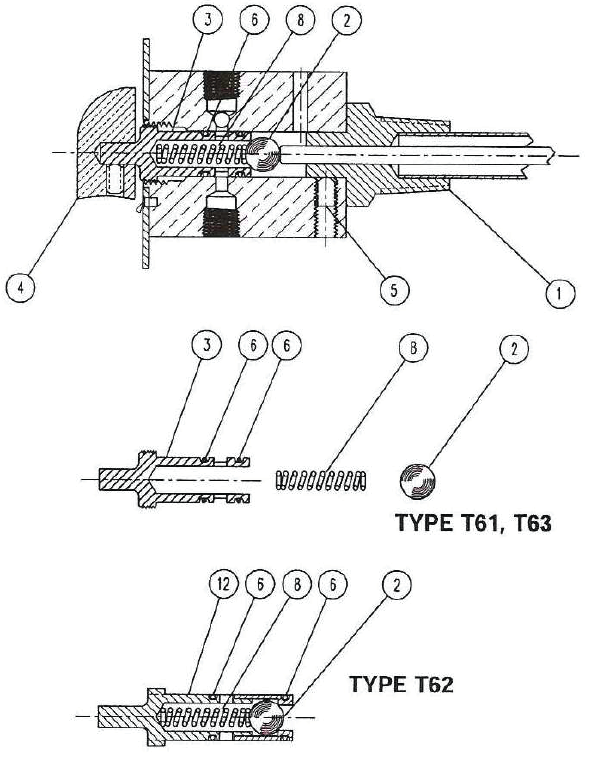

Emerson T61 – Drawing (b5c385dc70f3_S2-3 S. 2)
Drawing · b5c385dc70f3_S2-3 · S. 2

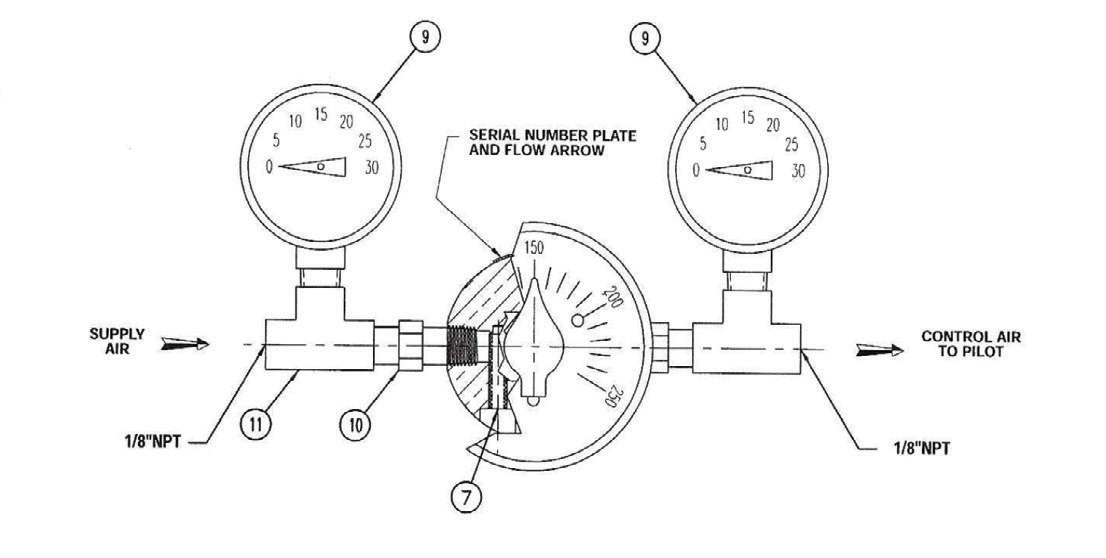

Emerson T61 – Drawing (7e52f98dbe7c_S1-6 S. 1)
Drawing · 7e52f98dbe7c_S1-6 · S. 1
Source: Emerson T61 datasheet, p. 1
