emerson

4400 Transmitter

Position Transmitter / Encoder · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Sensor Refresh Rate100 ms / 10 Hz
High saturation20.5 mA DC
Low saturation3.8 mA DC
High alarm (1)> 21.0 mA
Low Alarm (1)< 3.6 mA
HART Version7
Output Current Limit30 mA DC maximum
Recommended Power Supply24 to 30 volts DC; 25 mA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“HART impedance requirements must be met to enable communication. Total shunt impedance across the master device connections (excluding the master and transmitter impedance) must be between 230 and…”

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 6)
Photo · 640b29a59a2d_S5-33 · S. 6

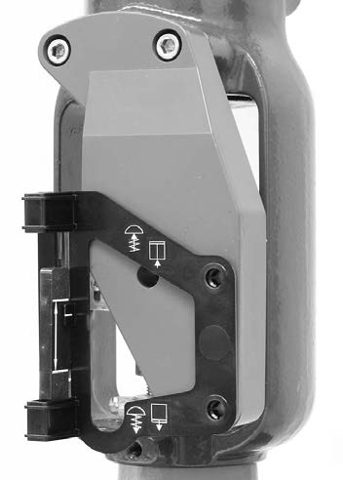

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 8)
Photo · 640b29a59a2d_S5-33 · S. 8

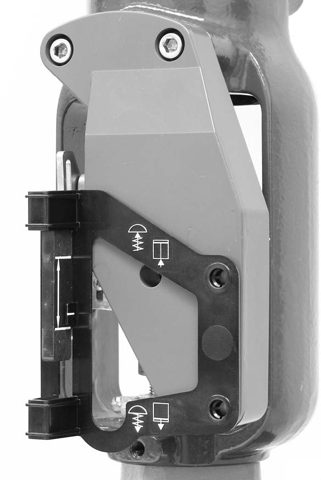

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 9)
Photo · 640b29a59a2d_S5-33 · S. 9

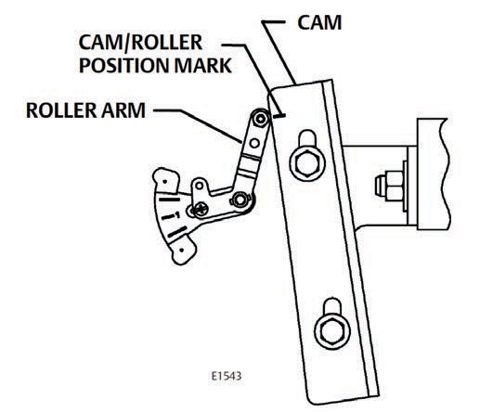

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 11)
Photo · 640b29a59a2d_S5-33 · S. 11

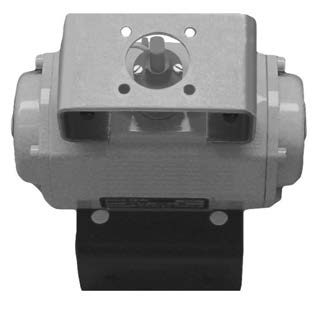

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 12)
Photo · 640b29a59a2d_S5-33 · S. 12
emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 14)
Photo · 640b29a59a2d_S5-33 · S. 14

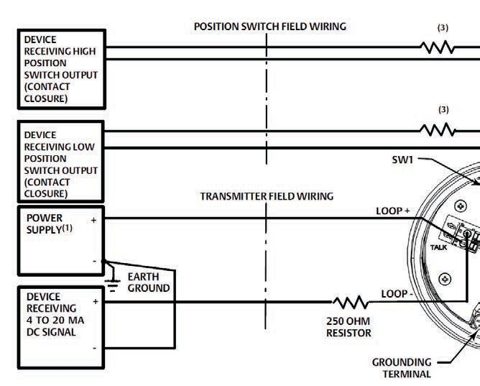

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 15)
Photo · 640b29a59a2d_S5-33 · S. 15

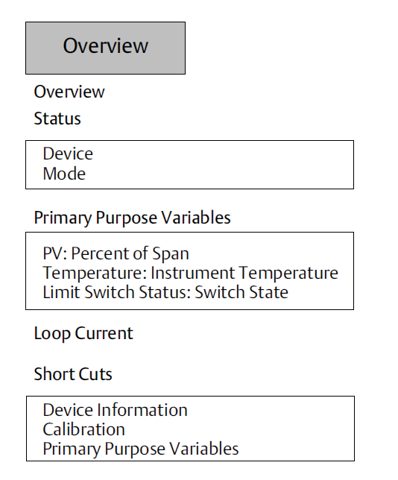

emerson 4400 Transmitter – Photo (640b29a59a2d_S5-33 S. 18)
Photo · 640b29a59a2d_S5-33 · S. 18
Source: emerson 4400 Transmitter datasheet, p. 1
