Library› Engine Room› Industrial Valves› Valve Actuator› emerson 3025 Actuator
emerson

3025 Actuator

Valve Actuator · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal Effective Area1860 cm2
Yoke Boss Diameter5 5H
Maximum Travel8 inch
Maximum Diaphragm Casing Pressure4 bar
Maximum Casing Pressure58 Psig
Temperature Capabilities-30 to 82_C
Pressure Connections (internal)1/2 NPT
Approximate Actuator Weights210 to 360 kg
Approximate Side Handwheel Weights100 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“1. Normal operating diaphragm pressure must not exceed maximum diaphragm casing pressure and must not produce a force on the actuator stem greater than the maximum allowable out­ put thrust or the…”

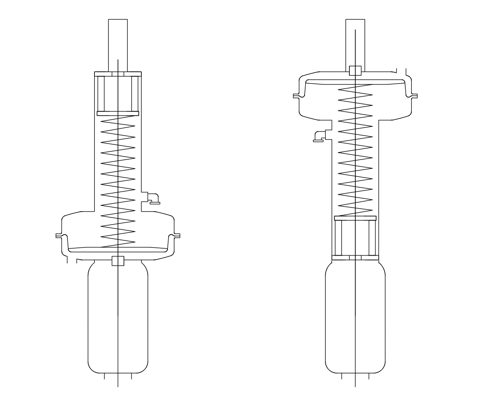

emerson 3025 Actuator – Photo (9b663ec44967_S2-21 S. 2)
Photo · 9b663ec44967_S2-21 · S. 2

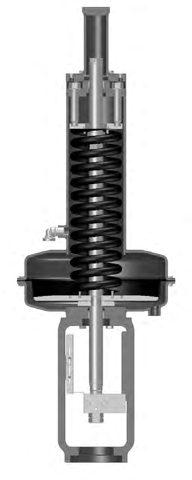

emerson 3025 Actuator – Photo (9b663ec44967_S2-21 S. 6)
Photo · 9b663ec44967_S2-21 · S. 6

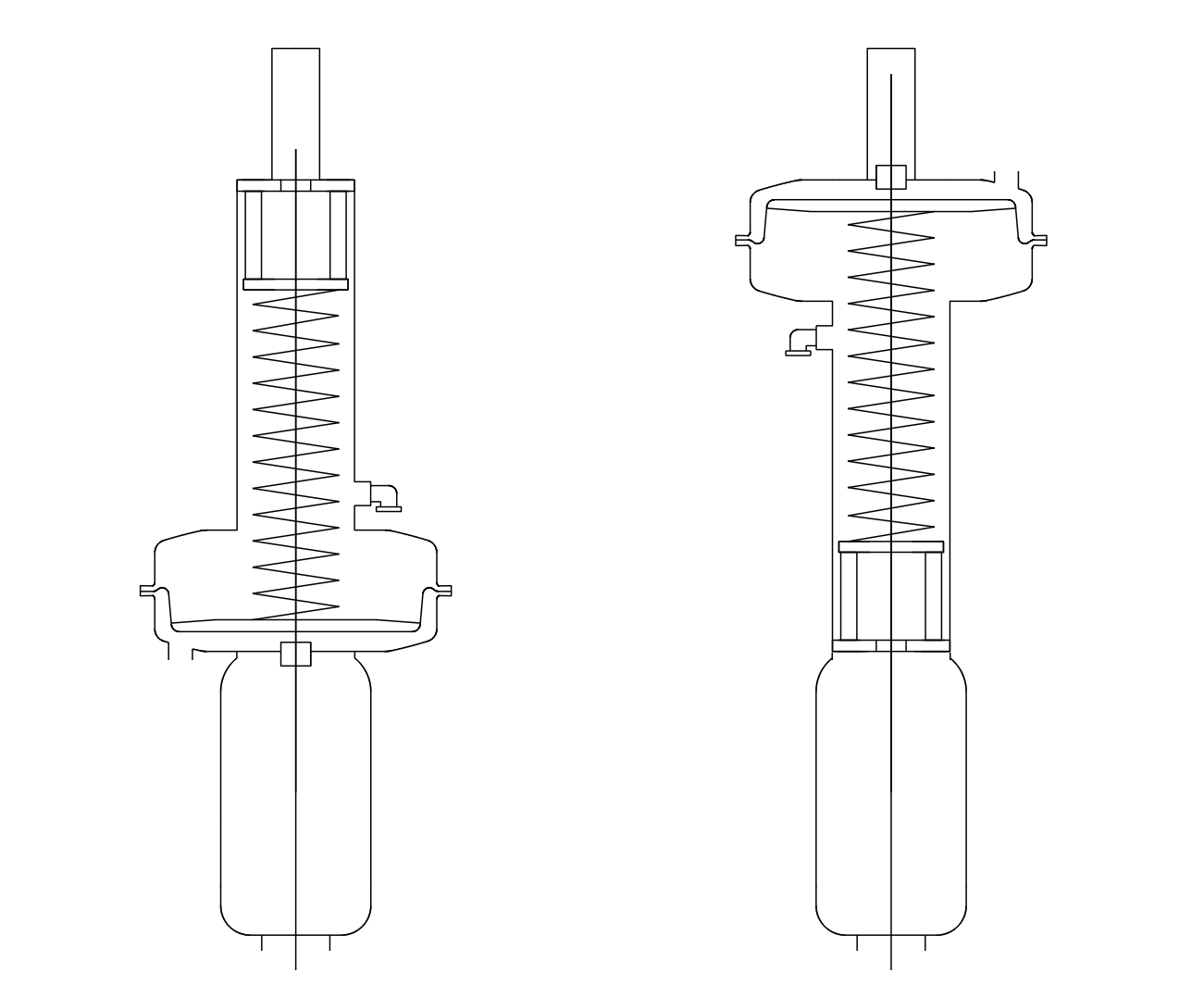

emerson 3025 Actuator – Drawing (9b663ec44967_S2-21 S. 2)
Drawing · 9b663ec44967_S2-21 · S. 2
emerson 3025 Actuator – Drawing (9b663ec44967_S2-21 S. 3)
Drawing · 9b663ec44967_S2-21 · S. 3

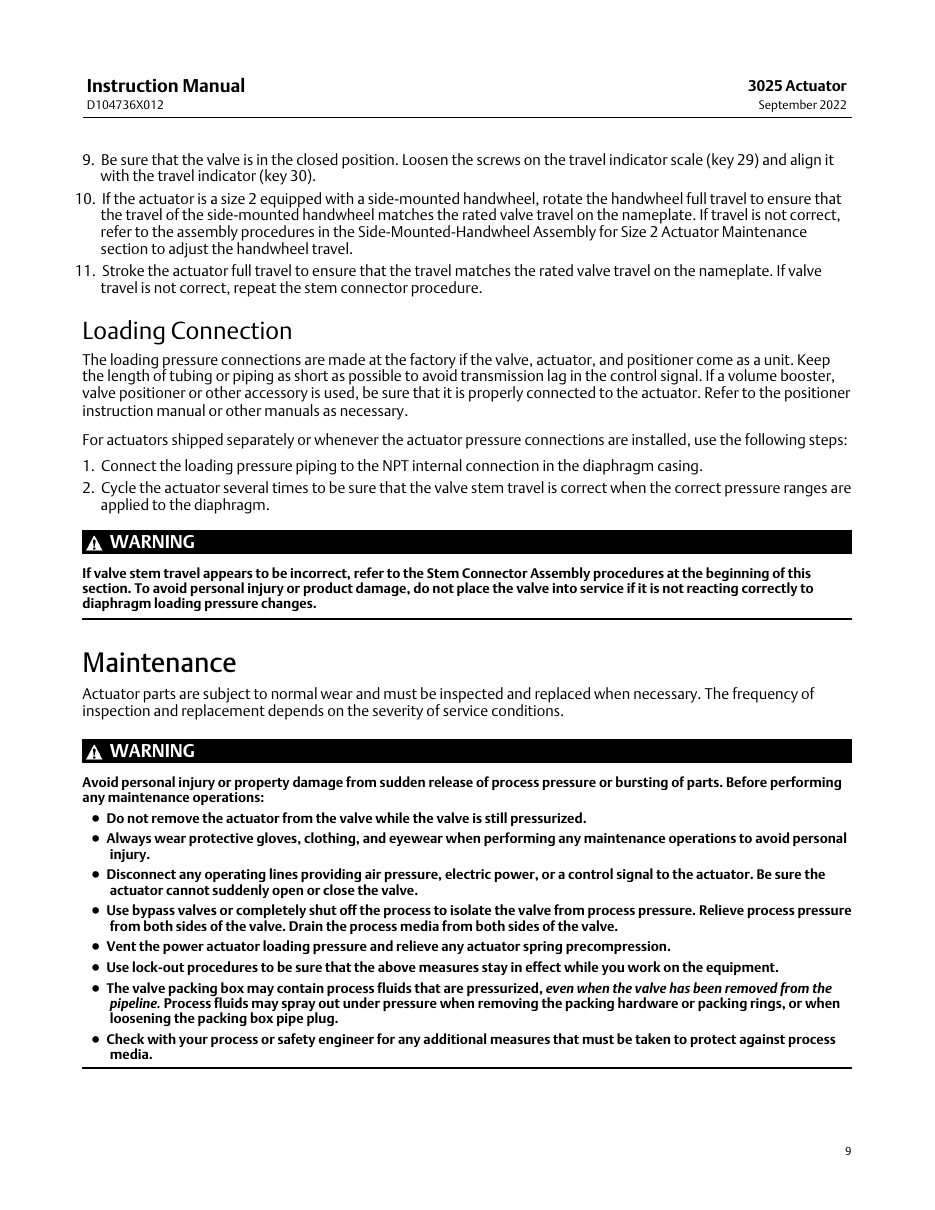

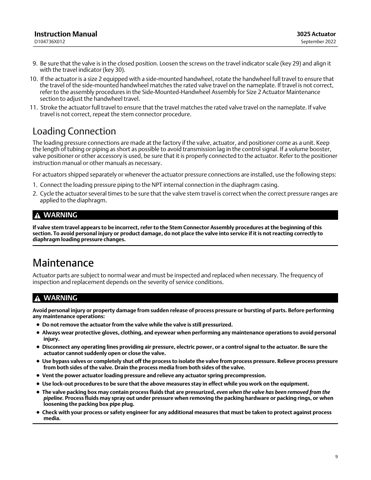

emerson 3025 Actuator – Drawing (9b663ec44967_S2-21 S. 8)
Drawing · 9b663ec44967_S2-21 · S. 8

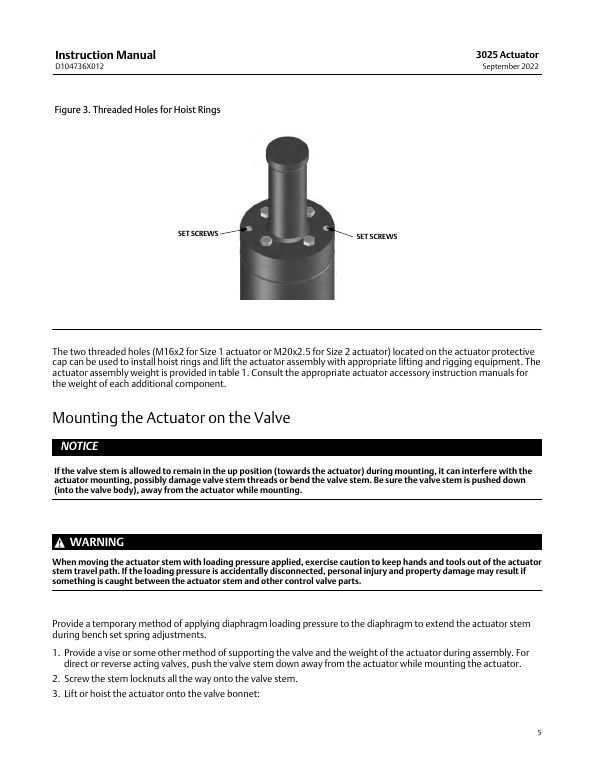

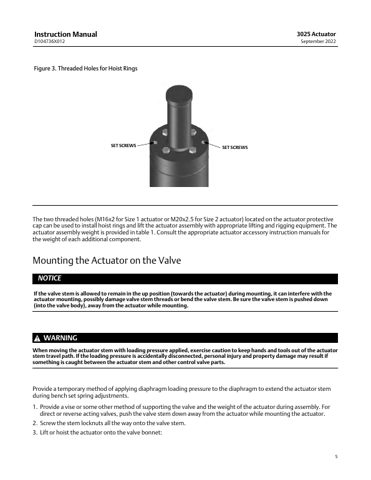

emerson 3025 Actuator – Page preview (9b663ec44967_S2-21 S. 4)
Page preview · 9b663ec44967_S2-21 · S. 4
emerson 3025 Actuator – Page preview (9b663ec44967_S2-21 S. 5)
Page preview · 9b663ec44967_S2-21 · S. 5

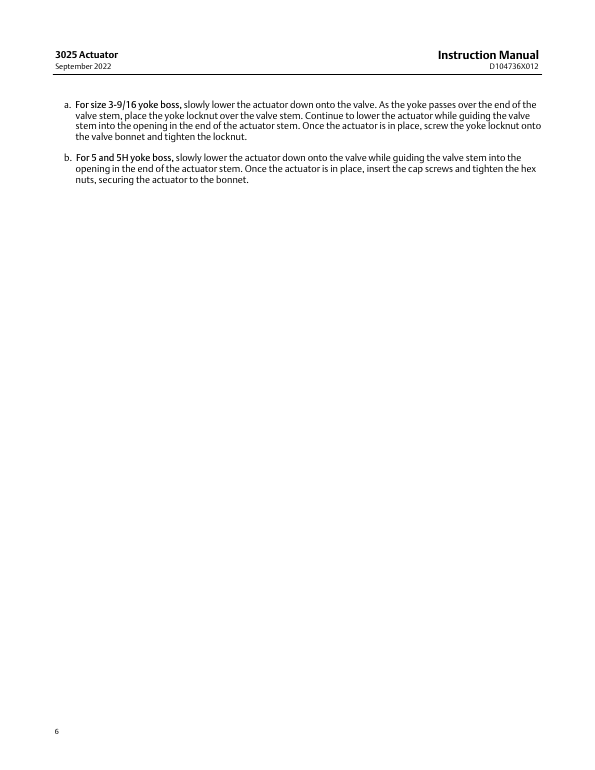

emerson 3025 Actuator – Page preview (9b663ec44967_S2-21 S. 6)
Page preview · 9b663ec44967_S2-21 · S. 6
Source: emerson 3025 Actuator datasheet, p. 1
