TESCOM

DCATLABO12162XEN2

Control Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Pressure rating per criteria of ANSI/ASME B31.3145 psig / 10.0 bar
Nominal DiameterDN 2
Control Range at 44 psig / 3.0 bar Inlet Pressure0-20 l/min
Flow CapacityCv = 0.024
Operating TemperatureNeedle Valve: 32°F to 158°F / 0°C to 70°C
WeightNeedle Metering Valve: 0.27 lbs / 0.12 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Type of Construction In-line Control Range at 44 psig / 3.0 bar Inlet Pressure 0-20 l/min Flow Capacity Cv = 0.024 Operating Temperature Needle Valve: 32°F to 158°F / 0°C to 70°C Needle Metering…”

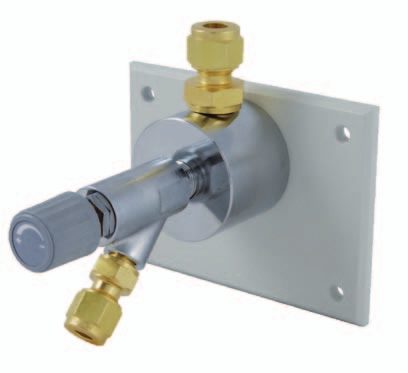

TESCOM DCATLABO12162XEN2 – Photo (c52c6d1f06c0_S1-1 S. 1)
Photo · c52c6d1f06c0_S1-1 · S. 1
TESCOM DCATLABO12162XEN2 – Photo (c52c6d1f06c0_S1-1 S. 1)
Photo · c52c6d1f06c0_S1-1 · S. 1

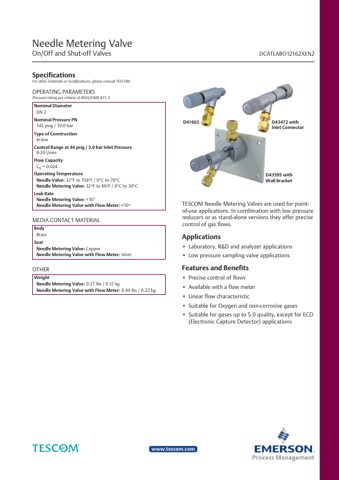

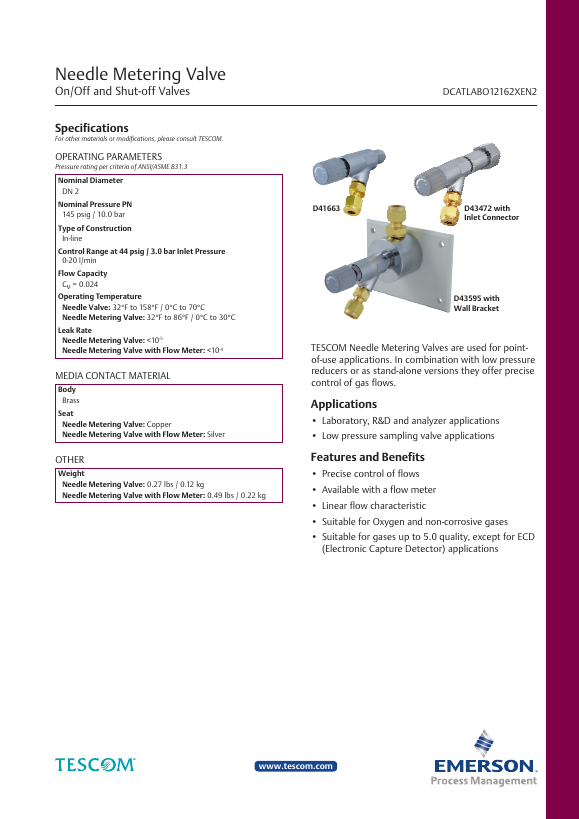

TESCOM DCATLABO12162XEN2 – Page preview (c52c6d1f06c0_S1-1 S. 1)
Page preview · c52c6d1f06c0_S1-1 · S. 1
Source: TESCOM DCATLABO12162XEN2 datasheet, p. 1
