Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO HZ 80 ax
AFRISO

HZ 80 ax

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal size80
Degree of protectionIP 32 (EN 60529)
Operating temperature rangeMedium: max. 60 °C Ambient: -20/+60 °C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Bourdon tube pressure gauge HZ 80 ax Part no. 63919 Bourdon tube pressure gauges for heating/plumbing applications benefits • with self-sealing connection thread (NG 50 and 63) for fast mounting •…”

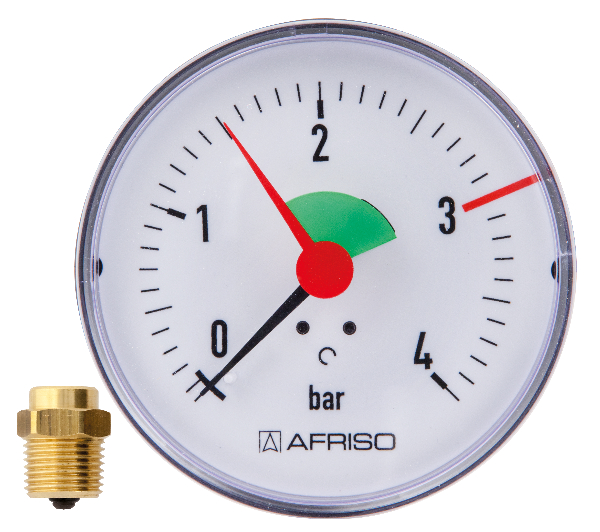

AFRISO HZ 80 ax – Photo (e15070f40631_S1-2 S. 1)
Photo · e15070f40631_S1-2 · S. 1
AFRISO HZ 80 ax – Photo (e15070f40631_S1-2 S. 2)
Photo · e15070f40631_S1-2 · S. 2

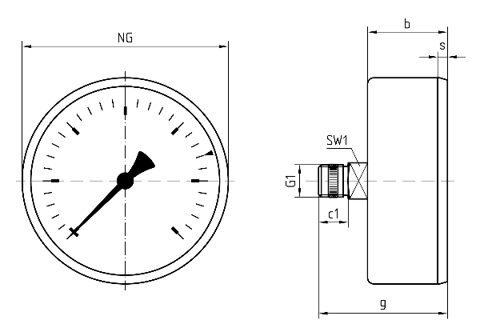

AFRISO HZ 80 ax – Drawing (e15070f40631_S1-2 S. 2)
Drawing · e15070f40631_S1-2 · S. 2

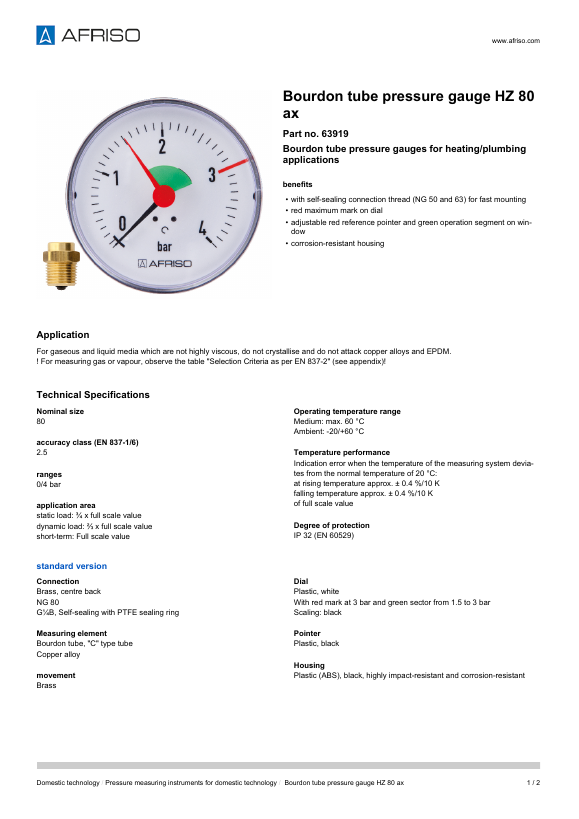

AFRISO HZ 80 ax – Page preview (e15070f40631_S1-2 S. 1)
Page preview · e15070f40631_S1-2 · S. 1
Source: AFRISO HZ 80 ax datasheet, p. 1
