Library› Engine Room› Industrial Valves› Control Valve› Emerson Marine D103359X012
Emerson Marine

D103359X012

Control Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

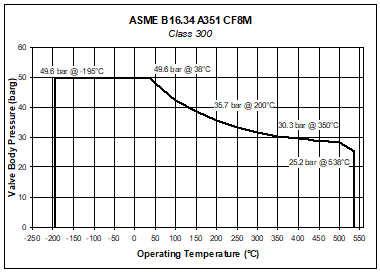

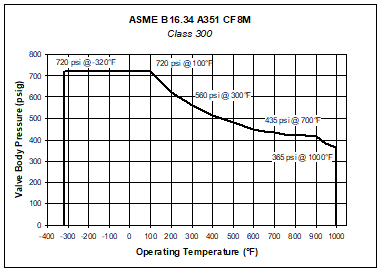

VALVE BODY PRESSURE (barg)49.6 barg
OPERATING TEMPERATURE (°C)38 °C
VALVE BODY PRESSURE (psig)720 psi
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Section 1: Introduction The Fisher Baumann 24000S line of stainless steel pneumatic control valves (Figure 1) may be used for the control of pressure, temperature, level and flow. NPS 1/2 through 2…”

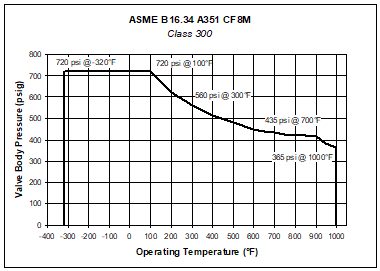

Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 3)
Photo · 90c7439a4f45_S3-21 · S. 3
Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 3)
Photo · 90c7439a4f45_S3-21 · S. 3
Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 10)
Photo · 90c7439a4f45_S3-21 · S. 10

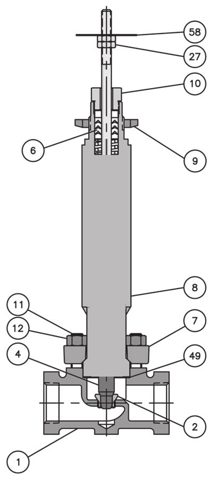

Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 11)
Photo · 90c7439a4f45_S3-21 · S. 11

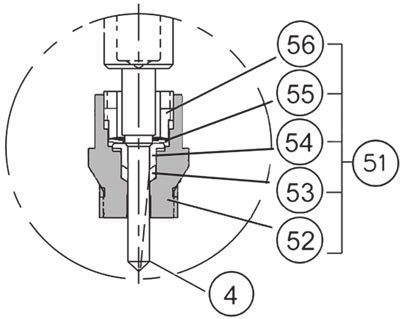

Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 15)
Photo · 90c7439a4f45_S3-21 · S. 15
Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 16)
Photo · 90c7439a4f45_S3-21 · S. 16
Emerson Marine D103359X012 – Photo (90c7439a4f45_S3-21 S. 17)
Photo · 90c7439a4f45_S3-21 · S. 17

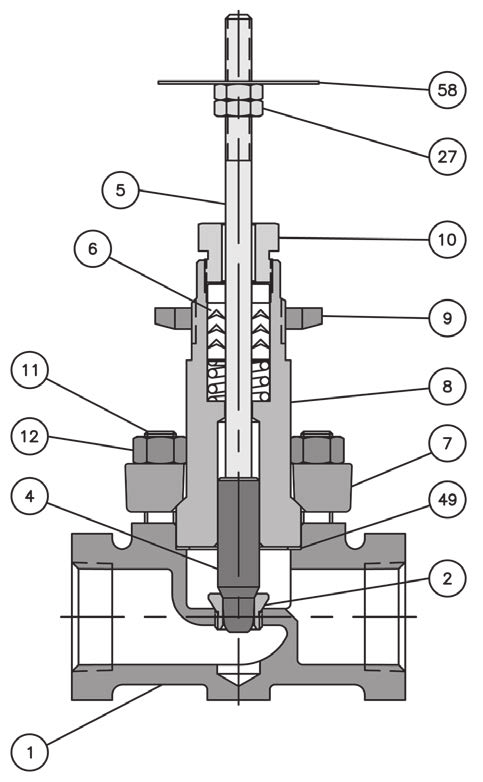

Emerson Marine D103359X012 – Drawing (90c7439a4f45_S3-21 S. 4)
Drawing · 90c7439a4f45_S3-21 · S. 4
Source: Emerson Marine D103359X012 datasheet, p. 1
