Library› Cargo› Cargo Level & Temperature Gauging› Temperature Sensor› Danfoss MBT 3560
Danfoss

MBT 3560

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temperature range-50 – 200 °C
Output signals4 – 20 mA or Ratiometric 10 – 90%
All metal enclosure partsstainless steel (AISI 316)
Extension length33 mm
Measuring ranges-50 – 200 °C
Minimum span25 °C
AccuracyTypical: < ± 0.5% FS, Maximum: < ± 1.0% FS
Max. load protection tube100 bar
Insulation resistance> 100 MΩ at 100 V DC
Media temperature (max. 120 °C without extension length)-50 – 200 °C
Temperature on electronics-40 – 85 °C
Transport temperature range-50 – 85 °C
EMC – EmmisionEN 61000-6-3
EMC – ImmunityEN 61000-6-2
Vibration stability4 g, 25 Hz – 2 kHz
Measuring range-50 – 200 °C
Output signal4 – 20 mA
Protection tube materialAISI 316 TI
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

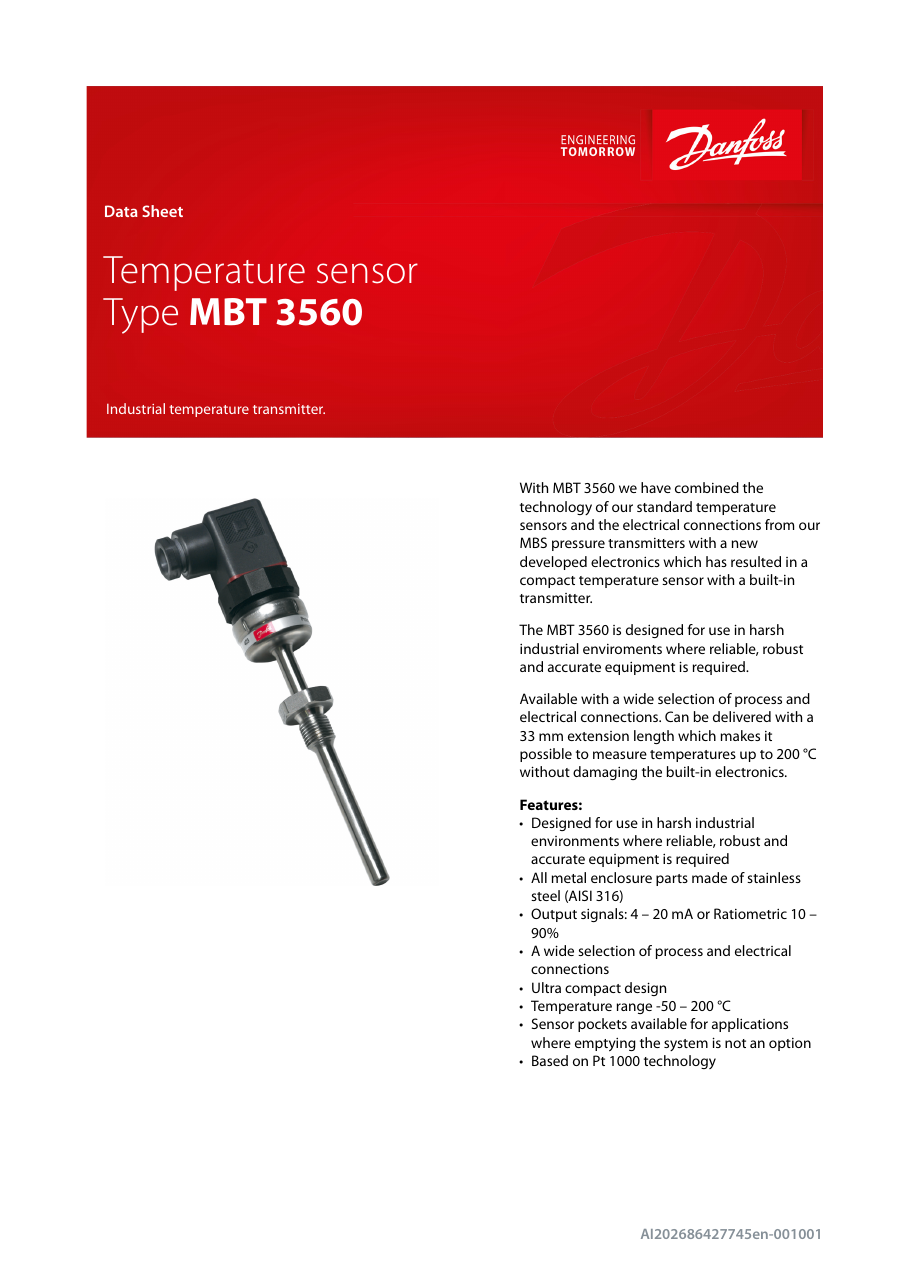

“With MBT 3560 we have combined the technology of our standard temperature sensors and the electrical connections from our MBS pressure transmitters with a new developed electronics which has resulted…”

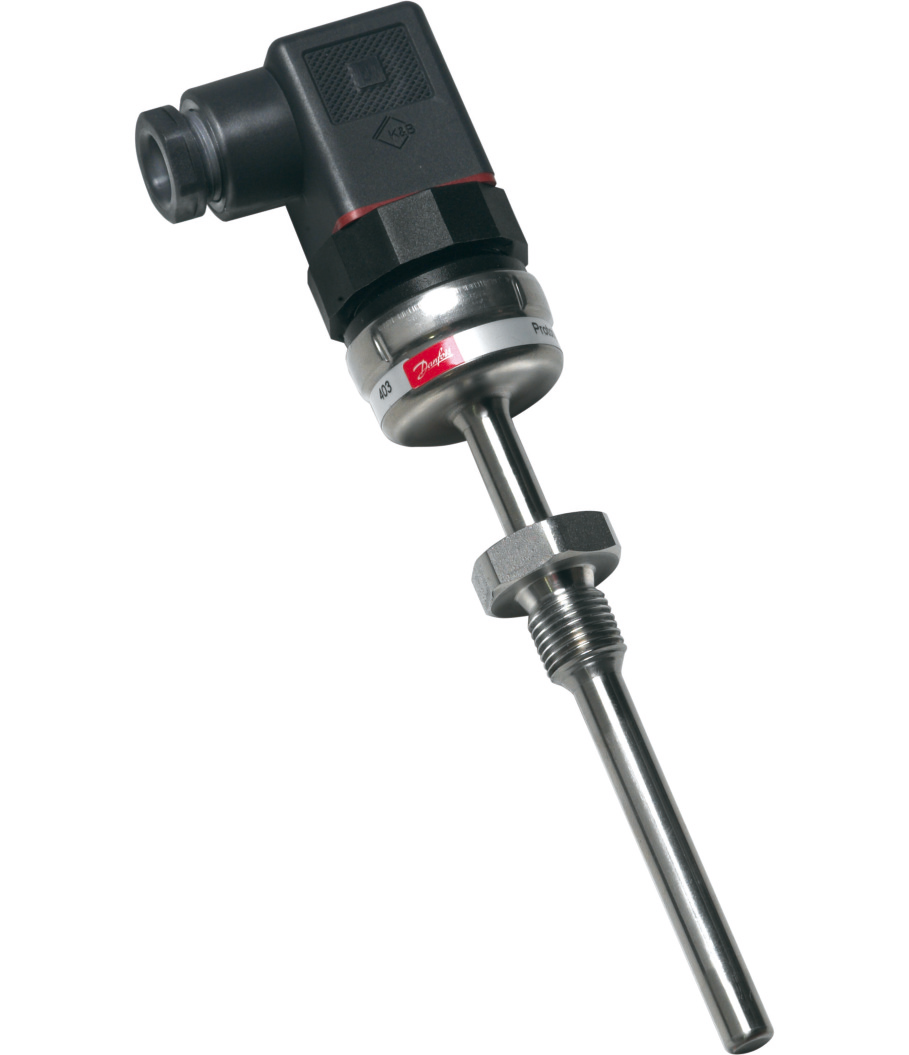

Danfoss MBT 3560 – Photo (8a427f69c665_S1-5 S. 1)
Photo · 8a427f69c665_S1-5 · S. 1
Danfoss MBT 3560 – Photo (8a427f69c665_S1-5 S. 1)
Photo · 8a427f69c665_S1-5 · S. 1
Danfoss MBT 3560 – Drawing (8a427f69c665_S1-5 S. 1)
Drawing · 8a427f69c665_S1-5 · S. 1
Danfoss MBT 3560 – Drawing (8a427f69c665_S1-5 S. 2)
Drawing · 8a427f69c665_S1-5 · S. 2

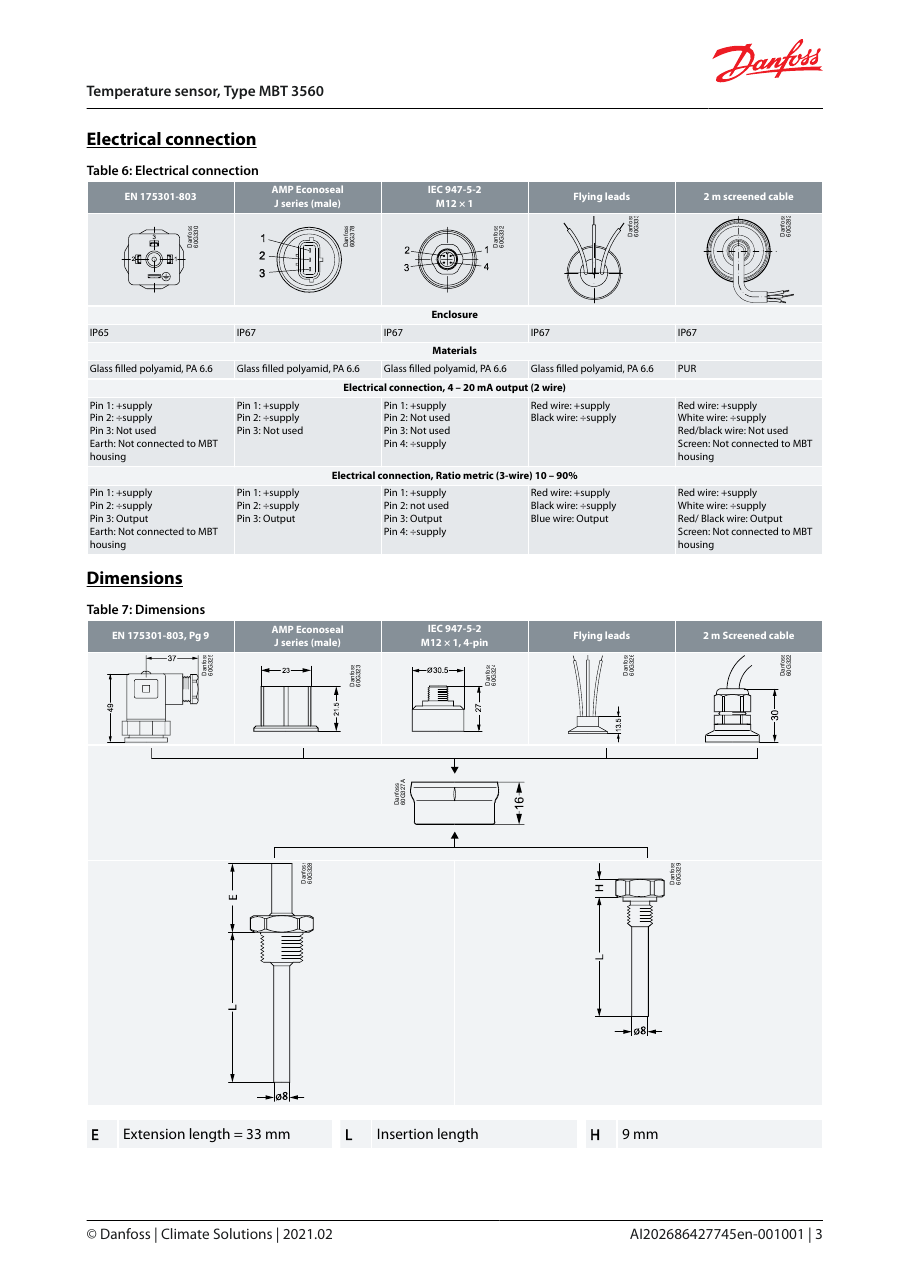

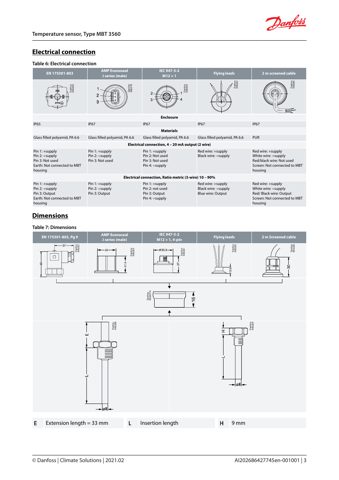

Danfoss MBT 3560 – Drawing (8a427f69c665_S1-5 S. 3)
Drawing · 8a427f69c665_S1-5 · S. 3

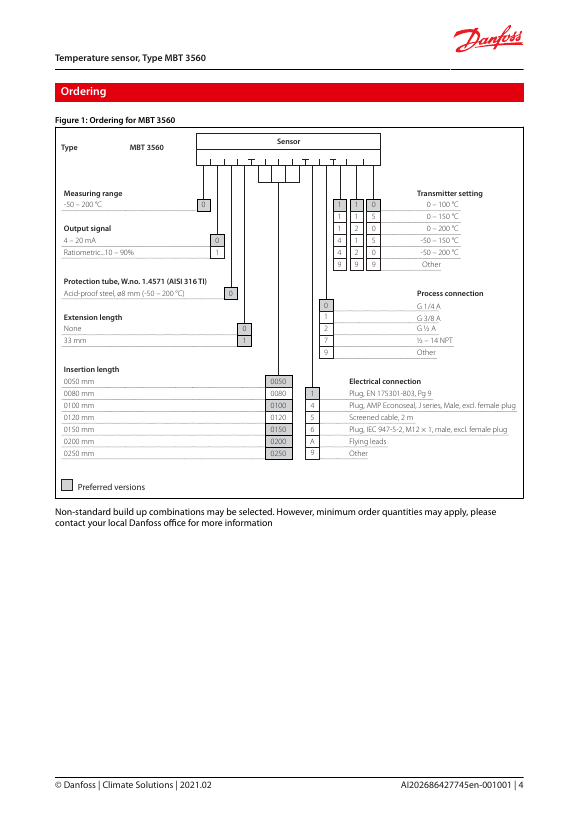

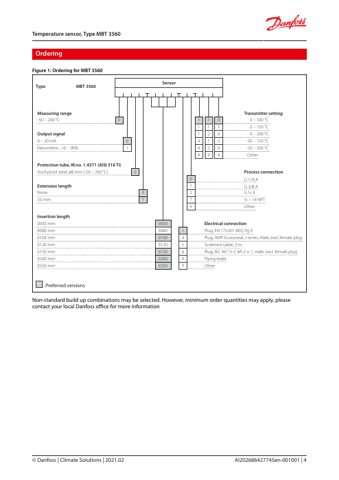

Danfoss MBT 3560 – Page preview (8a427f69c665_S1-5 S. 4)
Page preview · 8a427f69c665_S1-5 · S. 4

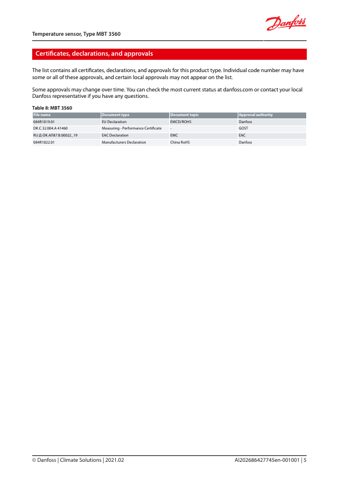

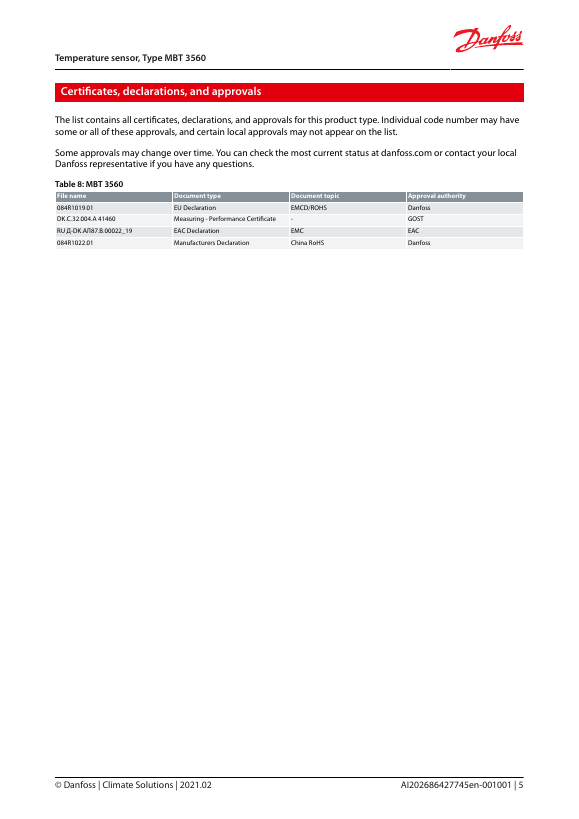

Danfoss MBT 3560 – Page preview (8a427f69c665_S1-5 S. 5)
Page preview · 8a427f69c665_S1-5 · S. 5
Source: Danfoss MBT 3560 datasheet, p. 1
