Library› HVAC› Refrigeration› Refrigeration Compressor (Reciprocating)› Frascold S15-56Y
Frascold

S15-56Y

Refrigeration Compressor (Reciprocating) · Refrigeration

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

50hz56 m³/h
60hz67.2 m³/h
Oil charge (3/4 of the2.9 L
Engine2
PWS motor30.7 A
LRA locked motor current74.8 A
Electric terminal box class protectionIP56
Displacement @ 50 Hz56 m3/h
Displacement @ 60 Hz67.2 m3/h
Nominal Motor power (HP)15 HP
Nominal Motor power (kW)11 kW
CC Head capacity control steps100-50 %
RSH Head capacity control steps100-75-50 %
MRA, max operating current at 400V/50Hz and 460V/60Hz30.7 A
LRA, max starting current at 400V/50Hz and 460V/60Hz, PWS motor74.8 A
LRA, max starting current at 400V/50Hz and 460V/60Hz, PWS motor-DOL connection117.1 A
Frequency min25 Hz
Maximum pressure HP30 bar
Maximum pressure LP20.5 bar
Oil charge (3/4 of sight glass)2.9 l
Net weight130 kg
Max Length550 mm
Max Width405 mm
Max Height405 mm
Rubber mounts diameter50 mm
Rubber mounts height50 mm
Rubber mounts shore55 sh
Compressor body materialGhisa GJL250
Oil level sight glass2
Control and protection deviceINT69®
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A compressor with 4 cylinders designed for standard refrigerants, featuring a nominal motor power of 15 HP and displacement of 56 m3/h at 50 Hz.

Features

  • variable displacement control
  • IP56 protection class

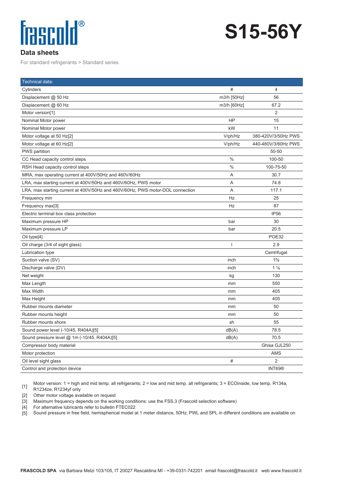

Frascold S15-56Y – Drawing (66e7e5a4f1b6_S1-3 S. 1)
Drawing · 66e7e5a4f1b6_S1-3 · S. 1

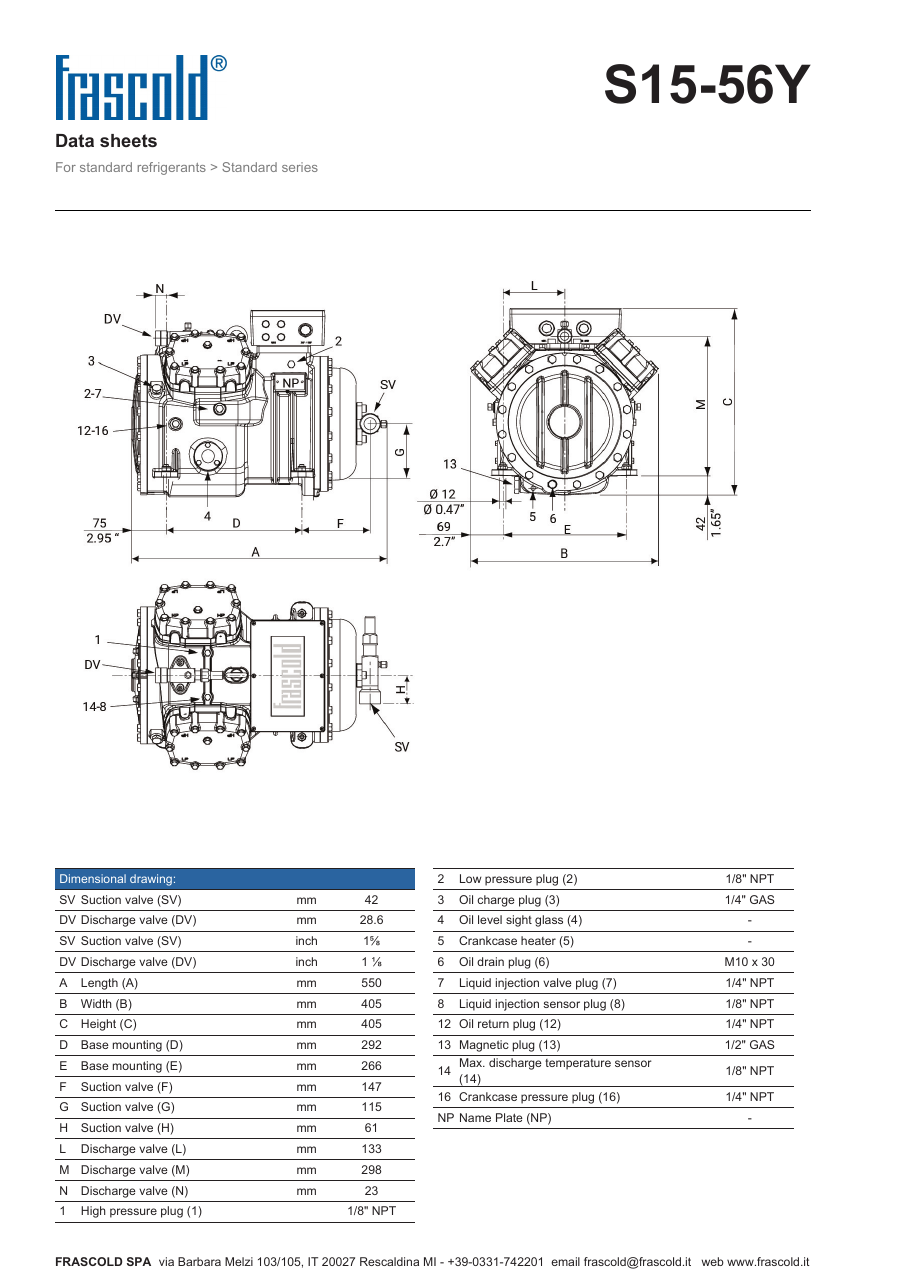

Frascold S15-56Y – Drawing (66e7e5a4f1b6_S1-3 S. 3)
Drawing · 66e7e5a4f1b6_S1-3 · S. 3

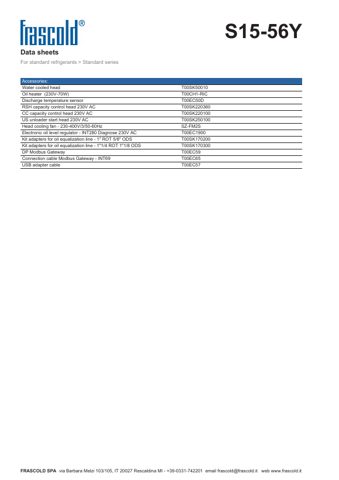

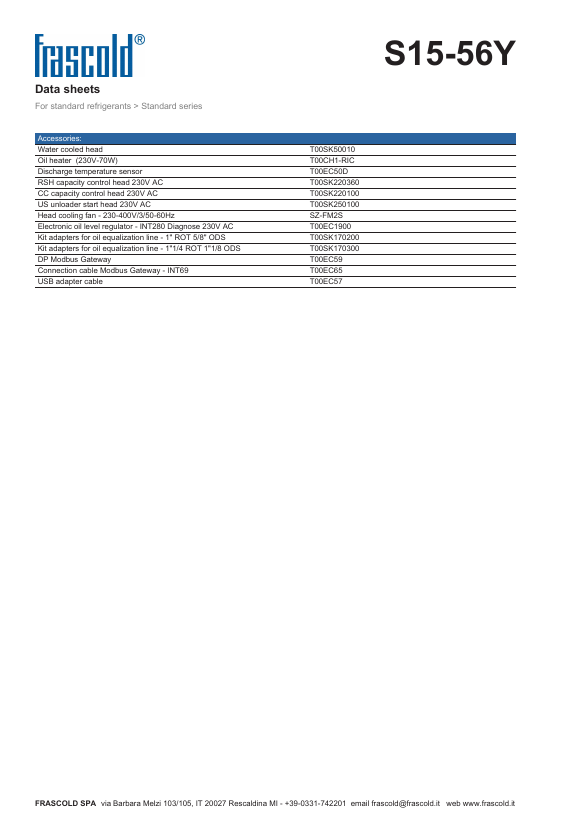

Frascold S15-56Y – Page preview (66e7e5a4f1b6_S1-3 S. 2)
Page preview · 66e7e5a4f1b6_S1-3 · S. 2
Source: Frascold S15-56Y datasheet, p. 1
