Frascold

S12-42Y

Refrigeration Compressor (Reciprocating) · Refrigeration

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

50hz41.32 m³/h
60hz49.58 m³/h
Oil charge (3/4 of the2.9 L
Engine1
PWS motor22.4 A
LRA locked motor current59.1 A
Electric terminal box class protectionIP56
Displacement @ 50 Hz41.3 m3/h
Displacement @ 60 Hz49.6 m3/h
CC Head capacity control steps100-50 %
RSH Head capacity control steps100-75-50 %
MRA, max operating current at 400V/50Hz and 460V/60Hz22.4 A
LRA, max starting current at 400V/50Hz and 460V/60Hz, PWS motor59.1 A
LRA, max starting current at 400V/50Hz and 460V/60Hz, PWS motor-DOL connection102.29 A
Frequency min25 Hz
Maximum pressure HP30 bar
Maximum pressure LP20.5 bar
Oil charge (3/4 of sight glass)2.9 l
Net weight120 kg
Max Length550 mm
Max Width405 mm
Max Height405 mm
Rubber mounts diameter50 mm
Rubber mounts height50 mm
Rubber mounts shore55 sh
Compressor body materialGhisa GJL250
Oil level sight glass2
Control and protection deviceINT69®
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A compressor with 4 cylinders designed for standard refrigerants, featuring a nominal motor power of 12 HP and displacement rates of 41.3 m3/h at 50 Hz and 49.6 m3/h at 60 Hz.

Features

  • variable capacity control
  • IP56 protection class
  • centrifugal lubrication system

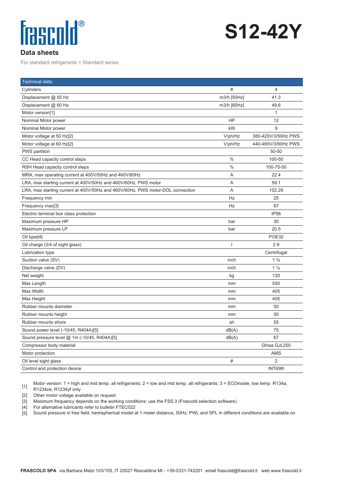

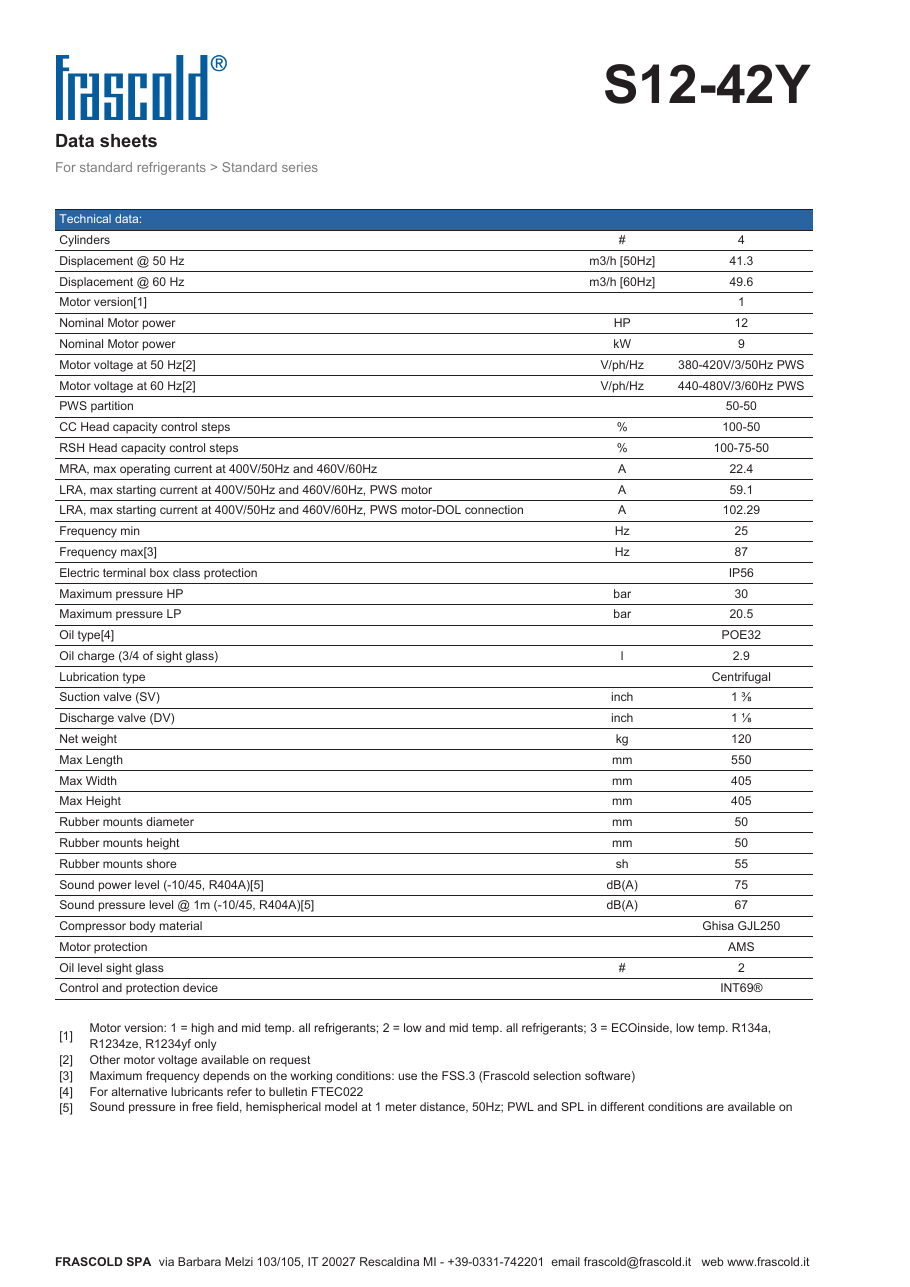

Frascold S12-42Y – Drawing (f88aafc7a8c3_S1-3 S. 1)
Drawing · f88aafc7a8c3_S1-3 · S. 1

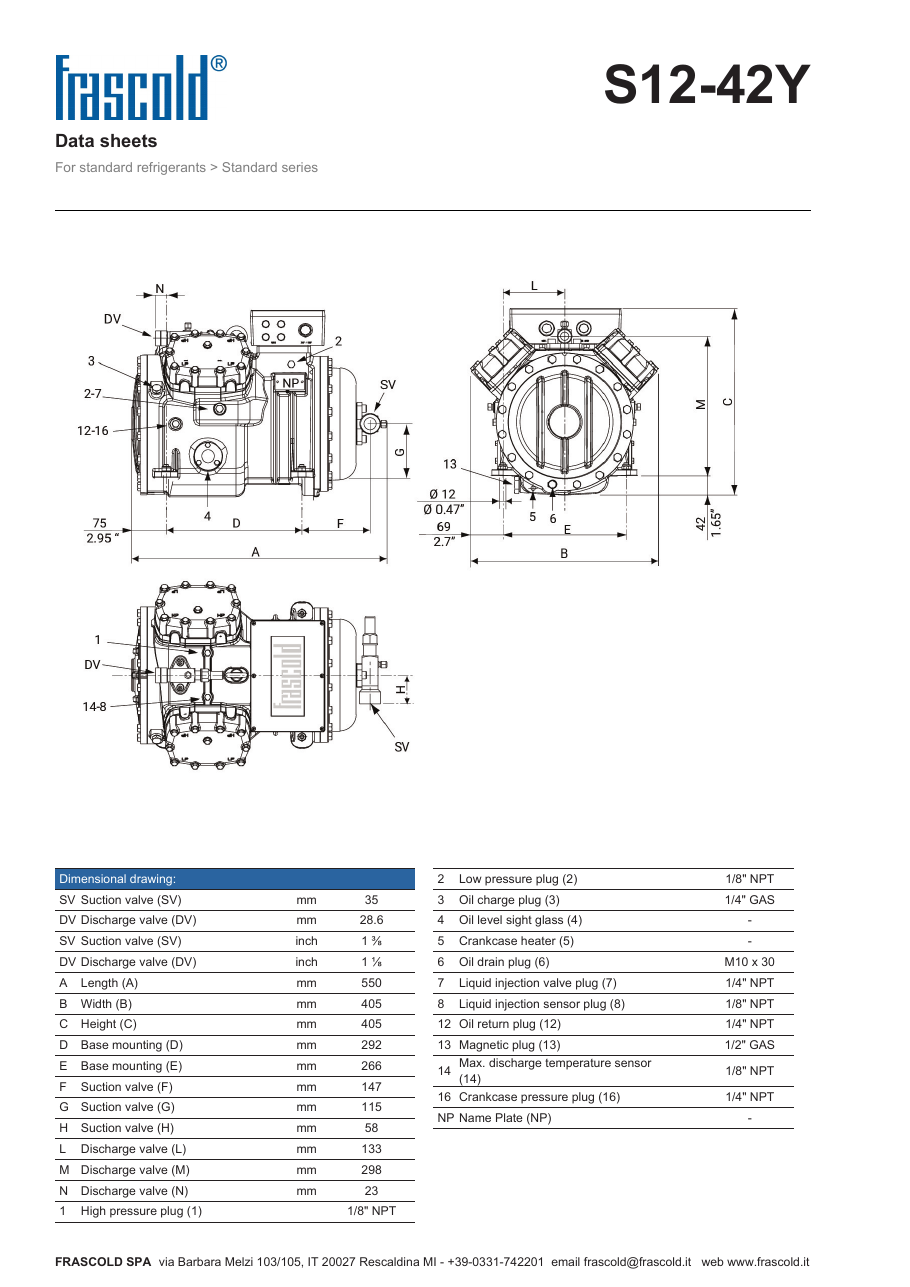

Frascold S12-42Y – Drawing (f88aafc7a8c3_S1-3 S. 3)
Drawing · f88aafc7a8c3_S1-3 · S. 3

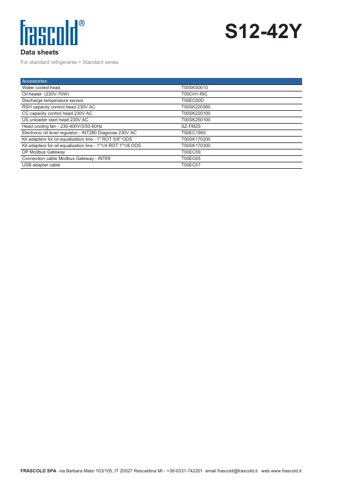

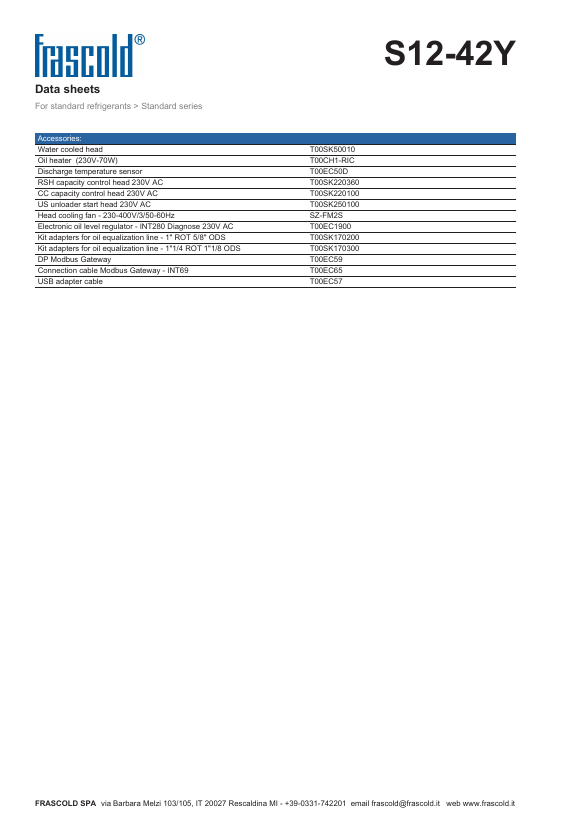

Frascold S12-42Y – Page preview (f88aafc7a8c3_S1-3 S. 2)
Page preview · f88aafc7a8c3_S1-3 · S. 2
Source: Frascold S12-42Y datasheet, p. 1
