Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO MD 80
AFRISO

MD 80

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Process connection/tubusflange connection as per EN 1092-1 type B 1
Nominal pressurePN 40
D150,8
D279,4
D34x15,9
Minimum range* (in bar) at nominal size0.6 bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A diaphragm seal for mounting to pressure gauges, transducers or switches in corrosive and hot media.

Applications

  • Chemical Industry
  • Petrochemistry
  • Refineries
  • Power plant engineering

Features

  • flush, welded diaphragm
  • DIN and ASME flange connections
  • numerous special materials and coatings (option)
  • bottom instrument connection as cell design (option)

Options

  • welded connection
  • various pressure ranges
Source: AFRISO MD 80 datasheet, p. 2

Standards

  • EN 1092-1
Source: AFRISO MD 80 datasheet, p. 2
AFRISO MD 80 – Photo (29abbbcce98b_S1-2 S. 2)
Photo · 29abbbcce98b_S1-2 · S. 2

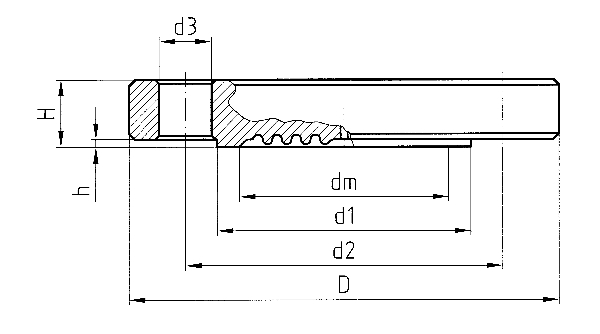

AFRISO MD 80 – Drawing (29abbbcce98b_S1-2 S. 2)
Drawing · 29abbbcce98b_S1-2 · S. 2

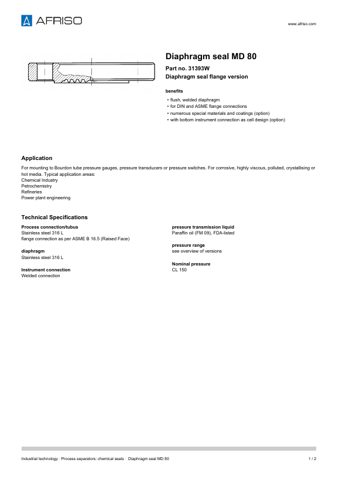

AFRISO MD 80 – Page preview (c0fe524d49fe_S1-1 S. 1)
Page preview · c0fe524d49fe_S1-1 · S. 1

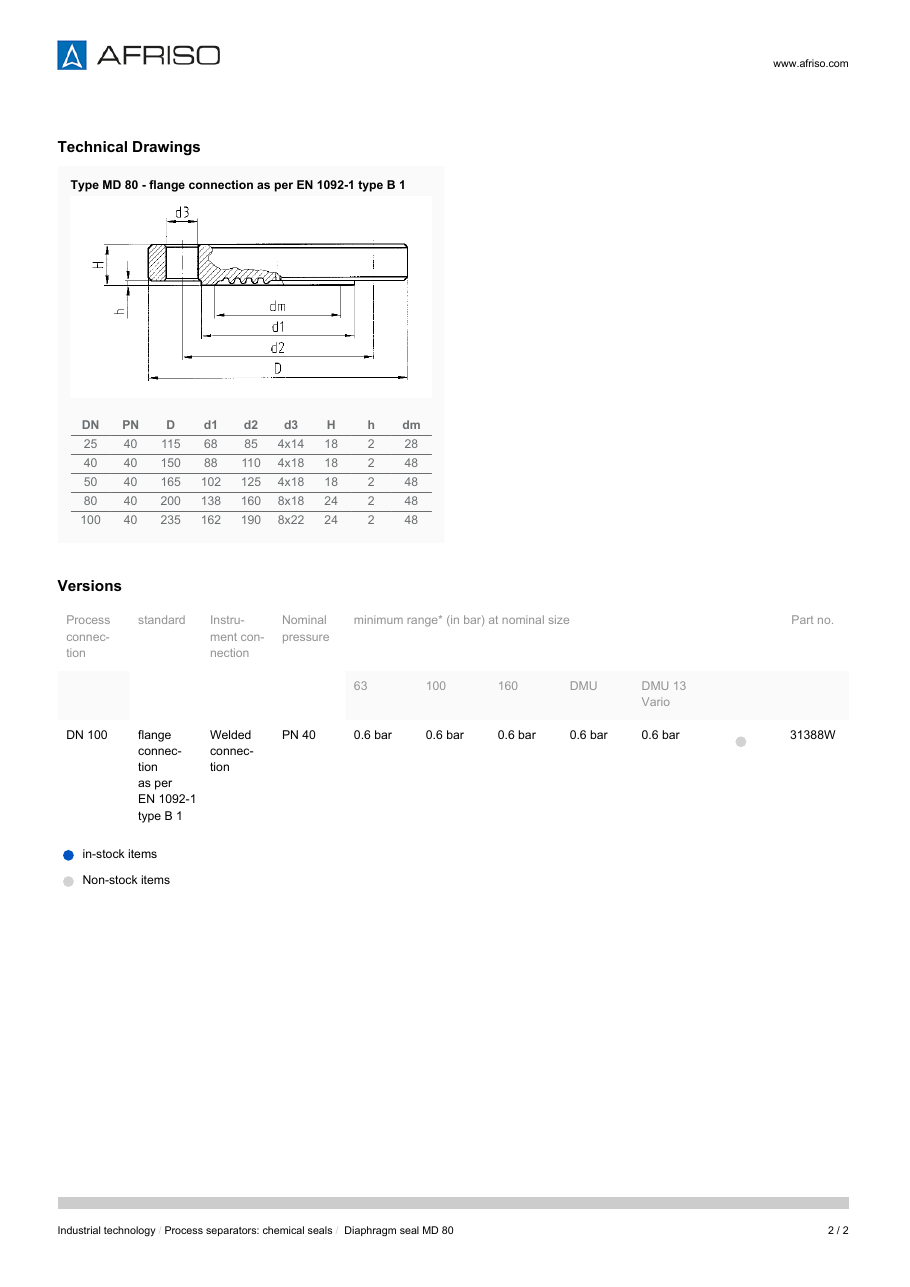

AFRISO MD 80 – Page preview (29abbbcce98b_S1-2 S. 1)
Page preview · 29abbbcce98b_S1-2 · S. 1

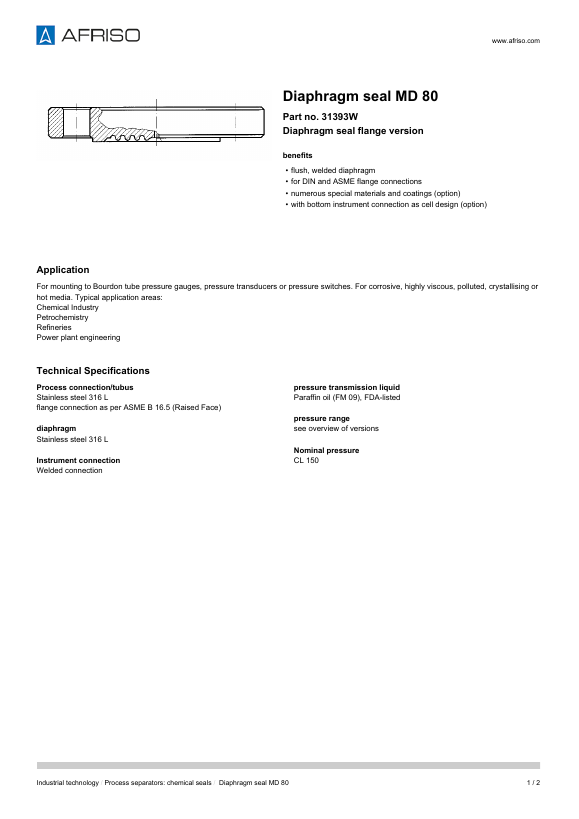

AFRISO MD 80 – Page preview (986314f4358e_S1-1 S. 1)
Page preview · 986314f4358e_S1-1 · S. 1
Source: AFRISO MD 80 datasheet, p. 1
