NDC-65

Inflatable Life Raft (SOLAS-A) · Life Rafts

Technical data from manufacturer or class sources · not yet verified by a person
Persons capacity per SOLAS certificationCapacity
Crew EvacuationMedium

Crew evacuation is a critical safety procedure on board vessels of all sizes, ensuring that crew members can quickly and safely leave the ship in emergency situations. The NDC-65, certified to SOLAS standards, is designed for this exact purpose, providing reliable and efficient means of crew evacuation. Common failures include the hydrostatic release unit (HRU) expiring, which is a critical safety issue, CO2 bottle pressure loss due to corrosion or aging, material degradation from UV exposure on deck, fangleine corrosion or blockage, and expired survival equipment such as flares, water, and rations. To maintain optimal performance and ensure compliance with SOLAS regulations (MSC.1/Circ.1328), annual servicing at an approved service station is mandatory. This includes the replacement of the HRU at intervals specified by the manufacturer, typically every two years. Additionally, the liferaft must be replaced or recertified every five years to ensure its continued reliability and safety. VIKING Life-Saving Equipment Norway AS emphasizes that all servicing should be conducted only at approved service stations, and it is crucial to keep a spare HRU on board for immediate replacement if needed. Regular maintenance and timely replacements are essential to avoid critical failures and ensure the safety of crew members during emergencies.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Safe Working Load (SWL)6625 kg
Trim / list conditions10°/ 20°, 17°/17°
Max. lowering height62,1 m
Operation temperature-20°C till +45°C (other range on request)
Min. hoisting speed18 m/min
Min. lowering speedAccording to SOLAS regulation (S = 0.4 + 0.02H)
Davit system weight (Approx.)2550 kg, davit incl. winch (dry weight)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Viking Norsafe NDC cantilever davit system is designed for safe and efficient launching and retrieval of Viking Norsafe Rescue Boats.

Applications

  • Rescue Boat handling

Features

  • Cantilever Rescue boat davit
  • Fixed cantilever davit
  • Gravity lowering
  • Hydraulic driven winch
  • Controlled from a hydraulic power unit (HPU)

Standards

  • IMO/ SOLAS requirements, LSA Code

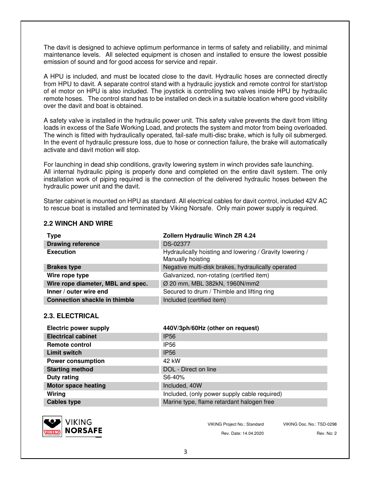

VIKING Life-Saving Equipment Norway NDC-65 – Drawing (7936575cec90_S2-4 S. 2)
Drawing · 7936575cec90_S2-4 · S. 2
VIKING Life-Saving Equipment Norway NDC-65 – Drawing (7936575cec90_S2-4 S. 3)
Drawing · 7936575cec90_S2-4 · S. 3

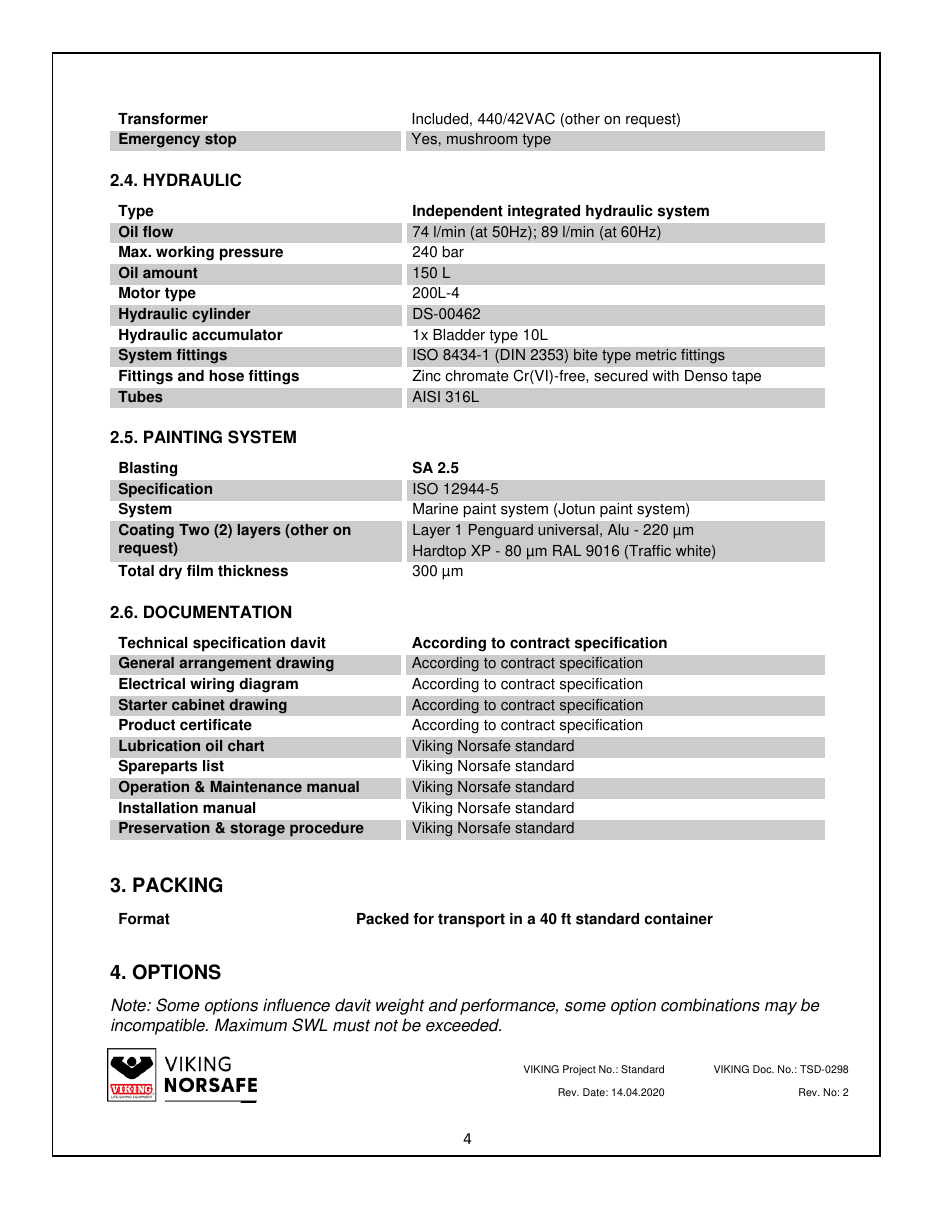

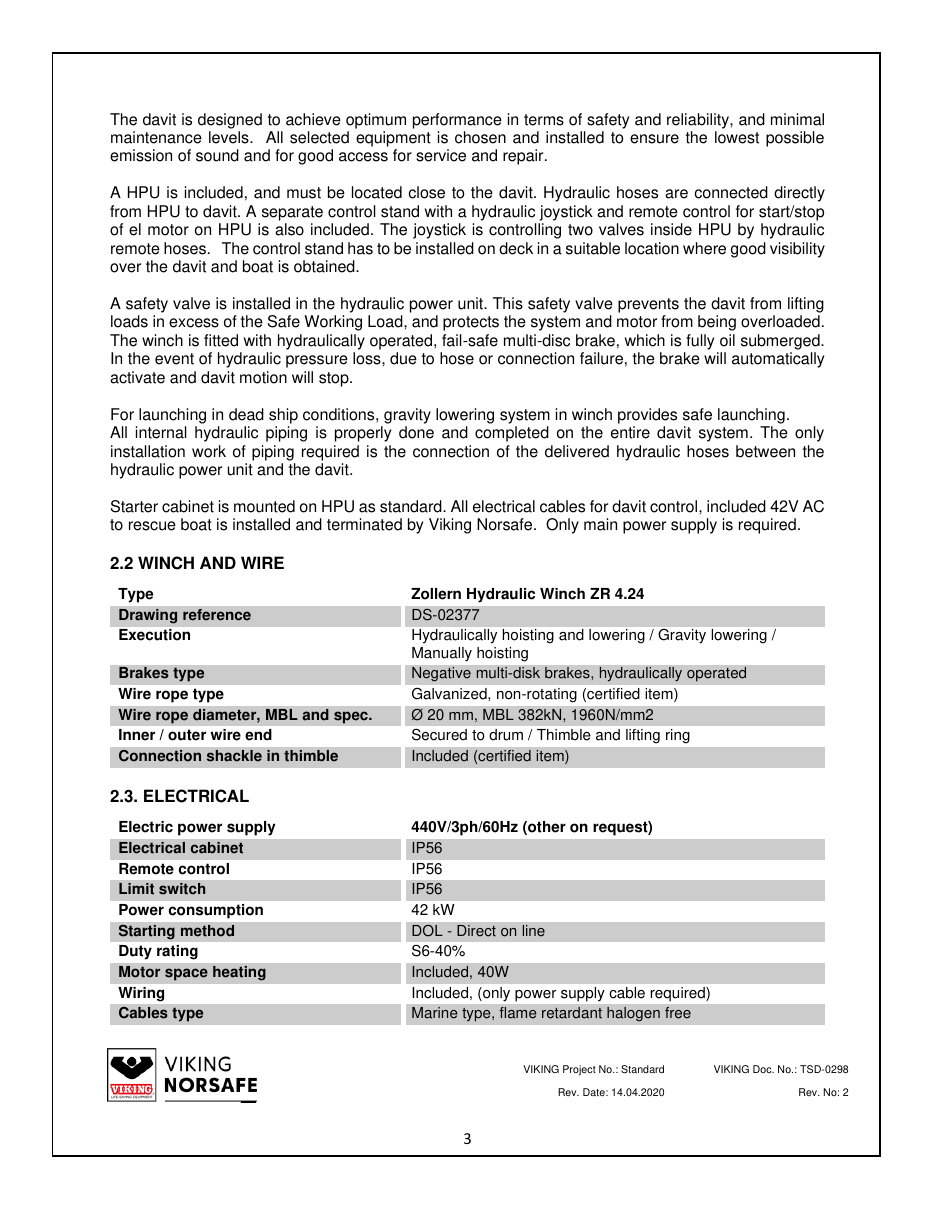

Source: VIKING Life-Saving Equipment Norway NDC-65 datasheet, p. 2
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Annual servicing at an approved service station is MANDATORY (SOLAS/MSC.1/Circ.1328). HRU replacement at the manufacturer's interval (typically 2 years). Liferaft replacement/recertification every 5 years.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

VIKING Life-Saving Equipment Norway AS: Servicing ONLY at an approved service station. Keep an HRU on board. Annual service mandatory.
