Library› Engine Room› Automation & Control› Level Switch› AFRISO CapFox® ENT 21 MK -10 ST
AFRISO

CapFox® ENT 21 MK -10 ST

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Supply voltageDC 7 – 34 V
Load currentmax. 300 mA
Weightca. 0.3 kg
CertificationsIP 68 (EN 60529)
Current inputmax. 5 mA without load
Cable length2 m
Degree of protectionIP 68 (EN 60529)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A capacitance level switch designed for detecting the levels of conductive and non-conductive liquids or bulk solids in tanks, ducts, pipes, or silos.

Applications

  • pharmaceutical industry
  • chemical industry
  • mining

Features

  • easy adjustment via magnetic pin
  • IP 68 degree of protection
  • temperature range up to 300 °C
  • EX version suitable for mining

Options

  • other process connections
  • FEP/PFA coatings
  • Ex version
  • HT EX version
Source: AFRISO CapFox® ENT 21 MK -10 ST datasheet, p. 2

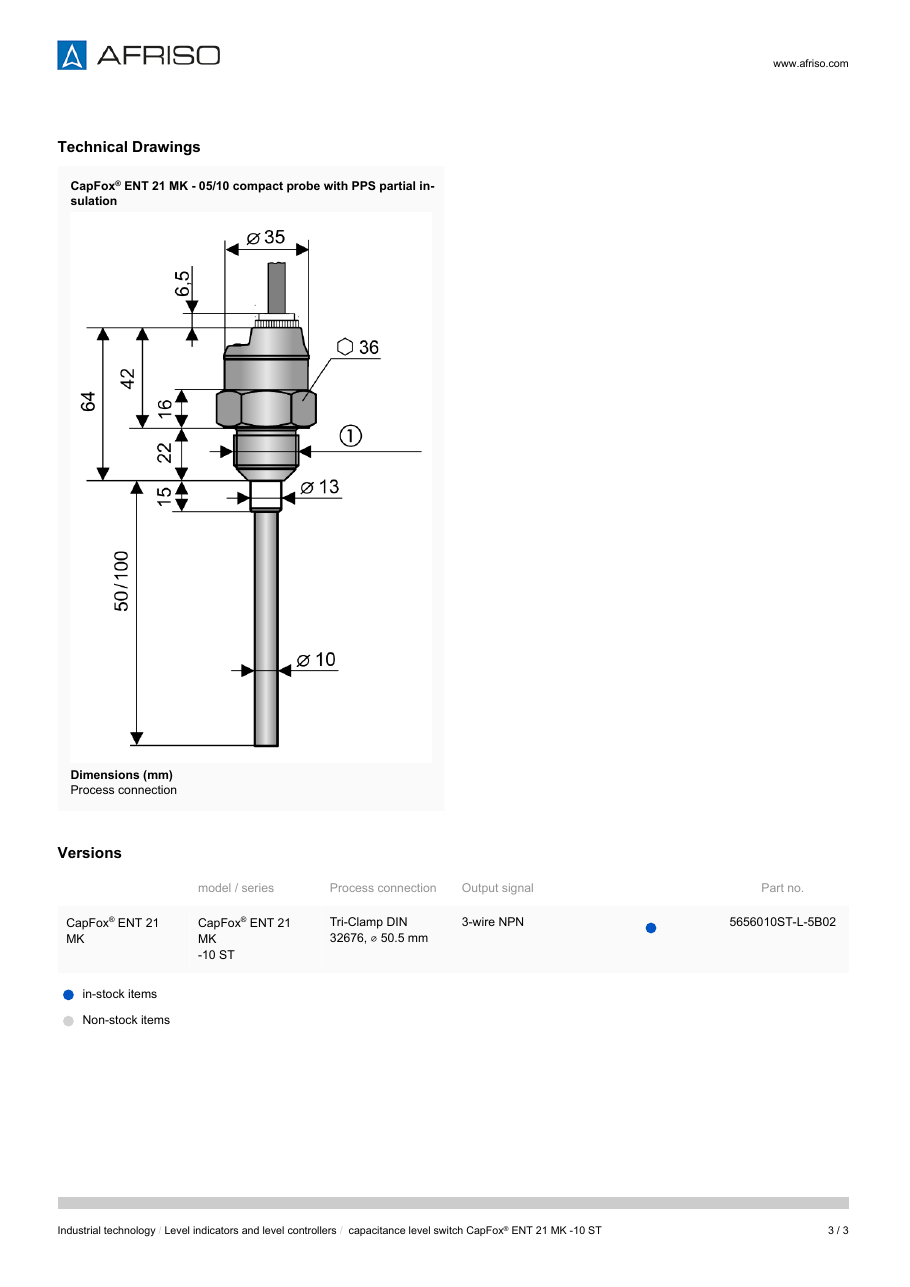

AFRISO CapFox® ENT 21 MK -10 ST – Drawing (478848a75cba_S1-3 S. 1)
Drawing · 478848a75cba_S1-3 · S. 1
AFRISO CapFox® ENT 21 MK -10 ST – Drawing (478848a75cba_S1-3 S. 3)
Drawing · 478848a75cba_S1-3 · S. 3

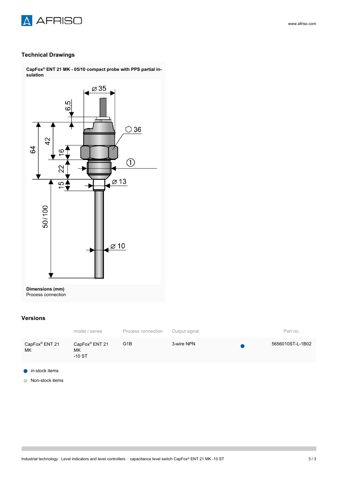

AFRISO CapFox® ENT 21 MK -10 ST – Drawing (50eb37447222_S1-3 S. 3)
Drawing · 50eb37447222_S1-3 · S. 3

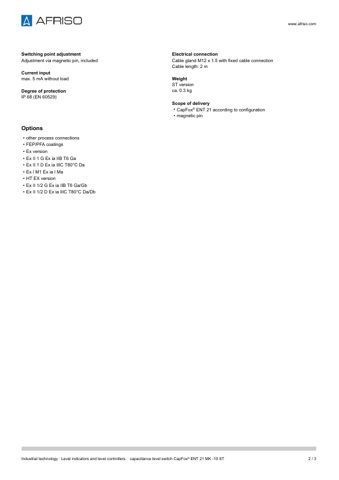

AFRISO CapFox® ENT 21 MK -10 ST – Page preview (478848a75cba_S1-3 S. 2)
Page preview · 478848a75cba_S1-3 · S. 2
Source: AFRISO CapFox® ENT 21 MK -10 ST datasheet, p. 1
