Library› Engine Room› Automation & Control› Level Switch› AFRISO ENT 21 MF -60 HT
AFRISO

ENT 21 MF -60 HT

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Process connectionTri-Clamp DIN 32676, ⌀ 34 mm
Supply voltageDC 7 – 34 V
Load current:max. 300 mA
Load current: max.300 mA
Load currentmax. 300 mA
CertificationsEN 60947
Weightca. 0.6 kg
Degree of protectionIP 68 (EN 60529)
Cable length2 m
Current inputmax. 5 mA without load
Output signal3-wire NPN
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The CapFox® ENT 21 capacitance level switch detects the level of conductive and non-conductive liquids in tanks, ducts, pipes or silos.

Applications

  • pharmaceutical industry
  • chemical industry
  • bulk solids

Features

  • easy adjustment via magnetic pin
  • IP 68 degree of protection
  • for temperatures of the medium of up to 300 °C
  • EX version suitable for mining

Options

  • various cable gland options
  • different cable lengths
Source: AFRISO ENT 21 MF -60 HT datasheet, p. 3

Standards

  • EN 60947
AFRISO ENT 21 MF -60 HT – Drawing (7671f6231261_S1-2 S. 1)
Drawing · 7671f6231261_S1-2 · S. 1
AFRISO ENT 21 MF -60 HT – Drawing (6a64d9dc7ed2_S1-4 S. 1)
Drawing · 6a64d9dc7ed2_S1-4 · S. 1

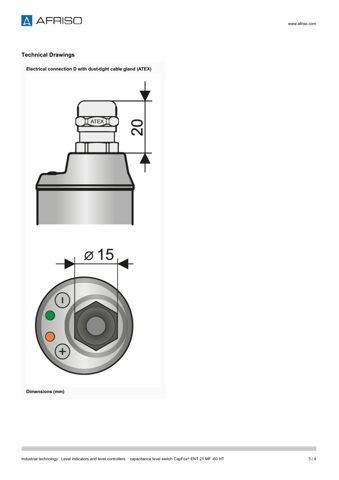

AFRISO ENT 21 MF -60 HT – Drawing (6a64d9dc7ed2_S1-4 S. 3)
Drawing · 6a64d9dc7ed2_S1-4 · S. 3

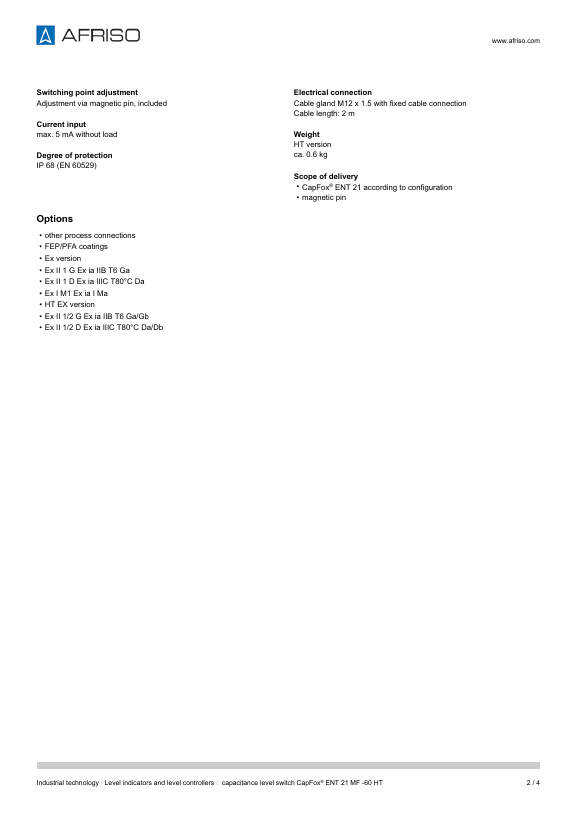

AFRISO ENT 21 MF -60 HT – Page preview (7671f6231261_S1-2 S. 2)
Page preview · 7671f6231261_S1-2 · S. 2

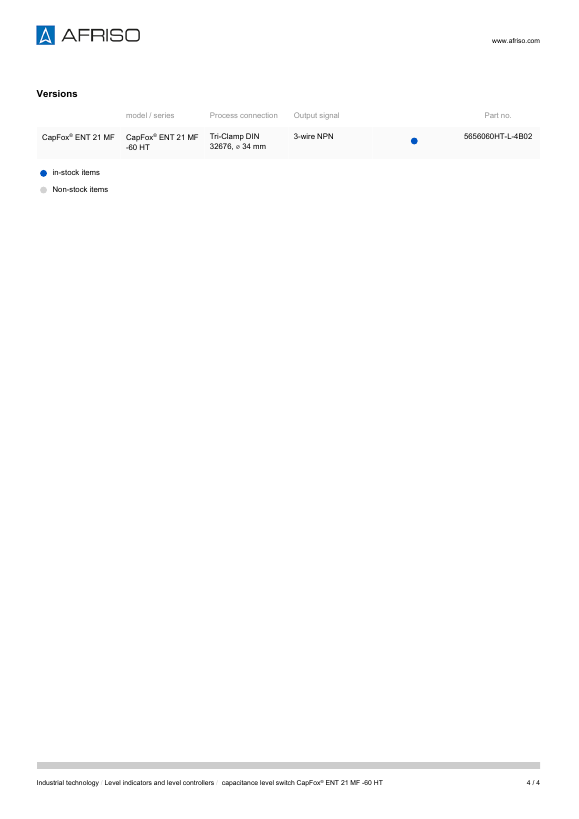

AFRISO ENT 21 MF -60 HT – Page preview (6a64d9dc7ed2_S1-4 S. 4)
Page preview · 6a64d9dc7ed2_S1-4 · S. 4
Source: AFRISO ENT 21 MF -60 HT datasheet, p. 1
