Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO RF50GLY
AFRISO

RF50GLY

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Plasticglycerine (99.5 %)
∅c5
C12
C213 mm
Filling liquidglycerine (99.5 % )
Nominal size50
Degree of protectionIP 54 (EN 60529) with housing vent (≤ 25 bar)
DialNG 50
PointerNG 50 Aluminium, black
WindowNG 50 Plastic
B31,5 mm
D53 G¼B
G54,5 mm
Sw14 mm
Filling liquidglycerine (99.5 %)
Range0/0.6 bar
Operating temperature range - Mediummax. 60 °C
Operating temperature range - Ambient-20/+60 °C
G51 mm
M82 mm
N73 mm
S4,5 mm
Operating temperature range Mediummax. 60 °C
Operating temperature range Ambient-20/+60 °C
Ambient-20/+60 °C
Operating temperature rangeMedium: max. 60 °C
AluminiumNG 50
HousingNG 50 Polyamide, black
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

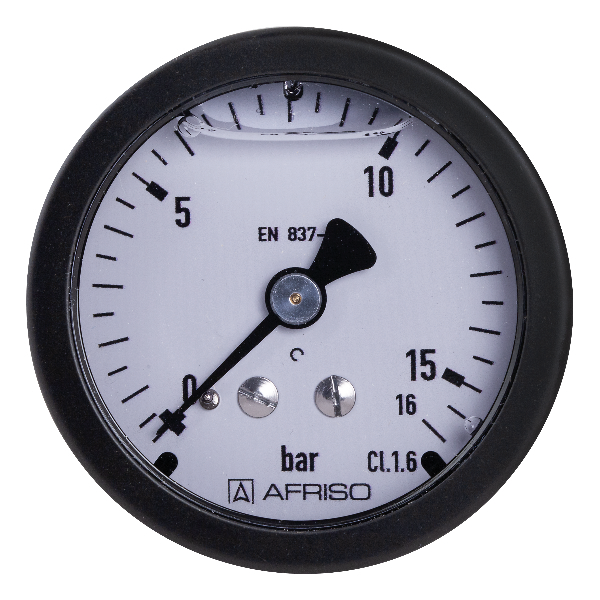

These are glycerine-filled Bourdon tube pressure gauges with a brass movement and a black aluminium dial.

Applications

  • gaseous and liquid media
  • areas with high vibration levels
  • high, dynamic pressure loads
Source: AFRISO RF50GLY datasheet, p. 1

Features

  • Brass movement
  • Polyamide, black housing
  • Aluminium, white dial with blow-out
  • Aluminium, black pointer window
  • Aluminium, black scaling
  • Plastic bezel
  • Glycerine (99.5%) filling liquid
  • Back flange (NG 63)

Options

  • Back flange (NG 63)
  • clamp fixing (NG 50/63)
  • 3-hole fixing, panel mounting bezel (NG 63)
  • throttle screw
  • special scales
  • other process connections

Standards

  • EN 837-1/5
  • EN 837-1/6
Source: AFRISO RF50GLY datasheet, p. 1

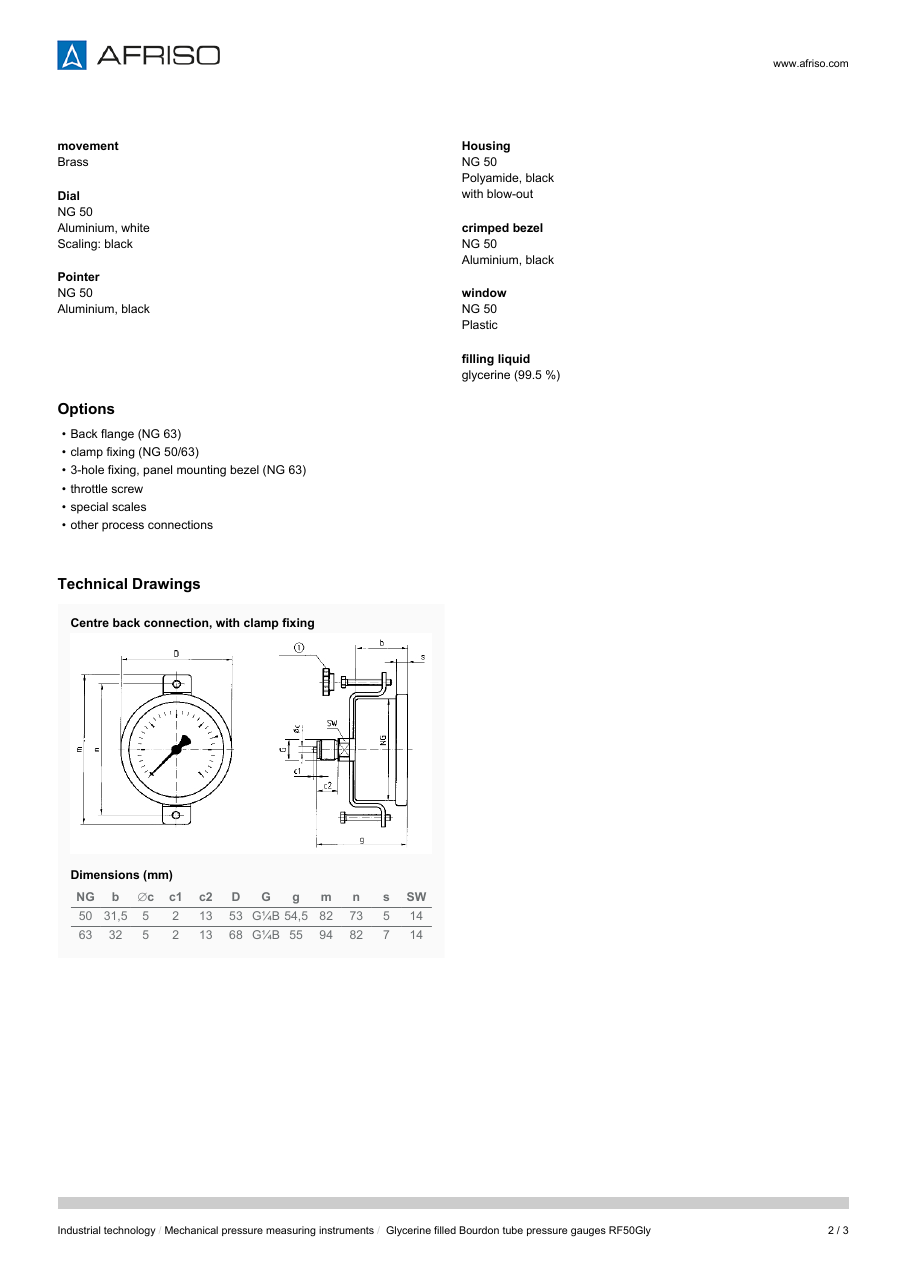

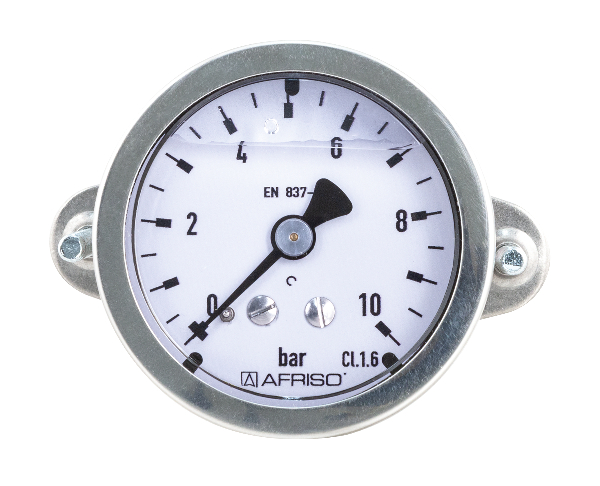

AFRISO RF50GLY – Photo (9d2b661c95f4_S1-3 S. 2)
Photo · 9d2b661c95f4_S1-3 · S. 2
AFRISO RF50GLY – Photo (99049710aec6_S1-2 S. 1)
Photo · 99049710aec6_S1-2 · S. 1
AFRISO RF50GLY – Photo (99049710aec6_S1-2 S. 2)
Photo · 99049710aec6_S1-2 · S. 2
AFRISO RF50GLY – Photo (ddd813a2ab0e_S1-3 S. 1)
Photo · ddd813a2ab0e_S1-3 · S. 1
AFRISO RF50GLY – Photo (ddd813a2ab0e_S1-3 S. 2)
Photo · ddd813a2ab0e_S1-3 · S. 2
AFRISO RF50GLY – Photo (7650921bacee_S1-3 S. 2)
Photo · 7650921bacee_S1-3 · S. 2
AFRISO RF50GLY – Photo (8697523db620_S1-2 S. 1)
Photo · 8697523db620_S1-2 · S. 1

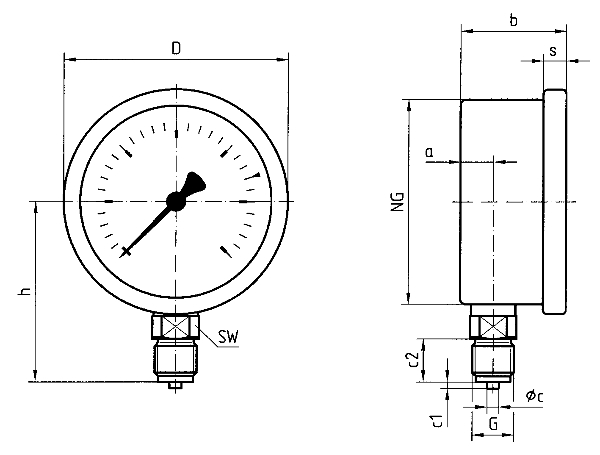

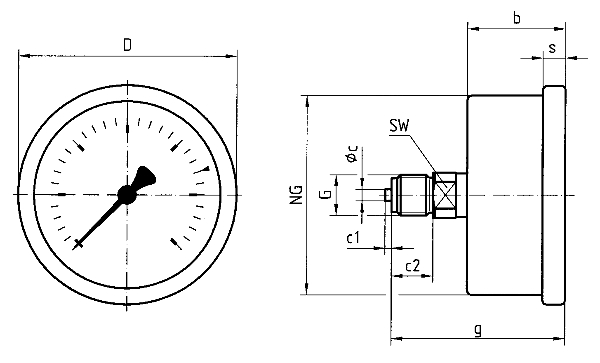

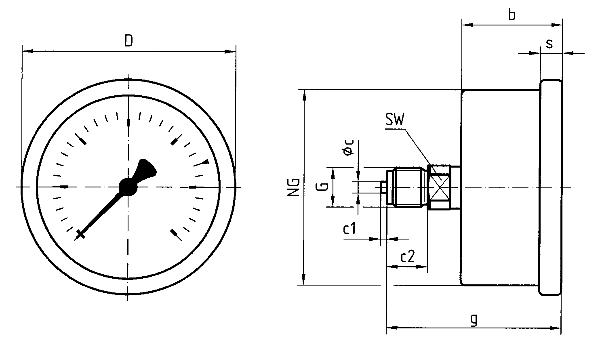

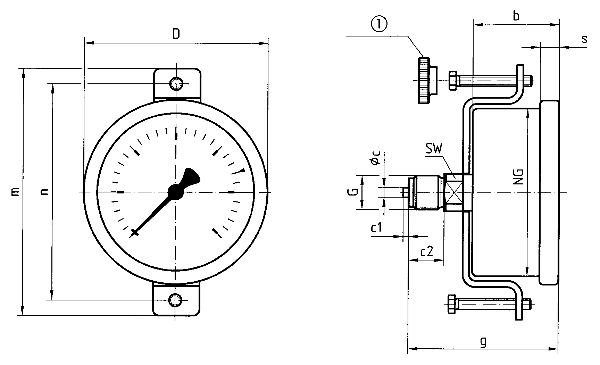

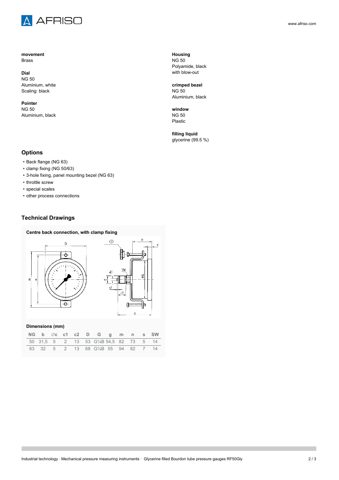

AFRISO RF50GLY – Drawing (9d2b661c95f4_S1-3 S. 2)
Drawing · 9d2b661c95f4_S1-3 · S. 2
Source: AFRISO RF50GLY datasheet, p. 2
