Pall Marine

HDP22

Oil Conditioning / Vacuum Dehydrator Unit · Separators & Purifiers

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Flow Rate23 GPM (87 LPM) @ 60 Hz / 19 GPM @ 50 Hz (73 LPM)
Dry Weight1932 Lbs (876 kg)
Viscosity Range3 cSt to 1000 cSt
Inlet Fluid Temperature167° F (75° C) Maximum
Inlet Pressure Range-14” Hg to 10 PSI (-0.47 bar to 0.69 bar)
Outlet Pressure Relief Setting80 psi (5.5 barg maximum)
Operating Vacuum Range-15” to -24” Hg (-0.51 bar to -0.80 bar)
Heater Capacity15 kW (low watt density)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Description Leveraging more than 30 years of design and field experience, Pall presents the third in its family of HDP Series fluid conditioning purifiers – the HDP22 Oil Purifier. The HDP Series…”

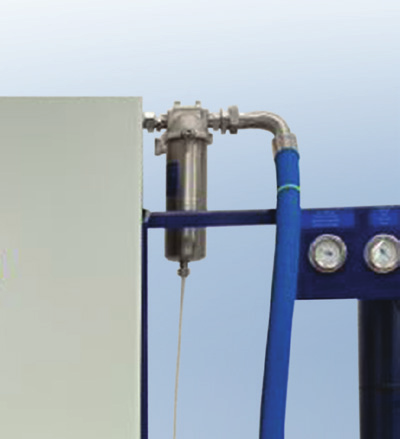

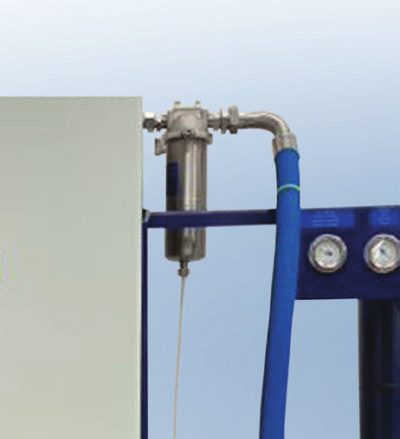

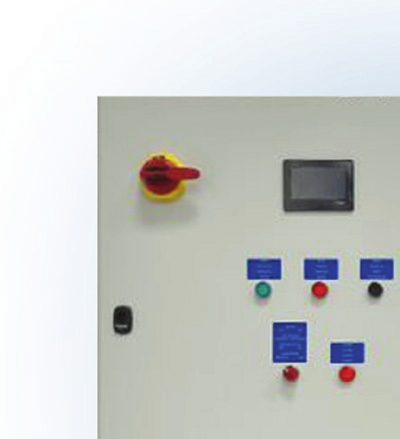

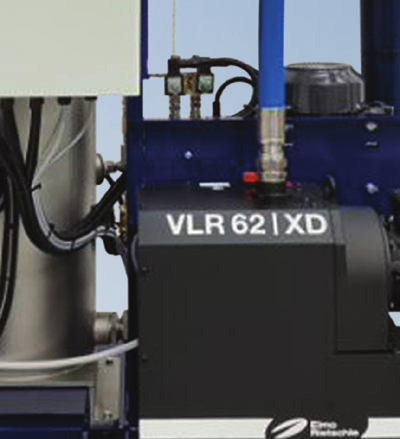

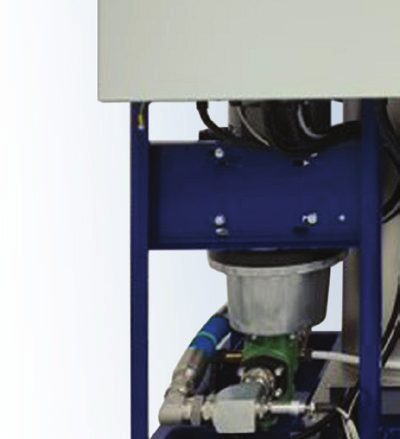

Pall Marine HDP22 – Photo (4ece6ad4d426_S1-3 S. 1)
Photo · 4ece6ad4d426_S1-3 · S. 1
Pall Marine HDP22 – Photo (4ece6ad4d426_S1-3 S. 1)
Photo · 4ece6ad4d426_S1-3 · S. 1
Pall Marine HDP22 – Photo (4ece6ad4d426_S1-3 S. 1)
Photo · 4ece6ad4d426_S1-3 · S. 1
Pall Marine HDP22 – Photo (4ece6ad4d426_S1-3 S. 1)
Photo · 4ece6ad4d426_S1-3 · S. 1
Pall Marine HDP22 – Photo (4ece6ad4d426_S1-3 S. 1)
Photo · 4ece6ad4d426_S1-3 · S. 1
Pall Marine HDP22 – Photo (4ece6ad4d426_S1-3 S. 1)
Photo · 4ece6ad4d426_S1-3 · S. 1

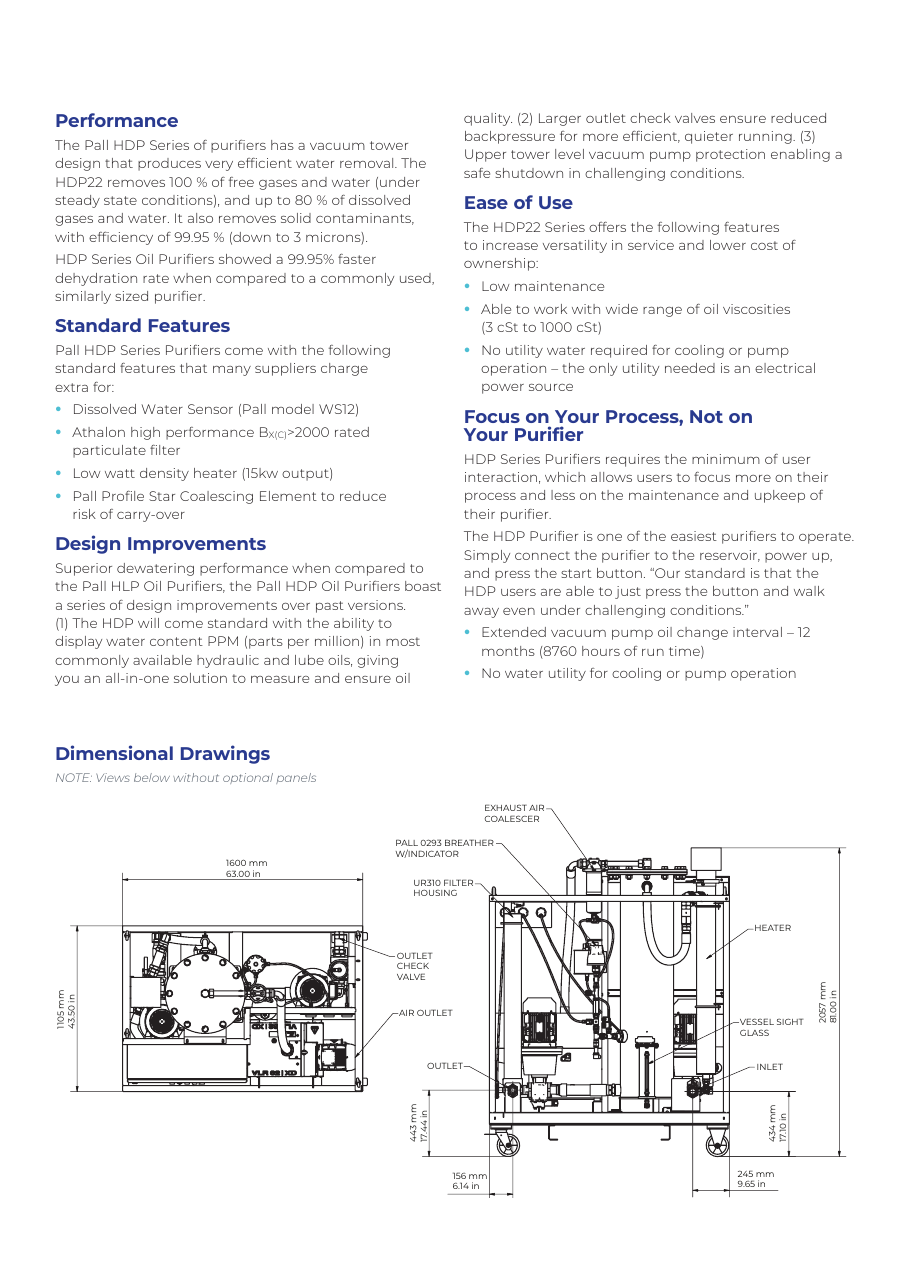

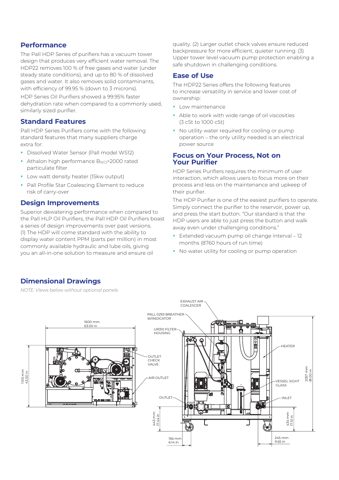

Pall Marine HDP22 – Drawing (4ece6ad4d426_S1-3 S. 2)
Drawing · 4ece6ad4d426_S1-3 · S. 2

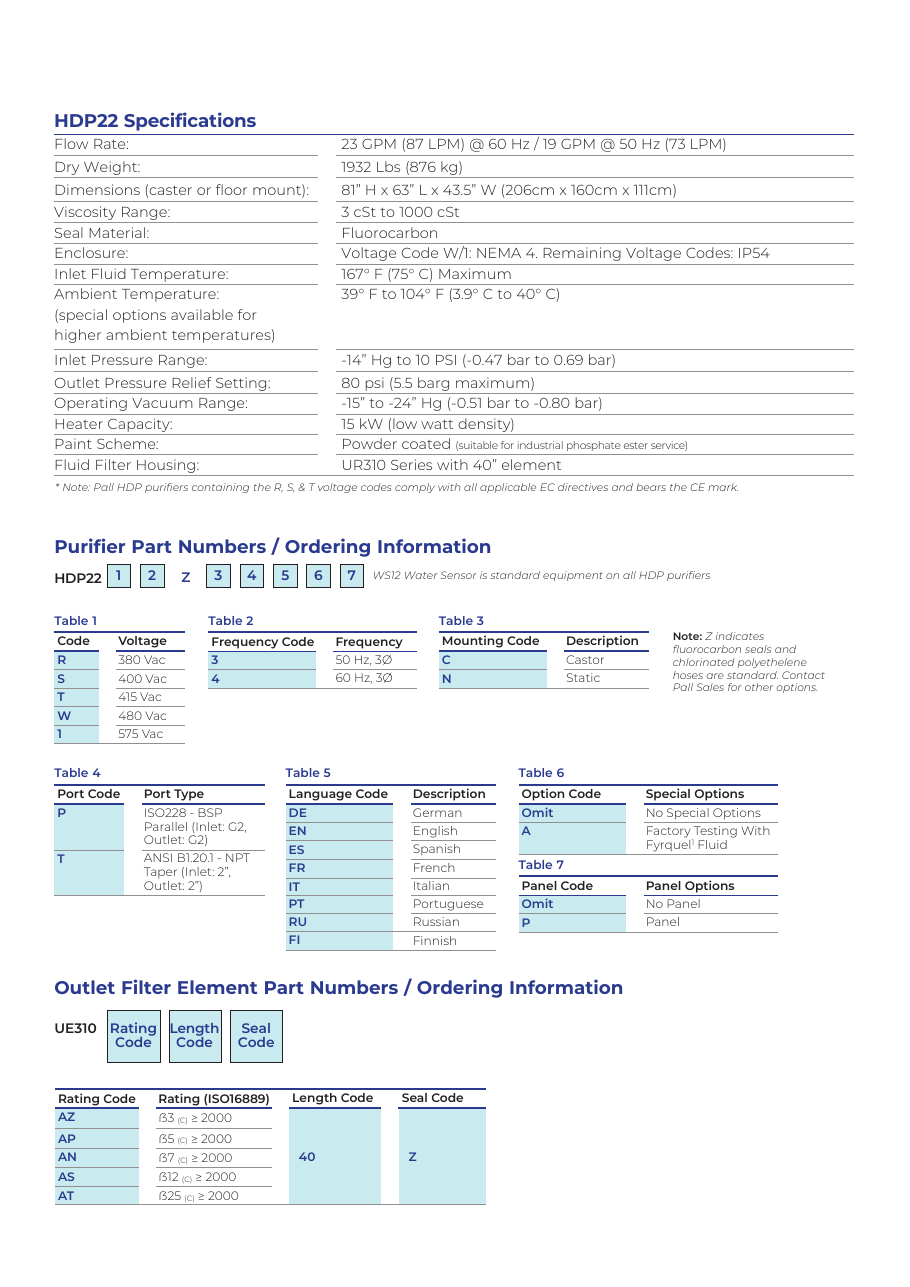

Pall Marine HDP22 – Drawing (4ece6ad4d426_S1-3 S. 3)
Drawing · 4ece6ad4d426_S1-3 · S. 3
Source: Pall Marine HDP22 datasheet, p. 1
