AFRISO

RF160GLY

Bourdon Tube Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

C220 mm
Sw22 mm
E26,5G½B
Range0/1.6 bar
Nominal size160
Operating temperature range - Mediummax. 60 °C
Degree of protectionIP 54 (EN 60529) with housing vent (<= 25 bar)
NG b2 ∅c c1 c2 d1*100 49 6 3 20
D2 d3* d4116 132 4,8
G26,5G½B
s2 s3 SW4 2 22
Filling liquidglycerine (99.5 %)
Bayonet bezelStainless steel 304
NG b2 ∅c c1 c2 d1* d2 d3* d4 e G g s2 s3 SW100 49 6 3 20 116 132 4,8 104 26,5G½B 81 4 2 22
G82 mm
Ng100 mm
A15,6 mm
B49 mm
H86 mm
NG b2 ∅c c1 c2 d1* d2 d3* d4100 49 6 3 20 116 132 4,8 104 26,5G½B 81 mm
B249 mm
D4104 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

These are glycerine filled Bourdon tube pressure gauges. They are used for measuring pressure.

Applications

  • industrial applications
Source: AFRISO RF160GLY datasheet, p. 3

Features

  • Bourdon tube
  • Stainless steel 304 housing with blow-out bayonet bezel

Options

  • back flange
  • 3-hole fixing, panel mounting bezel
  • 3-hole fixing, panel mounting bezel (NG 63)
  • special scales
  • other process connections

Standards

  • DIN 16064

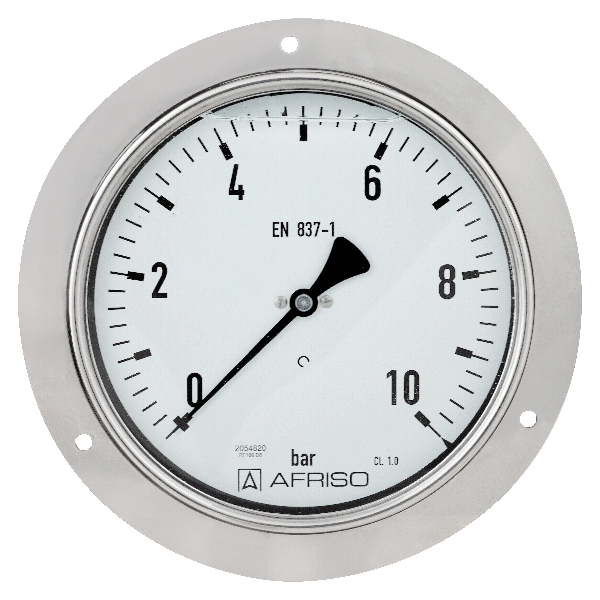

AFRISO RF160GLY – Photo (15933482bc53_S1-2 S. 1)
Photo · 15933482bc53_S1-2 · S. 1

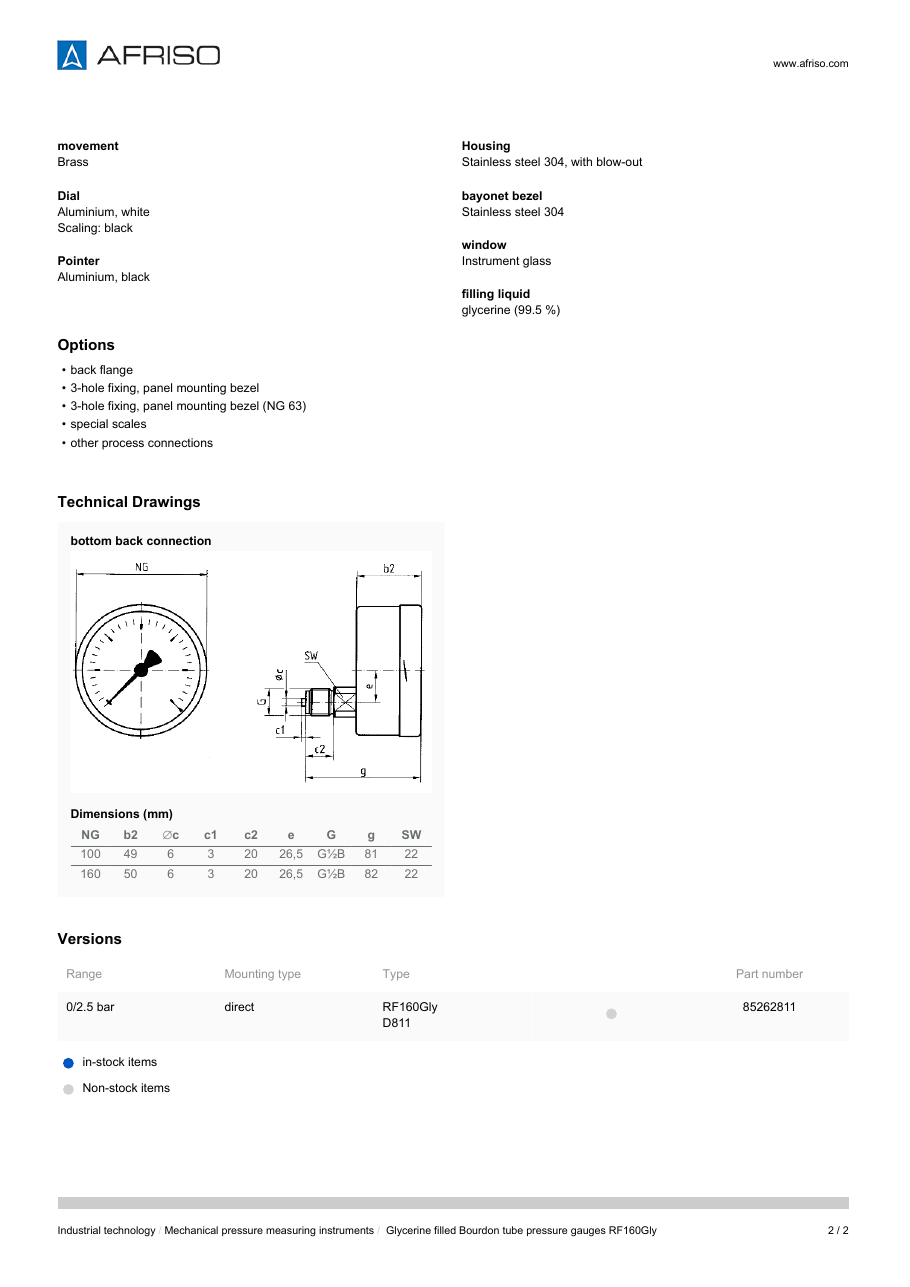

AFRISO RF160GLY – Drawing (15933482bc53_S1-2 S. 2)
Drawing · 15933482bc53_S1-2 · S. 2

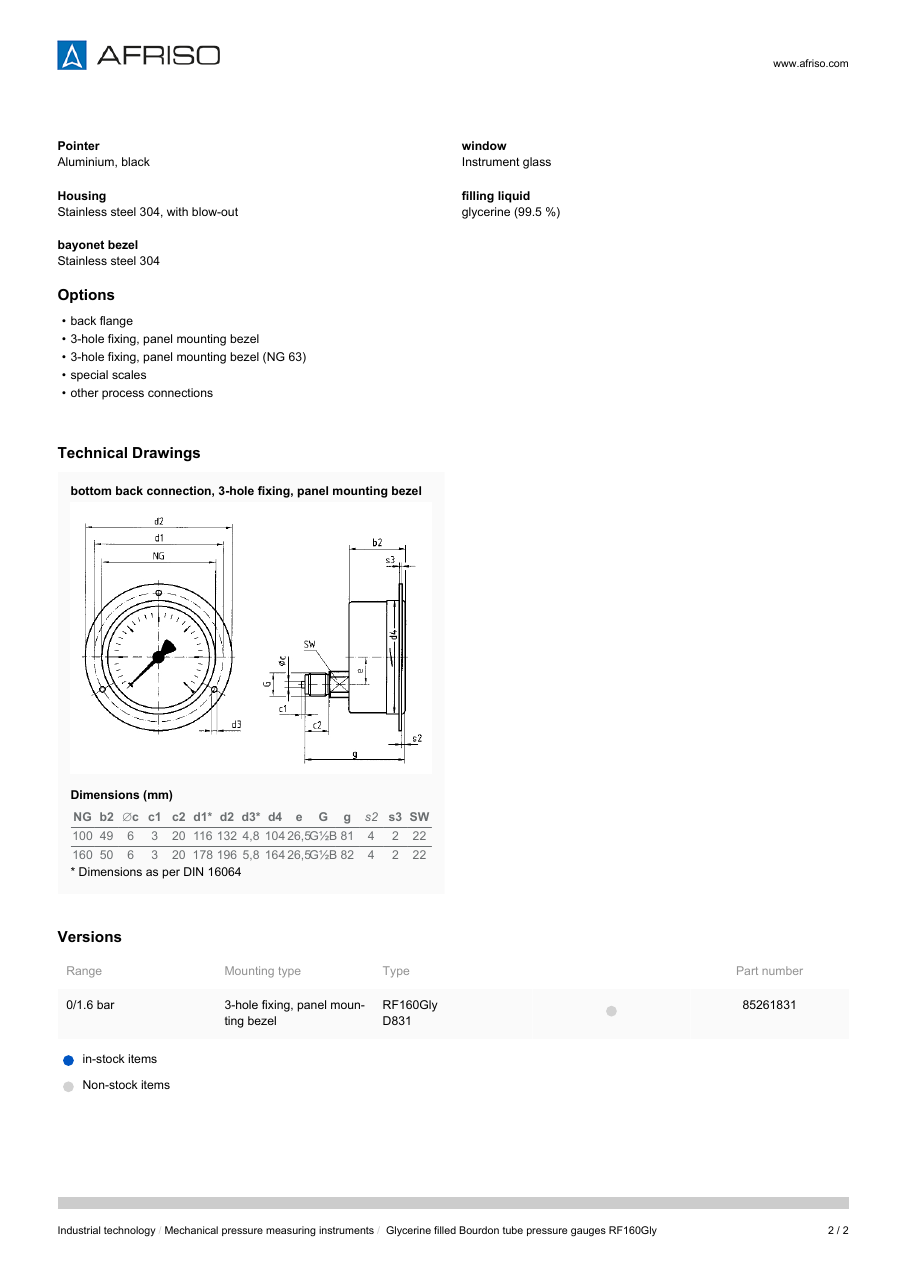

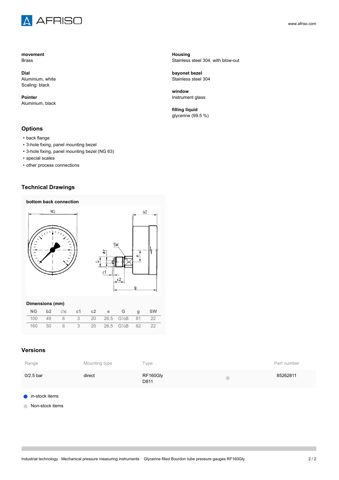

AFRISO RF160GLY – Drawing (0ecc21879bd2_S1-2 S. 2)
Drawing · 0ecc21879bd2_S1-2 · S. 2

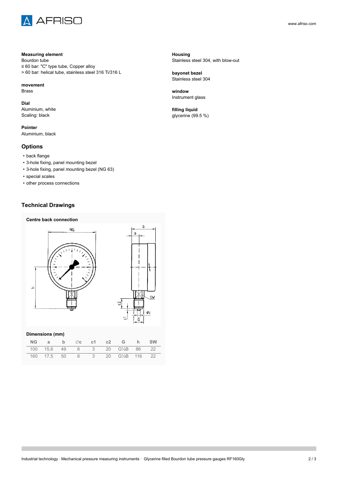

AFRISO RF160GLY – Drawing (6df4e2a1fa7f_S1-3 S. 2)
Drawing · 6df4e2a1fa7f_S1-3 · S. 2

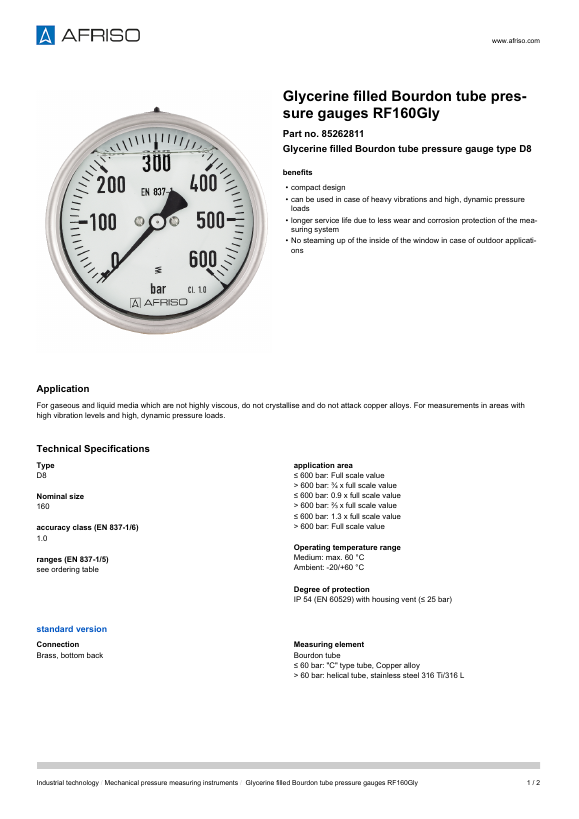

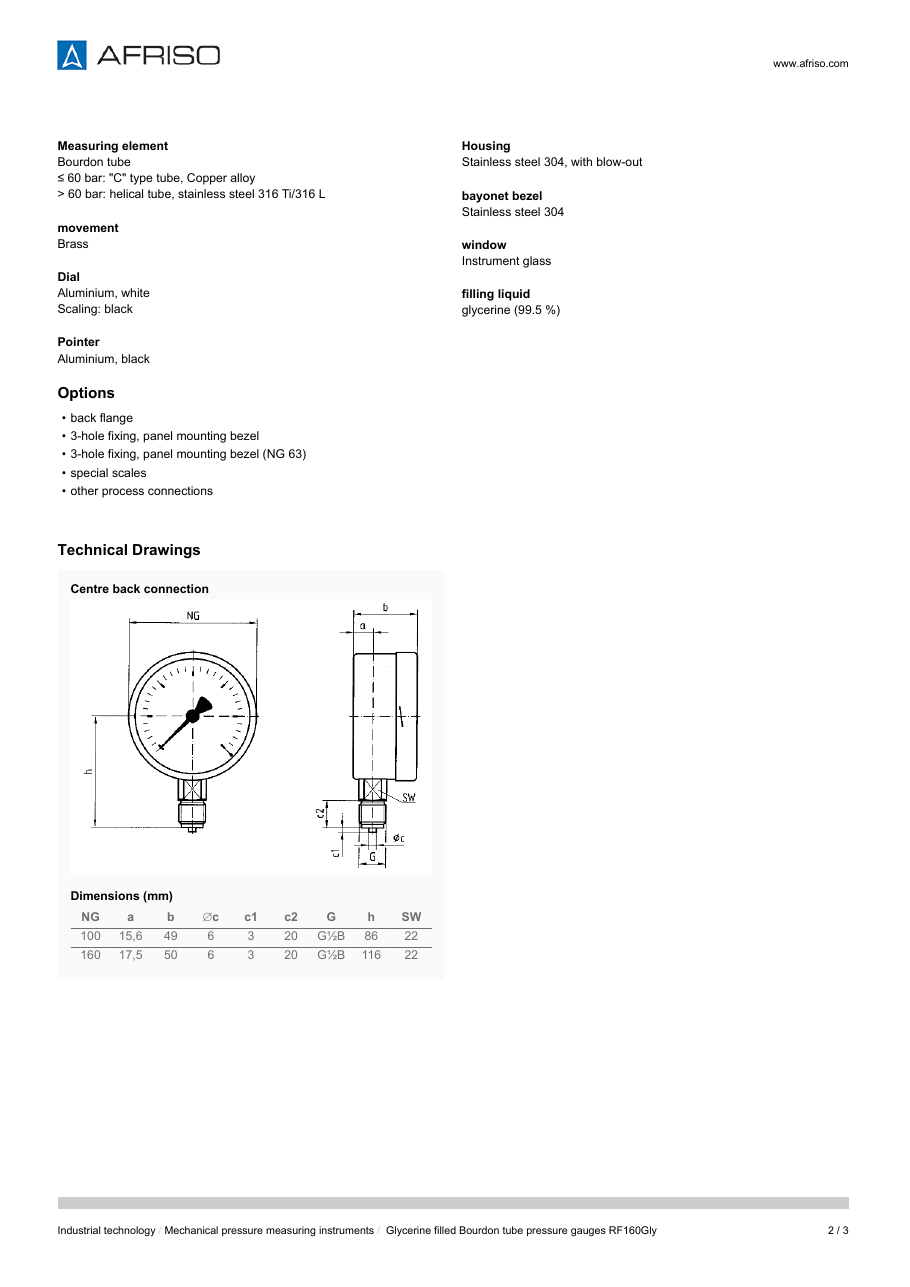

AFRISO RF160GLY – Page preview (15933482bc53_S1-2 S. 1)
Page preview · 15933482bc53_S1-2 · S. 1

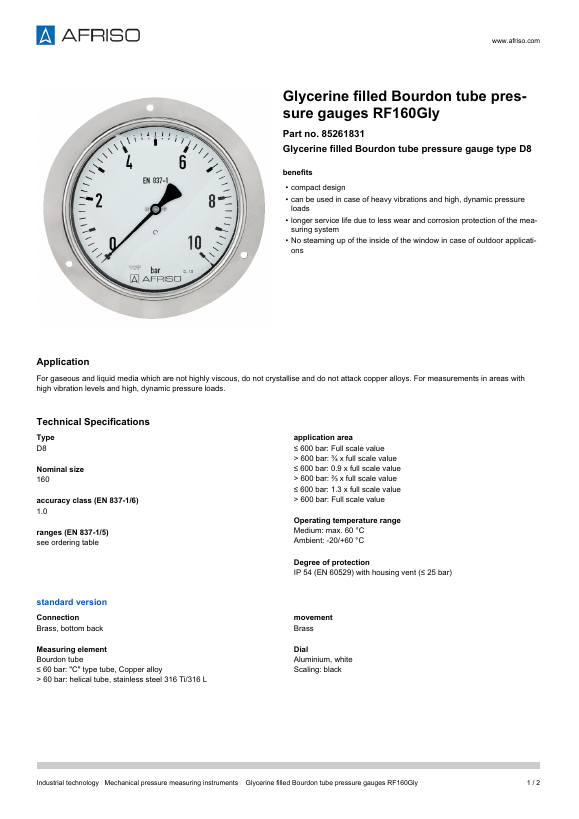

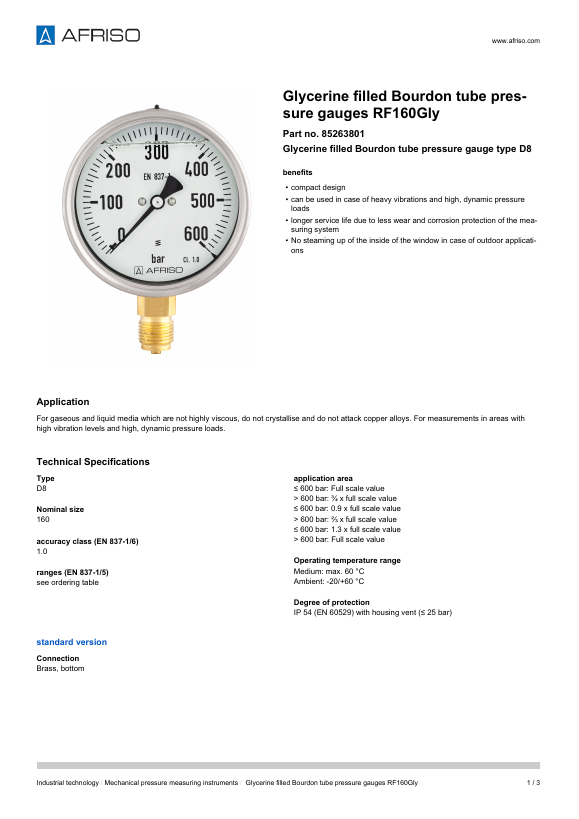

AFRISO RF160GLY – Page preview (0ecc21879bd2_S1-2 S. 1)
Page preview · 0ecc21879bd2_S1-2 · S. 1

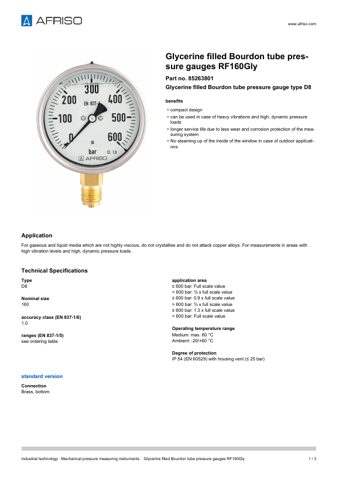

AFRISO RF160GLY – Page preview (6df4e2a1fa7f_S1-3 S. 1)
Page preview · 6df4e2a1fa7f_S1-3 · S. 1
Source: AFRISO RF160GLY datasheet, p. 2
