Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO HZ 80
AFRISO

HZ 80

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Ng80 mm
A12,8 mm
B132,8 mm
C17 mm
H64 mm
S2,8 mm
Sw14 mm
Housing ⌀80 mm
Range0/4 bar
Nominal size80
Operating temperature range Mediummax. 60 °C
Operating temperature range Ambient-20/+60 °C
Degree of protectionIP 32 (EN 60529)
B31 mm
C115 mm
G50 mm
Sw114 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A pressure gauge for heating and plumbing applications with a self-sealing connection thread and a red maximum mark on the dial.

Applications

  • heating applications
  • plumbing applications

Features

  • self-sealing connection thread
  • red maximum mark on dial
  • adjustable red reference pointer
  • green operation segment on window
  • corrosion-resistant housing

Standards

  • EN 837-2

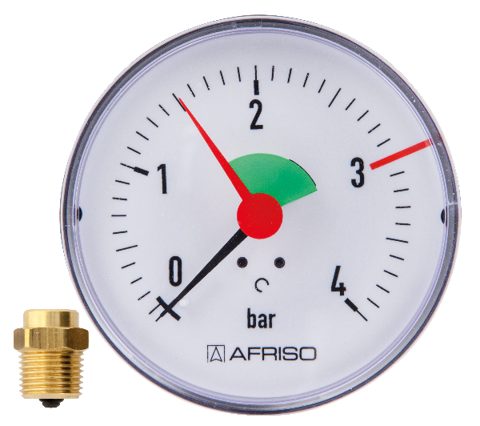

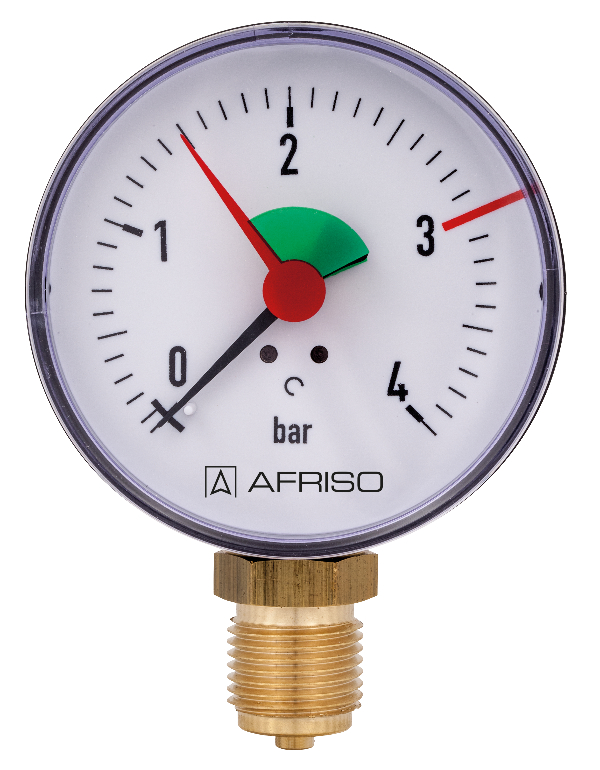

AFRISO HZ 80 – Photo (eeea95f56ce3_S1-2 S. 1)
Photo · eeea95f56ce3_S1-2 · S. 1
AFRISO HZ 80 – Photo (eeea95f56ce3_S1-2 S. 2)
Photo · eeea95f56ce3_S1-2 · S. 2

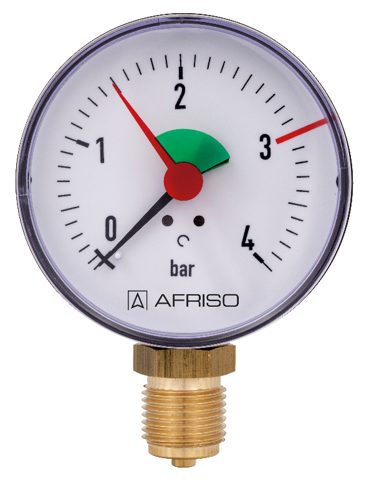

AFRISO HZ 80 – Photo (2f54a969f455_S1-2 S. 1)
Photo · 2f54a969f455_S1-2 · S. 1
AFRISO HZ 80 – Photo (2f54a969f455_S1-2 S. 2)
Photo · 2f54a969f455_S1-2 · S. 2

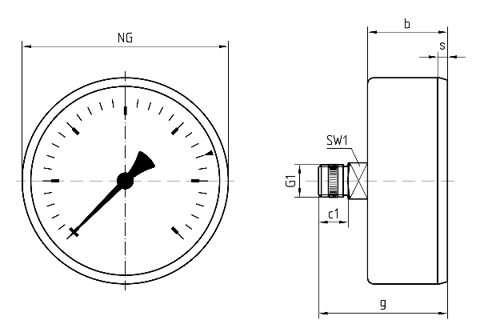

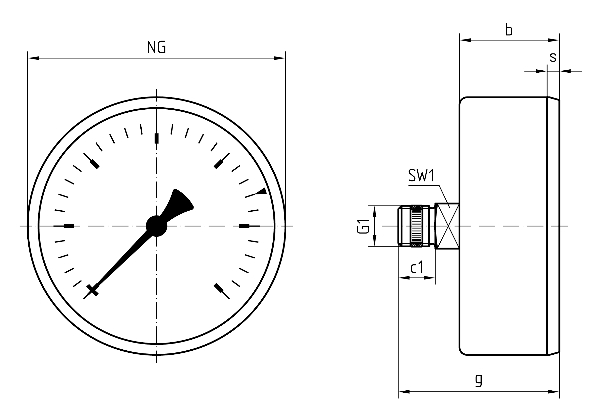

AFRISO HZ 80 – Drawing (eeea95f56ce3_S1-2 S. 2)
Drawing · eeea95f56ce3_S1-2 · S. 2

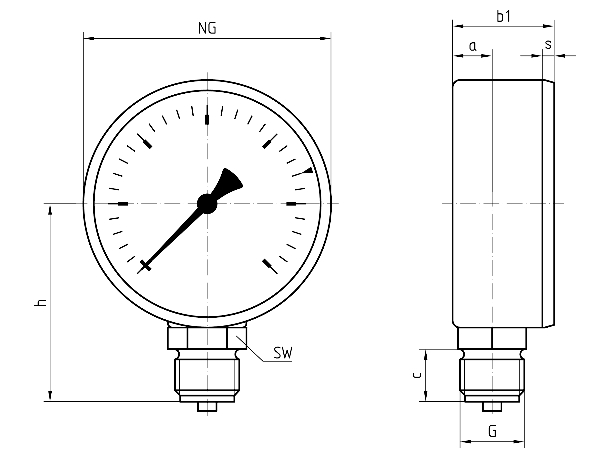

AFRISO HZ 80 – Drawing (2f54a969f455_S1-2 S. 2)
Drawing · 2f54a969f455_S1-2 · S. 2

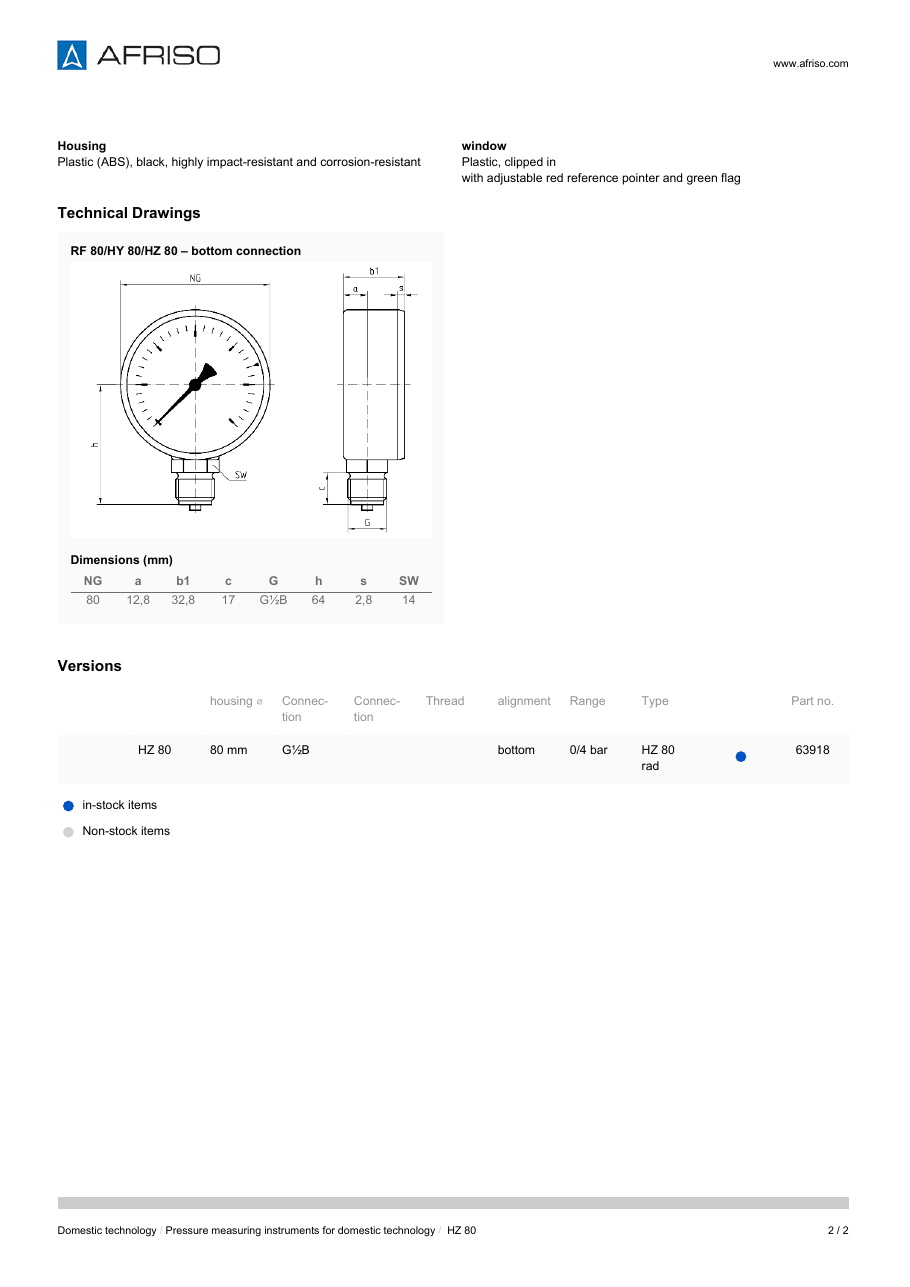

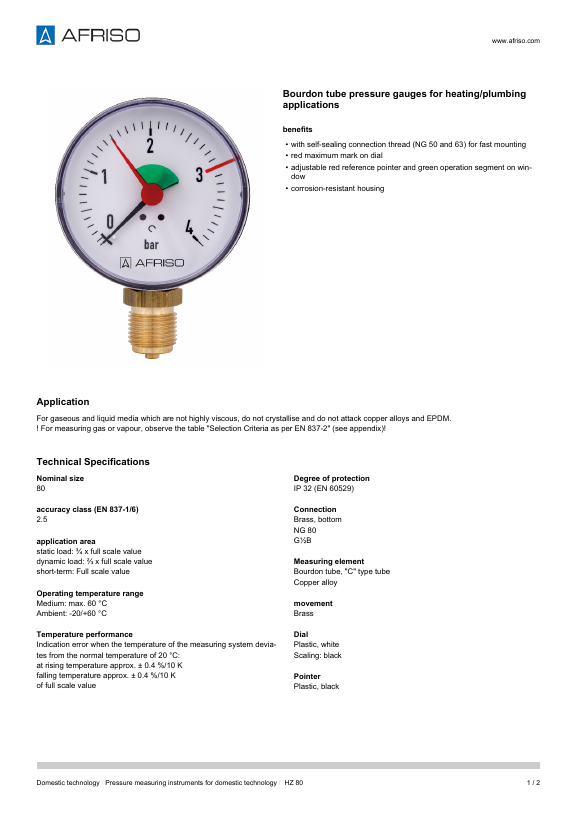

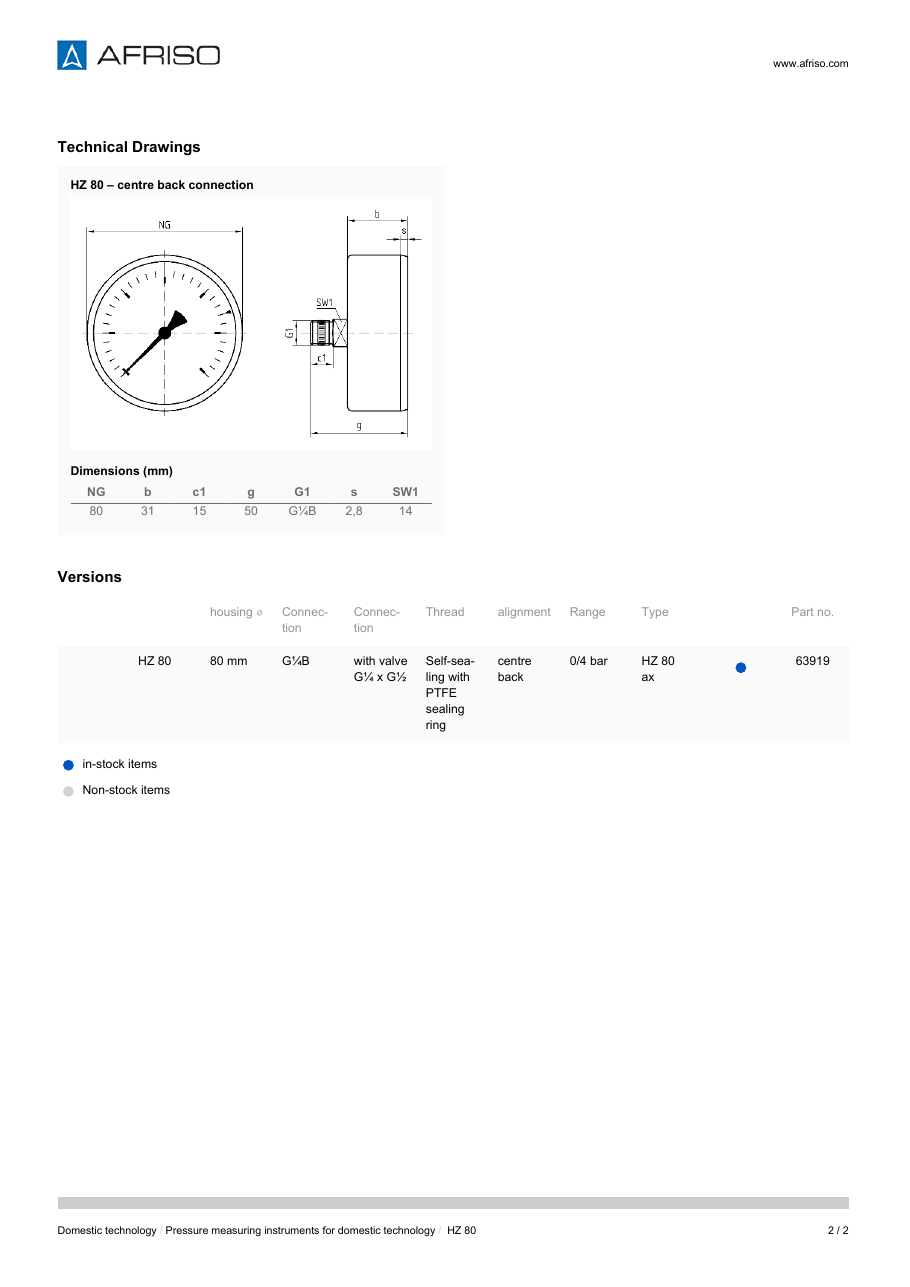

AFRISO HZ 80 – Page preview (eeea95f56ce3_S1-2 S. 1)
Page preview · eeea95f56ce3_S1-2 · S. 1

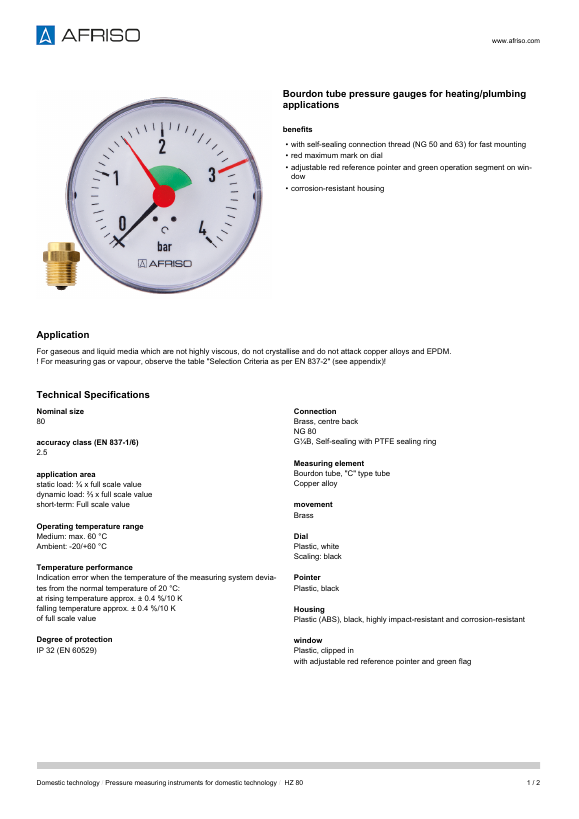

AFRISO HZ 80 – Page preview (2f54a969f455_S1-2 S. 1)
Page preview · 2f54a969f455_S1-2 · S. 1
Source: AFRISO HZ 80 datasheet, p. 1
