Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO RF130PGGLY
AFRISO

RF130PGGLY

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

NG a40 mm
B82,5 mm
C115 mm
C220 mm
D1137 mm
D2148 mm
∅d129½-14102 mm
G67 mm
H12,5 mm
H125 mm
S122 mm
Operating temperature rangeMedium: max. 100 °C Ambient: -20/+65 °C
Ambient-20/+65 °C
accuracy class (ASME B 40.100)Grade 2A (correspond to an accuracy of 0.5 %)
Degree of protectionIP 67 (EN 60529)
ConnectionStainless steel 316 L
HousingPP-GF20, black Internal
Filling liquidglycerine (99.5 %)
Range-1/+0.6 bar
Measuring elementPP-GF20, black
Bourdon tube materialstainless steel 316 Ti/316 L
Filling liquidglycerine (99.5 %)
MovementPP-GF20, black Internal
Bourdon tube type≤ 60 bar: "C" type tube
Screw type bezelPP-GF20, black
Application areaIP 67 (EN 60529)
D3148 mm
S222 mm
NG b4½" 82,5 15 20 137 148 6 129 38 ½-14105,5 67 12,5 25 22
A40 mm
Accuracy class (ASME B 40.100)Grade 2A
Bourdon tubestainless steel 316 Ti/316 L
Dublette von224406
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The RF130PGGly is a process gauge with a back flange mounting type.Source: AFRISO RF130PGGLY datasheet, p. 3

Applications

  • oil and chemical industries

Features

  • glass-fibre reinforced safety housing
  • solid baffle wall and blow-out
  • integrated pressure compensation diaphragm
  • tightness-tested with helium

Options

  • Glycerine filling (type D 6)
  • Silicone oil filling (type D 6)
  • Measuring system copper alloy (type 1x1)
  • Measuring system Monel (type 1x3)
  • laminated safety glass window
  • Reference pointer
  • Maximum pointer
  • Electrical contacts
Source: AFRISO RF130PGGLY datasheet, p. 2

Standards

  • EN 837-1/5

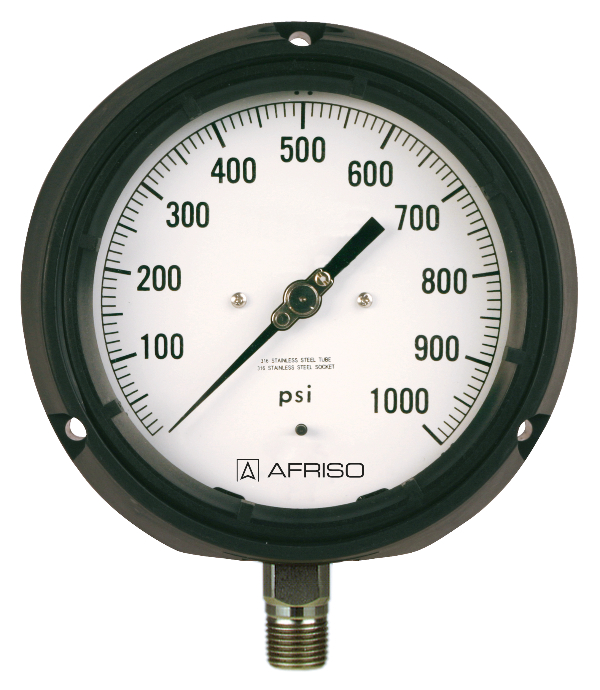

AFRISO RF130PGGLY – Photo (61a991cd6c54_S1-3 S. 2)
Photo · 61a991cd6c54_S1-3 · S. 2
AFRISO RF130PGGLY – Photo (e27255c5eafe_S1-3 S. 3)
Photo · e27255c5eafe_S1-3 · S. 3
AFRISO RF130PGGLY – Photo (b8adc31f4f36_S1-3 S. 1)
Photo · b8adc31f4f36_S1-3 · S. 1

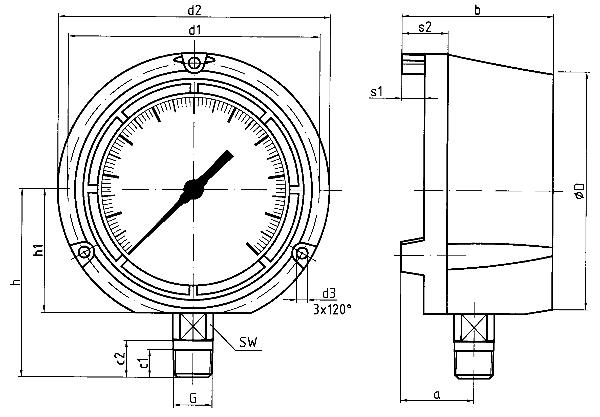

AFRISO RF130PGGLY – Drawing (61a991cd6c54_S1-3 S. 2)
Drawing · 61a991cd6c54_S1-3 · S. 2

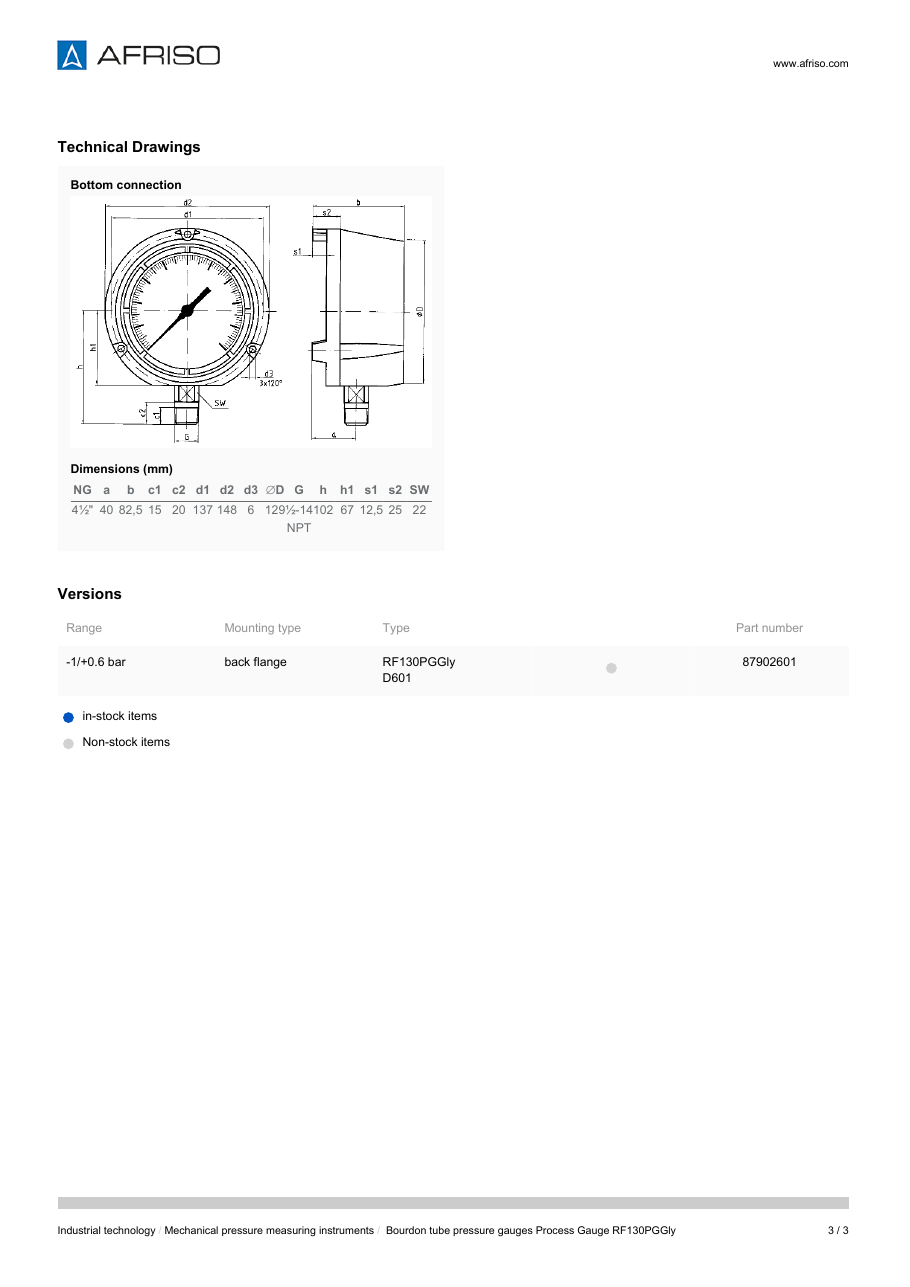

AFRISO RF130PGGLY – Drawing (e27255c5eafe_S1-3 S. 2)
Drawing · e27255c5eafe_S1-3 · S. 2

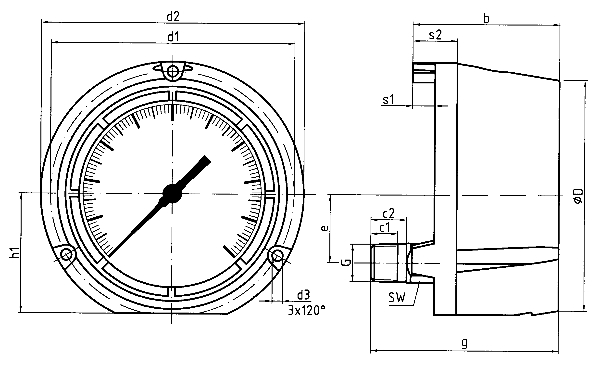

AFRISO RF130PGGLY – Drawing (e27255c5eafe_S1-3 S. 3)
Drawing · e27255c5eafe_S1-3 · S. 3

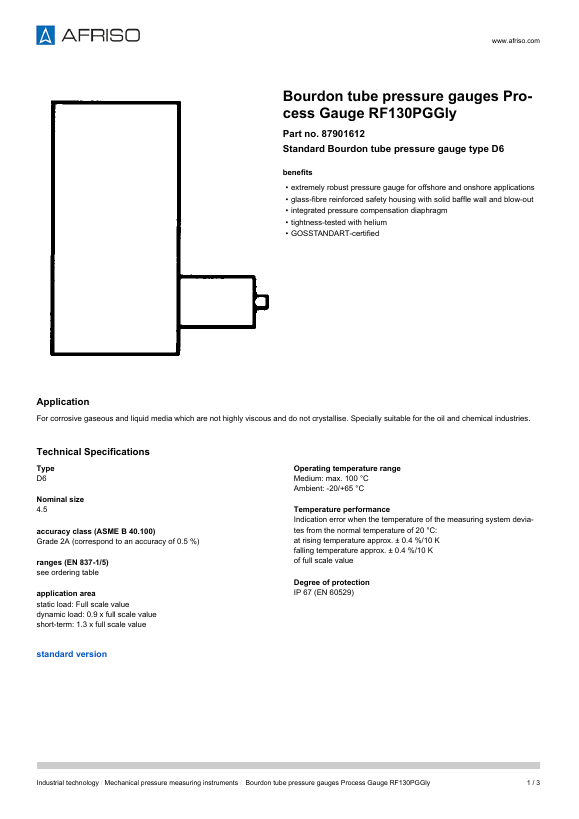

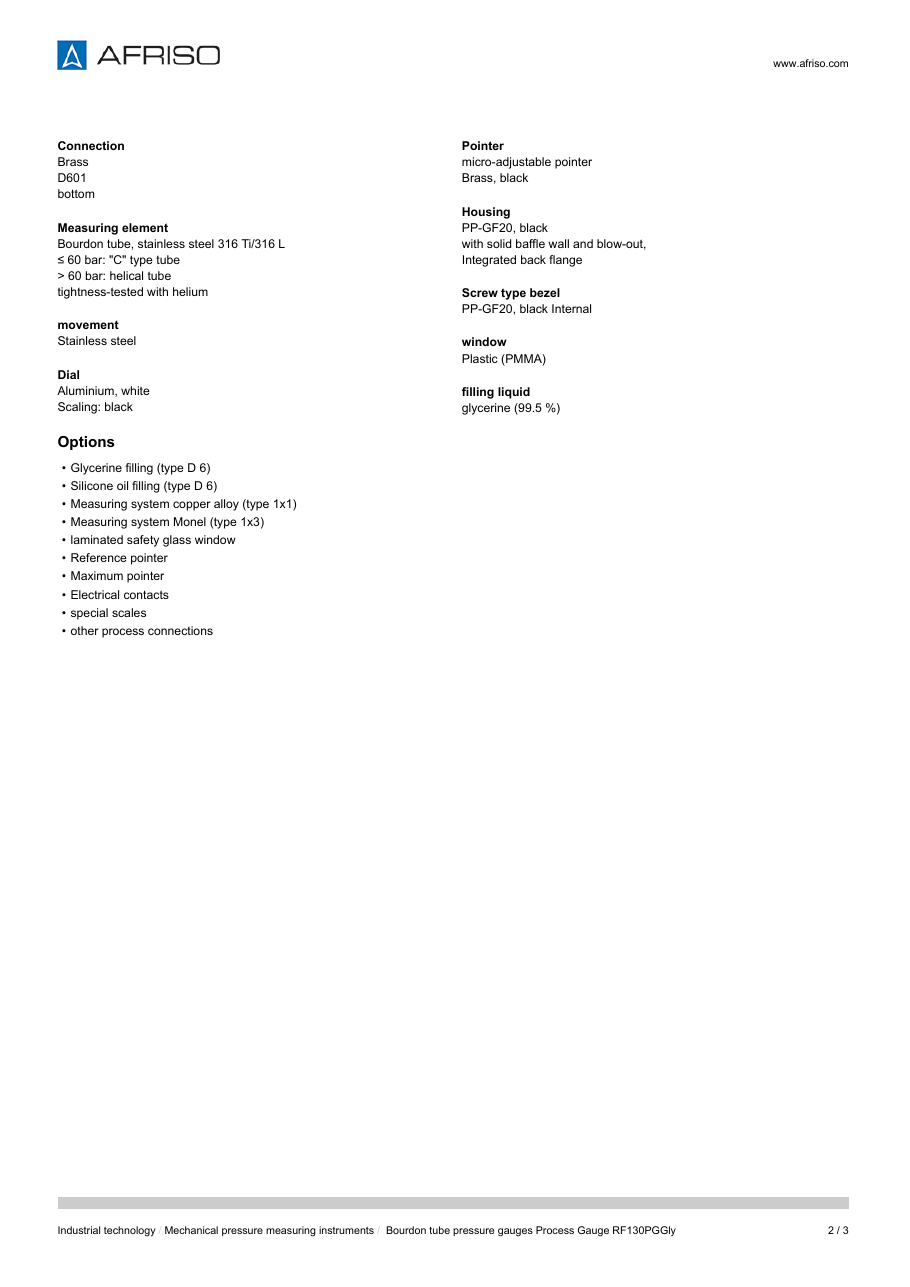

AFRISO RF130PGGLY – Page preview (61a991cd6c54_S1-3 S. 1)
Page preview · 61a991cd6c54_S1-3 · S. 1

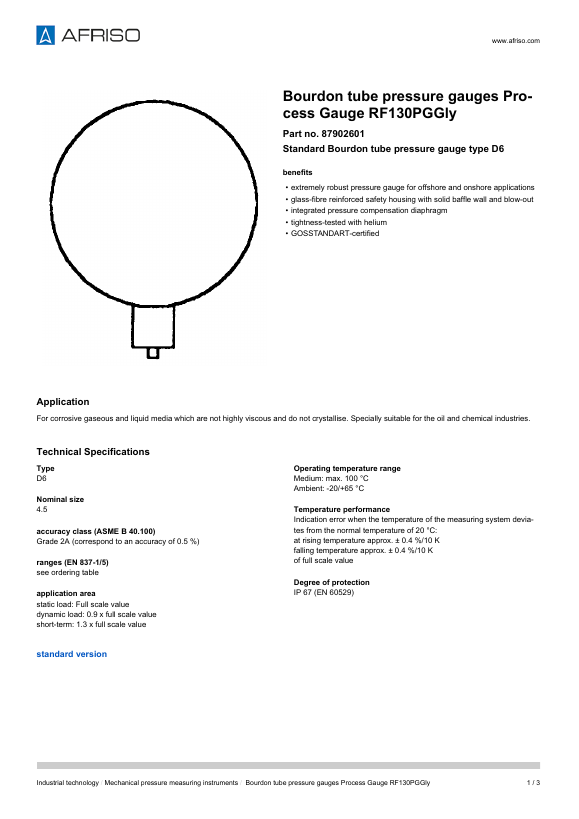

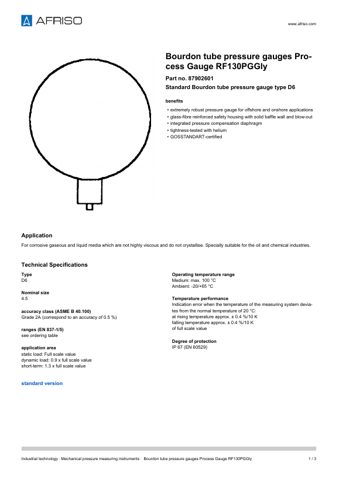

AFRISO RF130PGGLY – Page preview (e27255c5eafe_S1-3 S. 1)
Page preview · e27255c5eafe_S1-3 · S. 1
Source: AFRISO RF130PGGLY datasheet, p. 1
