Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO RF130PG
AFRISO

RF130PG

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating temperature rangeMedium: max. 100 °C
Ambient-40/+65 °C
accuracy class (ASME B 40.100)Grade 2A (correspond to an accuracy of 0.5 % )
Degree of protectionIP 67 (EN 60529)
NG a40 mm
B82,5 mm
C115 mm
C220 mm
D1137 mm
D2148 mm
∅d129½-14102 mm
H67 mm
H112,5 mm
S125 mm
S222 mm
Range0/250 bar
HousingPP-GF20, black
Screw type bezelPP-GF20, black
A40 mm
G67 mm
ConnectionStainless steel 316 L
Operating temperature range Medium:max. 100 °C
Ambient:-40/+65 °C
Bourdon tubestainless steel 316 Ti/316 L
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

This is a process gauge with a bourdon tube measuring element. It is used for measuring pressure in industrial applications.

Applications

  • Industrial technology

Features

  • micro-adjustable pointer
  • PP-GF20, black housing
  • stainless steel internal movement
  • aluminium dial
  • black scaling

Options

  • Glycerine filling (type D 6)
  • Silicone oil filling (type D 6)
  • Measuring system copper alloy (type 1x1)
  • Measuring system Monel (type 1x3)
  • laminated safety glass window
  • Reference pointer
  • Maximum pointer
  • Electrical contacts

Standards

  • EN 837-1/5
Source: AFRISO RF130PG datasheet, p. 1

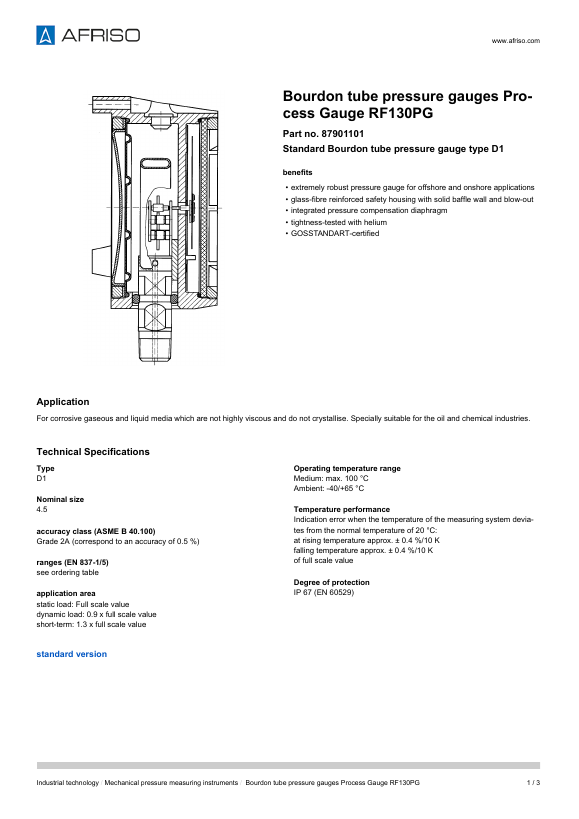

AFRISO RF130PG – Photo (fcf123ce67c0_S1-3 S. 1)
Photo · fcf123ce67c0_S1-3 · S. 1
AFRISO RF130PG – Photo (fcf123ce67c0_S1-3 S. 3)
Photo · fcf123ce67c0_S1-3 · S. 3

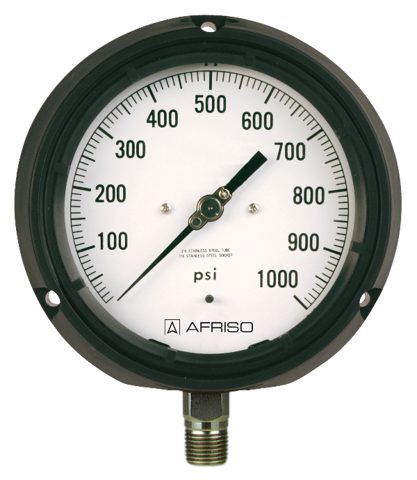

AFRISO RF130PG – Photo (bd3d5f4a47d9_S1-3 S. 1)
Photo · bd3d5f4a47d9_S1-3 · S. 1

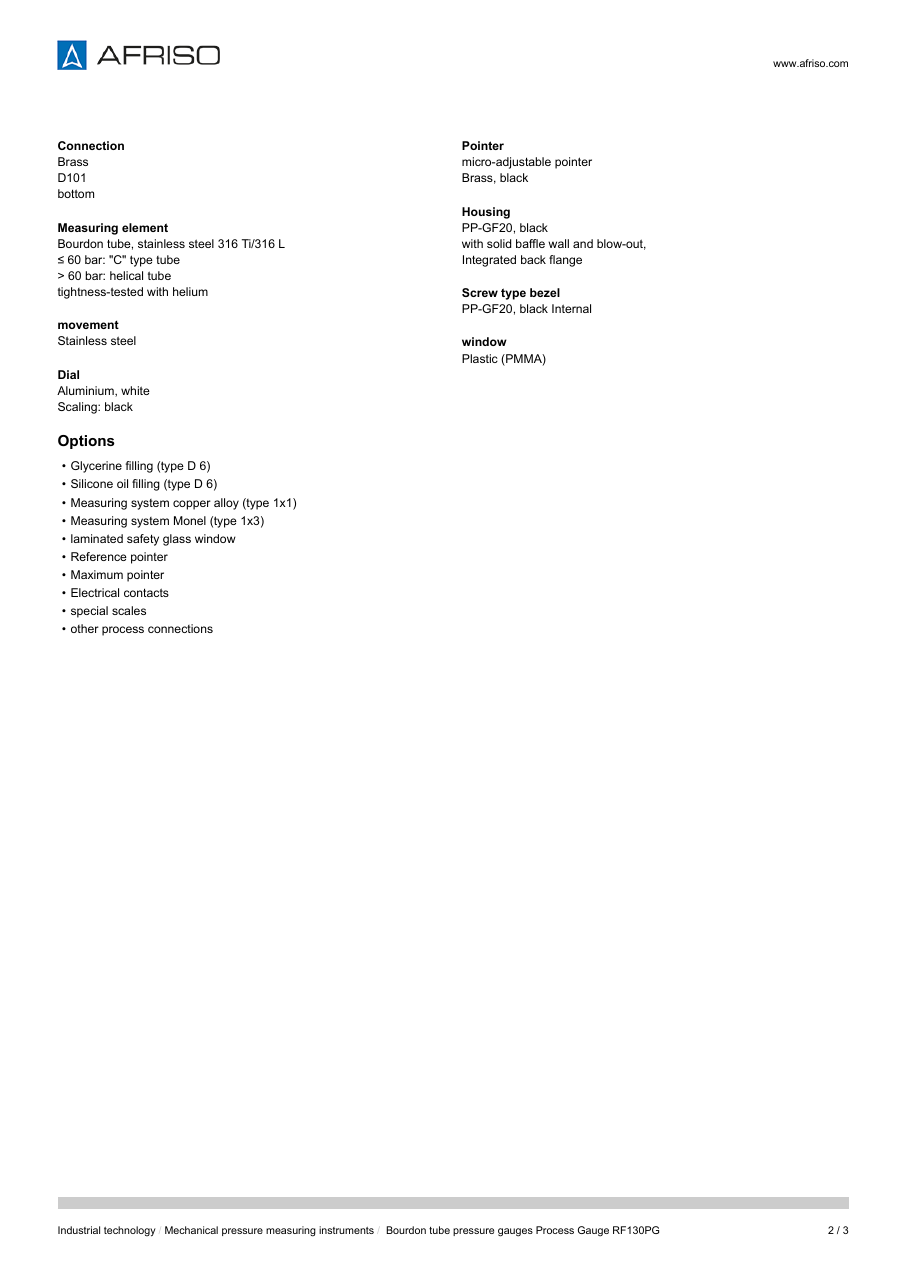

AFRISO RF130PG – Photo (b11f3be1ff96_S1-3 S. 2)
Photo · b11f3be1ff96_S1-3 · S. 2

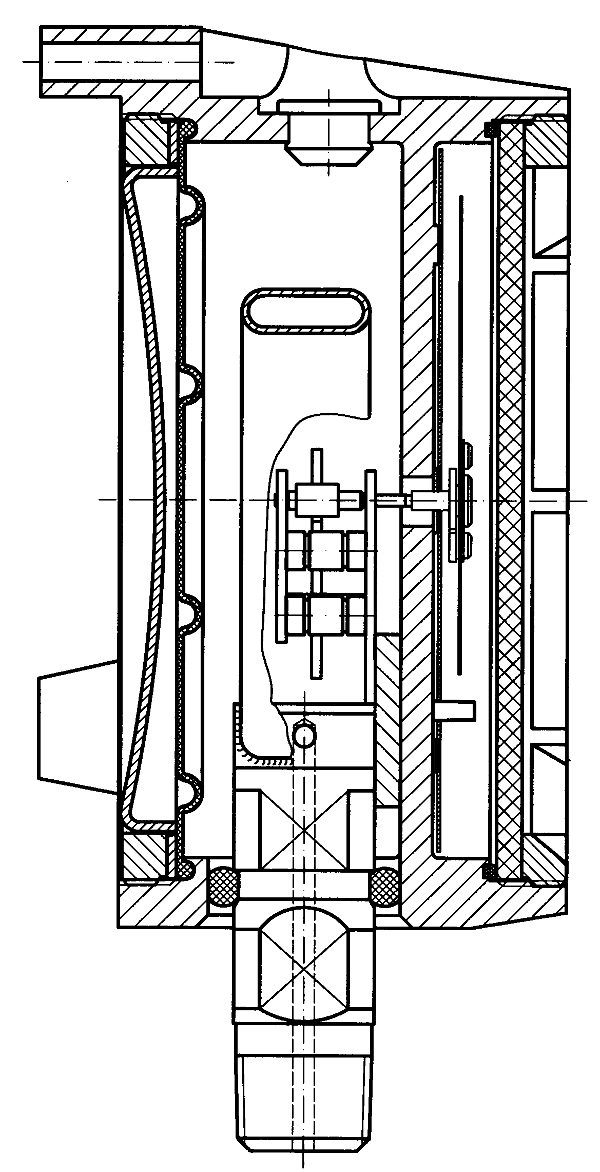

AFRISO RF130PG – Drawing (fcf123ce67c0_S1-3 S. 2)
Drawing · fcf123ce67c0_S1-3 · S. 2

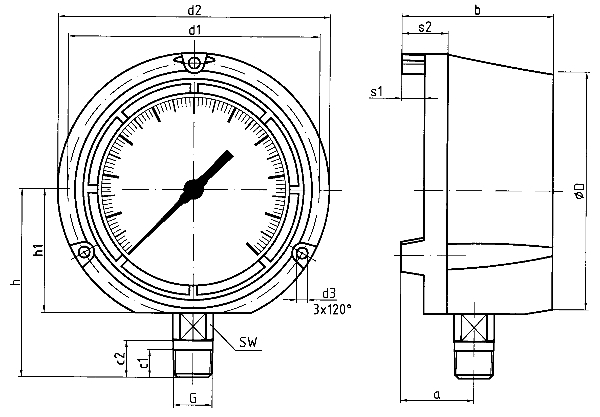

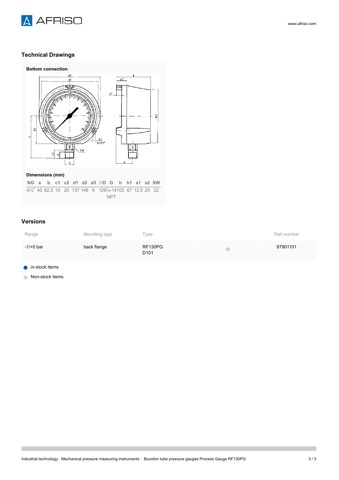

AFRISO RF130PG – Drawing (fcf123ce67c0_S1-3 S. 3)
Drawing · fcf123ce67c0_S1-3 · S. 3

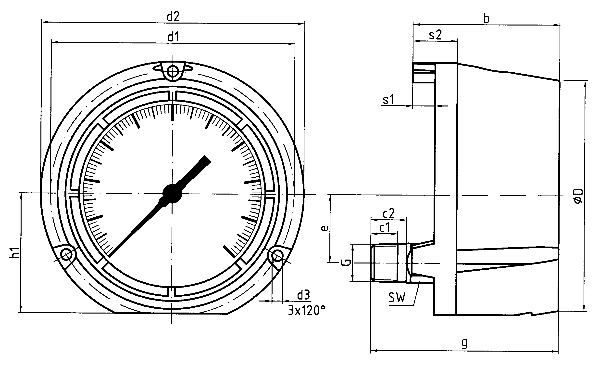

AFRISO RF130PG – Drawing (bd3d5f4a47d9_S1-3 S. 2)
Drawing · bd3d5f4a47d9_S1-3 · S. 2
AFRISO RF130PG – Page preview (fcf123ce67c0_S1-3 S. 1)
Page preview · fcf123ce67c0_S1-3 · S. 1
Source: AFRISO RF130PG datasheet, p. 2
