R0429

PVS125-SDH

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

定格電流 A50 A
基準周囲温度 一般用40℃60
定格絶縁電圧〔Ui〕 V1000 V
定格インパルス耐電圧 〔U imp〕 kV8 kV
■定格遮断容量 kA5/5 kA
Icu/Ics $1$28 kA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“質量 （標準接続方式形） kg ■取付・接続方式 表面形（ＦＣ） 圧着端子・バー接続用 端子バー付 裏面形（ＲＣ） 差込形（ＰＭ） 配電盤用（PMB） （プラグイン） 分電盤用（PMC） 埋込形（FP） 板スタッド付 スタッド無し 引出形（DR） TemPlug70（PG） TemPlug45B（PG4） DINレール取付 クリップインシャーシ取付 ■付属品 （オプション） 略号 補助スイッチ…”

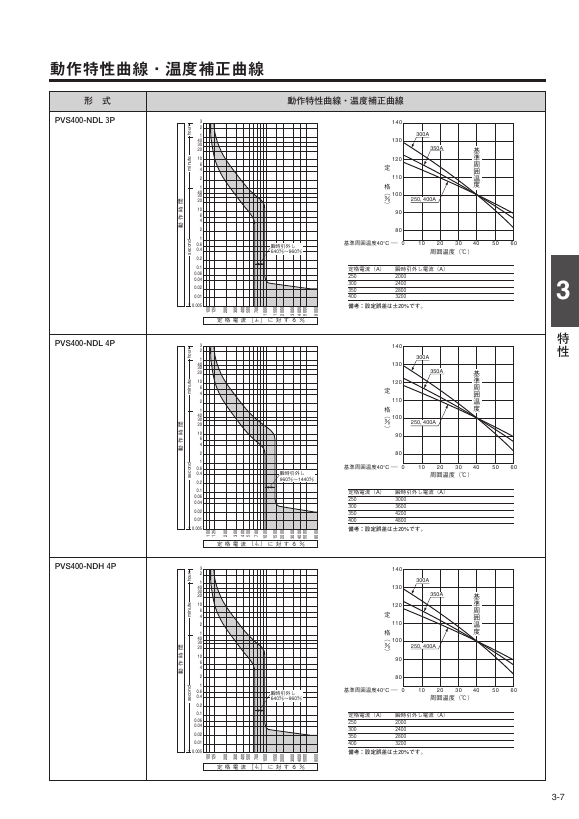

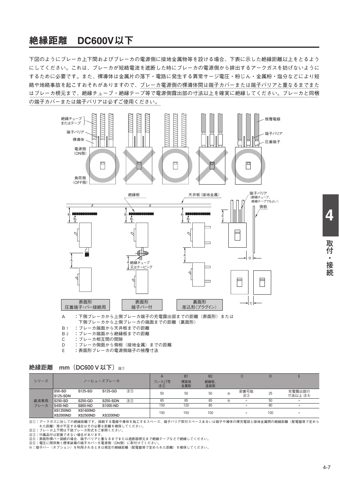

R0429 PVS125-SDH – Drawing (3a59e45e3808_S15-56 S. 23)
Drawing · 3a59e45e3808_S15-56 · S. 23

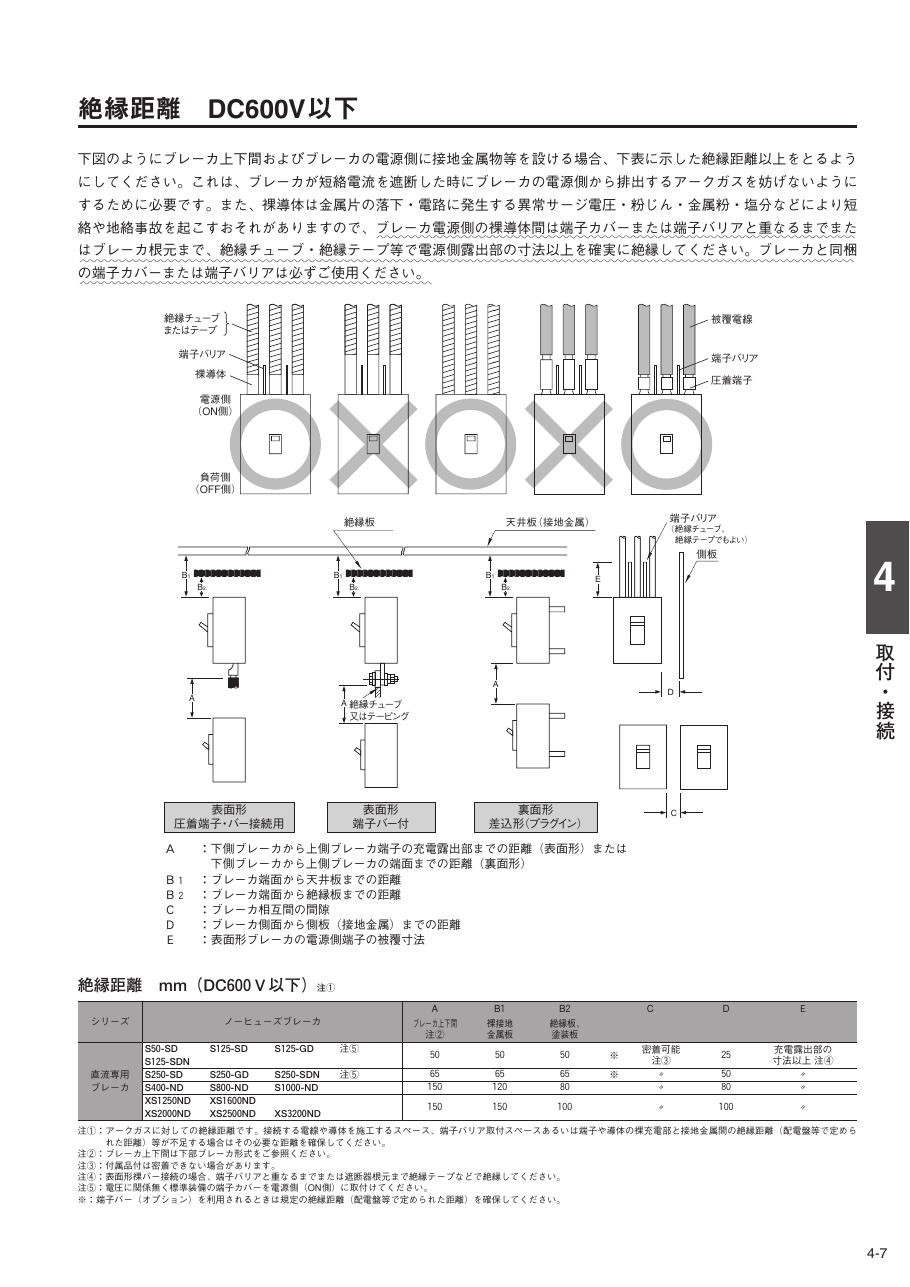

R0429 PVS125-SDH – Drawing (3a59e45e3808_S15-56 S. 24)
Drawing · 3a59e45e3808_S15-56 · S. 24

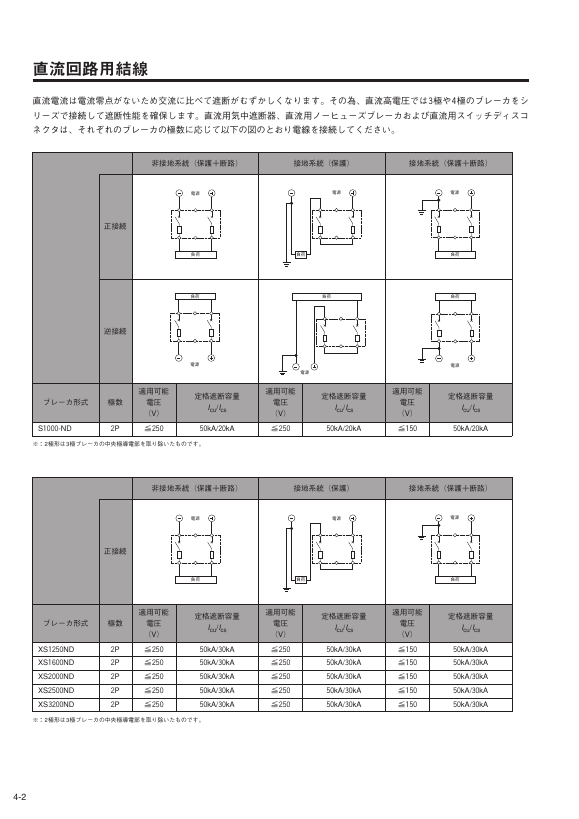

R0429 PVS125-SDH – Drawing (3a59e45e3808_S15-56 S. 25)
Drawing · 3a59e45e3808_S15-56 · S. 25

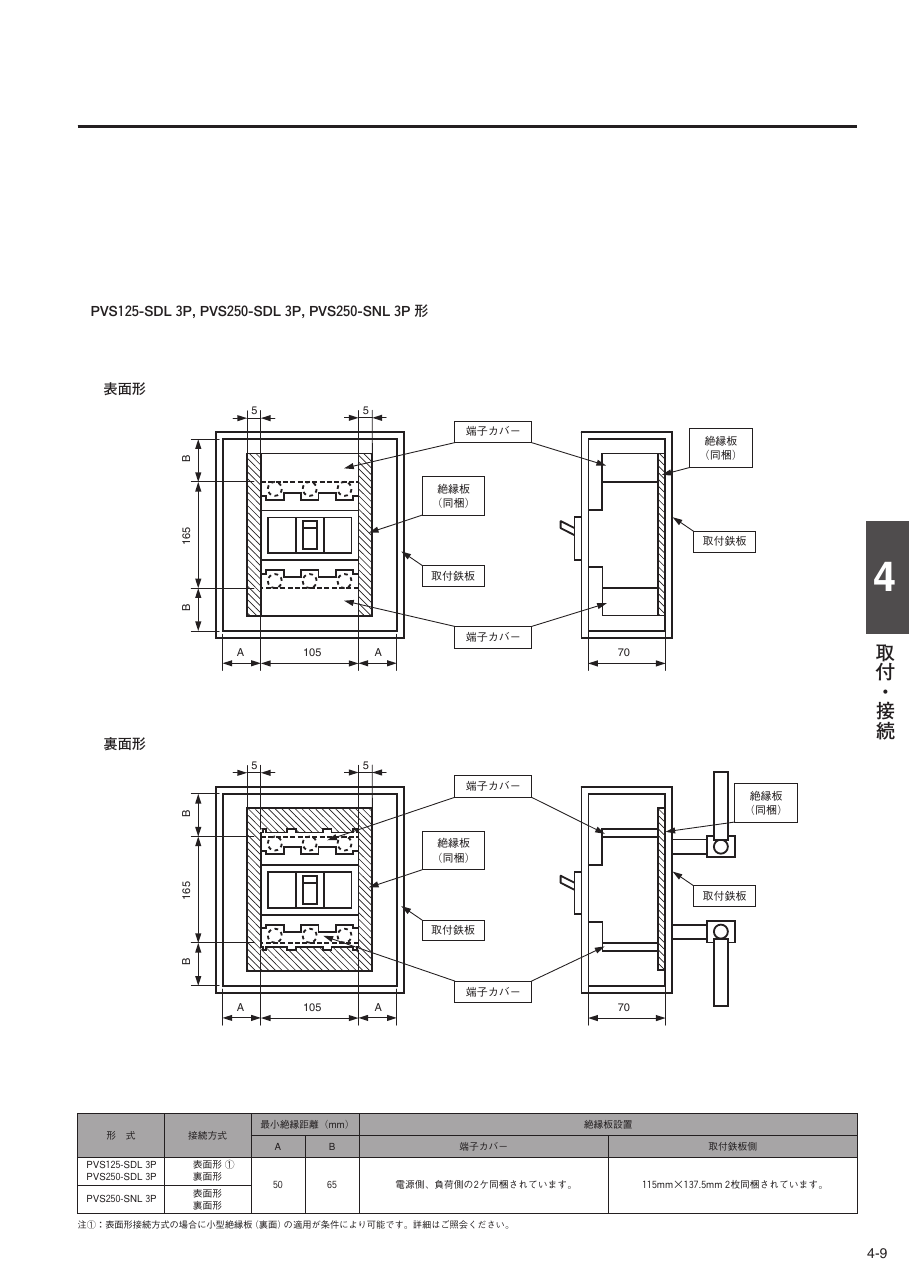

R0429 PVS125-SDH – Page preview (3a59e45e3808_S15-56 S. 15)
Page preview · 3a59e45e3808_S15-56 · S. 15

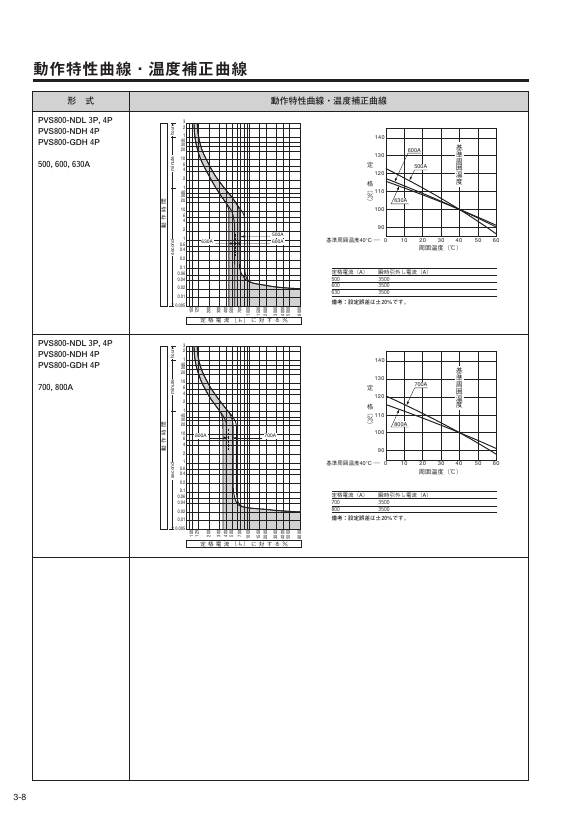

R0429 PVS125-SDH – Page preview (3a59e45e3808_S15-56 S. 16)
Page preview · 3a59e45e3808_S15-56 · S. 16

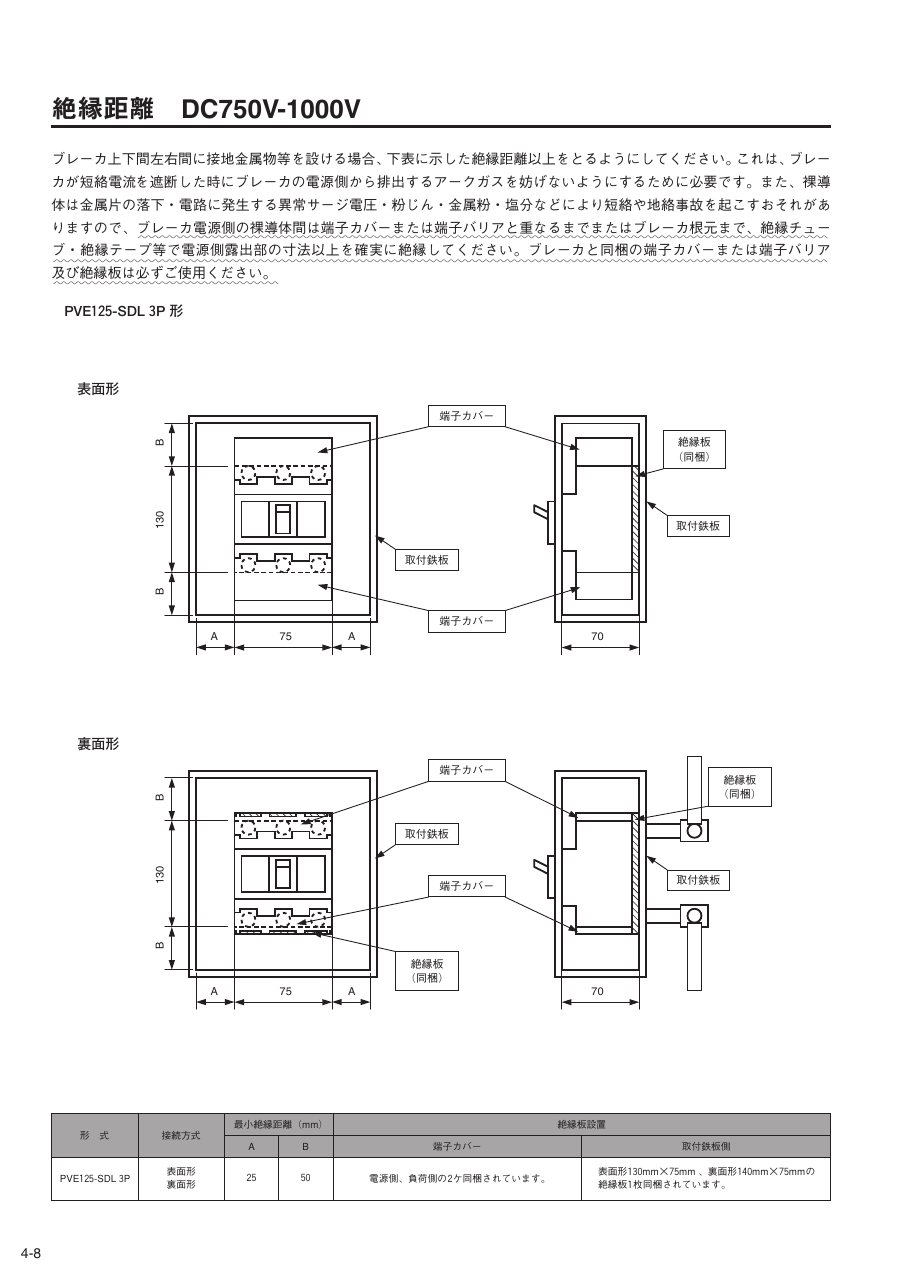

R0429 PVS125-SDH – Page preview (3a59e45e3808_S15-56 S. 17)
Page preview · 3a59e45e3808_S15-56 · S. 17

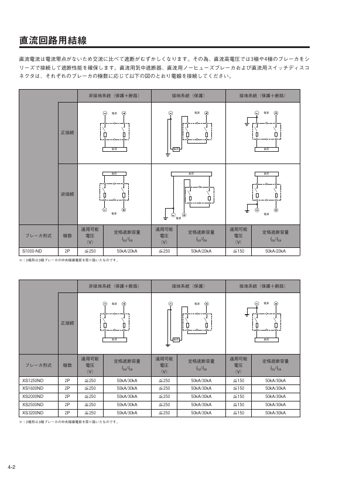

R0429 PVS125-SDH – Page preview (3a59e45e3808_S15-56 S. 18)
Page preview · 3a59e45e3808_S15-56 · S. 18
Source: R0429 PVS125-SDH datasheet, p. 1
