eta

PFA10-T-01-3-960-DC24V-40A

DC Power Supply · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Efficiency factor96.9 %
Output power960 W
Power reserve150 % for 6 s
Rated input voltage range UeAC 320...575 V (3-phase operation)
Rated input voltage UnAC 400...480 V (at 50/60 Hz)
Mains frequency47...63 Hz
Power factor correctionTyp. 0.94 (AC 400 V, full load)
Output power rating960 W
Rated output voltage UoDC 24 V
Rated output current Io40 A
Overload limit in constant current mode44 A
Minimum load0%
Rated frequency83 kHz
EfficiencyTyp. 96.9 %
Life time expectation> 80,000 h (9.1 years) at 40 °C ambient temperature and 100 % load
Auxiliary circuit ratingsDC 30 V / 0.1 A
Power consumptionTyp. 2.2 W (3-phase AC 400 V; max. 3 W)
Power failure bridging time23 ms
Switch-on delay tStarttyp. 695 ms max. 810 ms
Rise timetyp. 5 ms max. 10 ms
Insulation resistanceInput to output (I/P → O/P) ≥ 4.5 MΩ
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The primary switched-mode power supply of type PFA10-T is ideally suited for automation and mechanical engineering applications. Its compact design allows space-saving integration into control…”

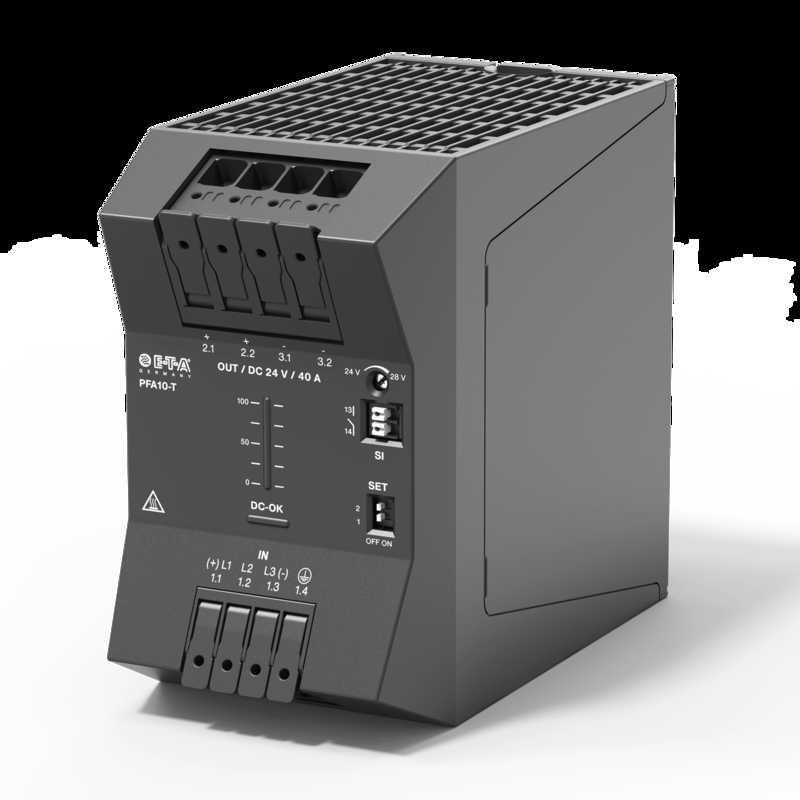

eta PFA10-T-01-3-960-DC24V-40A – Photo (00afad7a6059_S1-11 S. 1)
Photo · 00afad7a6059_S1-11 · S. 1
eta PFA10-T-01-3-960-DC24V-40A – Photo (00afad7a6059_S1-11 S. 1)
Photo · 00afad7a6059_S1-11 · S. 1

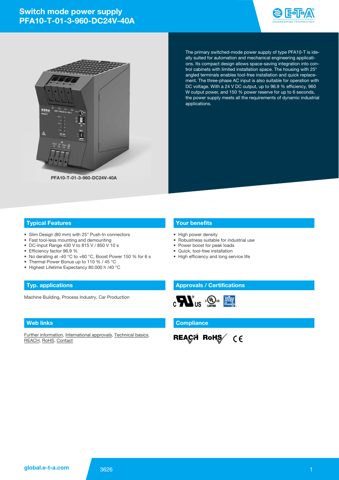

eta PFA10-T-01-3-960-DC24V-40A – Drawing (00afad7a6059_S1-11 S. 1)
Drawing · 00afad7a6059_S1-11 · S. 1

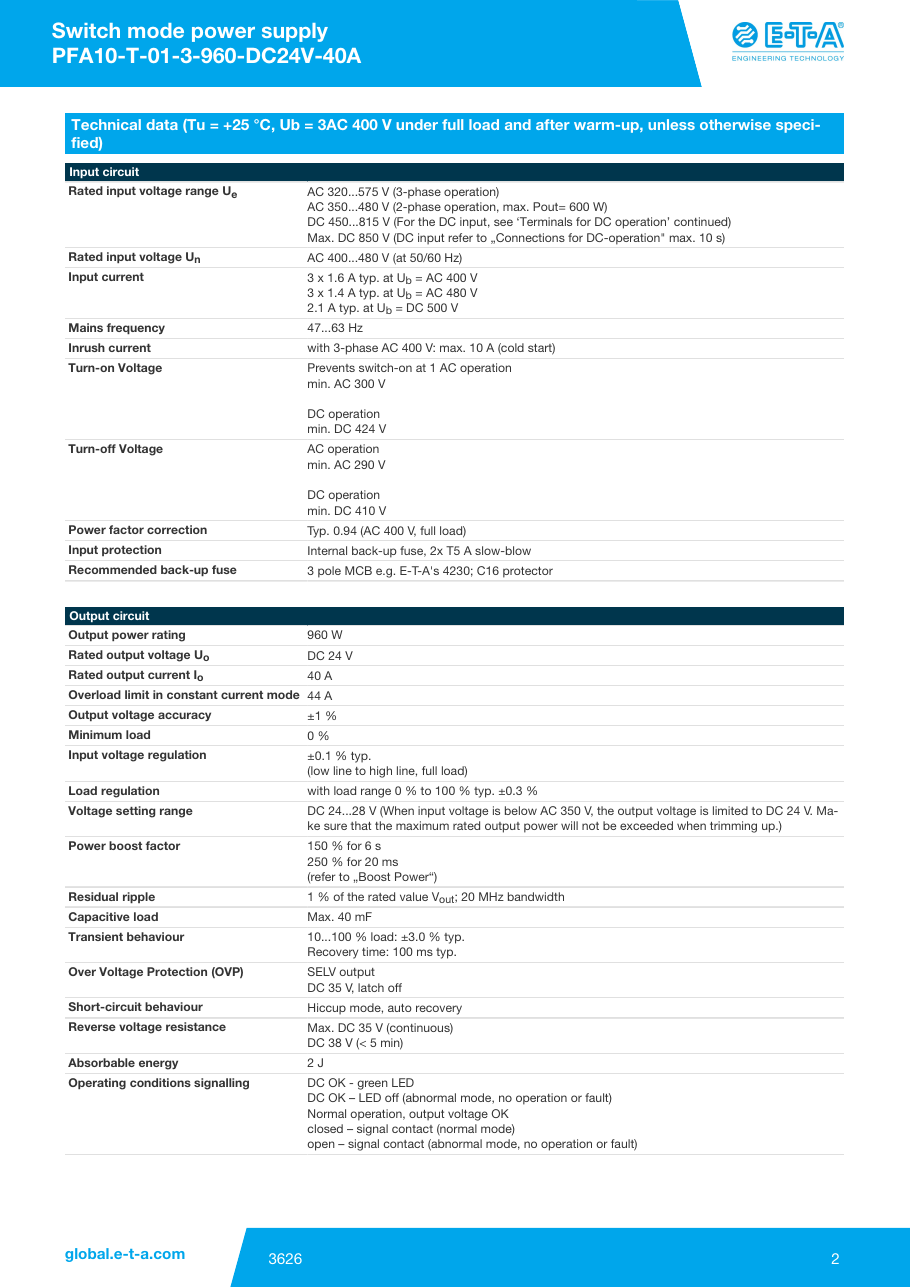

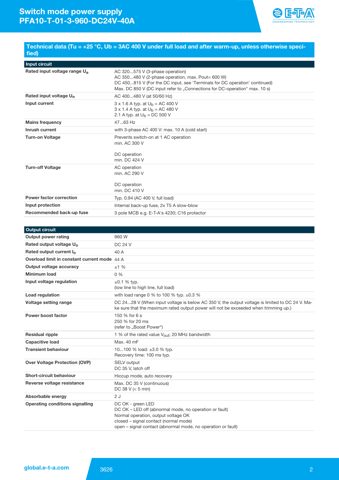

eta PFA10-T-01-3-960-DC24V-40A – Drawing (00afad7a6059_S1-11 S. 2)
Drawing · 00afad7a6059_S1-11 · S. 2
eta PFA10-T-01-3-960-DC24V-40A – Drawing (00afad7a6059_S1-11 S. 3)
Drawing · 00afad7a6059_S1-11 · S. 3
eta PFA10-T-01-3-960-DC24V-40A – Page preview (00afad7a6059_S1-11 S. 4)
Page preview · 00afad7a6059_S1-11 · S. 4
eta PFA10-T-01-3-960-DC24V-40A – Page preview (00afad7a6059_S1-11 S. 5)
Page preview · 00afad7a6059_S1-11 · S. 5
eta PFA10-T-01-3-960-DC24V-40A – Page preview (00afad7a6059_S1-11 S. 6)
Page preview · 00afad7a6059_S1-11 · S. 6
Source: eta PFA10-T-01-3-960-DC24V-40A datasheet, p. 1
