Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› eta ESX60D
eta

ESX60D

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating voltage UBDC 24 V (18 … 30 V)
Closed current I0in ON condition: typically 26 mA
Leakage current in OFF conditiontypically <1 mA
Voltage droptypically 12 mV/A
Capacitive loadsmin. 20,000 µF
Dielectric strengthmax. DC 33 V
Current ratings1 A up to 10 A, integer
Operating voltageDC 24 V
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“ESX60D electronic circuit protector Description The ESX60D is a double channel smart electronic circuit protector, forming an intelligent power distribution system with the CPC20 bus controller and…”

eta ESX60D – Photo (3ce8b80678a1_S1-4 S. 1)
Photo · 3ce8b80678a1_S1-4 · S. 1

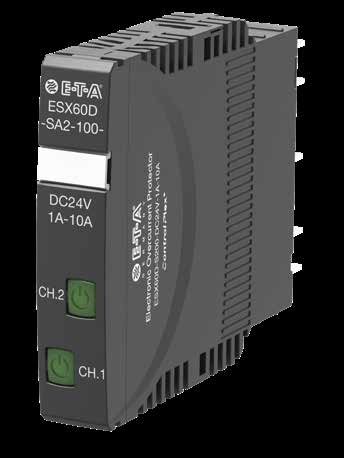

eta ESX60D – Photo (3ce8b80678a1_S1-4 S. 1)
Photo · 3ce8b80678a1_S1-4 · S. 1

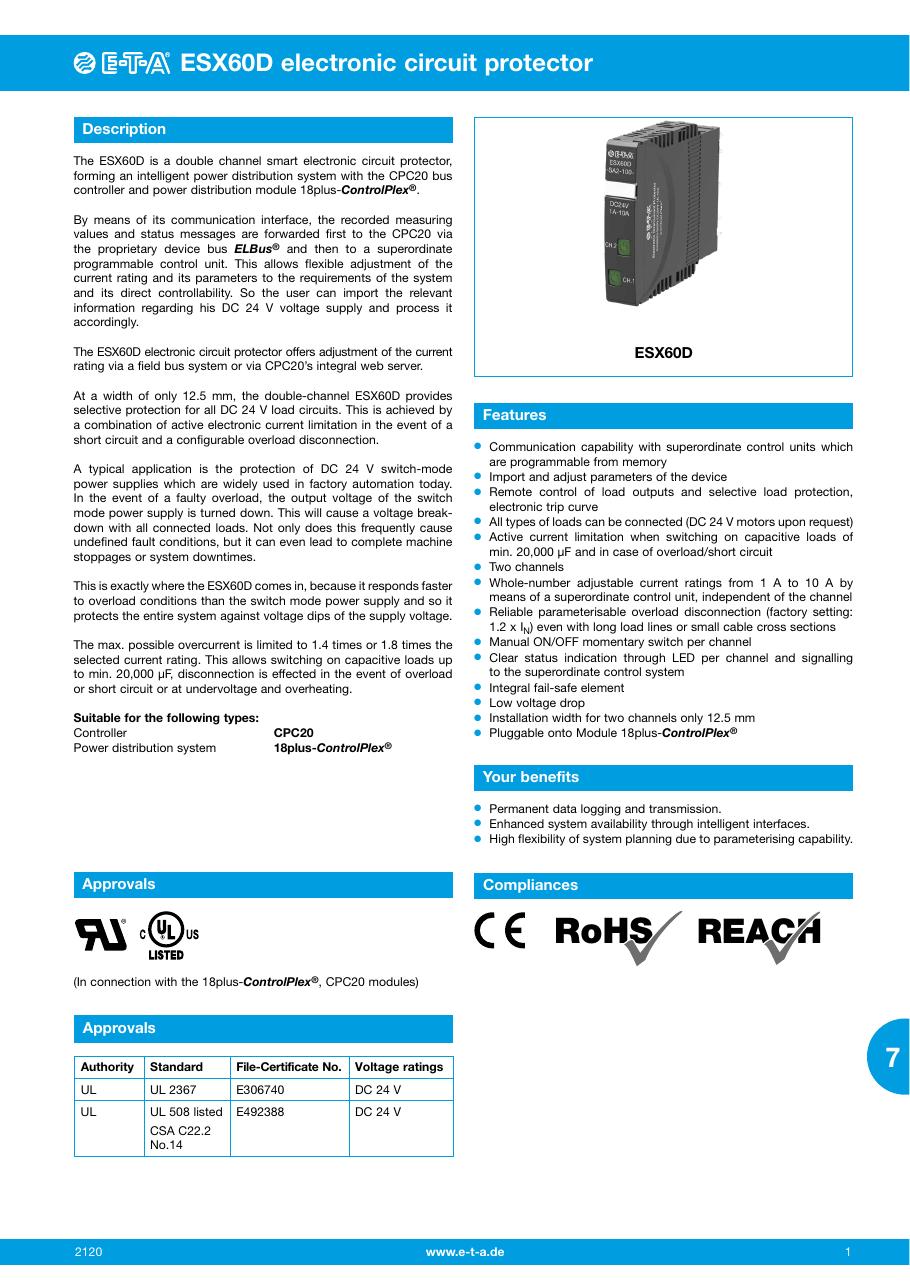

eta ESX60D – Drawing (3ce8b80678a1_S1-4 S. 1)
Drawing · 3ce8b80678a1_S1-4 · S. 1

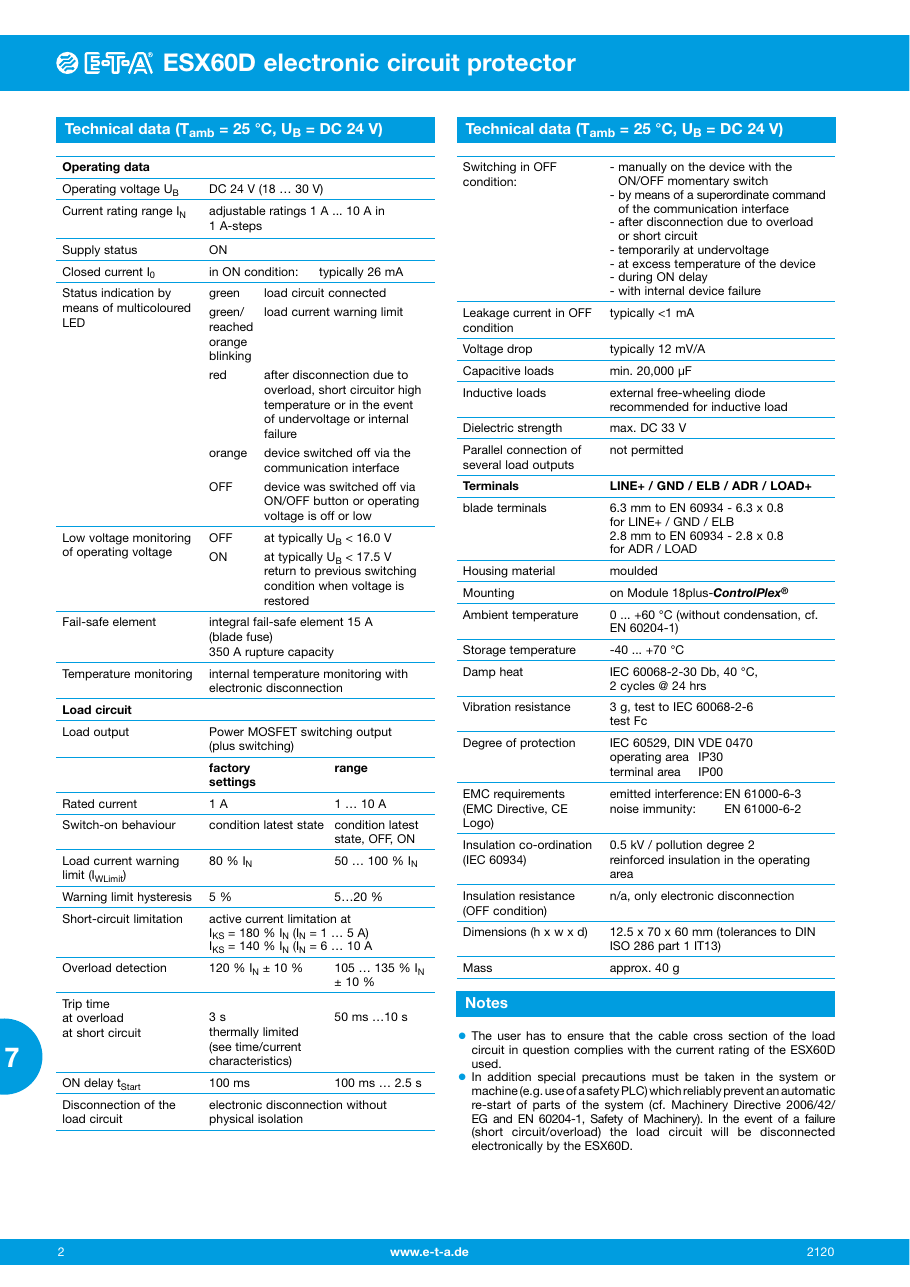

eta ESX60D – Drawing (3ce8b80678a1_S1-4 S. 2)
Drawing · 3ce8b80678a1_S1-4 · S. 2

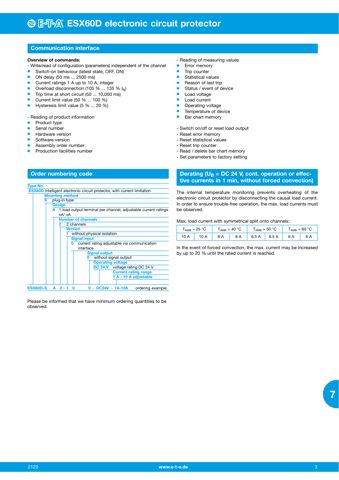

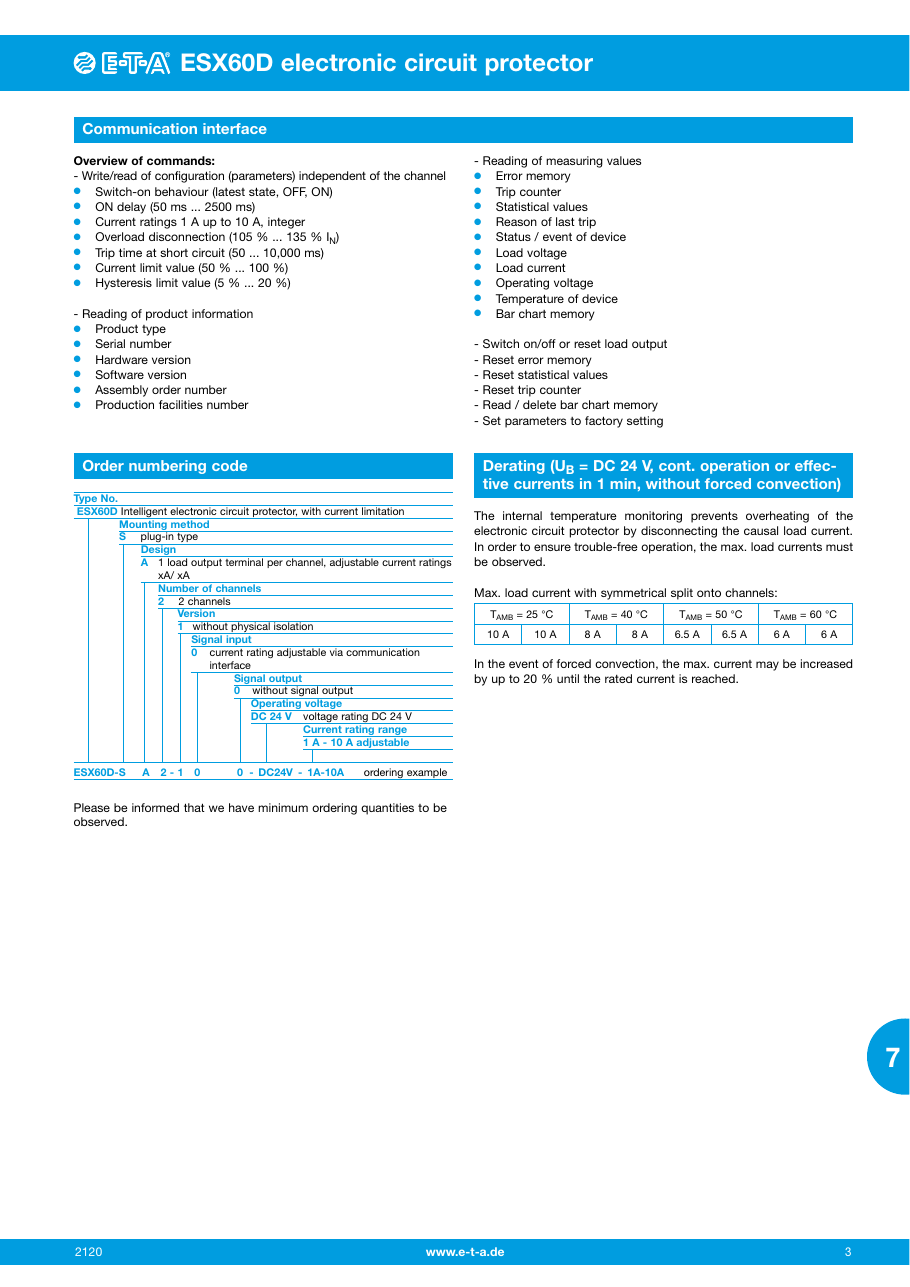

eta ESX60D – Drawing (3ce8b80678a1_S1-4 S. 3)
Drawing · 3ce8b80678a1_S1-4 · S. 3

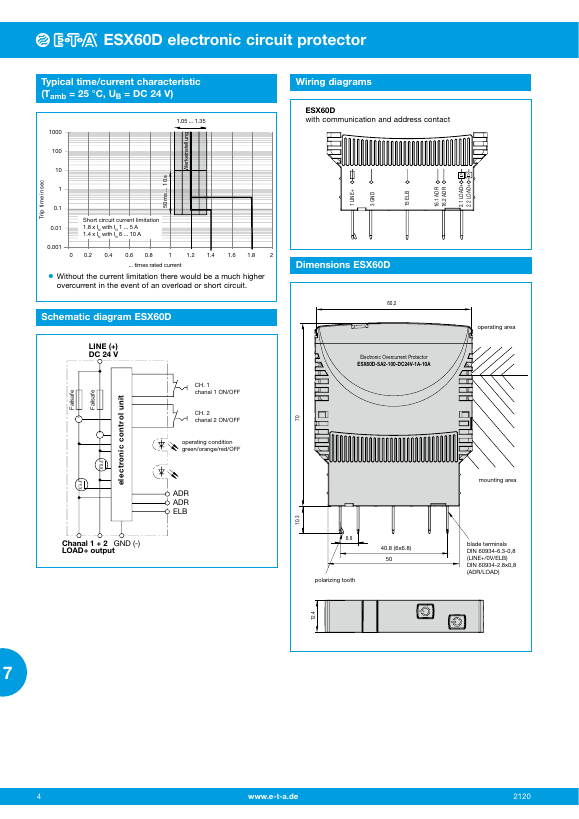

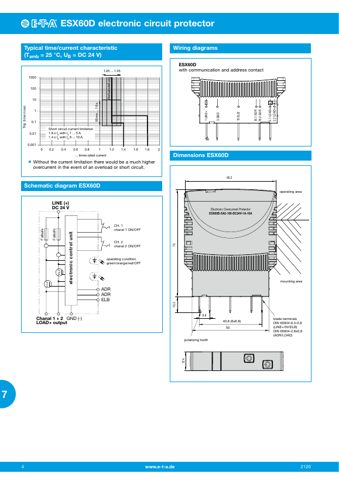

eta ESX60D – Page preview (3ce8b80678a1_S1-4 S. 4)
Page preview · 3ce8b80678a1_S1-4 · S. 4
Source: eta ESX60D datasheet, p. 1
