Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO DIM 30
AFRISO

DIM 30

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Accuracy± 0.05 % at 400 mbar and higher
Temperature indication-10/+55 °C
Resolution0.1 °C
Measuring range-10/+55 °C
HousingStainless steel 304
Process connectionStainless steel 304
DiaphragmStainless steel 316 L
Overpressure safety40 bar
Supply voltage3 x 1.5 V AA batteries
Standard mode> 2000 hours
Standby modeca. 1.2 µA
Degree of protectionIP 67 (EN 60529)
CertificationsEMC Directive 2014/30/EU
Pressure range0/40 bar
Overload105 bar
Temperature indication-10/+55 °C
Resolution:0.1 °C
Standard mode> 2000 hours
Current inputwithout backlight: ca. 1.3 mA
Standby modeca. 1.2 µA
Operating temperature rangeAmbient: -10/+55 °C
Housing diameter100 mm
Long-term stability≤ ± 0.1 % FSO/year
Adjustable measurement intervalmax. 600,000 values
EMC DirectiveEMC Directive 2014/30/EU
RoHS DirectiveRoHS Directive 2011/65/EU
Current input in standby modeca. 1.2 µA
Battery life in standard mode> 2000 hours
DiaphragmStainless steel 316 L
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Battery-operated digital pressure gauge with graphical LC display and data logger function.

Applications

  • Mobile electronic pressure measurement
  • Process engineering
  • Mechanical and plant engineering applications
  • Monitoring pressure and temperature behaviour
  • On-site calibration of pressure transducers

Features

  • Accuracy ≤ ± 0.05 % at 400 mbar and higher
  • Suitable for on-site calibration or pressure transducers
  • Graphical LC display
  • Data logger function

Options

  • Other process connections
  • Weld version without seal
Source: AFRISO DIM 30 datasheet, p. 2

Standards

  • IEC 60770
  • EN 60529
Source: AFRISO DIM 30 datasheet, p. 2

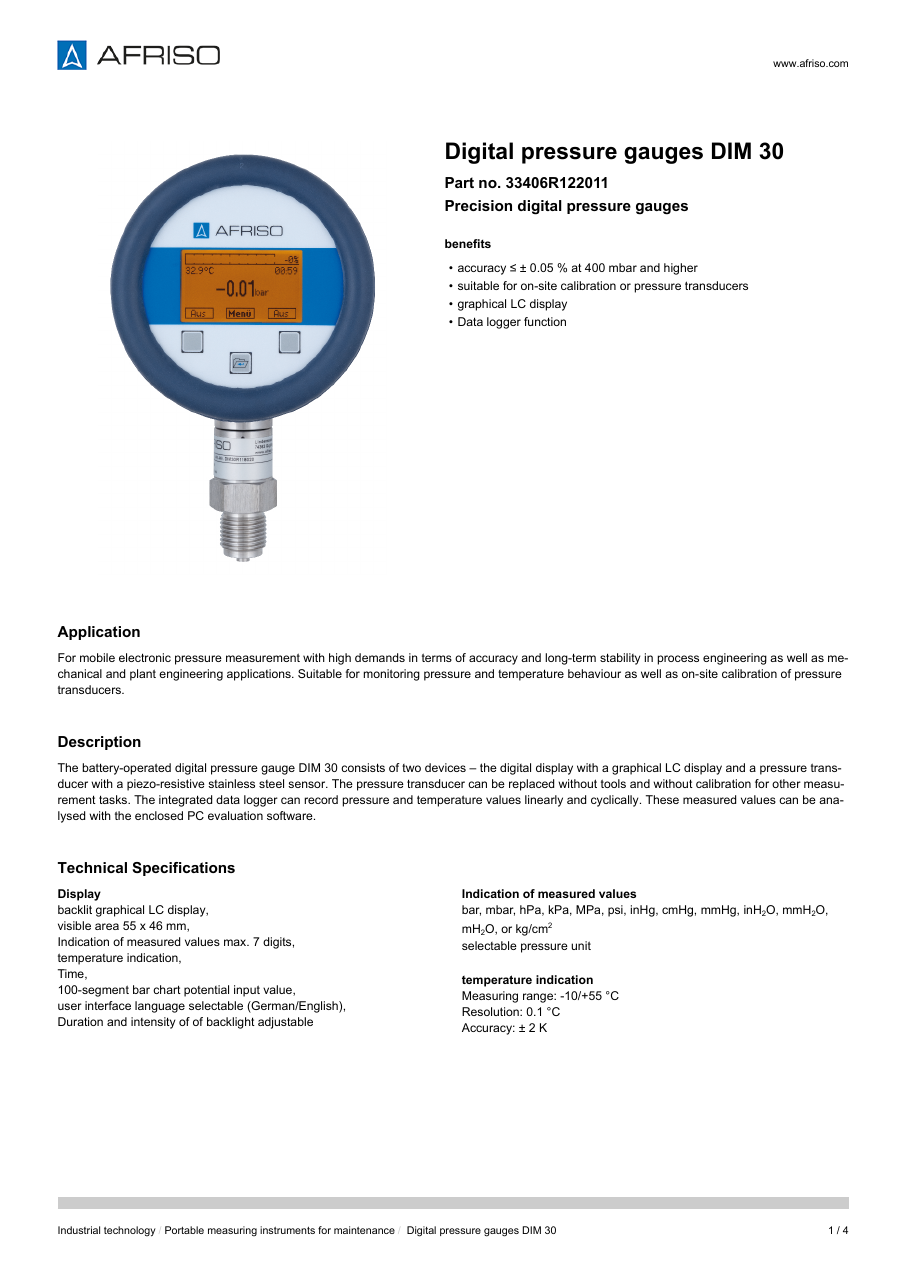

AFRISO DIM 30 – Drawing (639944f378c5_S1-4 S. 1)
Drawing · 639944f378c5_S1-4 · S. 1
AFRISO DIM 30 – Drawing (639944f378c5_S1-4 S. 2)
Drawing · 639944f378c5_S1-4 · S. 2

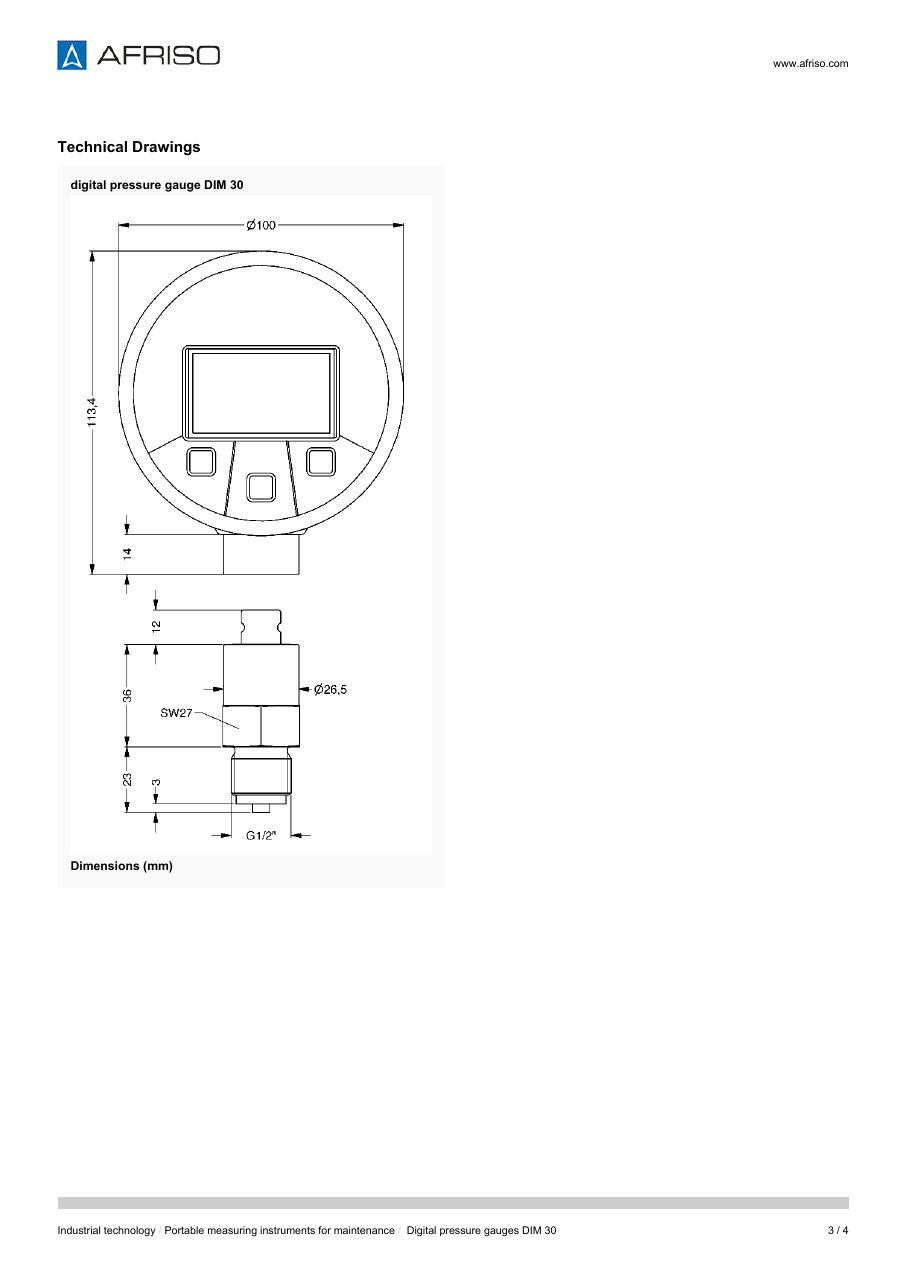

AFRISO DIM 30 – Drawing (639944f378c5_S1-4 S. 3)
Drawing · 639944f378c5_S1-4 · S. 3

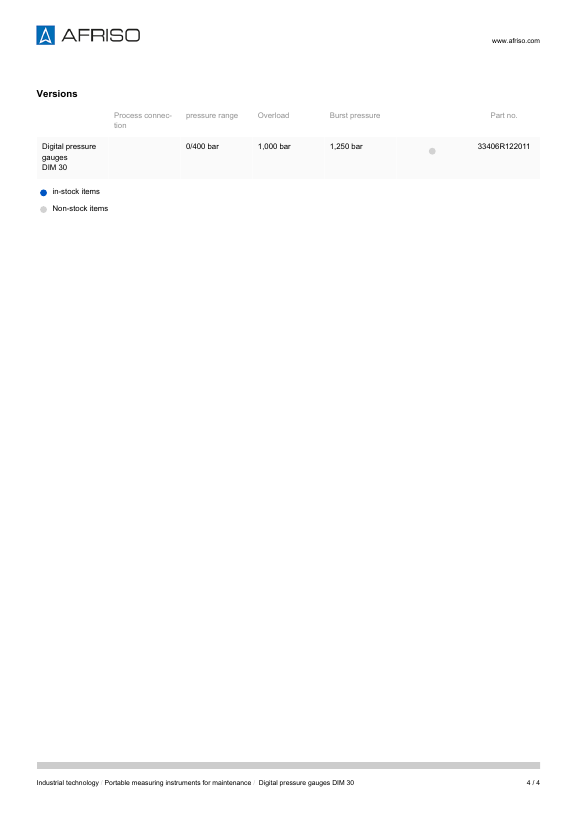

AFRISO DIM 30 – Page preview (639944f378c5_S1-4 S. 4)
Page preview · 639944f378c5_S1-4 · S. 4

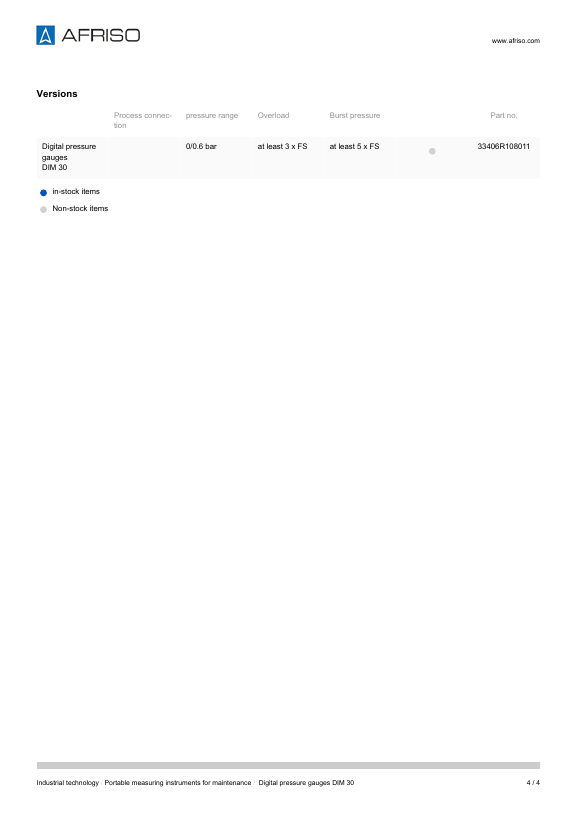

AFRISO DIM 30 – Page preview (deb019fc213c_S1-4 S. 4)
Page preview · deb019fc213c_S1-4 · S. 4
AFRISO DIM 30 – Page preview (b84aa70dd1c6_S1-4 S. 4)
Page preview · b84aa70dd1c6_S1-4 · S. 4
AFRISO DIM 30 – Page preview (0499d0f8e79c_S1-4 S. 4)
Page preview · 0499d0f8e79c_S1-4 · S. 4
Source: AFRISO DIM 30 datasheet, p. 1
