Library› Electrical› Instrumentation & Gauges› Bourdon Tube Pressure Gauge› AFRISO RF100Ch
AFRISO

RF100Ch

Bourdon Tube Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Ng100 mm
A15,6 mm
B87 mm
B190,5 mm
∅c6 mm
C13 mm
C220 mm
D101,5G½B mm
G86 mm
H92 mm
M72 mm
N22 mm
Range-1/+0.6 bar
Supply voltageDC 5 – 25 V
Current input≥ 2.1 mA
Switching accuracyapprox. 0.5 % of full scale value
Operating temperature range-20/+70 °C
Adjustment range5–95 % measuring range of gauge
Sw22 mm
ConnectionStainless steel 316 L, bottom G½B, SW22 (EN 837-1/7.3)
Operating temperature range Medium:max. 200 °C
Ambient:-20/+60 °C
Nominal size100
Degree of protectionIP 54 (EN 60529) with housing vent (≤ 25 bar)
Bayonet bezelStainless steel 304
Ambient-20/+60 °C
Indication error when the temperature of the measuring system devia-tes from the normal temperature of 20 °C:at rising temperature approx. ± 0.4 %/10 K
B249 mm
E34,5 mm
G83 mm
NG b249 mm
D1*116 mm
D2*132 mm
D3*4,8 mm
D4104 mm
S322 mm
Falling temperature approx.± 0.4 %/10 K
NG b2 ∅c c1 c2 d1* d2* d3* d4100 49 6 3 20 116 132 4,8 104 34,5G½B 83 mm
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °Cat rising temperature approx. ± 0.4 %/10 K %/K
S222 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Bourdon tube pressure gauges for chemical applications with inductive contact (IK).

Applications

  • Chemical applications
Source: AFRISO RF100Ch datasheet, p. 3

Features

  • Bourdon tube, stainless steel 316 Ti/316 L
  • Aluminium, black pointer
  • Stainless steel 304 housing with blow-out movement
  • Stainless steel bayonet bezel
  • Aluminium, white dial with black scaling
  • Plastic (Makrolon) window with contact adjustment lock

Options

  • Liquid filling (silicone oil)
  • back flange
  • 3-hole fixing, panel mounting bezel
  • throttle screw
  • Connector
  • special scales
  • other process connections

Standards

  • EN 837-1/6
  • EN 837-1/5
  • EN 837-1/7.3
  • EN 60529
Source: AFRISO RF100Ch datasheet, p. 1

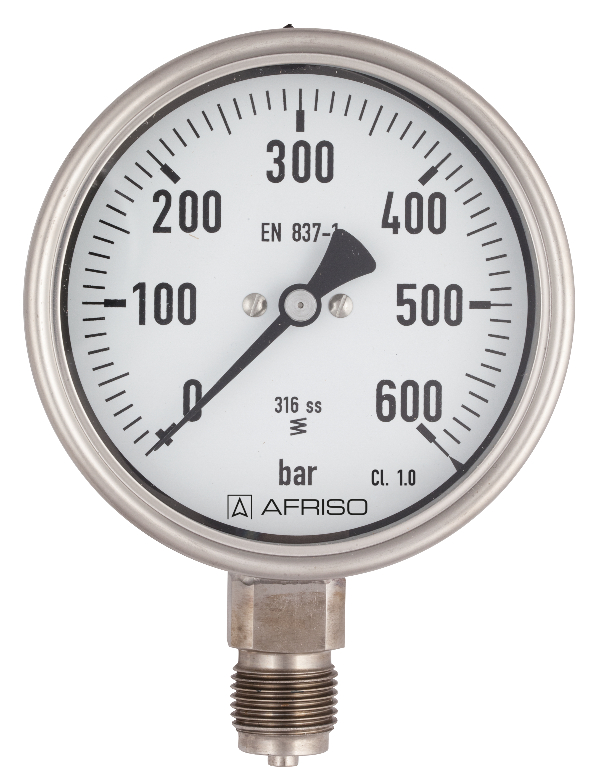

AFRISO RF100Ch – Photo (5a706f2375e0_S2-3 S. 2)
Photo · 5a706f2375e0_S2-3 · S. 2

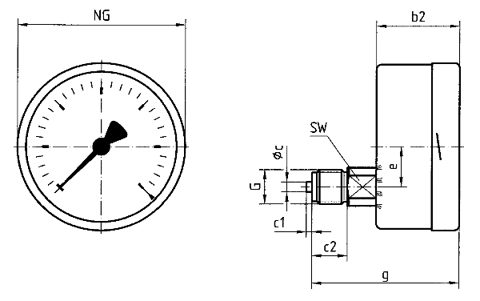

AFRISO RF100Ch – Photo (860150825f06_S1-3 S. 2)
Photo · 860150825f06_S1-3 · S. 2

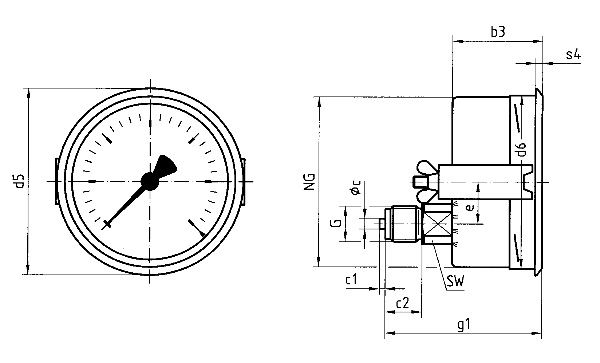

AFRISO RF100Ch – Photo (c1fe42908949_S1-3 S. 2)
Photo · c1fe42908949_S1-3 · S. 2
AFRISO RF100Ch – Photo (4d7d19948057_S1-3 S. 1)
Photo · 4d7d19948057_S1-3 · S. 1

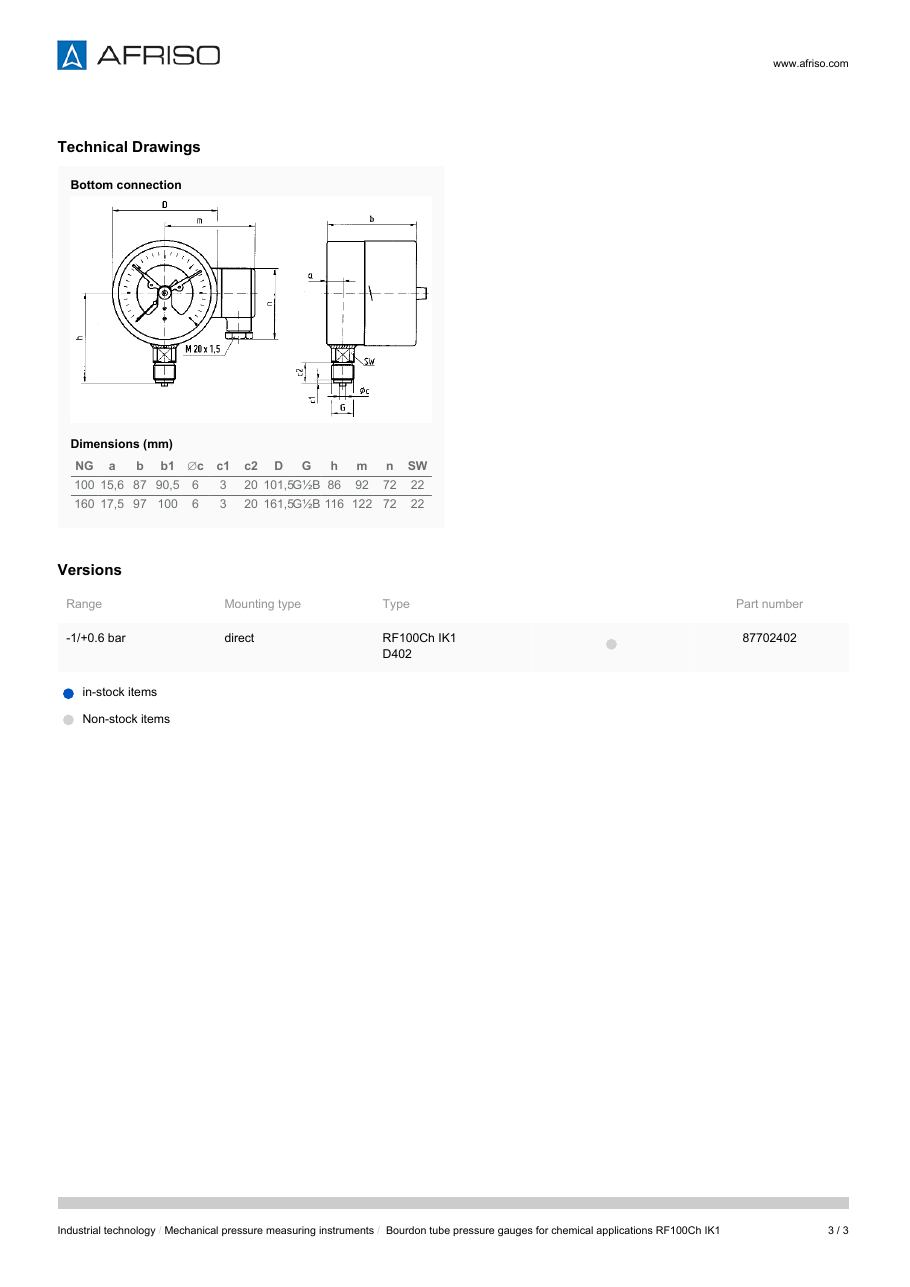

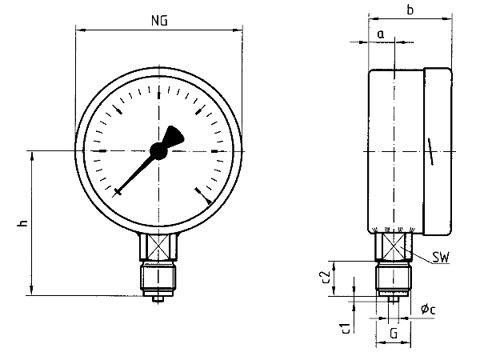

AFRISO RF100Ch – Photo (4d7d19948057_S1-3 S. 3)
Photo · 4d7d19948057_S1-3 · S. 3

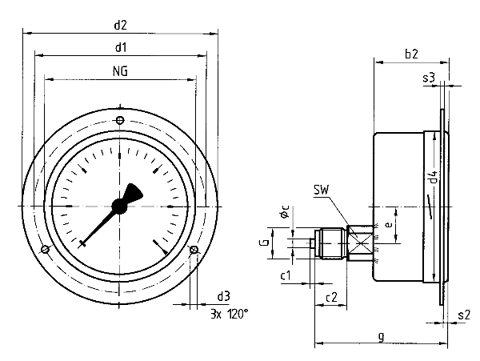

AFRISO RF100Ch – Photo (f41e2b83e21b_S1-3 S. 3)
Photo · f41e2b83e21b_S1-3 · S. 3

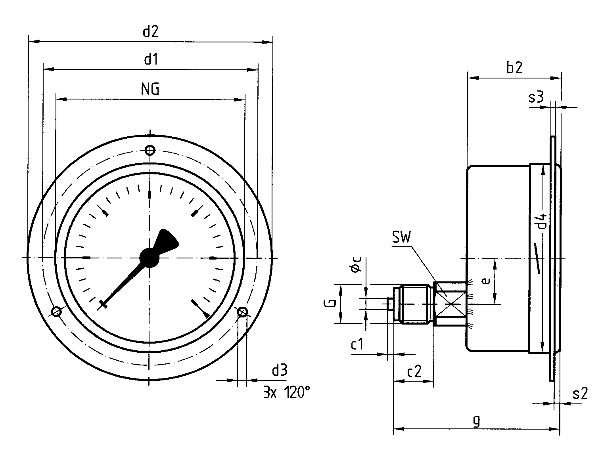

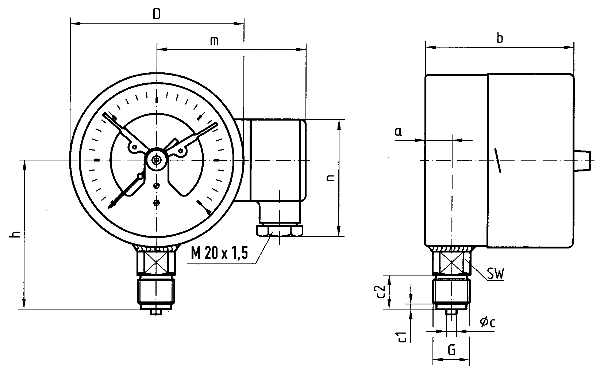

AFRISO RF100Ch – Drawing (5a706f2375e0_S2-3 S. 2)
Drawing · 5a706f2375e0_S2-3 · S. 2

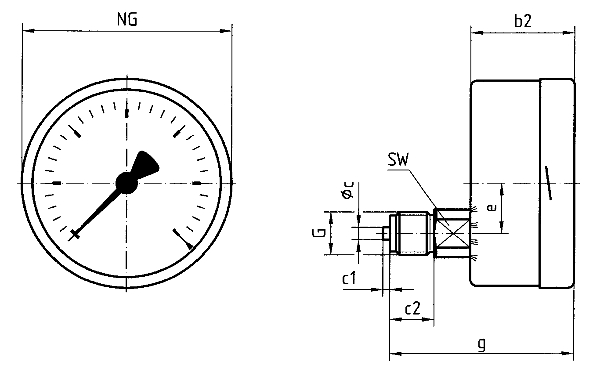

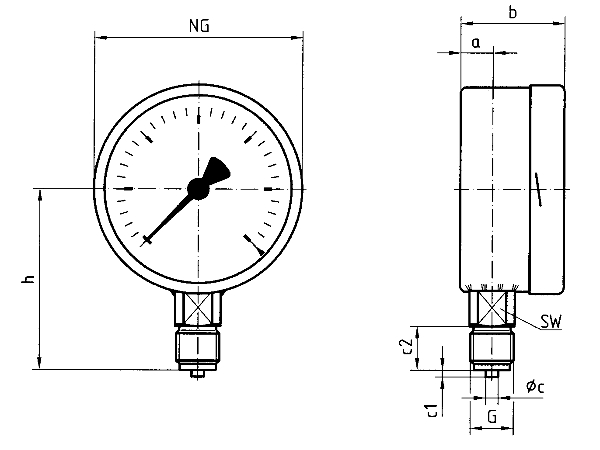

AFRISO RF100Ch – Drawing (cf59fbfb060f_S2-3 S. 2)
Drawing · cf59fbfb060f_S2-3 · S. 2
Source: AFRISO RF100Ch datasheet, p. 2
