Library› Electrical› Instrumentation & Gauges› Pressure Transmitter / Transducer› bdsensors DMP 331
bdsensors

DMP 331

Pressure Transmitter / Transducer · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

accuracy according to IEC 60770standard: 0.35 % FSO
Output signal / Supply2-wire: 4 ... 20 mA / VS = 8 ... 32 VDC
Accuracy 1standard: nominal pressure < 0.4 bar: ≤ ± 0.5 % FSO
Permissible loadcurrent 2-wire: Rmax = [(VS – VS min) / 0.02 A] Ω
Influence effectssupply: 0.05 % FSO / 10 V
Response time2-wire: ≤ 10 msec
Permissible temperaturesmedium: -40 ... 125 °C
Mechanical stabilityVibration 10 g RMS (25 ... 2000 Hz) according to
Weightapprox. 140 g
Installation positionany 4
Operational life> 100 x 106 pressure cycles
Ce-conformityEMC Directive: 2004/108/EC
Output4 … 20 mA / 2-wire
Accuracystandard for PN ≥ 0.4 bar 0.35 %
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“DMP 331 Industrial Pressure Transmitter for Low Pressure Stainless Steel Sensor accuracy according to IEC 60770: standard: 0.35 % FSO option: 0.25 / 0.1 % FSO”

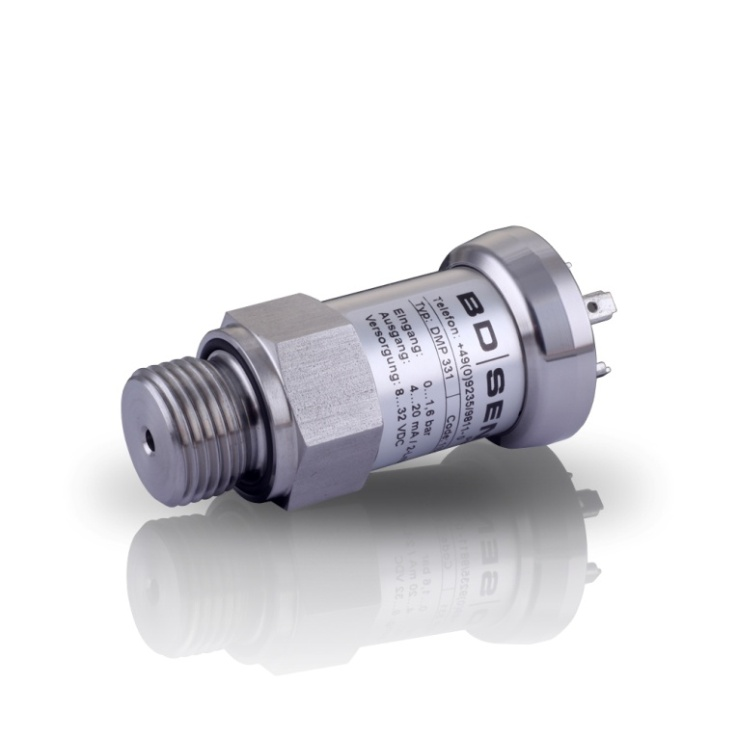

bdsensors DMP 331 – Photo (d7592c881ed5_S1-5 S. 1)
Photo · d7592c881ed5_S1-5 · S. 1
bdsensors DMP 331 – Photo (d7592c881ed5_S1-5 S. 3)
Photo · d7592c881ed5_S1-5 · S. 3

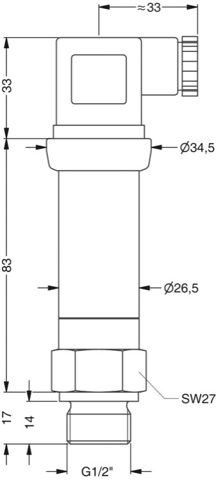

bdsensors DMP 331 – Photo (d7592c881ed5_S1-5 S. 4)
Photo · d7592c881ed5_S1-5 · S. 4
bdsensors DMP 331 – Photo (d7592c881ed5_S1-5 S. 4)
Photo · d7592c881ed5_S1-5 · S. 4

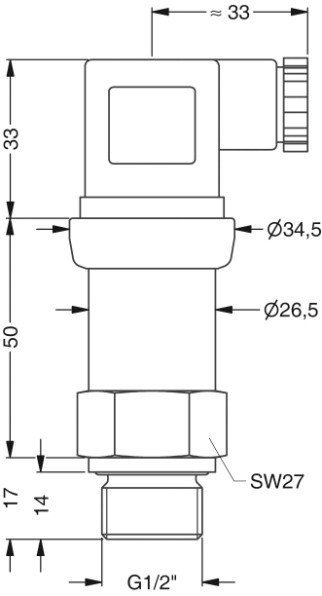

bdsensors DMP 331 – Drawing (d7592c881ed5_S1-5 S. 2)
Drawing · d7592c881ed5_S1-5 · S. 2

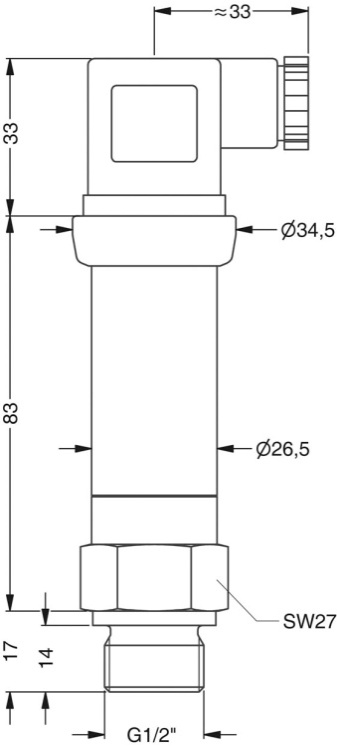

bdsensors DMP 331 – Drawing (d7592c881ed5_S1-5 S. 3)
Drawing · d7592c881ed5_S1-5 · S. 3
bdsensors DMP 331 – Drawing (d7592c881ed5_S1-5 S. 4)
Drawing · d7592c881ed5_S1-5 · S. 4

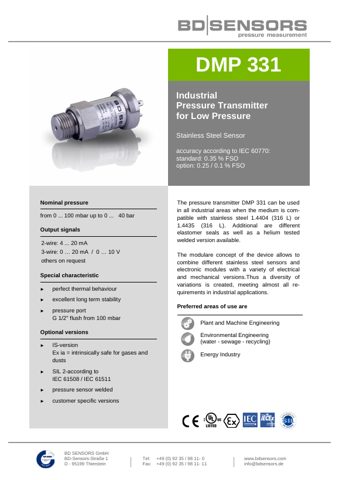

bdsensors DMP 331 – Page preview (d7592c881ed5_S1-5 S. 1)
Page preview · d7592c881ed5_S1-5 · S. 1
Source: bdsensors DMP 331 datasheet, p. 1
