Hanla IMS

TFP1545

Gate Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal Pipe Size4.500 Inches
Dimensions9.00 Inches
Approx. Weight (FxG)55.1 Lbs.
Approx. Weight (GxG)48.5 Lbs.
Nominal Valve Size10 Inches
Half Pipe OD28.74 - 53.94 Inches
Trench Depth Range28.74 - 53.94 Inches
Post Height51.97 - 77.17 Inches
Post Depth Range51.97 - 77.17 Inches
Nominal Dimension P1.50 38
Dn100 mm
Valve Size10 Inches
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The TFP1545 is a post indicator gate valve used for controlling the flow of fluids in various applications.

Features

  • FBE Coated Ductile Iron
  • Bronze
  • Zinc Coated Carbon Steel
Source: Hanla IMS TFP1545 datasheet, p. 8

Options

  • Various flange sizes
  • Different pressure ratings

Standards

  • ANSI

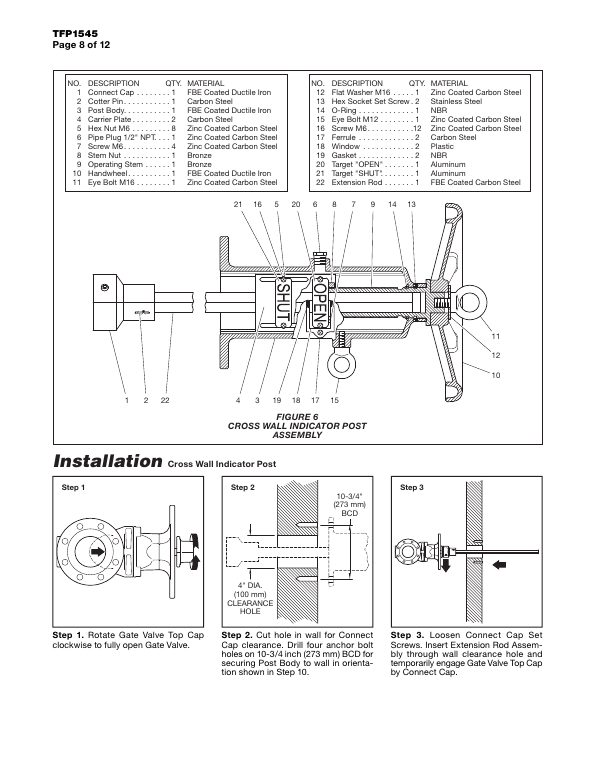

Hanla IMS TFP1545 – Drawing (31efd376178e_S3-10 S. 3)
Drawing · 31efd376178e_S3-10 · S. 3

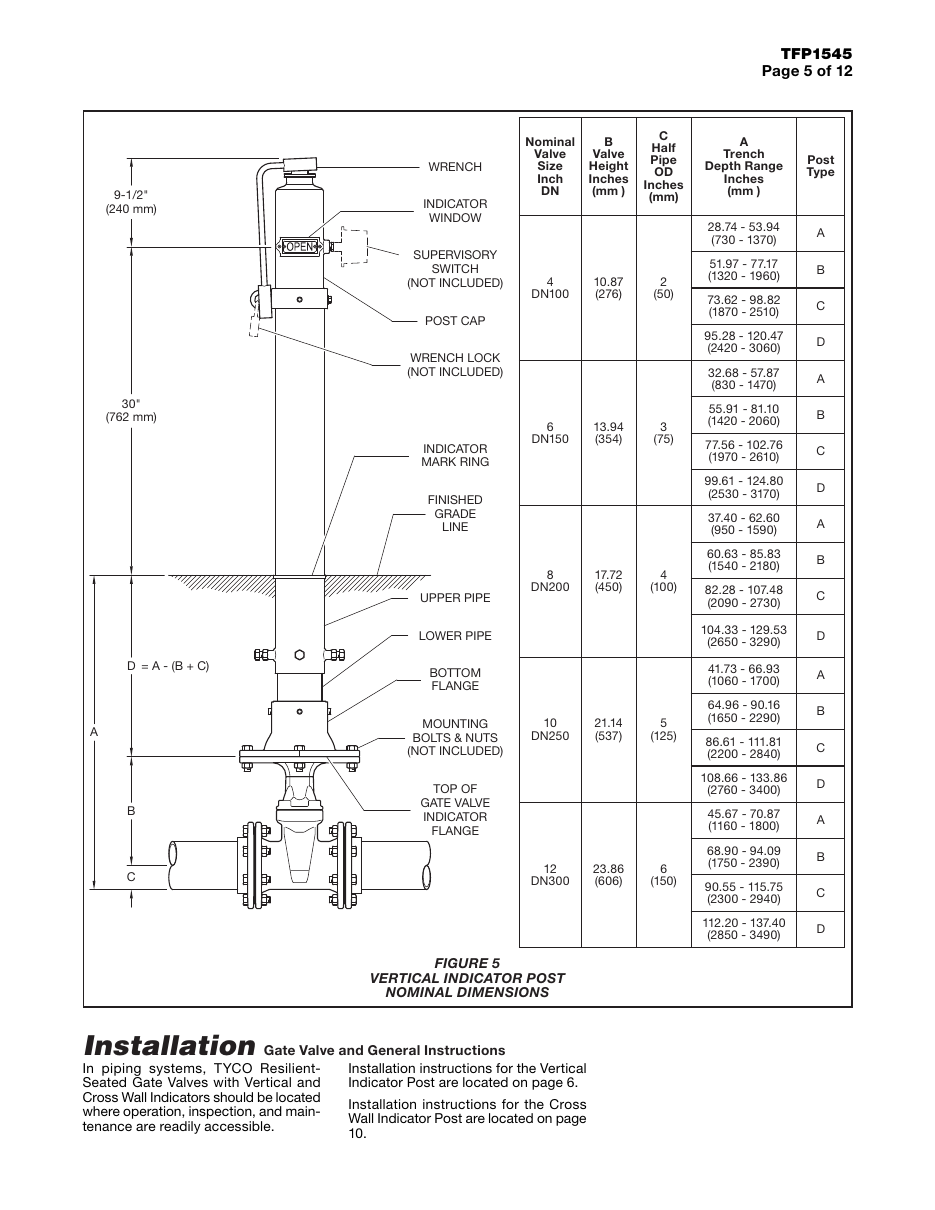

Hanla IMS TFP1545 – Drawing (31efd376178e_S3-10 S. 4)
Drawing · 31efd376178e_S3-10 · S. 4

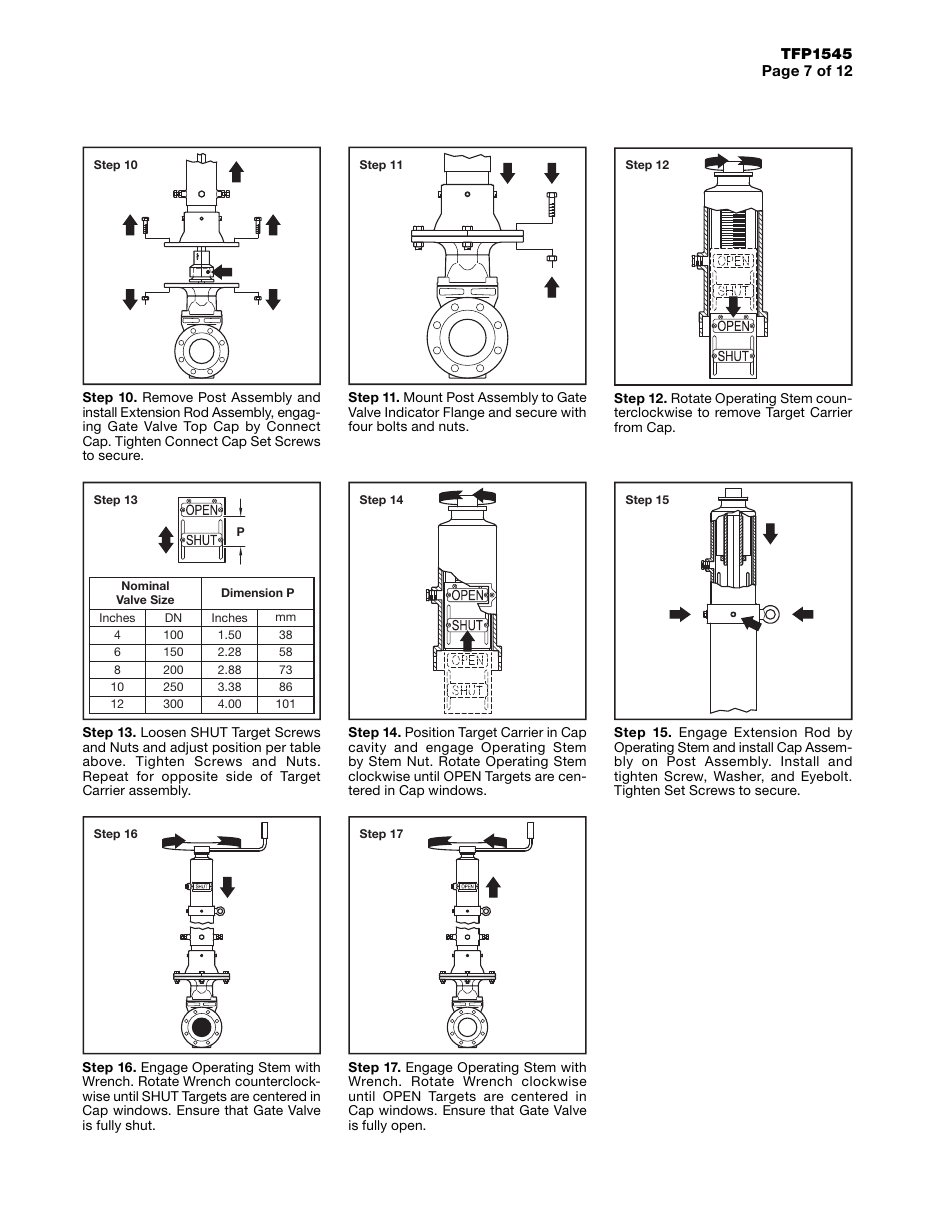

Hanla IMS TFP1545 – Drawing (31efd376178e_S3-10 S. 5)
Drawing · 31efd376178e_S3-10 · S. 5

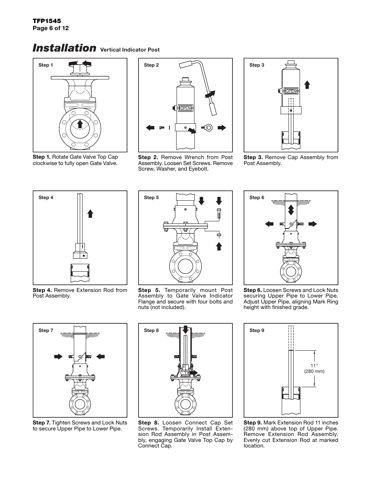

Hanla IMS TFP1545 – Page preview (31efd376178e_S3-10 S. 6)
Page preview · 31efd376178e_S3-10 · S. 6

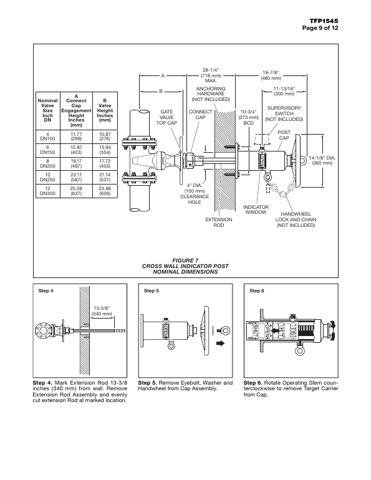

Hanla IMS TFP1545 – Page preview (31efd376178e_S3-10 S. 7)
Page preview · 31efd376178e_S3-10 · S. 7

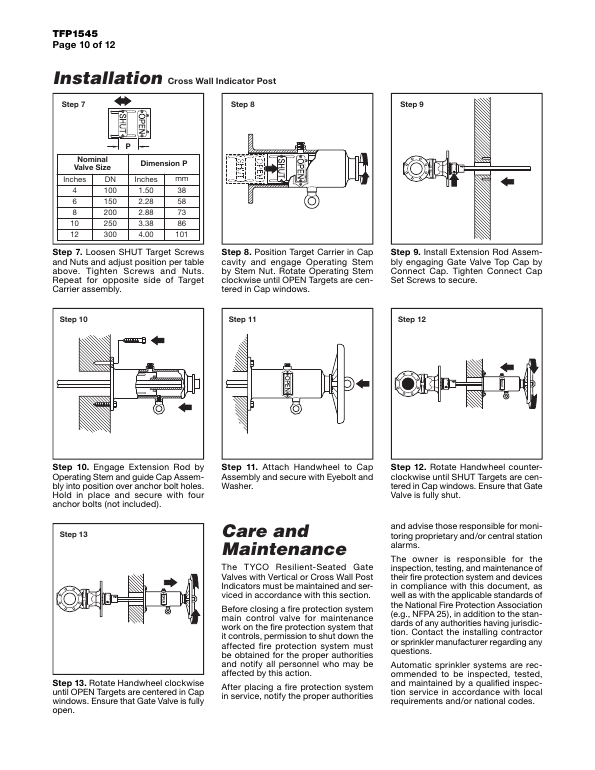

Hanla IMS TFP1545 – Page preview (31efd376178e_S3-10 S. 8)
