Victron Energy

Quattro

Battery Charger Panel · Power Distribution

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Batterie de démarrage (borne de connexion G)4 A
Sonde de tension (borne de connexion E)1 V
Input voltage range (V DC)38 – 66
Output (1)Output voltage: 120 VAC ± 2% Frequency: 60 Hz ± 0,1%
Cont. output power at 25°C (VA)3000
Cont. output power at 25°C (W)2400
Cont. output power at 40°C (W)2000
Cont. output power at 65°C (W)1700
Peak power (W)6000
Maximum efficiency (%)95
Zero-load power (W)25
Zero-load power in AES mode (W)20
Zero-load power in Search mode (W)12
CertificationsEN 60335-1
AC-in-1 current limit30A
AC-in-2 current limit16A
Puissance maximale de transfert30 A
Section minimale du câble0,75 mm2
Compensation des pertes de tension1 V
Capacidad de carga máxima30 A
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

An inverter for power control and assist, with integrated transfer switch and multiple input/output options.

Applications

  • Power control and assist
  • Integrated transfer switch

Features

  • PowerControl / PowerAssist: Yes
  • Integrated Transfer switch: Yes
  • AC inputs (2x): 95-130 VAC, 45 – 65 Hz
  • Maximum feed through current (A): AC-in-1: 50A, AC-in-2: 50A

Options

  • Multi Control Panel for variable AC-in-2 current limit
Source: Victron Energy Quattro datasheet, p. 19

Standards

  • EN 60335-1
  • EN 60335-2-29

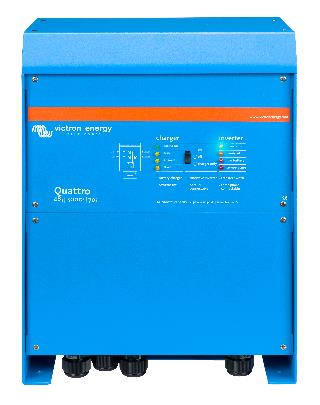

Victron Energy Quattro – Photo (1ad53b03cdf5_S1-1 S. 1)
Photo · 1ad53b03cdf5_S1-1 · S. 1
Victron Energy Quattro – Photo (1ad53b03cdf5_S1-1 S. 1)
Photo · 1ad53b03cdf5_S1-1 · S. 1
Victron Energy Quattro – Photo (1ad53b03cdf5_S1-1 S. 1)
Photo · 1ad53b03cdf5_S1-1 · S. 1

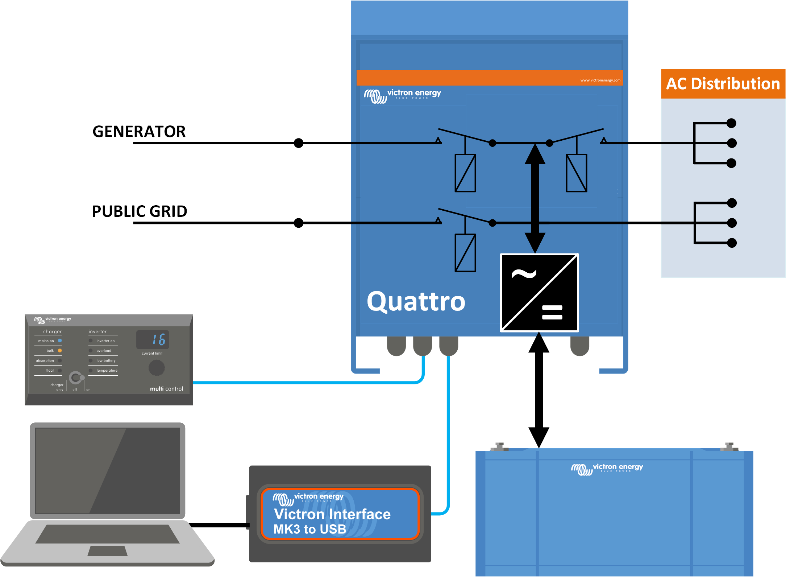

Victron Energy Quattro – Drawing (1ad53b03cdf5_S1-1 S. 1)
Drawing · 1ad53b03cdf5_S1-1 · S. 1

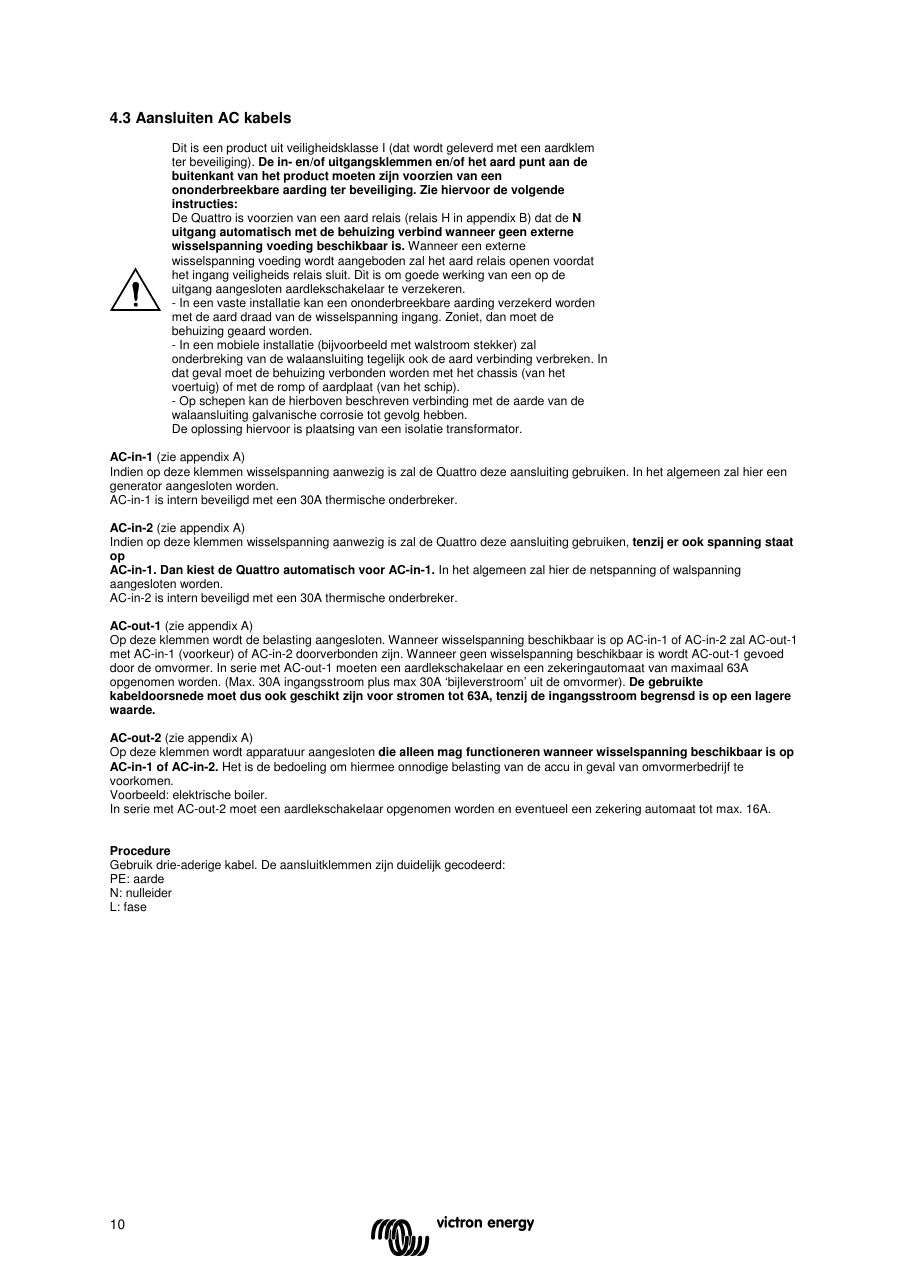

Victron Energy Quattro – Drawing (6b77aedf6132_S19-64 S. 19)
Drawing · 6b77aedf6132_S19-64 · S. 19

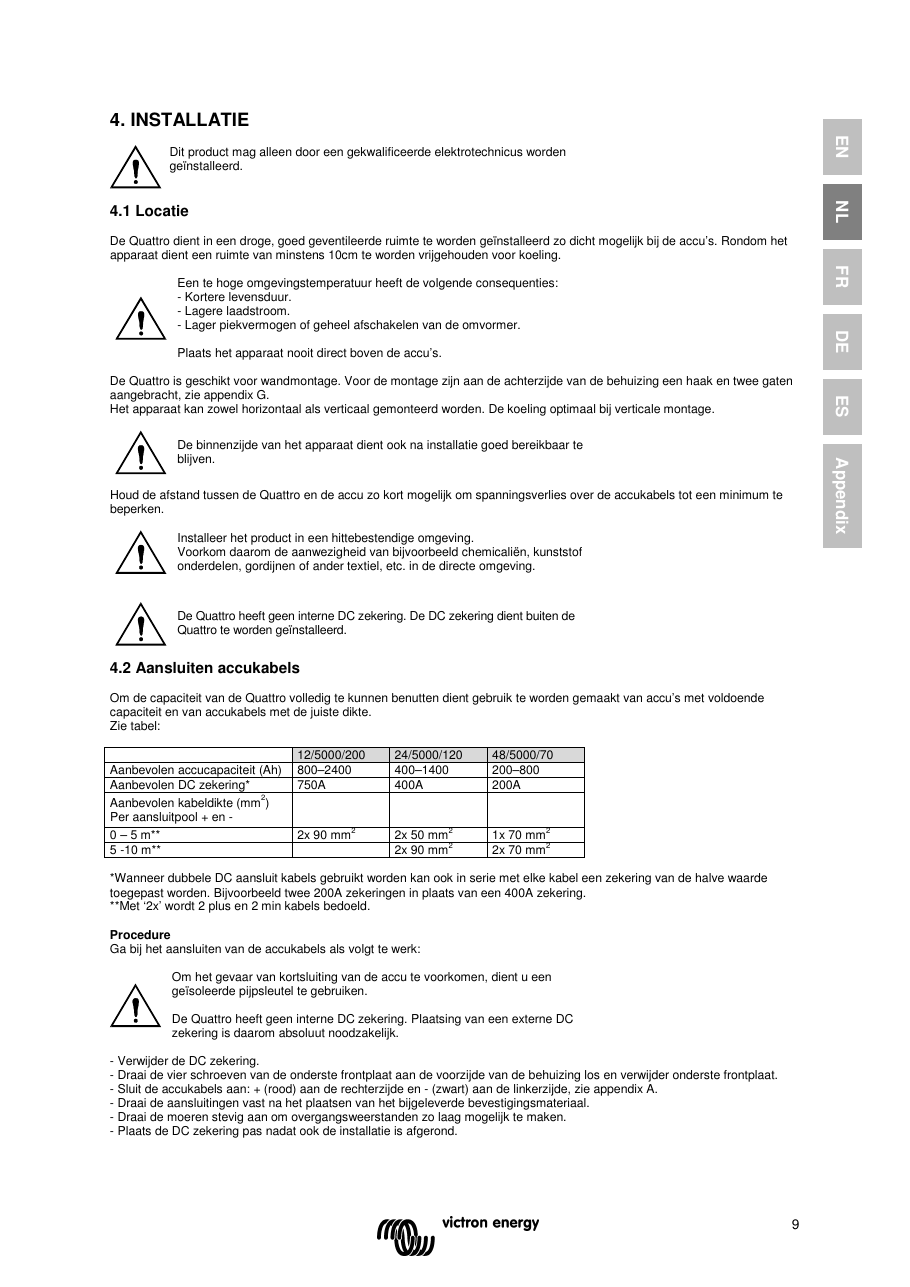

Victron Energy Quattro – Drawing (6b77aedf6132_S19-64 S. 20)
Drawing · 6b77aedf6132_S19-64 · S. 20

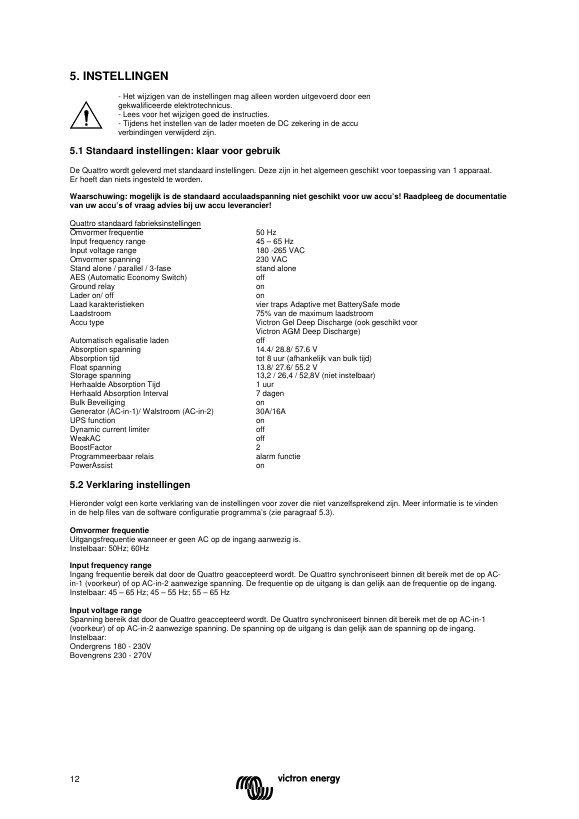

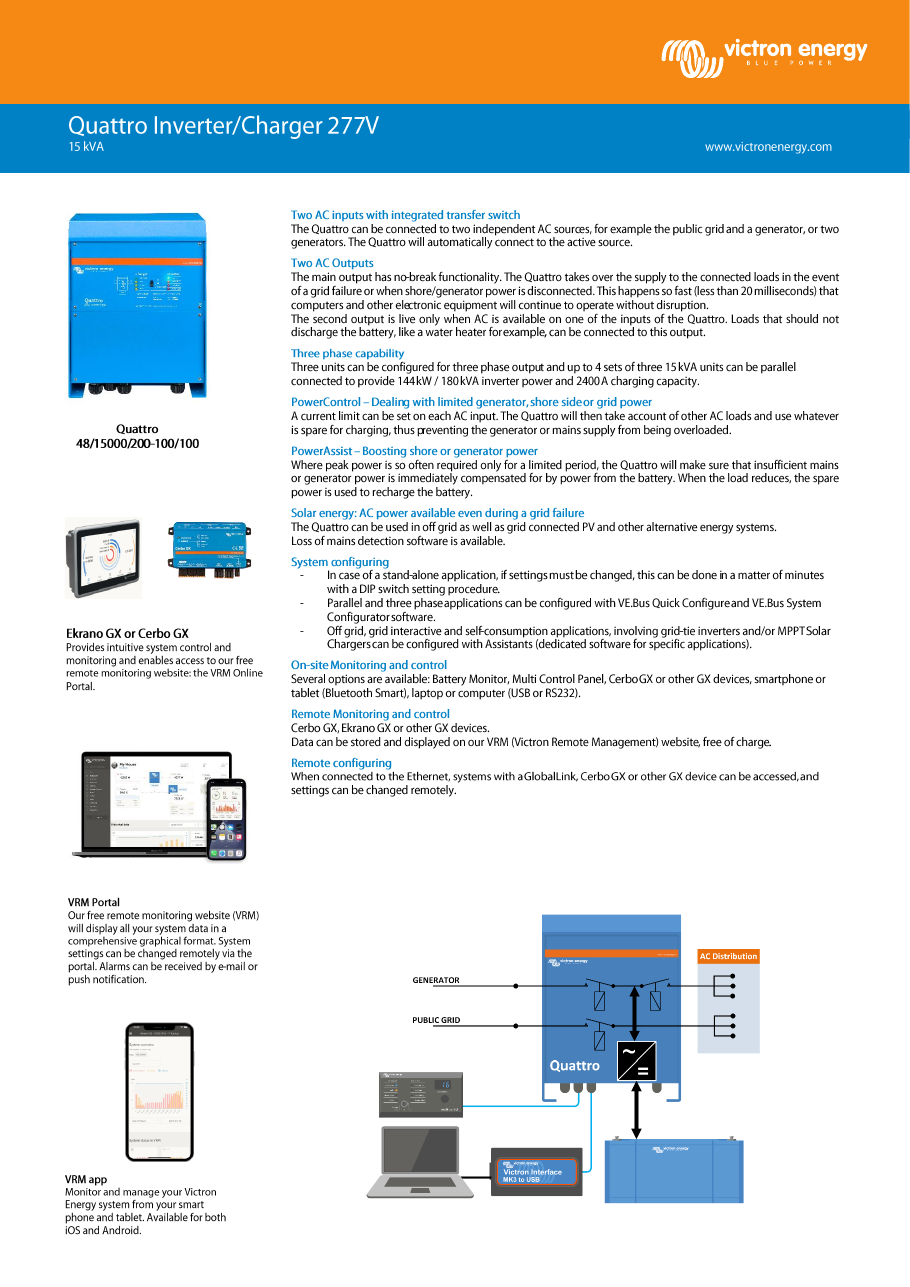

Victron Energy Quattro – Page preview (6b77aedf6132_S19-64 S. 21)
Page preview · 6b77aedf6132_S19-64 · S. 21

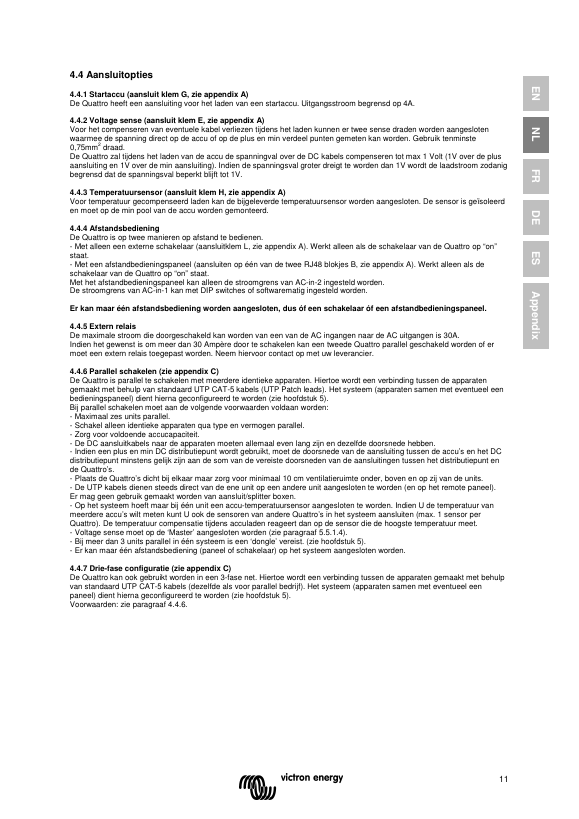

Victron Energy Quattro – Page preview (6b77aedf6132_S19-64 S. 22)
Page preview · 6b77aedf6132_S19-64 · S. 22
Source: Victron Energy Quattro datasheet, p. 25
