Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› eta 2-5700
eta

2-5700

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

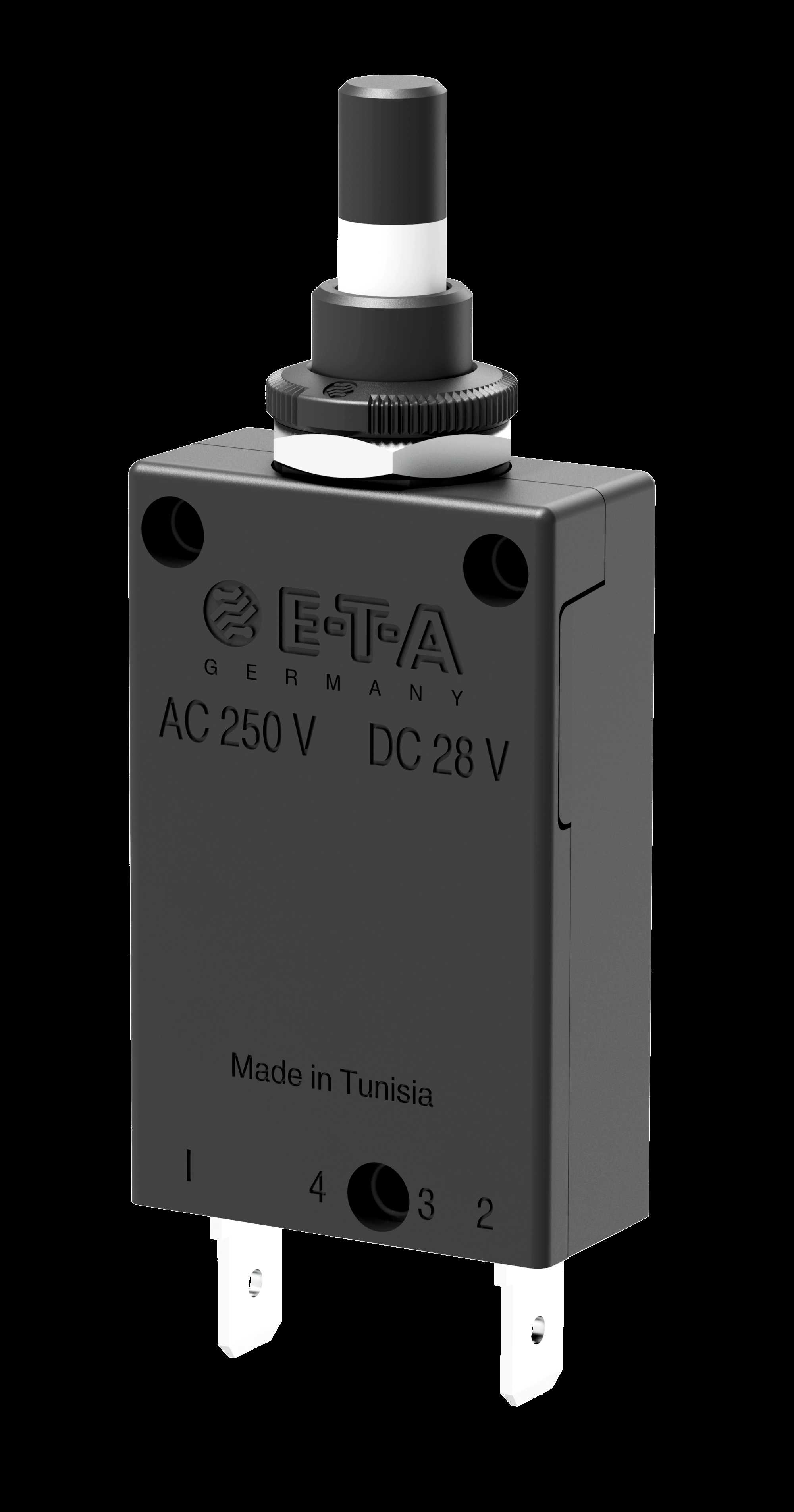

Example image: Circuit Breaker — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Type2-5700
Ambient temperature-20...+60 °C (-4...+140 °F)
Insulation resistance> 100 MΩ (DC 500 V)
Rated voltage AC250 V
DC Rated voltage28 V
Rated current0.1… 25 A
Rated current range inductive load0.05...16 A
Rated current range resistive load17...25 A
Dielectric strength Operating areaTest voltage AC max. 4,000 V according to EN 60934 3,000 V
Installation range Test voltage AC max.2,000 V according to EN 60934 1,500 V
Number of cycles40
Terminal designBlade terminal 6.3-0.8 (-P) [N]
max. plug-in force [N]80
Min. pull-out force [N]18
Storage temperature-40...+80 °C
Actuating area IP code (standard)IP40
Terminal area IP code (standard)IP00
CURRENT RATING RANGE0,05...25 A
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

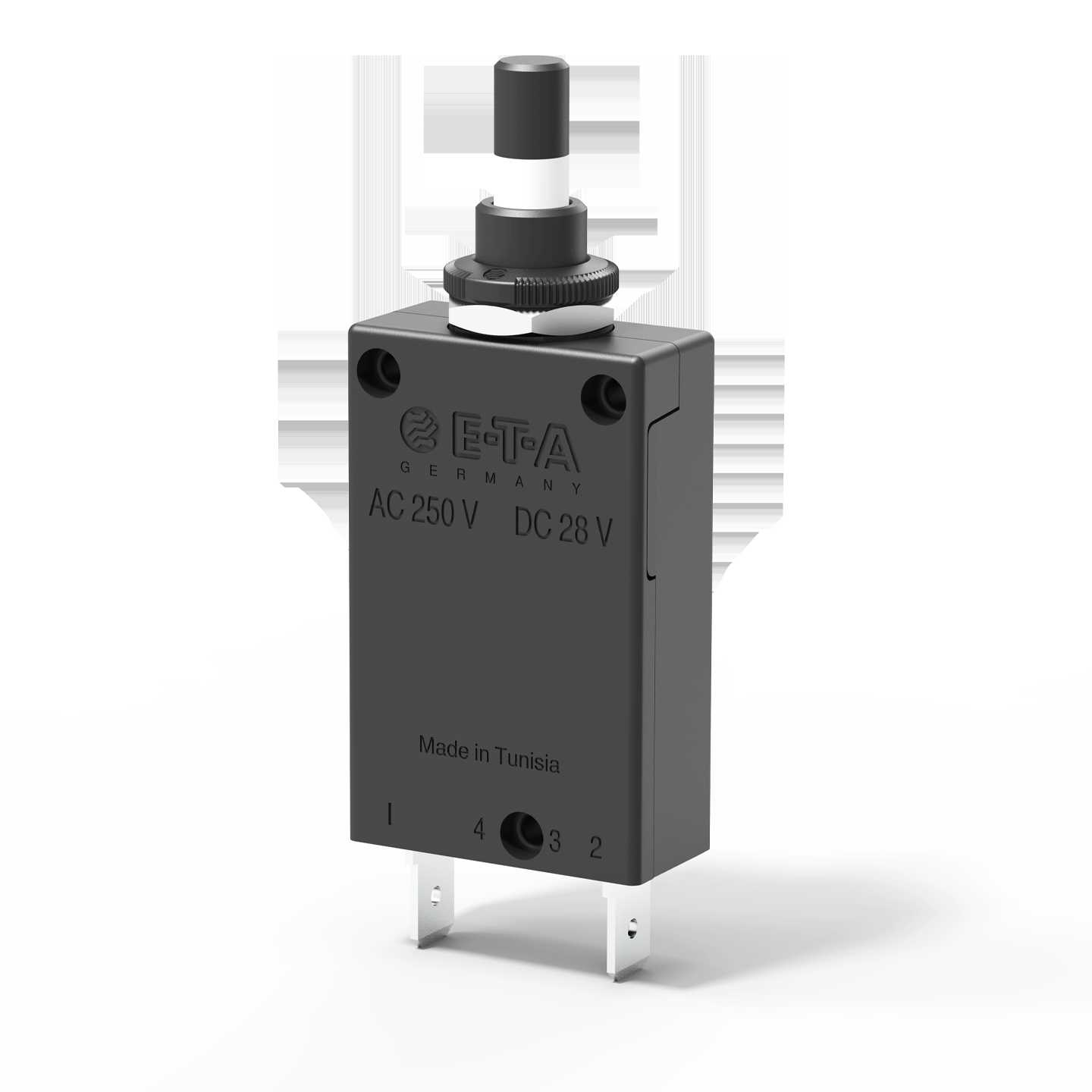

“Thermal Overcurrent Circuit Breakers 2-5000/2-5700 Description Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism. Type 2-5000 is available with…”

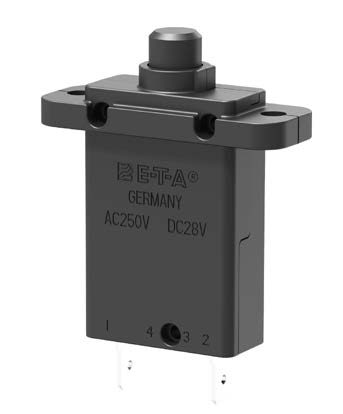

eta 2-5700 – Photo (00e981d1094e_S1-5 S. 1)
Photo · 00e981d1094e_S1-5 · S. 1
eta 2-5700 – Photo (47619f52062e_S1-13 S. 1)
Photo · 47619f52062e_S1-13 · S. 1
eta 2-5700 – Photo (47619f52062e_S1-13 S. 1)
Photo · 47619f52062e_S1-13 · S. 1
eta 2-5700 – Photo (47619f52062e_S1-13 S. 1)
Photo · 47619f52062e_S1-13 · S. 1
eta 2-5700 – Photo (47619f52062e_S1-13 S. 1)
Photo · 47619f52062e_S1-13 · S. 1
eta 2-5700 – Photo (47619f52062e_S1-13 S. 1)
Photo · 47619f52062e_S1-13 · S. 1
eta 2-5700 – Photo (47619f52062e_S1-13 S. 5)
Photo · 47619f52062e_S1-13 · S. 5
eta 2-5700 – Photo (47619f52062e_S1-13 S. 5)
Photo · 47619f52062e_S1-13 · S. 5
Source: eta 2-5700 datasheet, p. 1
