Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› eta 1160-02-12A
eta

1160-02-12A

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Voltage ratingDC 12 V
Current ratings12...30 A
Typical life300 operations at 2 x IN
Ambient temperature-30...+60 °C (-22...+140 °F)
Holding current< 0.6 A
Reset time at 23°C after5 s of load with UN < 35 sec
Interrupting capacity (o-o-o)200 A, L/R = 2.5 ms
Vibration5 g (57-500 Hz) ± 0.38 mm (10-57 Hz) to IEC 60068-2-6, test Fc, 10
Shock25 g (11 ms) to IEC 60068-2-27, test Ea
Corrosion96 hours at 5 % salt mist to IEC 60068-2-11, test Ka
Humidity240 hours at 95 % RH to IEC 60068-2-78, test Cab
Current rating (A)12, 15, 20, 30 A
Voltage drop (mV)< 150
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Thermal Automotive Circuit Breaker 1160-... Description Thermal circuit breaker, with controlled self-resetting mechanism, specially suited to installation in inaccessible locations. Under overload…”

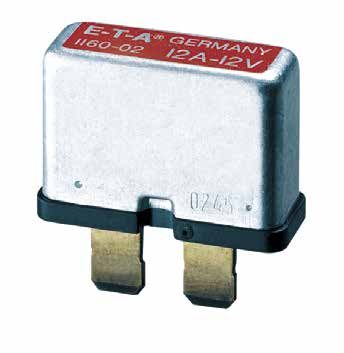

eta 1160-02-12A – Photo (121ed0210a70_S1-1 S. 1)
Photo · 121ed0210a70_S1-1 · S. 1

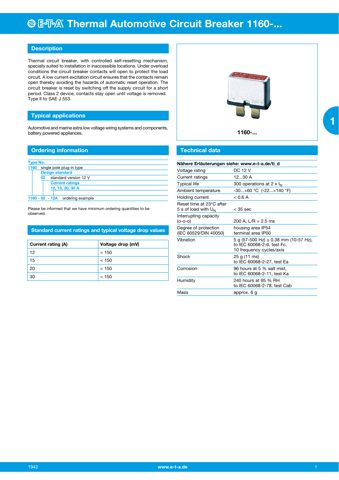

eta 1160-02-12A – Drawing (121ed0210a70_S1-1 S. 1)
Drawing · 121ed0210a70_S1-1 · S. 1
Source: eta 1160-02-12A datasheet, p. 1
