IVECO/FPT

N45 MNA M10/N67 MNA M15

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Low temperature operationCoolant coming from inside the engine (1) recirculate directly towards the centr
High temperature operationThermostatic valve partially or totally shuts in the recirculation towards the p
Minimum51.2 ± 4.3
2 bar52 ±4
4 bar88 ±4
6 bar124 ±5
Alignment error tolerance0.04 mm
Check connecting rod torsion0.08 mm
Crankshaft pulley (M12x1.75x10.9)110 ± 5 Nm
Crankshaft pulley (M12x120)85 ± 10 Nm
Flywheel housing (M12x80)85 ± 10 Nm
Flywheel housing (M10x80)49 ± 5 Nm
Flywheel housing (M10x40)49 ± 5 Nm
Flywheel housing on crankshaft (M12x1.25) 1st stage30 ± 4 Nm
Flywheel housing on crankshaft (M12x1.25) 2nd stage60° ± 5°
Aspiration pump gear cover (M8x1.25x16)24 ± 4 Nm
Fuel injectors60 ± 5 Nm
Oil feed to oil filter head24 ± 4 Nm
Alternator to alternator support (M8x1.25x30)24 ± 4 Nm
Alternator to water inlet conn. assy (M8x1.25x30)24 ± 4 Nm
Lower alternator mounting (M10x1.25x25)24 ± 4 Nm
Alternator upper pivot to support (M10)49 ± 5 Nm
Alternator mounting hardware (M12x1.75x120)43 ± 6 Nm
Alternator wiring (M6x1.0 nut)10 ± 2 Nm
Starter motor to gear case (M10)49 ± 5 Nm
Screw M8 for fastening camshaft longitudinal retaining plate24 ± 4 Nm
Screw M8 for fastening camshaft gear36 ± 4 Nm
Screw M11 for fastening connecting rod caps 1st stage60 ± 5 Nm
Dublette von219864
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Low temperature operation When the temperature of the coolant is lower than the set values, the coolant coming from inside the engine (1) recirculate directly towards the centrifugal pump (2). Figure…”

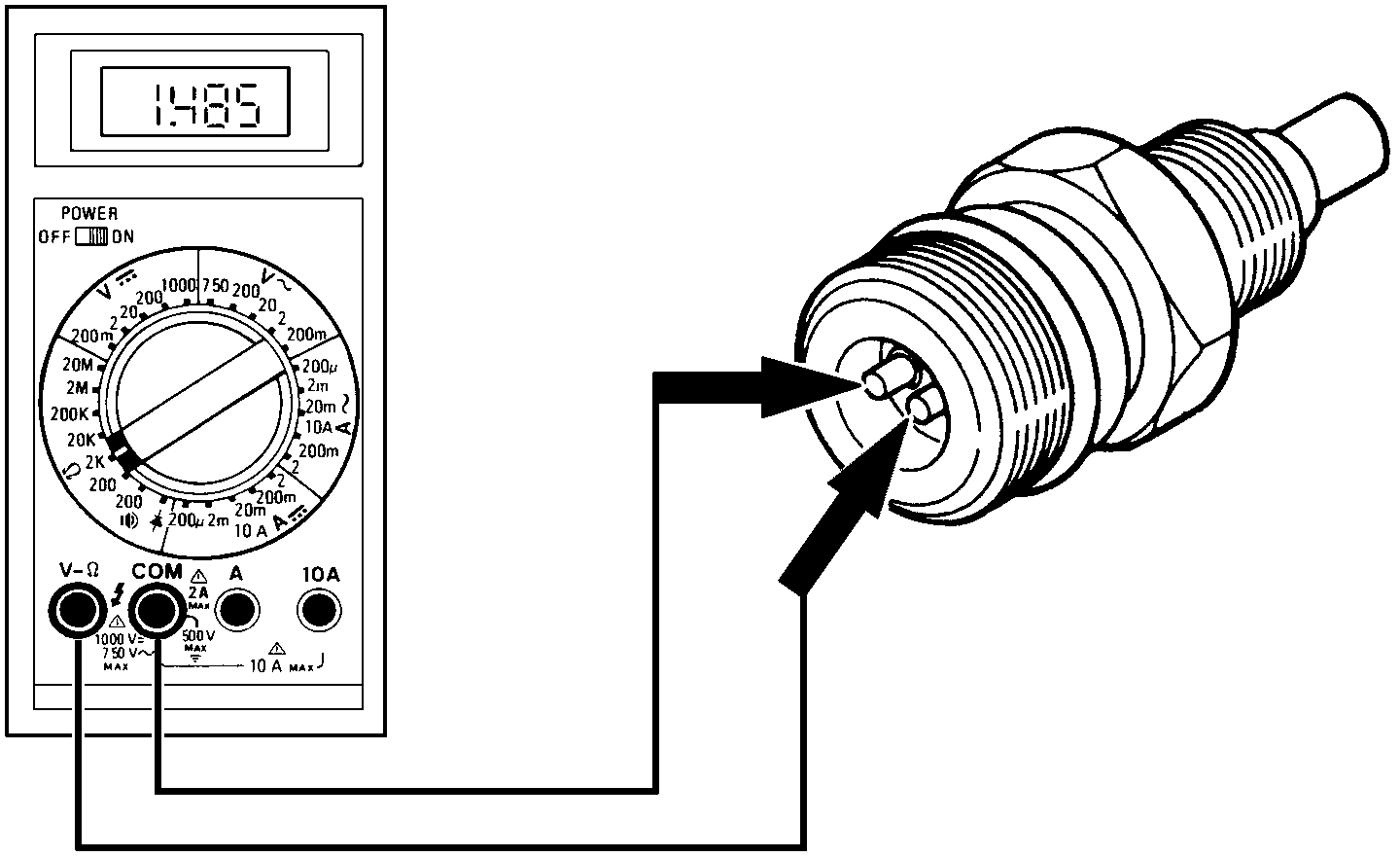

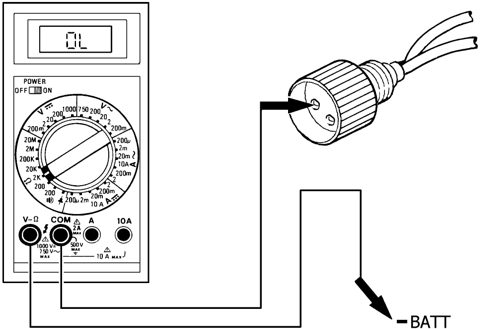

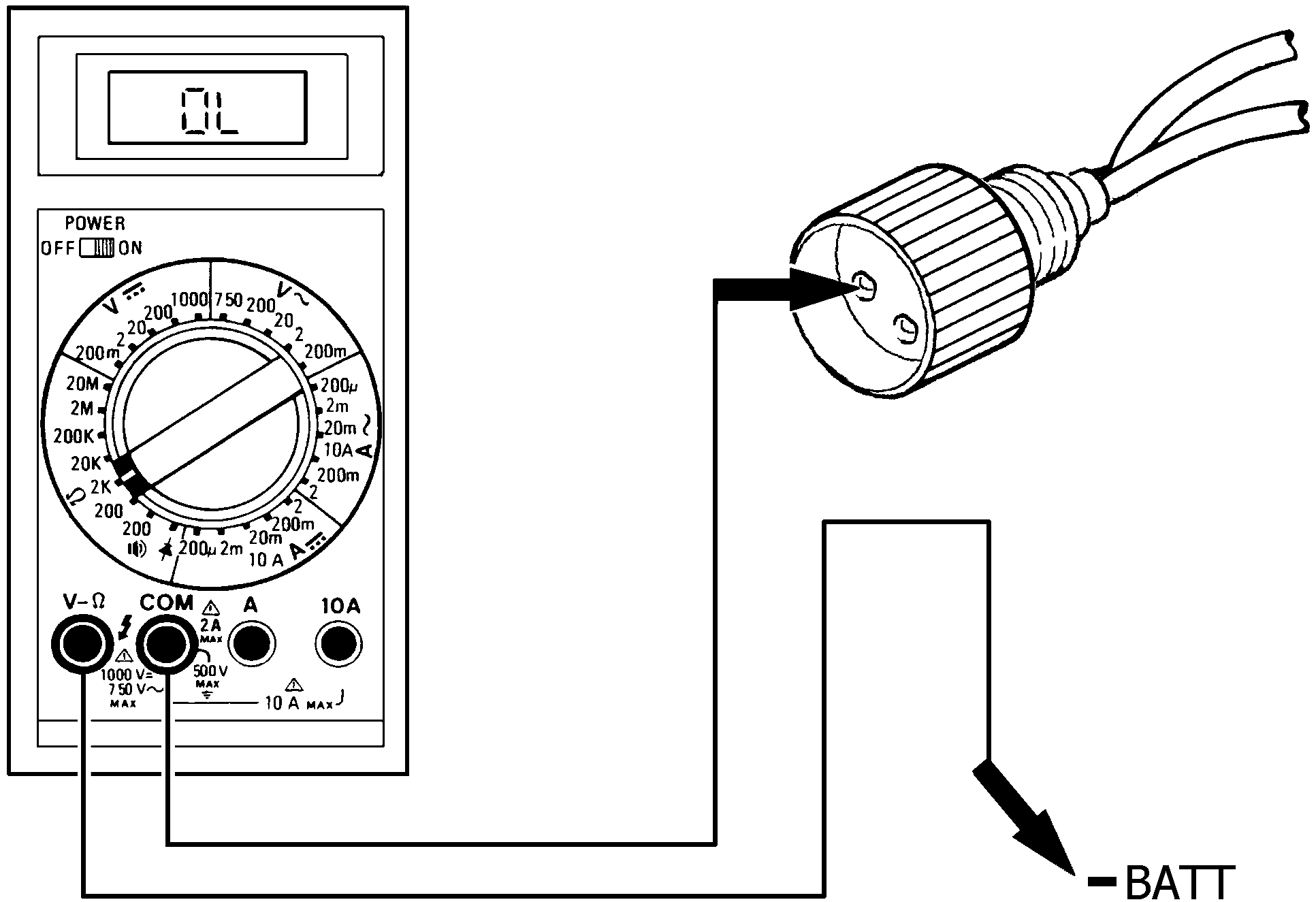

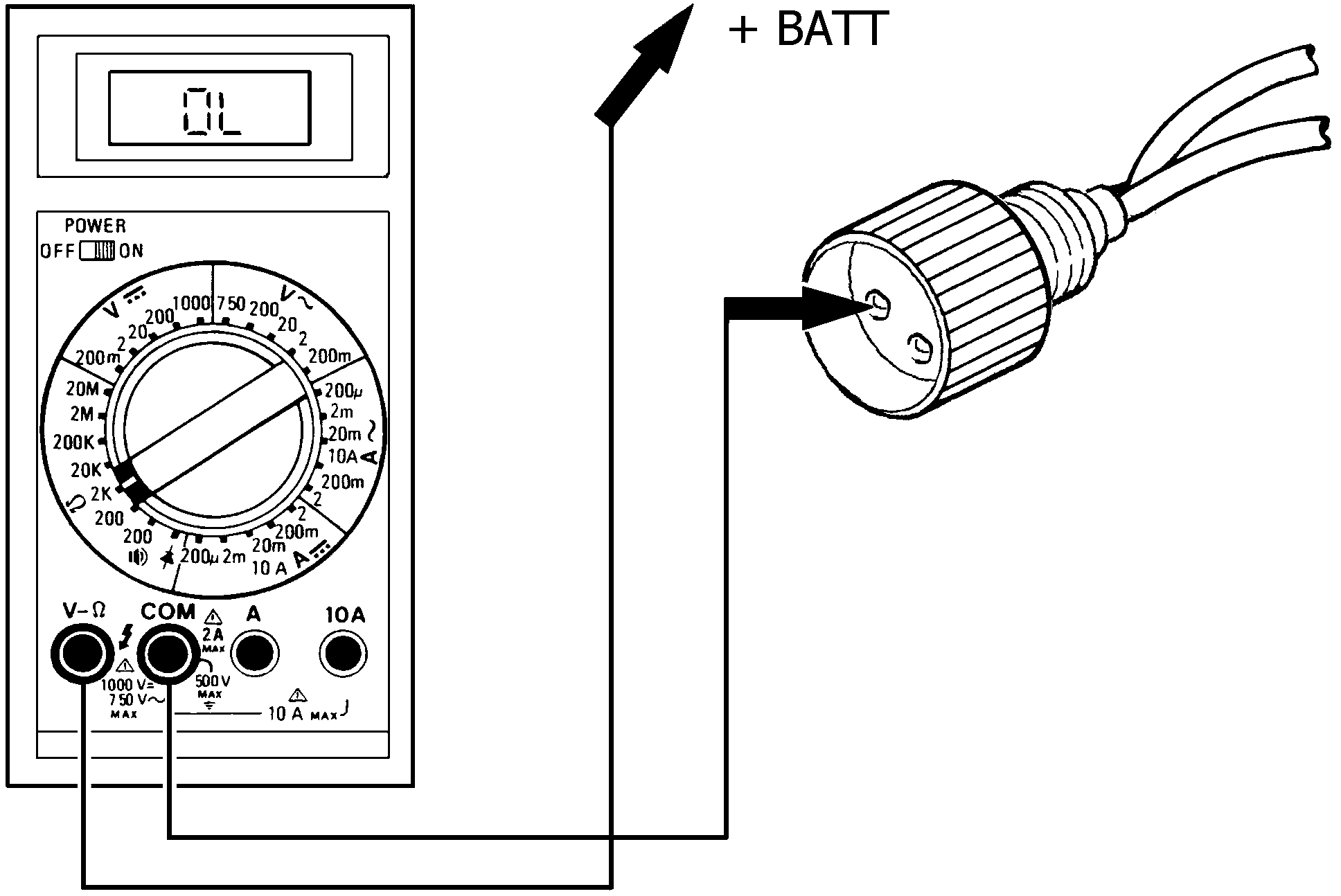

IVECO/FPT N45 MNA M10/N67 MNA M15 – Photo (9a532ace5914_S22-165 S. 51)
Photo · 9a532ace5914_S22-165 · S. 51
IVECO/FPT N45 MNA M10/N67 MNA M15 – Photo (9a532ace5914_S22-165 S. 51)
Photo · 9a532ace5914_S22-165 · S. 51
IVECO/FPT N45 MNA M10/N67 MNA M15 – Photo (9a532ace5914_S22-165 S. 51)
Photo · 9a532ace5914_S22-165 · S. 51

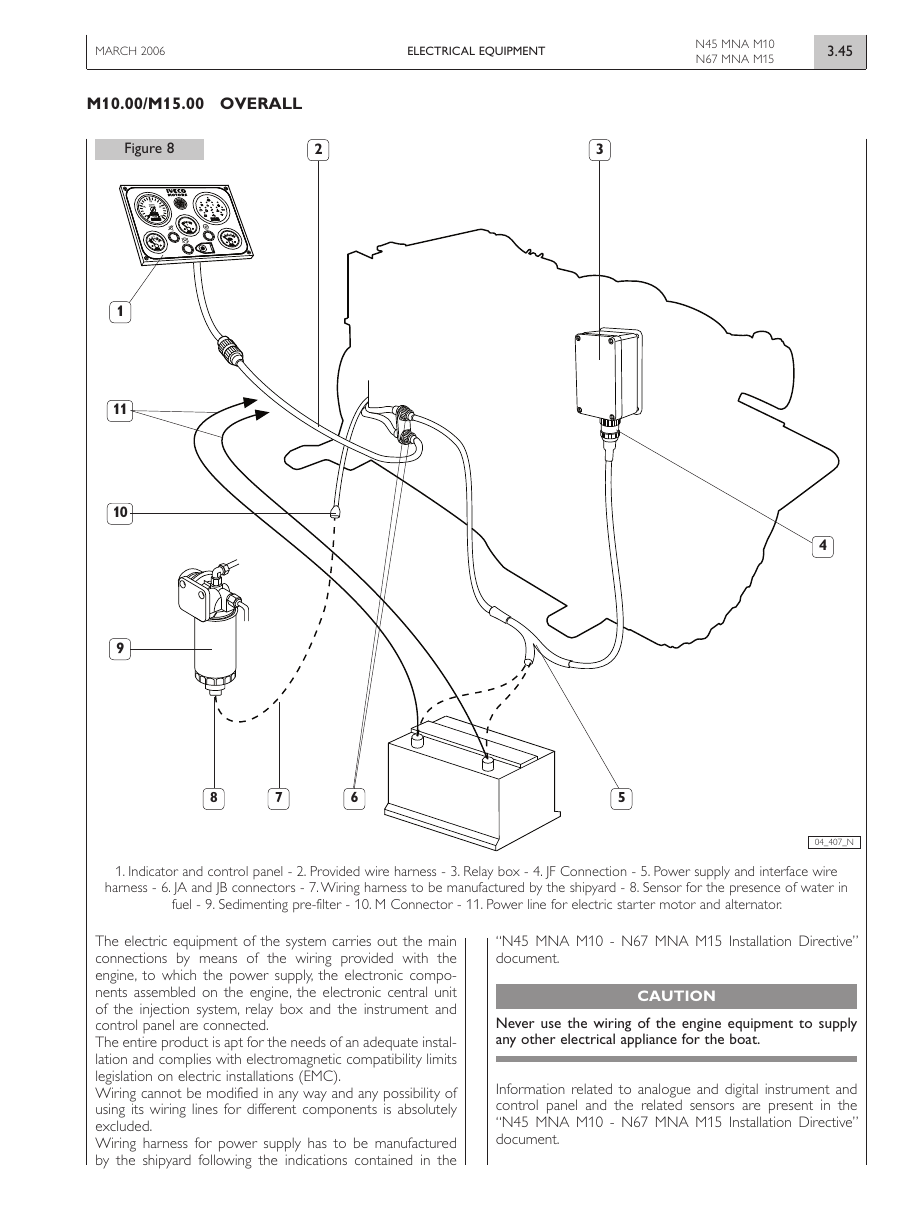

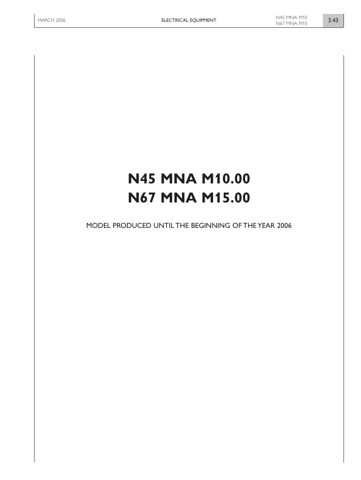

IVECO/FPT N45 MNA M10/N67 MNA M15 – Drawing (9a532ace5914_S22-165 S. 22)
Drawing · 9a532ace5914_S22-165 · S. 22
IVECO/FPT N45 MNA M10/N67 MNA M15 – Drawing (9a532ace5914_S22-165 S. 23)
Drawing · 9a532ace5914_S22-165 · S. 23
IVECO/FPT N45 MNA M10/N67 MNA M15 – Drawing (9a532ace5914_S22-165 S. 24)
Drawing · 9a532ace5914_S22-165 · S. 24
IVECO/FPT N45 MNA M10/N67 MNA M15 – Page preview (9a532ace5914_S22-165 S. 25)
Page preview · 9a532ace5914_S22-165 · S. 25
IVECO/FPT N45 MNA M10/N67 MNA M15 – Page preview (9a532ace5914_S22-165 S. 26)
Page preview · 9a532ace5914_S22-165 · S. 26
Source: N67 MNA M15 datasheet, p. 1
