Tokyo Keiso

UL3400

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring methodTime – flight ultrasound, 3 beams
Ambient temperatureCompact type (Converter housing material : Aluminium alloy) : –40°C to +65°C
PressureMax. 10 MPa as per flange rating
Kinetic viscosityMax. 100 cSt
Approx. H253 mm
Duty factorAlways 1 : 1
Free setting0.05 to 2000 ms
Rating32 V DC, 100 mA or less
Voltage input8 to 32 V DC at “ON”, 2.5 V DC at “OFF”
8 V DC or more at “ON”:2.8 mA (normal)
2.5 V DC or more at “OFF”:0.4 mA (normal)
Low cutoff0 to 20% F.S. at 0.1% step
Hysteresis0 to 5% F.S. at 0.1% step
Damping time constant0.0 to 100.0 s at 0.1 s step
Applicable core size0.5 to 2.5 mm2
Applicable cable diameter7 to 12 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

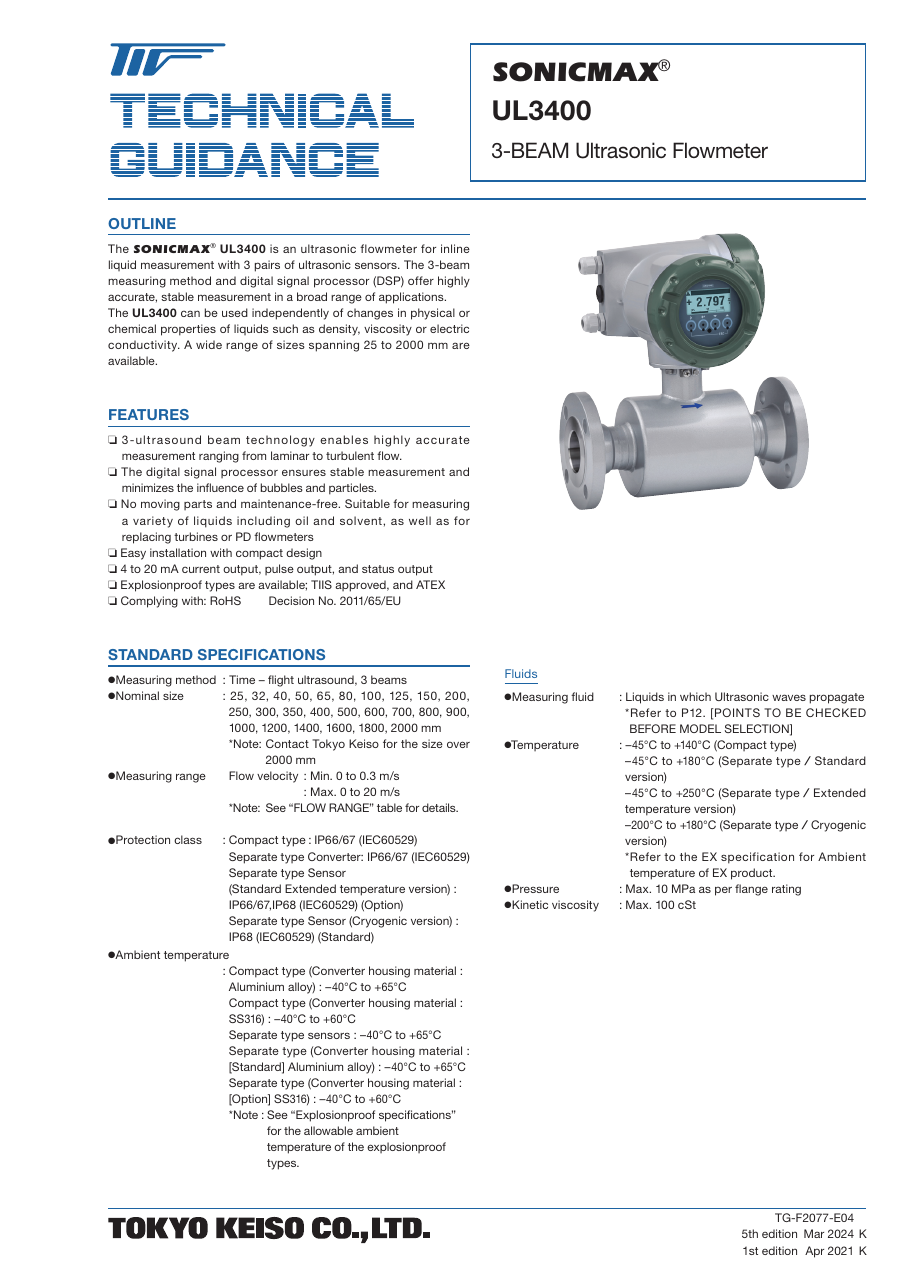

“SONICMAX® UL3400 3-BEAM Ultrasonic Flowmeter OUTLINE The SONICMA X ® UL3400 is an ultrasonic flowmeter for inline liquid measurement with 3 pairs of ultrasonic sensors. The 3-beam measuring method…”

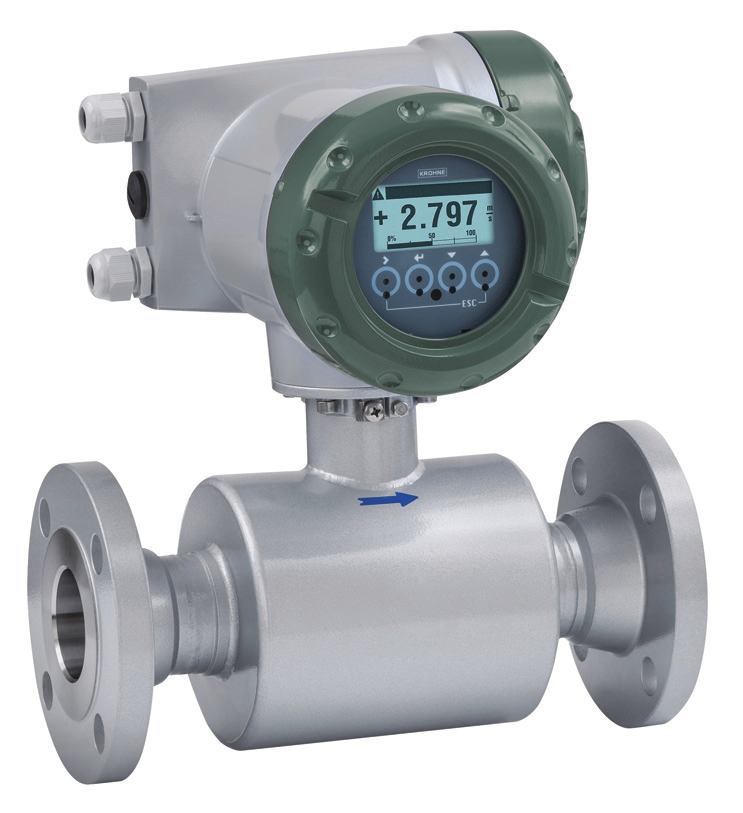

Tokyo Keiso UL3400 – Photo (65c7ca5e7039_S1-12 S. 1)
Photo · 65c7ca5e7039_S1-12 · S. 1

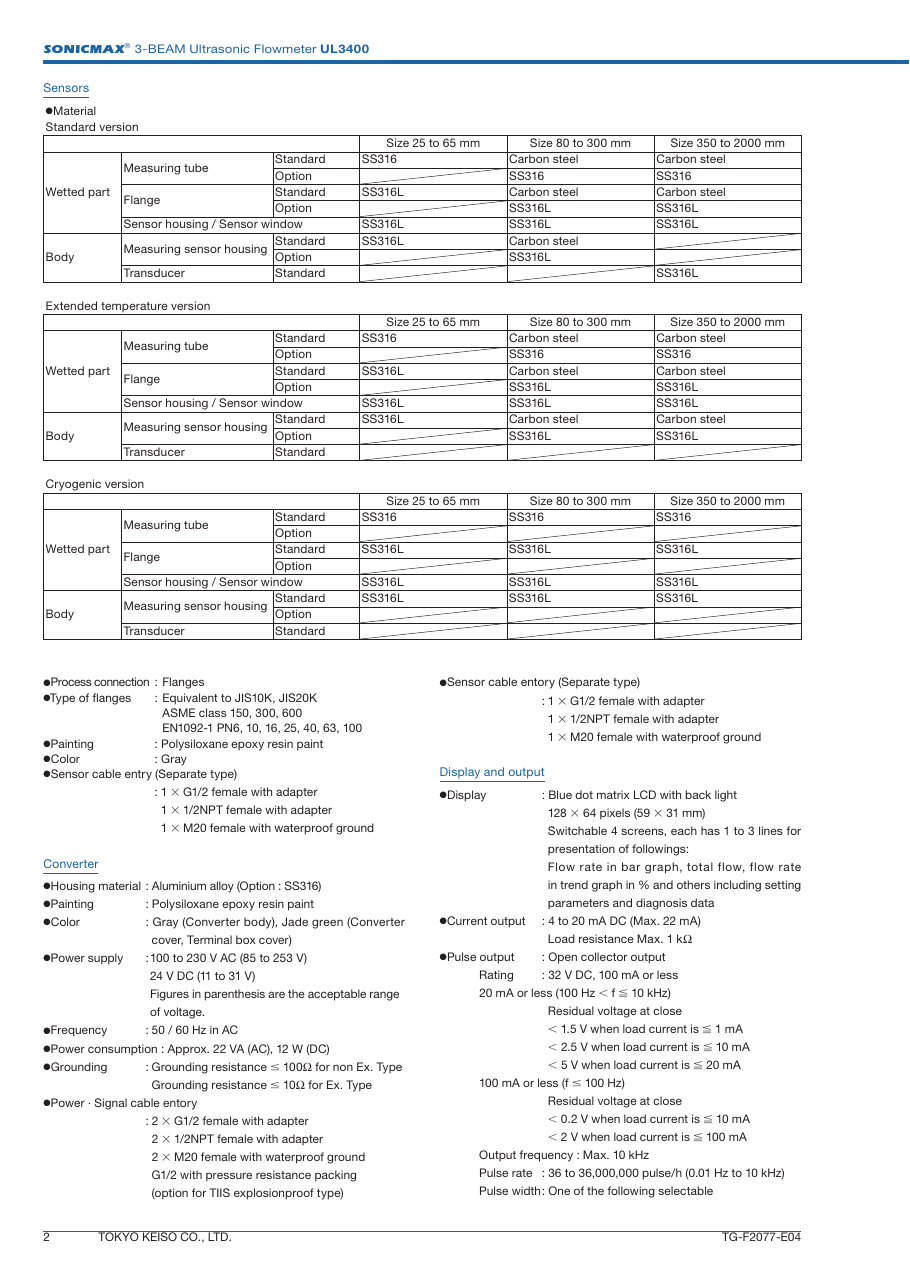

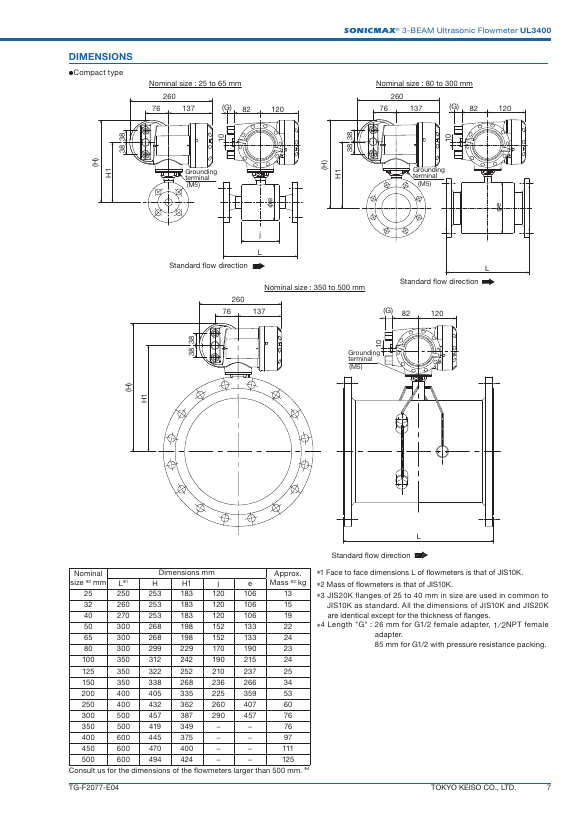

Tokyo Keiso UL3400 – Drawing (65c7ca5e7039_S1-12 S. 1)
Drawing · 65c7ca5e7039_S1-12 · S. 1

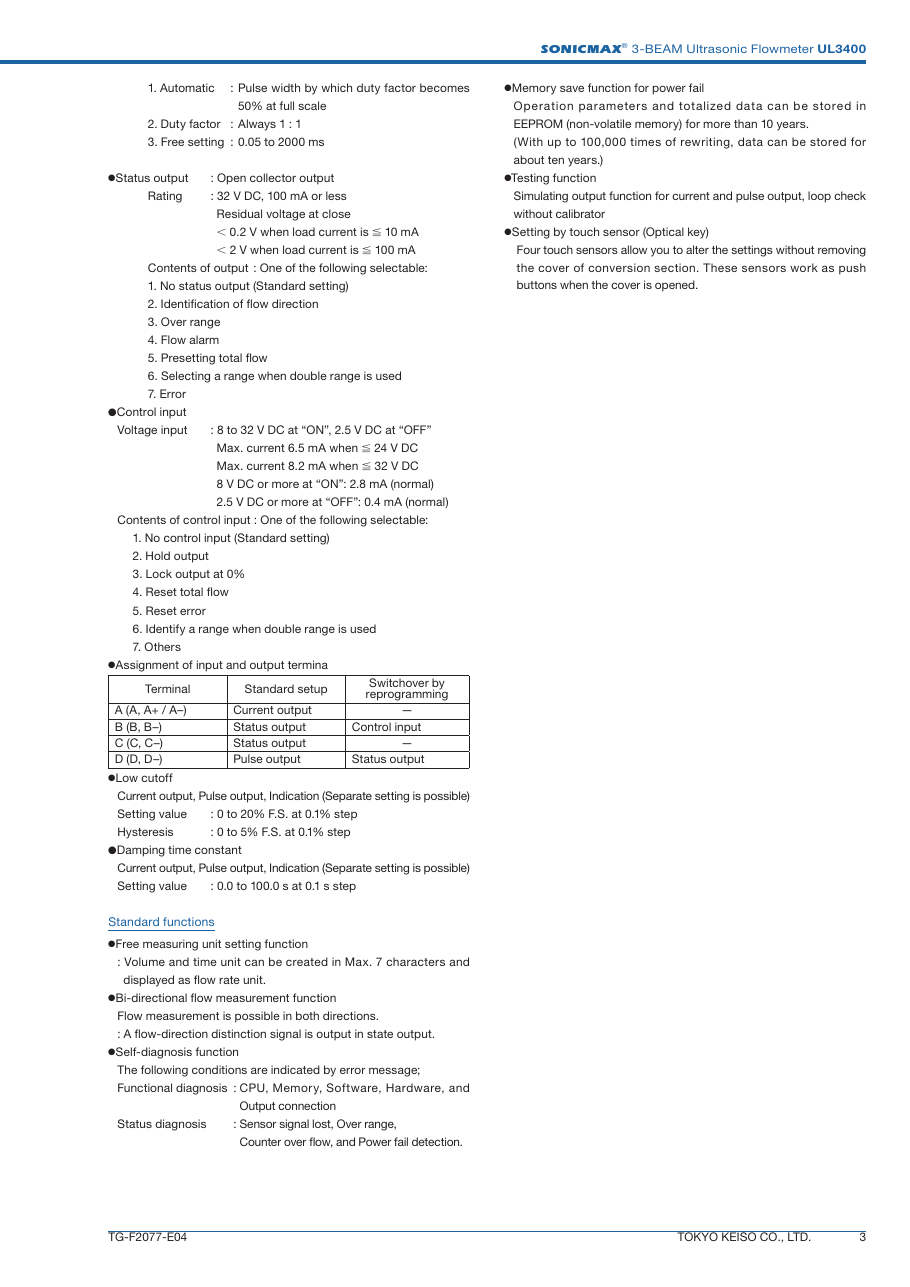

Tokyo Keiso UL3400 – Drawing (65c7ca5e7039_S1-12 S. 2)
Drawing · 65c7ca5e7039_S1-12 · S. 2
Tokyo Keiso UL3400 – Drawing (65c7ca5e7039_S1-12 S. 3)
Drawing · 65c7ca5e7039_S1-12 · S. 3

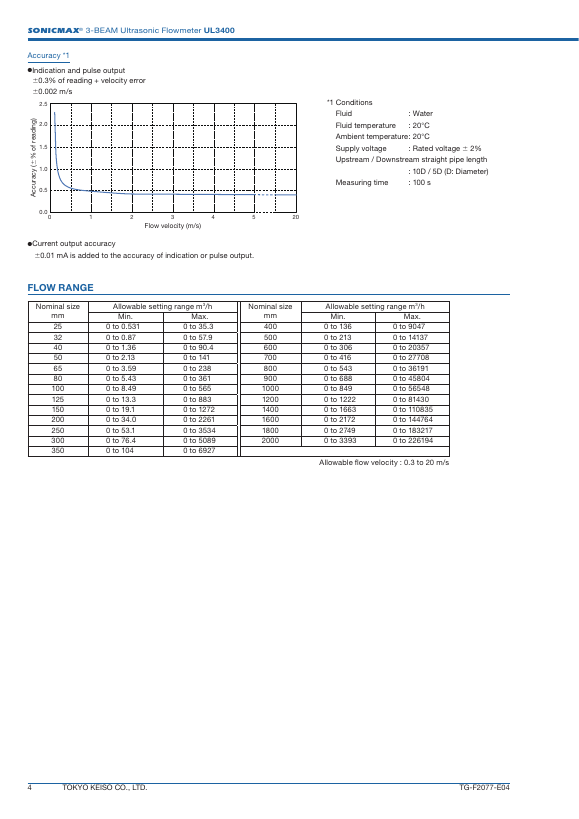

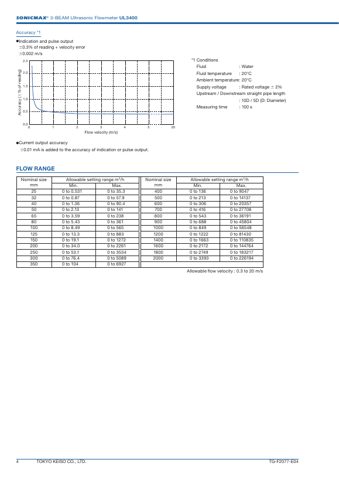

Tokyo Keiso UL3400 – Page preview (65c7ca5e7039_S1-12 S. 4)
Page preview · 65c7ca5e7039_S1-12 · S. 4
Tokyo Keiso UL3400 – Page preview (65c7ca5e7039_S1-12 S. 5)
Page preview · 65c7ca5e7039_S1-12 · S. 5

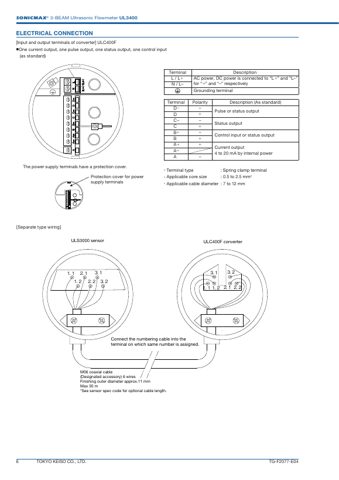

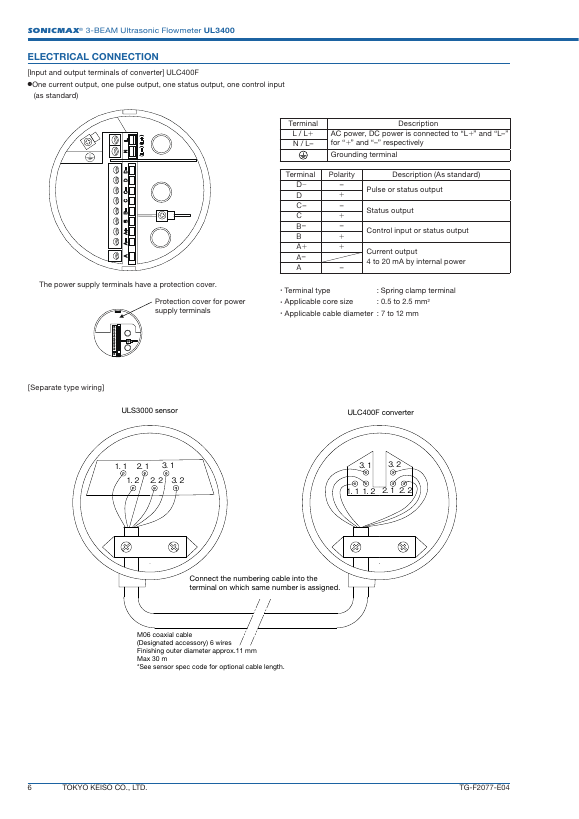

Tokyo Keiso UL3400 – Page preview (65c7ca5e7039_S1-12 S. 6)
Page preview · 65c7ca5e7039_S1-12 · S. 6

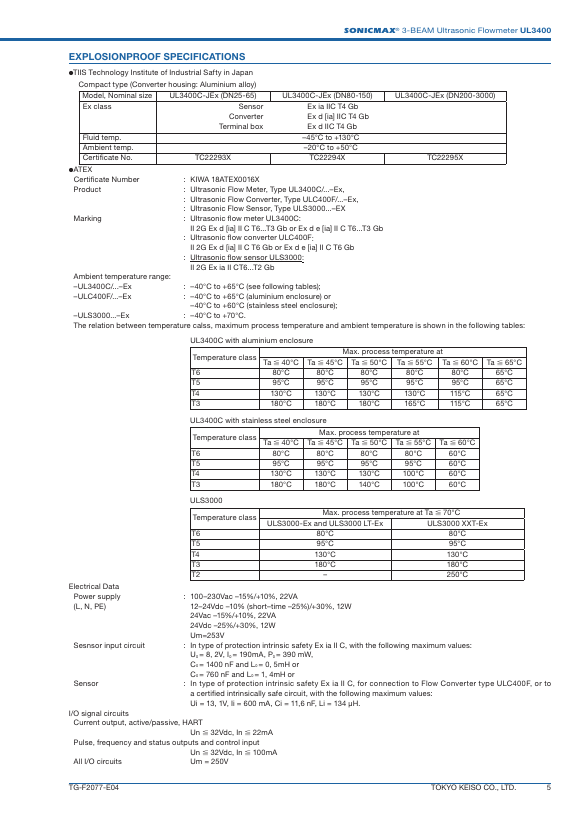

Tokyo Keiso UL3400 – Page preview (65c7ca5e7039_S1-12 S. 7)
Page preview · 65c7ca5e7039_S1-12 · S. 7
Source: Tokyo Keiso UL3400 datasheet, p. 1
