Library› Deck› Towing Equipment› Escort Winch› Markey Machinery DESS-52-250HP
Markey Machinery

DESS-52-250HP

Escort Winch · Towing Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max. Drum Capacity1000 feet / 305 meters of 10.0" circumference / 80 mm diameter synthetic line.
Rated Performance440,000 lbs / 1957 kN (continuous) rating / max line-speed of 800 ft/min / 244 m
Max Freewheel Speed1000+ ft/min / 305 m/min
Electric Motor & Drive250HP / 187kW AC-variable frequency drive (75HP / 56kW at reduced power). 3-spee
Winch BrakingBelow-deck water-cooled multi-disc brake with holding capacity to 660,000 lbs.
Power Requirements460 VAC 3 Phase, 60Hz. Other source voltage options available.
Weight112,000 lbs / 50,802 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

High-performance electric hawser winch for mooring operations.

Applications

  • escort and ship assist maneuvers
Source: Markey Machinery DESS-52-250HP datasheet, p. 2

Features

  • three-speed operation
  • automatic render/recover
  • adjustable tension and line scope set-points
  • dynamic high-speed water-cooled slip-brake
  • constant tension control
  • hands-free operation

Options

  • Digital/Analog Line Tension Display System
  • Multiple Station Controls
  • A variety of source power configurations can be accommodated
  • Electrical hooks in system box for ship's UPS
Source: Markey Machinery DESS-52-250HP datasheet, p. 2

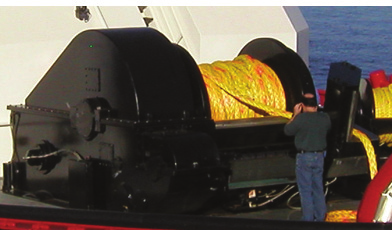

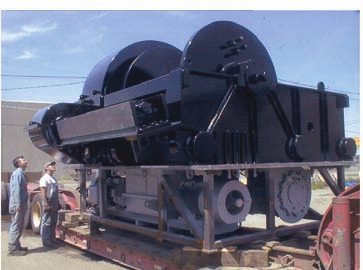

Markey Machinery DESS-52-250HP – Photo (4d293e4ff988_S1-2 S. 1)
Photo · 4d293e4ff988_S1-2 · S. 1
Markey Machinery DESS-52-250HP – Photo (4d293e4ff988_S1-2 S. 1)
Photo · 4d293e4ff988_S1-2 · S. 1
Markey Machinery DESS-52-250HP – Photo (4d293e4ff988_S1-2 S. 1)
Photo · 4d293e4ff988_S1-2 · S. 1
Markey Machinery DESS-52-250HP – Photo (4d293e4ff988_S1-2 S. 2)
Photo · 4d293e4ff988_S1-2 · S. 2

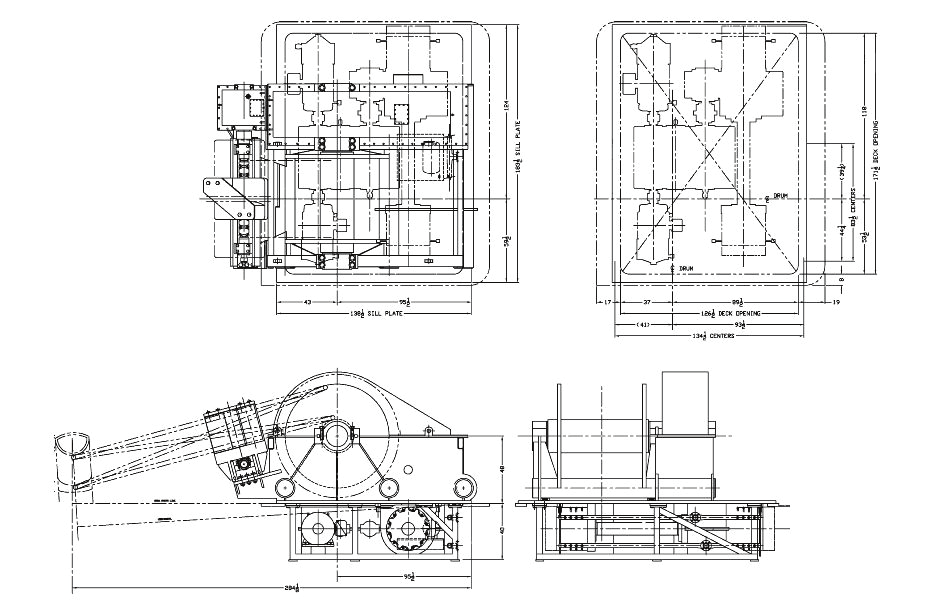

Markey Machinery DESS-52-250HP – Drawing (4d293e4ff988_S1-2 S. 1)
Drawing · 4d293e4ff988_S1-2 · S. 1

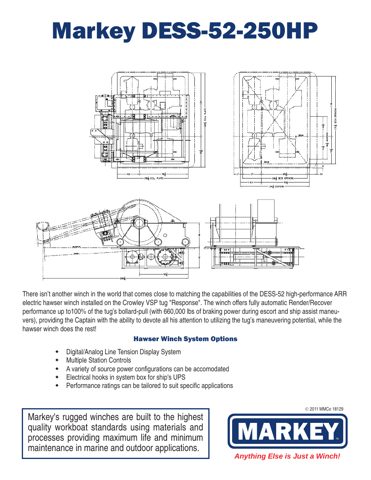

Markey Machinery DESS-52-250HP – Drawing (4d293e4ff988_S1-2 S. 2)
Drawing · 4d293e4ff988_S1-2 · S. 2

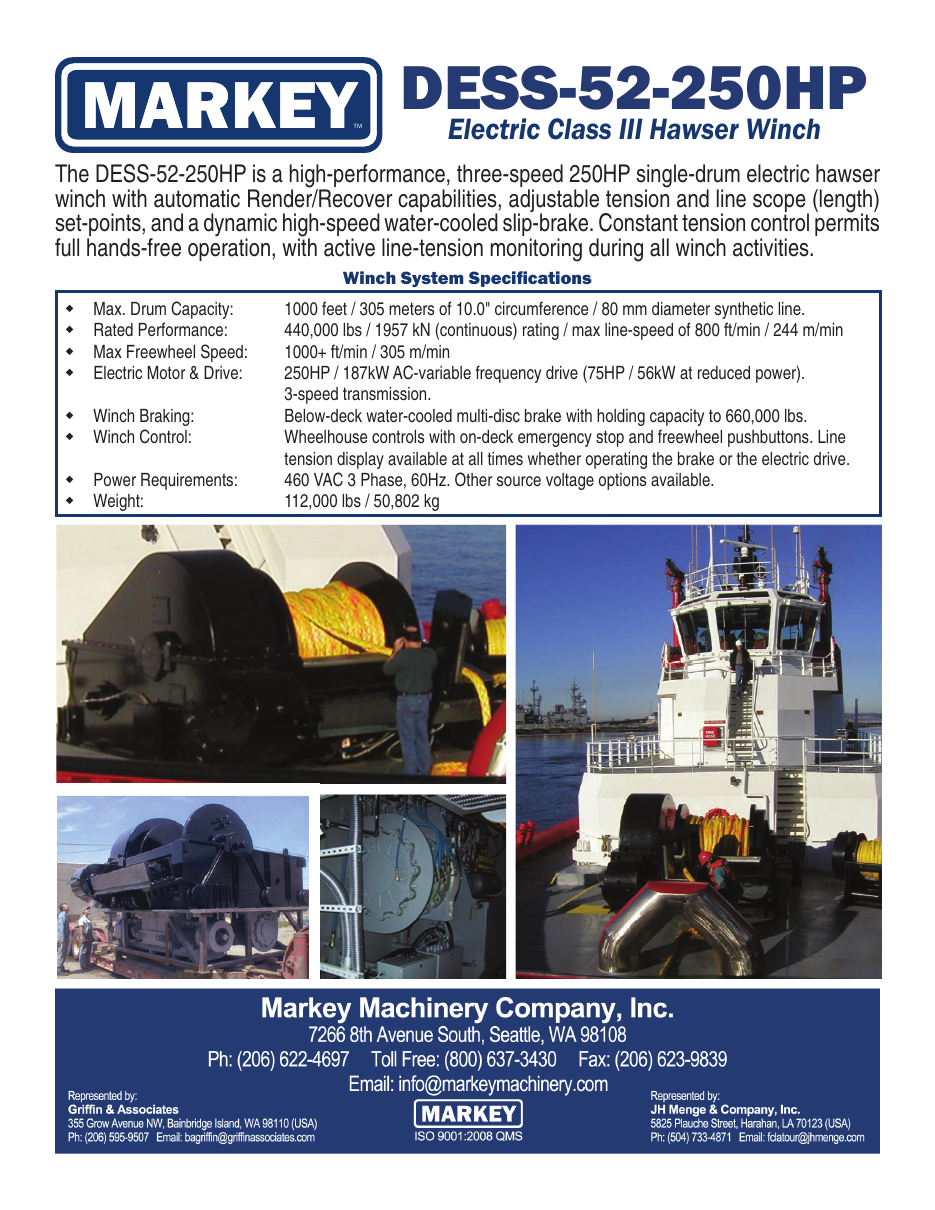

Source: Markey Machinery DESS-52-250HP datasheet, p. 1
