Library› Electrical› Internal Communication› PA/GA System› HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T
HANGZHOU HUAYAN DIGITAL ELECTRON

CKY-1T

PA/GA System · Internal Communication

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rated output power50W, 100W, 200W, 300W (Optional by user)
Non-linear distortion<=7%
Input voltagemicrophone <=35mV（600），line <=150mV（600）
Output voltage120V
Signal-to-noise ratio>=50dB
Range of receiving frequencymedium wave 535~1605 KHz FM 87~108 MHz
SensitivityAM<=150uV FM<=20 uV
Playing frequency response<=8 dB 125HZ～8 KHz
Playing signal-to-noise ratio>=32 dB
Constant voltage output120V
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“CKY-1T 型船用扩音机 Shipboard Public Address Set 1.2.6.3 Shout, Deck 1, Deck 2, Cabin 1, Cabin 2, Post 1 and Post 2 loudspeakers have constant voltage output. Cabin 1, Cabin 2, Post 1 and Post 2 have…”

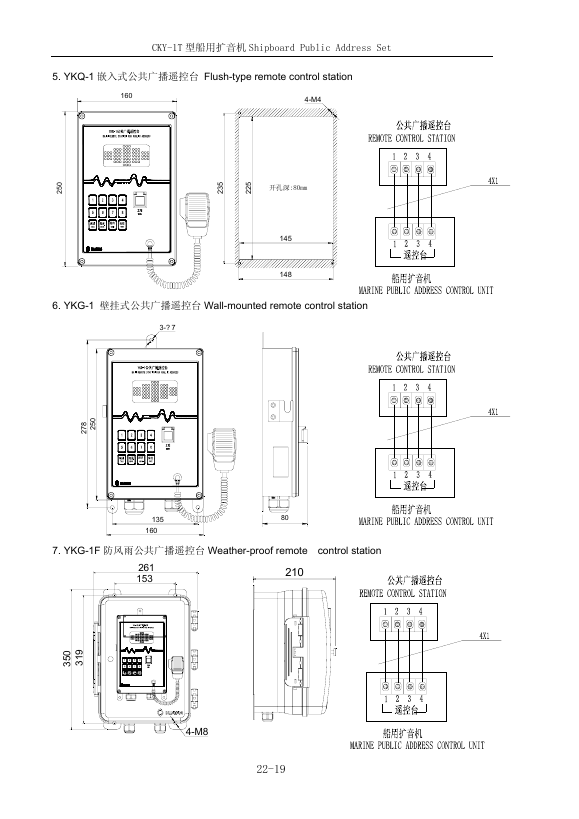

HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Drawing (7cd7bd3710d2_S4-16 S. 5)
Drawing · 7cd7bd3710d2_S4-16 · S. 5
HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Drawing (7cd7bd3710d2_S4-16 S. 6)
Drawing · 7cd7bd3710d2_S4-16 · S. 6
HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Drawing (7cd7bd3710d2_S4-16 S. 7)
Drawing · 7cd7bd3710d2_S4-16 · S. 7

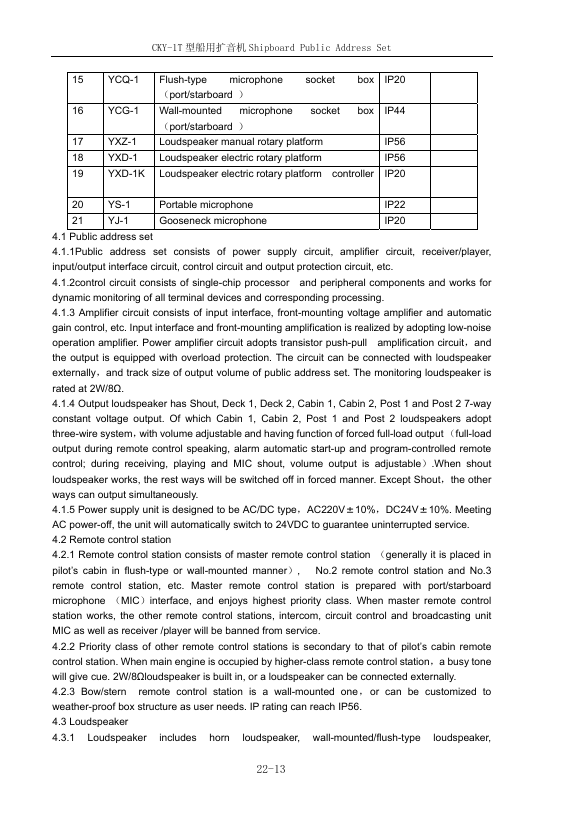

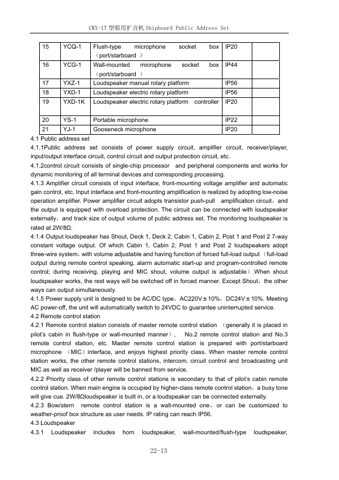

HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Page preview (7cd7bd3710d2_S4-16 S. 4)
Page preview · 7cd7bd3710d2_S4-16 · S. 4

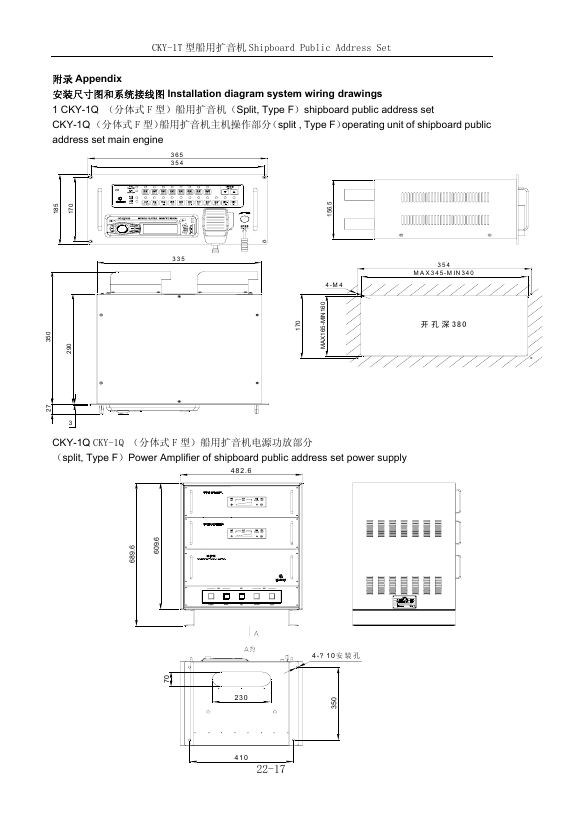

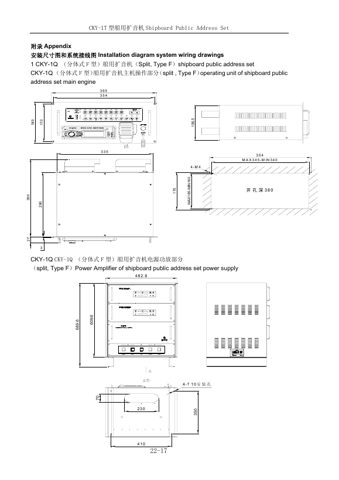

HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Page preview (7cd7bd3710d2_S4-16 S. 8)
Page preview · 7cd7bd3710d2_S4-16 · S. 8
HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Page preview (7cd7bd3710d2_S4-16 S. 9)
Page preview · 7cd7bd3710d2_S4-16 · S. 9
HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T – Page preview (7cd7bd3710d2_S4-16 S. 10)
Page preview · 7cd7bd3710d2_S4-16 · S. 10
Source: HANGZHOU HUAYAN DIGITAL ELECTRON CKY-1T datasheet, p. 1
