Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot M FMR230 PROFIBUS PA
Endress+Hauser

Micropilot M FMR230 PROFIBUS PA

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot M FMR230 PROFIBUS PA is a level measurement device designed for precise level detection in various industrial applications.

Applications

  • industrial level measurement
  • plastic tank monitoring
  • vertical vessel measurement

Features

  • special extensions for sloping or vertical walls
  • measurement through plastic walls
  • adjustable distance H
  • optimum angle β between 15° to 20°

Options

  • 45° bend extension
  • 90° bend extension
  • DN250 antenna

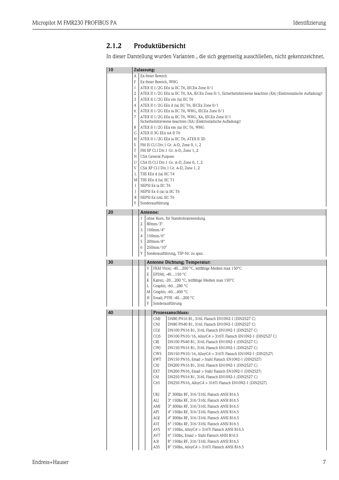

Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Drawing (f89a3925ac57_S4-13 S. 4)
Drawing · f89a3925ac57_S4-13 · S. 4

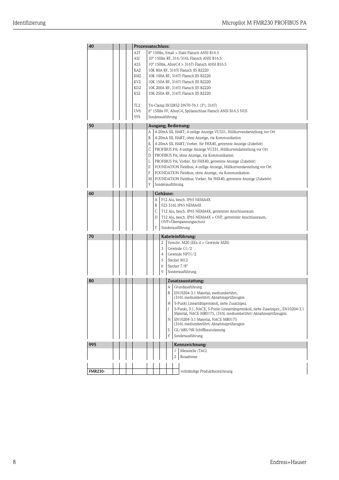

Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Drawing (f89a3925ac57_S4-13 S. 5)
Drawing · f89a3925ac57_S4-13 · S. 5

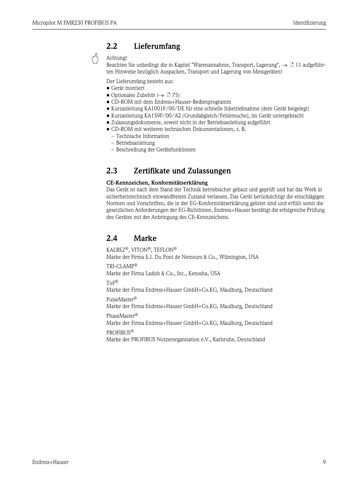

Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Drawing (f89a3925ac57_S4-13 S. 6)
Drawing · f89a3925ac57_S4-13 · S. 6

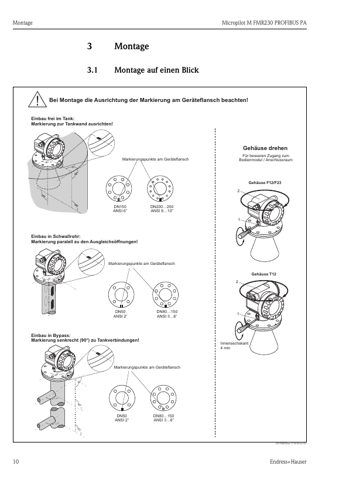

Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Page preview (f89a3925ac57_S4-13 S. 7)
Page preview · f89a3925ac57_S4-13 · S. 7

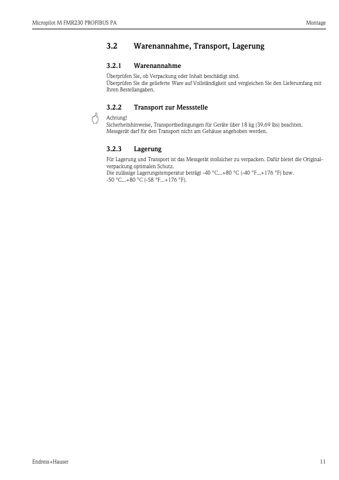

Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Page preview (f89a3925ac57_S4-13 S. 8)
Page preview · f89a3925ac57_S4-13 · S. 8
Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Page preview (f89a3925ac57_S4-13 S. 9)
Page preview · f89a3925ac57_S4-13 · S. 9

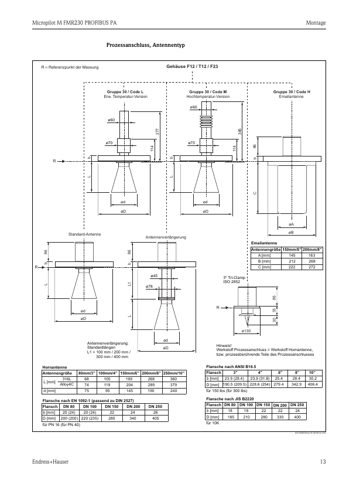

Endress+Hauser Micropilot M FMR230 PROFIBUS PA – Page preview (f89a3925ac57_S4-13 S. 10)
Page preview · f89a3925ac57_S4-13 · S. 10
Source: endresshauser Micropilot M FMR230 PROFIBUS PA datasheet, p. 21
