ABB Marine

PM5072-

Programmable Logic Controller (PLC) · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power supply24 V DC
Current consumption from power supply (max.) Transistor version420 mA
Current consumption from power supply (max.) Relay version200 mA
Melting integral of a fuse at 24 V DC0.9 A²s
Peak inrush current from 24 V DC65 A
Max. power dissipation within the processor module Transistor version9.2 W
Max. power dissipation within the processor module Relay version5.9 W
Processor module interfacesRS485/RS232 (optional), Ethernet
Weight265 g
DRAM memory (HW installed)128 MB
Flash memory for user data Flash memory EMMc (HW installed)128 MB
Remaining for all other usage (project save, infrastructure...30 MB
Buffered (FRAM)100 KB
VAR_RETAIN persistent36 KB
%MB data64 KB
Onboard digital inputs Signal voltage24 V DC type 1
Onboard digital outputs Rated voltage transistor24 V DC
Onboard digital outputs Nominal current per transistor channel0.5 A resistive
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A processor module designed for marine applications, providing various communication interfaces and power specifications.

Features

  • 24 V DC power supply
  • RS485/RS232 and Ethernet interfaces
  • high power dissipation capability

Options

  • optional RS485/RS232 interface
  • optional Ethernet interface

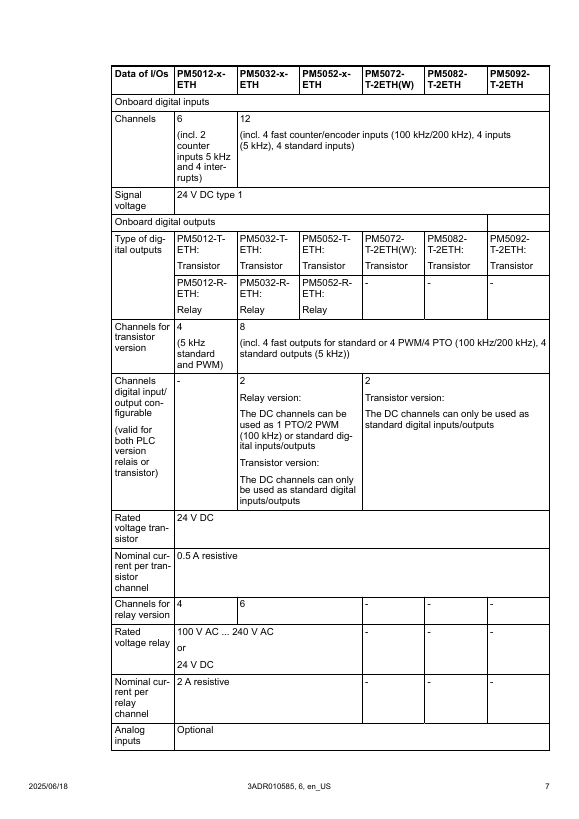

ABB Marine PM5072- – Page preview (8fc0b894f8c7_S4-7 S. 4)
Page preview · 8fc0b894f8c7_S4-7 · S. 4
Source: ABB Marine PM5072- datasheet, p. 4
