Library› Navigation› Navigation & Bridge Equipment› Sound Signaling Device› European Safety Systems AL112NXDC024
European Safety Systems

AL112NXDC024

Sound Signaling Device · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage Range20-28 Vdc
Current250mA
Storage Temperature-40°C to +70°C
Nominal Voltage20-28Vdc
Nominal Operating Current250mA
Max Operating RMS225mA / 430mA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“-40°C to +66°C (-40°F to 151°F) Type 4 / 4X / 3R / 13, IP66 2Kg (4.4lb) CE, UKCA, DNV, MED, MER, AL112NXDC024 & AL112NXDC048 CPR compliant • All units UL Listed”

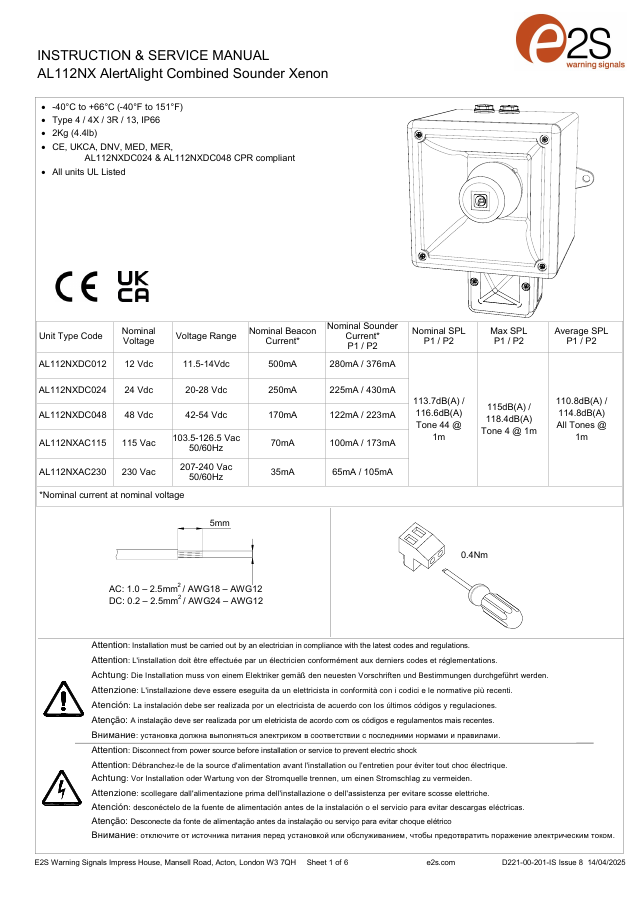

European Safety Systems AL112NXDC024 – Drawing (f95847a93edc_S1-6 S. 1)
Drawing · f95847a93edc_S1-6 · S. 1

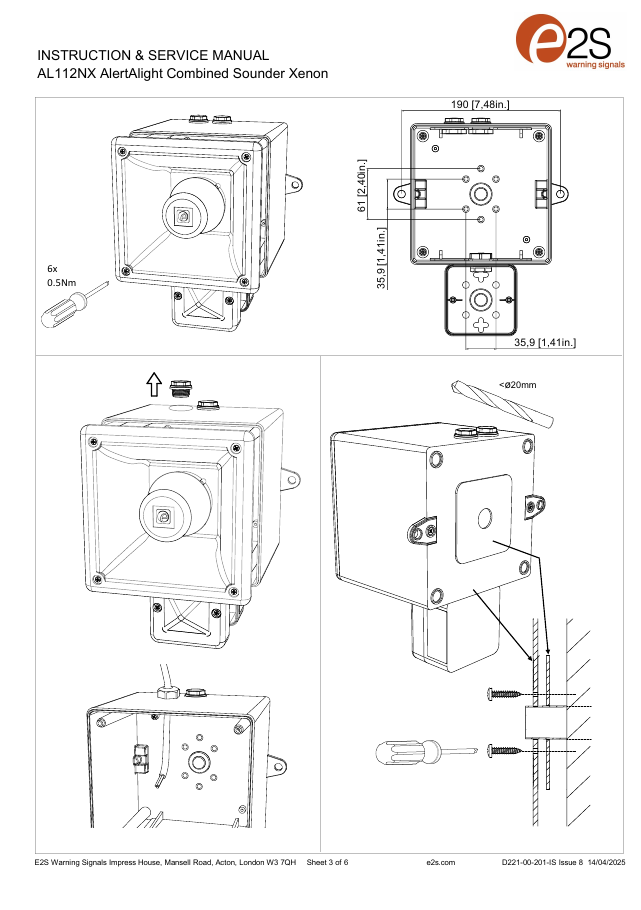

European Safety Systems AL112NXDC024 – Drawing (f95847a93edc_S1-6 S. 3)
Drawing · f95847a93edc_S1-6 · S. 3

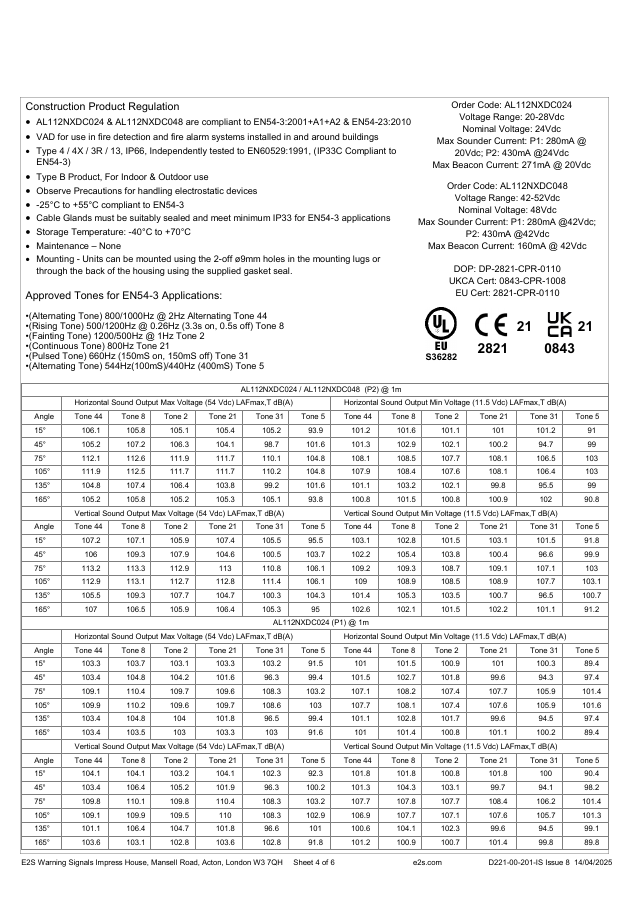

European Safety Systems AL112NXDC024 – Drawing (f95847a93edc_S1-6 S. 4)
Drawing · f95847a93edc_S1-6 · S. 4
European Safety Systems AL112NXDC024 – Page preview (f95847a93edc_S1-6 S. 2)
Page preview · f95847a93edc_S1-6 · S. 2

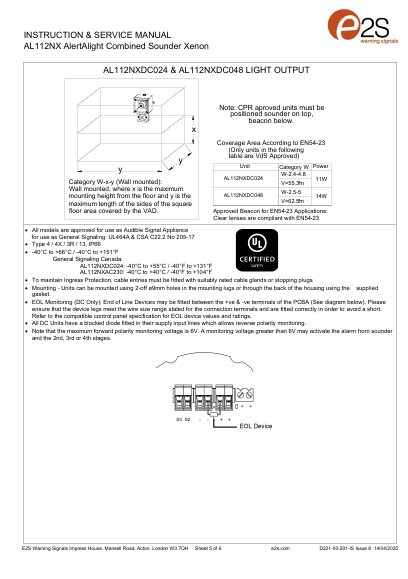

European Safety Systems AL112NXDC024 – Page preview (f95847a93edc_S1-6 S. 5)
Page preview · f95847a93edc_S1-6 · S. 5

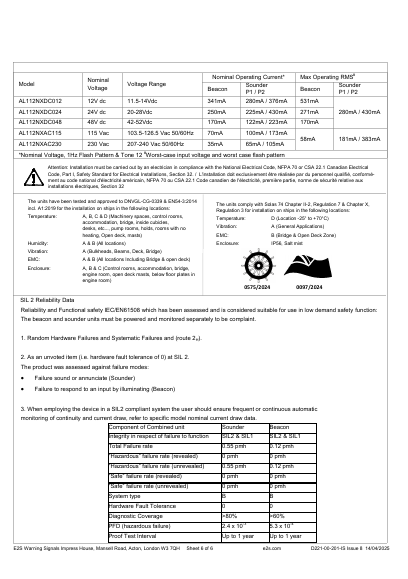

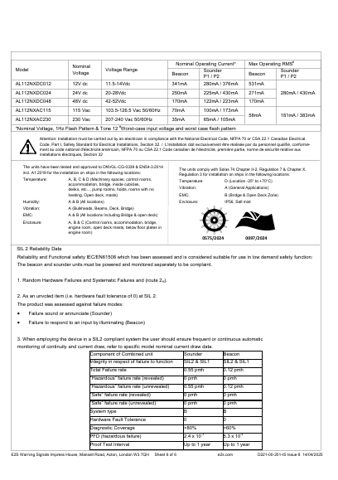

European Safety Systems AL112NXDC024 – Page preview (f95847a93edc_S1-6 S. 6)
Page preview · f95847a93edc_S1-6 · S. 6
Source: European Safety Systems AL112NXDC024 datasheet, p. 1
