Library› Electrical› Cable & Wiring› Network Switch / Communication Equipment› Moxa EDS-2016-ML
Moxa

EDS-2016-ML

Network Switch / Communication Equipment · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temperature Range-40 to 75°C
Ports16
IP RatingIP30
Dimensions EDS-2016-ML36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
Weight Non-fiber models486 g (1.07 lb)
Operating Temperature EDS-2016-ML-10 to 60°C (14 to 140°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Operating Temp.-10 to 60°C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Moxa's EDS-2016-ML switches are rugged Ethernet switches designed for marine applications, providing reliable data transmission and instant alarm warnings.

Applications

  • Deep Well Pump Monitoring
  • Automated Marine Applications
  • Harsh Operating Environments

Features

  • Marine-certified
  • Dual Power Redundancy
  • Wide Temperature Tolerance
  • DNV GL-certified*
  • High EMC/EMI Resistance
  • Flexible Fiber Port Combination
Moxa EDS-2016-ML – Photo (9c7078af0021_S1-5 S. 1)
Photo · 9c7078af0021_S1-5 · S. 1
Moxa EDS-2016-ML – Photo (9c7078af0021_S1-5 S. 4)
Photo · 9c7078af0021_S1-5 · S. 4
Moxa EDS-2016-ML – Photo (9c7078af0021_S1-5 S. 4)
Photo · 9c7078af0021_S1-5 · S. 4
Moxa EDS-2016-ML – Drawing (9c7078af0021_S1-5 S. 1)
Drawing · 9c7078af0021_S1-5 · S. 1
Moxa EDS-2016-ML – Drawing (9c7078af0021_S1-5 S. 2)
Drawing · 9c7078af0021_S1-5 · S. 2

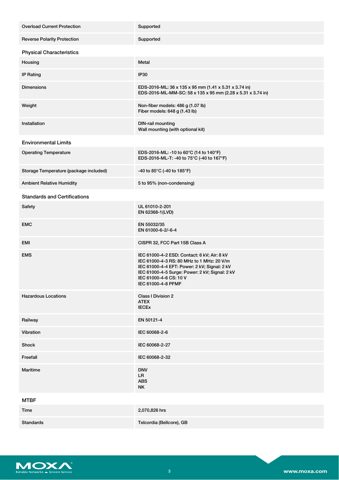

Moxa EDS-2016-ML – Drawing (9c7078af0021_S1-5 S. 3)
Drawing · 9c7078af0021_S1-5 · S. 3

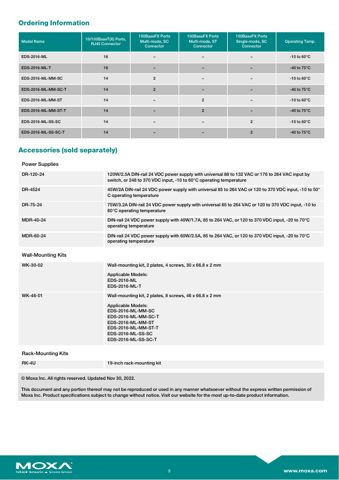

Moxa EDS-2016-ML – Page preview (9c7078af0021_S1-5 S. 5)
Page preview · 9c7078af0021_S1-5 · S. 5
Source: Moxa EDS-2016-ML datasheet, p. 4
