Library› Safety & LSA› Lifesaving Appliances (LSA)› Rescue Boat (Fast)› Maritime Partner 770 TWIN
Maritime Partner

770 TWIN

Rescue Boat (Fast) · Lifesaving Appliances (LSA)

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Overall length:8,10 metres
Length hull:6,95 metres
Breadth extreme:2,7 metres
Breadth hull:2,1 metres
Draught:0,92 metres
Weight fully equipped with fuel:3 010 kg
Speed fully eq/fuel 3 crew:38-400 knots
Engine:2xVolvo Penta D3 - 220 HP Diesel Inboard
Propulsion:Std: Volvo Penta Aquamatic Duoprop Drive
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“ALUSAFE 770 TWIN Alusafe 770 Twin is a Fast Rescue/Patrol Craft with a hull made of marine aluminium specially designed for service in demanding areas. The fully planned hull with deep V-buttom…”

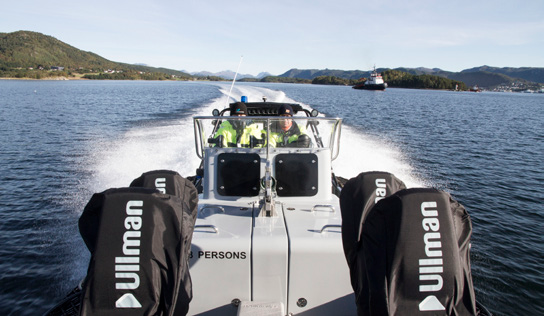

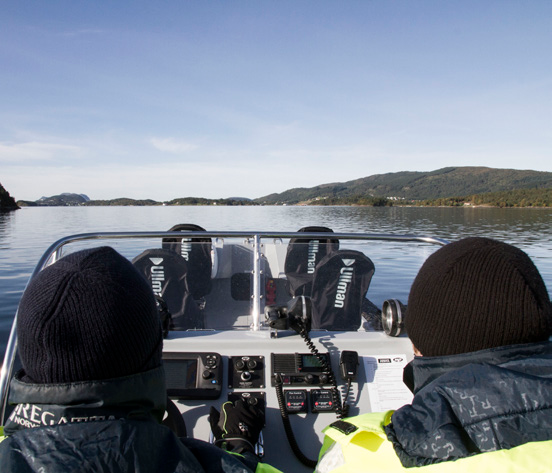

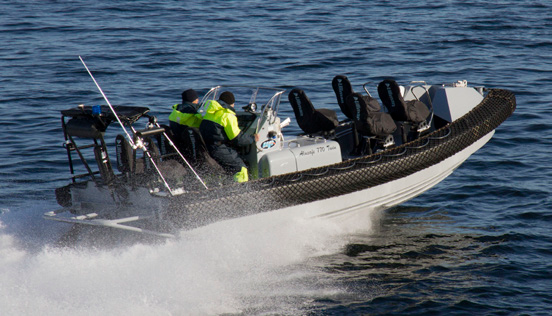

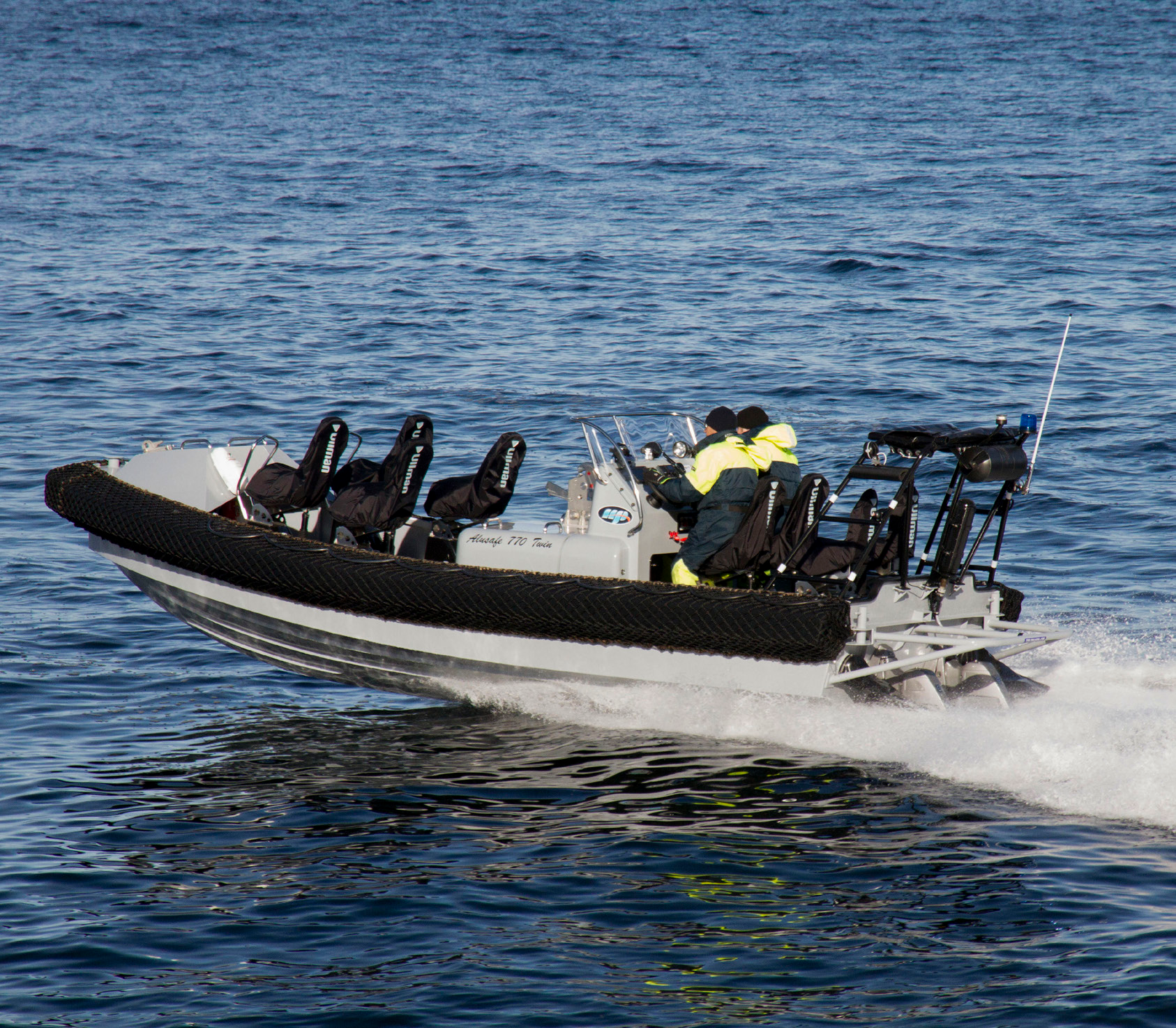

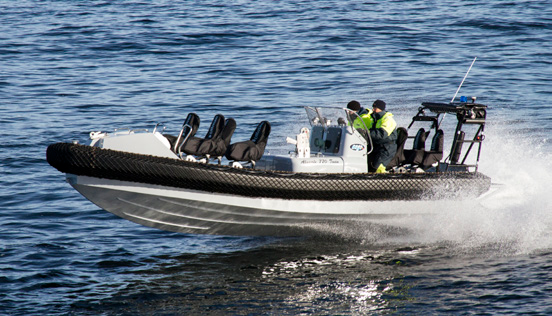

Maritime Partner 770 TWIN – Photo (00d4b5a1b61b_S1-1 S. 1)
Photo · 00d4b5a1b61b_S1-1 · S. 1
Maritime Partner 770 TWIN – Photo (00d4b5a1b61b_S1-1 S. 1)
Photo · 00d4b5a1b61b_S1-1 · S. 1
Maritime Partner 770 TWIN – Photo (00d4b5a1b61b_S1-1 S. 1)
Photo · 00d4b5a1b61b_S1-1 · S. 1
Maritime Partner 770 TWIN – Photo (00d4b5a1b61b_S1-1 S. 1)
Photo · 00d4b5a1b61b_S1-1 · S. 1
Maritime Partner 770 TWIN – Photo (00d4b5a1b61b_S1-1 S. 1)
Photo · 00d4b5a1b61b_S1-1 · S. 1

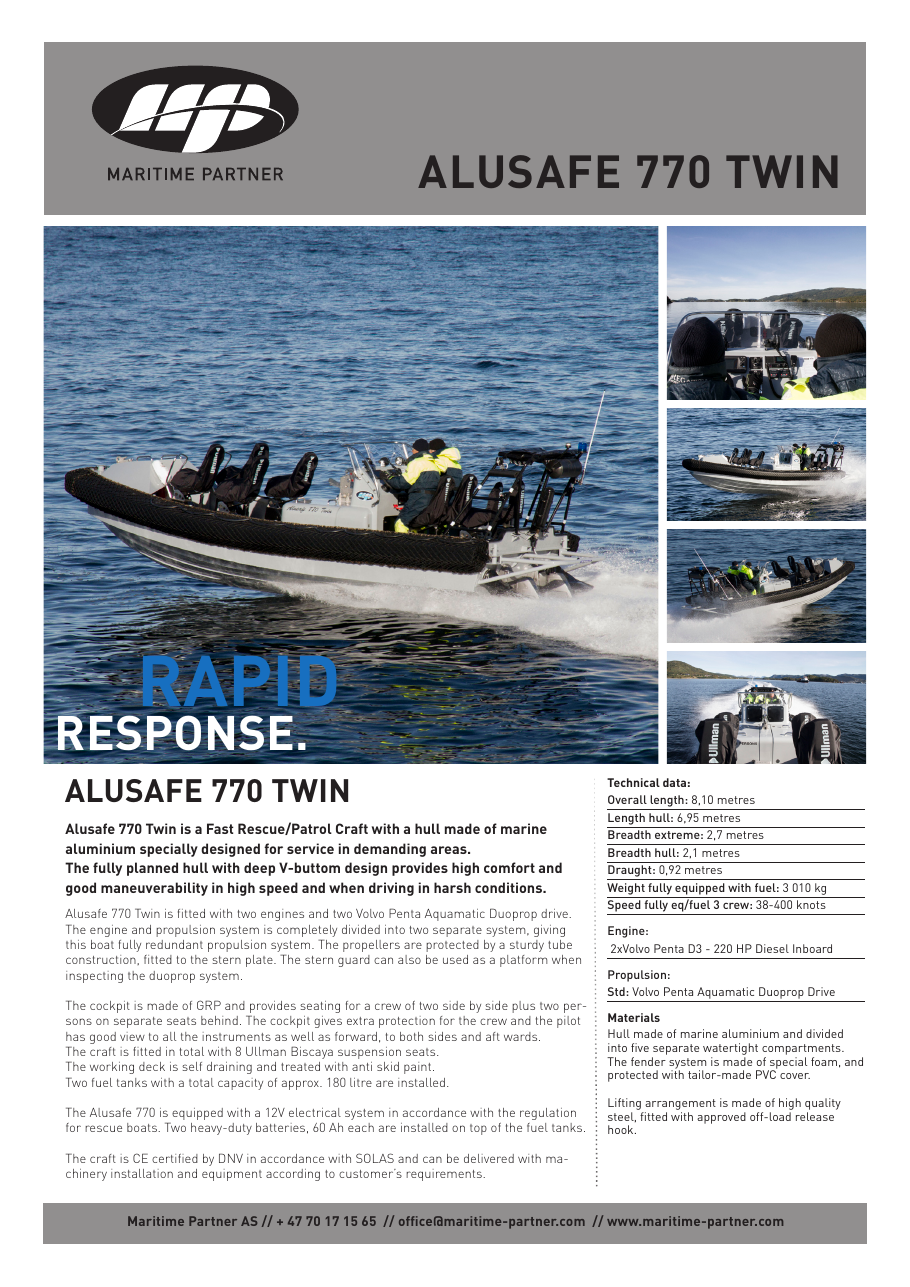

Maritime Partner 770 TWIN – Drawing (00d4b5a1b61b_S1-1 S. 1)
Drawing · 00d4b5a1b61b_S1-1 · S. 1
Source: Maritime Partner 770 TWIN datasheet, p. 1
