Library› Electrical› Instrumentation & Gauges› Pressure Gauge› Nuova Fima DS 100-150 мм
Nuova Fima

DS 100-150 мм

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Класс точности2,5 согласно стандарта EN 837
Амплитуда шкалы180°
Статическое давление100 бар максимум
Диапазон температур окружающей стреды-40…+65 °C
Температура измеряемой среды+150˚С
Степень защитыIP55 согласно EN 60529/МЭК 529
Материал штуцеровнержавеющая сталь AISI 316L
УплотненияVITON и PTFE
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“PED 2014/68/UE ATEX 2014/34/UE Эти манометры предназначены для измерения степени загрязнения фильтров, падения давления, разности скоростей потоков и, в общем случае, разности давлений в одном или…”

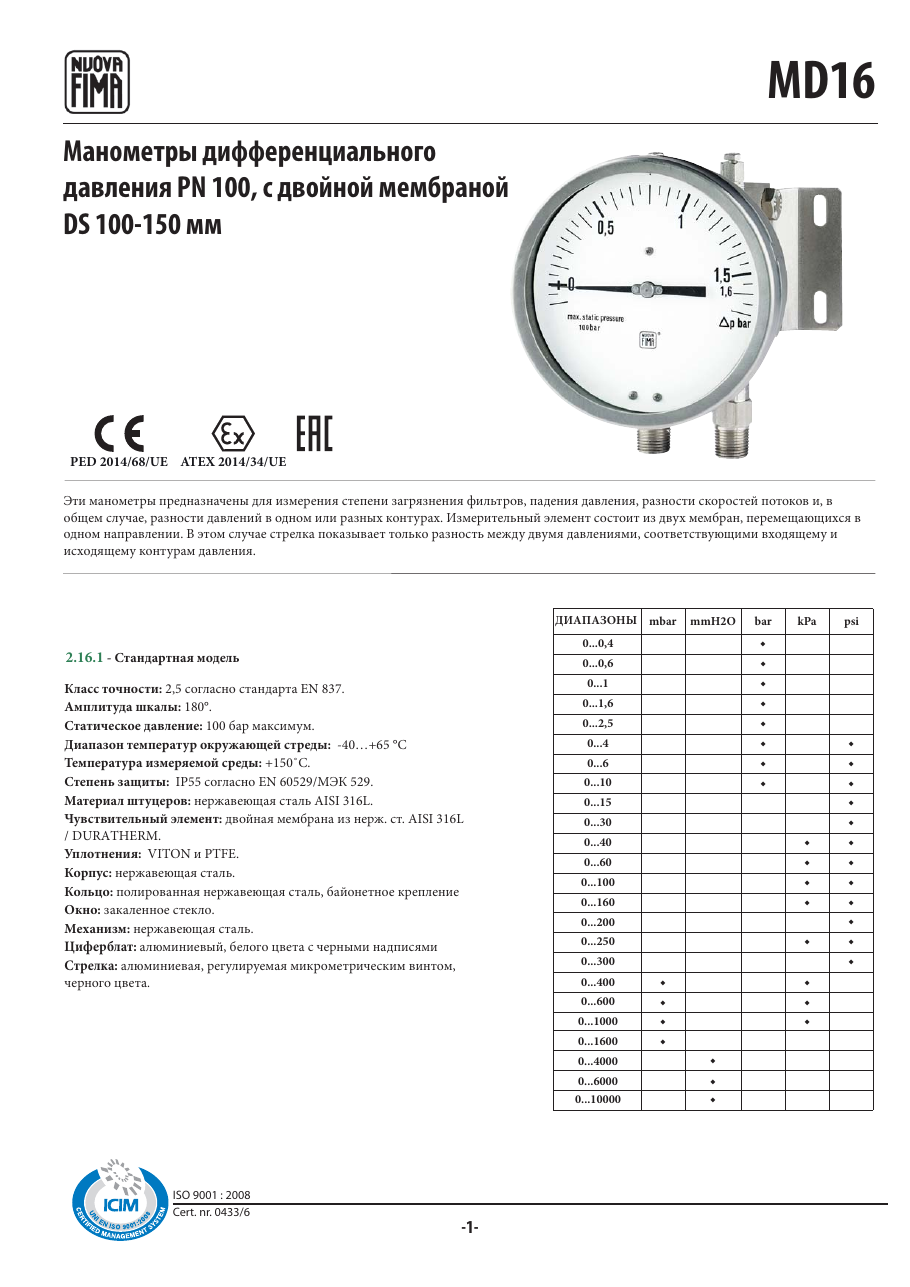

Nuova Fima DS 100-150 мм – Photo (8f956549863e_S1-1 S. 1)
Photo · 8f956549863e_S1-1 · S. 1
Nuova Fima DS 100-150 мм – Drawing (8f956549863e_S1-1 S. 1)
Drawing · 8f956549863e_S1-1 · S. 1
Source: 23040_RC6=Data Sheet MD16 DN100-150.ai, p. 1
