Library› Electrical› Internal Communication› Intercom & Telephone System› Zenitel Norway AS avd Horten VSP-223-L
Zenitel Norway AS avd Horten

VSP-223-L

Intercom & Telephone System · Internal Communication

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

IP ratingIP-44
Dimensions (WxHxD)238 x 130 x 77 mm
Panel cut-out205 x 105 mm
Weight1.30 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A batteryless telephone system with 12-way extension selector switch, suitable for control rooms and noisy areas.

Applications

  • control rooms
  • steering gear rooms
  • engine rooms
  • thruster rooms

Features

  • 12 extensions selector switch
  • built-in relay latch timer
  • alarm stop button
  • noise compensated microphone
  • optical LED call indication
  • flush mounted
  • wall mounting with metal cabinet
  • desk mounting with wooden cabinet

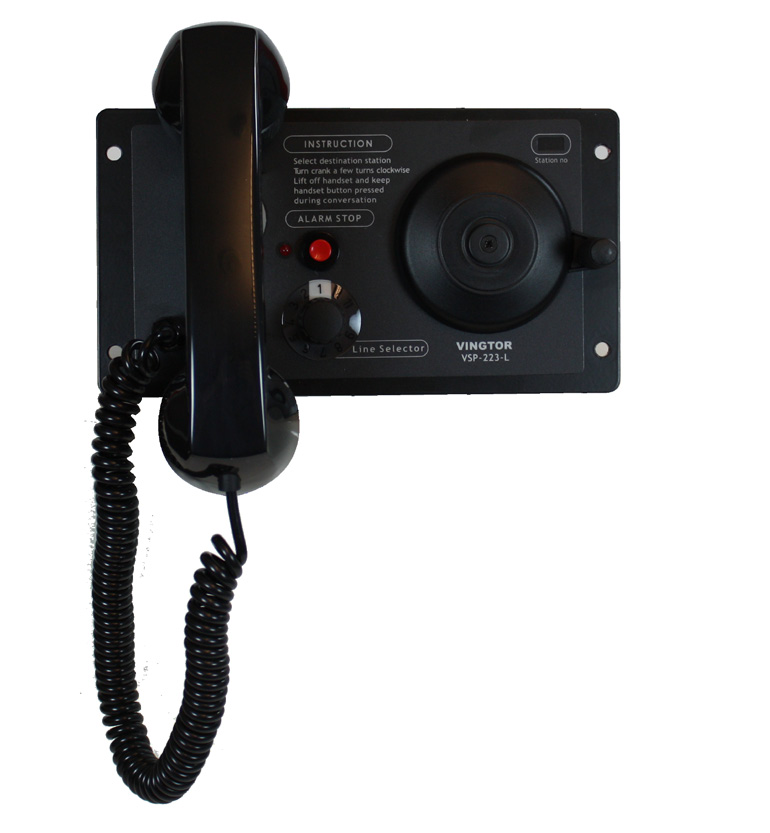

Zenitel Norway AS avd Horten VSP-223-L – Photo (601d31c5a79d_S1-1 S. 1)
Photo · 601d31c5a79d_S1-1 · S. 1
Zenitel Norway AS avd Horten VSP-223-L – Drawing (601d31c5a79d_S1-1 S. 1)
Drawing · 601d31c5a79d_S1-1 · S. 1

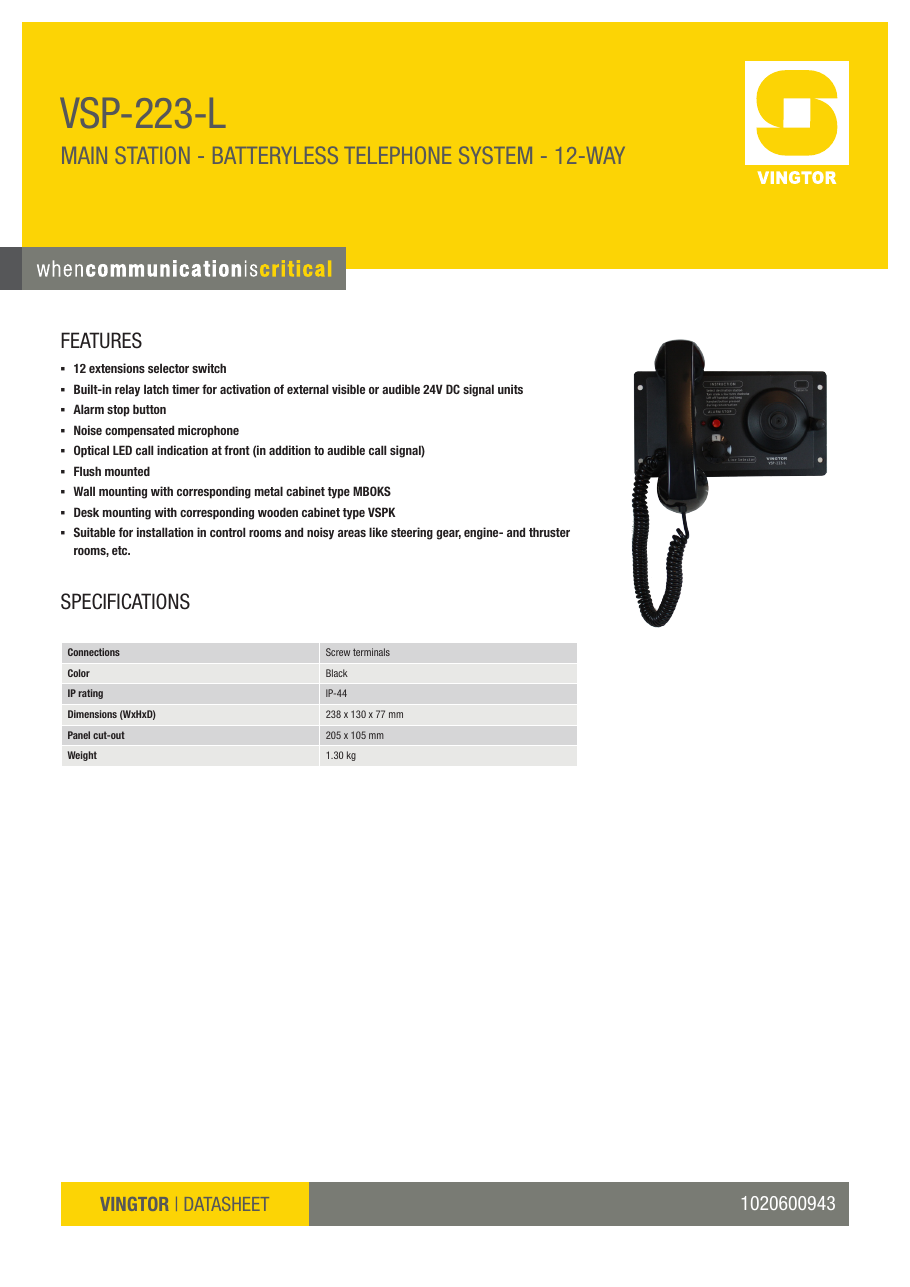

Source: Zenitel Norway AS avd Horten VSP-223-L datasheet, p. 1
