John Deere Power Systems

4045AFM85

Propulsion Equipment · Shaft Line & Propulsion

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

IMOTier 2
EPATier 3
Rcd2
Rated power119 kW
Rated speed160 rpm
Rated fuel consumption2300 L/hr
Length maximum - mm (in)1119 (44.1)
Height - mm (in)964 (37.9)
Height, crankshaft centerline to top - mm (in)653 (25.7)
Height, crankshaft centerline to bottom - mm (in)311 (12.2)
Bore and Stroke-- mm (in)107 x 127 (4.21 x 5.00)
Weight, dry - kg (lb)578 (1274)
Dublette von215142
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

PowerTech ™ 4045AFM85 Diesel Engine for marine generator drive.

Applications

  • Marine generator drive
  • Low RPM operation

Features

  • EPA Commercial Marine Tier 3 compliant
  • IMO MARPOL Annex VI Tier II Compliant
  • Marine China Stage I compliant
  • High-pressure Common-rail (HPCR) fuel system
  • Keel-cooled or heat exchanger option

Options

  • Low RPM operation
  • Electronic Engine Control Unit (ECU)

Standards

  • SOLAS

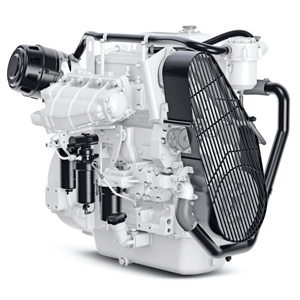

John Deere Power Systems 4045AFM85 – Photo (c23b6b455521_S1-1 S. 1)
Photo · c23b6b455521_S1-1 · S. 1

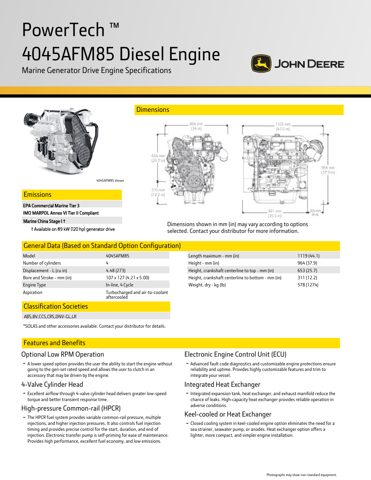

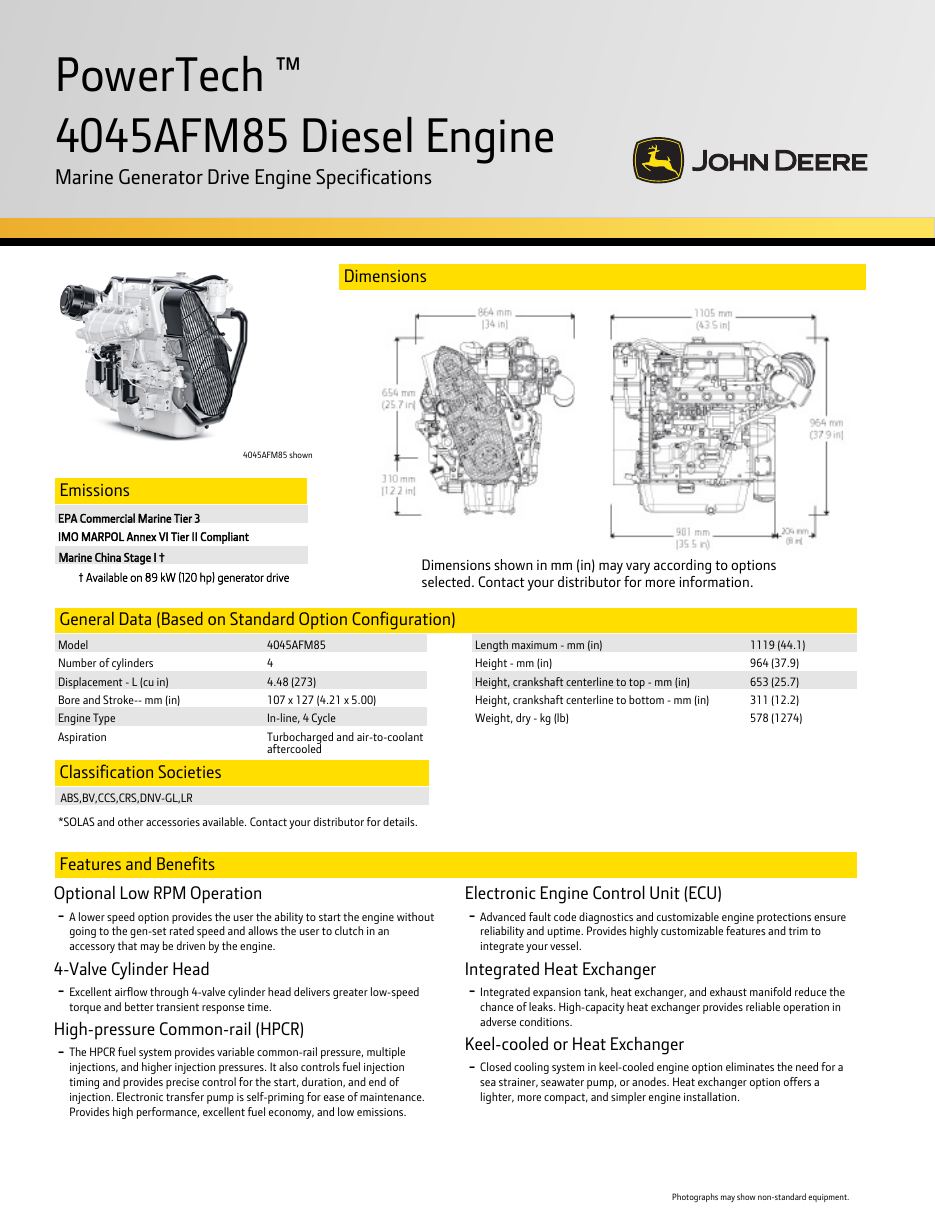

John Deere Power Systems 4045AFM85 – Drawing (c23b6b455521_S1-1 S. 1)
Drawing · c23b6b455521_S1-1 · S. 1
Source: John Deere Power Systems 4045AFM85 datasheet, p. 1
